Assessment dashboard in Configurable Workspace of Cloud Migration Assessment

  • Release version: Xanadu
  • Updated August 1, 2024
  • 2 minutes to read

    • Use the ServiceNow® Cloud Migration Assessment application to plan, organize, and track the process of relocating your enterprise IT resources and workloads to cloud platforms. Analyze the IT resources using dashboards that visualize and summarize information on resources by different categories. Use the Assessment dashboard to review the statistics of the migration tasks and monitor the migration progress.

    Required ServiceNow AI Platform roles

    sn_cloud_migration.operator, uses Cloud Migration Assessment.

    Access the Assessment dashboard

    To open the dashboard, navigate to All > > Cloud Migration > Cloud Migration Workspace, and then select Assessment dashboard Assessment dashboard icon.

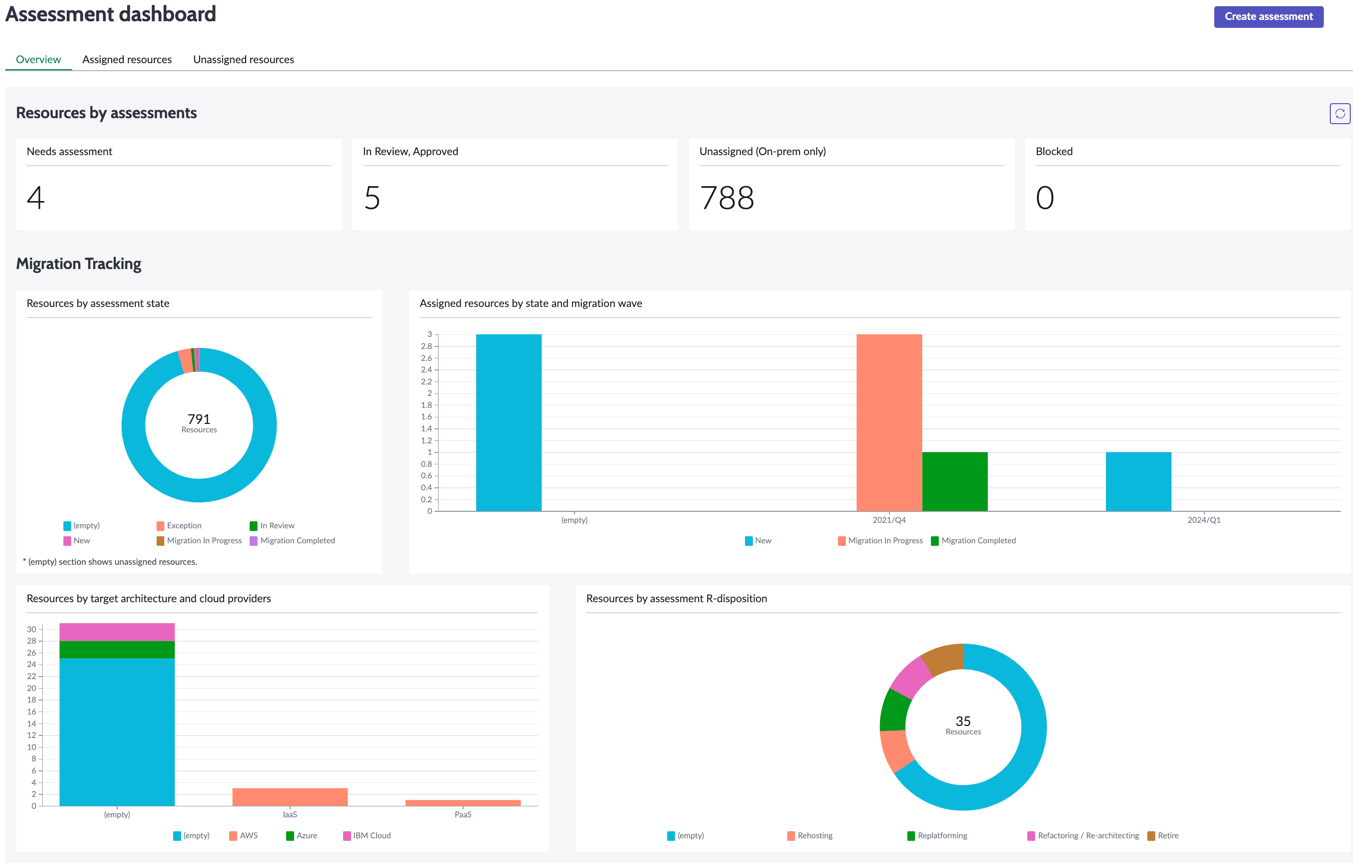

    Figure 1. Assessment dashboard

    Assessment dashboard

    Use cases

    For examples of how different people in your organization would use this dashboard, see these use cases.
    User Dashboard use
    sn_cloud_migration.operator Review the statistics of the migration tasks and monitor the migration progress. Drill down to see detailed information on resources in relevant categories.

    Indicators

    Resources in new assessments
    The resources of all categories assigned to assessment tasks in New state.
    Resources in review and approved resources
    The resources of all categories assigned to tasks in Review or Approved state.
    Unassigned on-premise resources
    The resources that you haven't assigned to any assessment tasks.
    Blocked resources
    The resources of all categories assigned to tasks in Blocked state.

    Data visualizations

    The following visualizations are available on the Overview tab of Cloud Migration Assessment.
    Title Type Source table Description
    Resources by assessment state Donut
    Donut report icon
    		 Assigned Resource for Migration [sn_cloud_migration_task_resource_m2m] A donut report that shows resources of all categories by their assessment task state.
    Assigned resources by state and migration wave Bar
    Bar report icon
    		 Assigned Resource for Migration [sn_cloud_migration_task_resource_m2m] A bar report that presents resources by state and migration wave.
    Resources by target architecture and cloud providers Bar
    Bar report icon
    		 Assigned Resource for Migration [sn_cloud_migration_task_resource_m2m] A bar report that presents resources by target architecture and cloud providers.
    Resources by assessment R-disposition Donut
    Donut report icon
    		 Assigned Resource for Migration [sn_cloud_migration_task_resource_m2m] A donut port that shows resources by the migration strategy (R-disposition) selected for their respective assessments.
