Add post-provisioning to a Cloud Formation Template-based catalog item

Create a workflow post-provisioning operation on a Cloud Formation Template (CFT)-based catalog item.

Before you begin

Role required: sn_cmp.cloud_service_designer.

About this task

In this example, create a key pair at the AWS console, then select the appropriate credentials, discover cloud accounts, create a CFT-based catalog item, add a workflow post provisioning operation to the catalog item, and lastly provision the catalog item.

Ensure that you've met the following prerequisites before you start working on this example:

• The Cloud Provisioning and Governance plugin is activated.
• AWS Credentials and Service Account are set up.
• The Cloud Account for AWS Logical Data Center is created.
• The Key pair is configured on AWS and is available in CMP as “cmdb_ci_cloud_key_pair”.
• A workflow is available on an instance. This example uses the SSH_Workflow_New workflow.
• A script include to fetch the private and public IP is available.

Procedure

1. At the AWS console, create a new key pair.
   Give the key pair a name, for example, ItappWOP.
   When you create a key pair, a PEM file is automatically downloaded onto your system.
2. Open the PEM file and copy all the contents of the file.
3. Navigate to the Credentials application using the filter navigator in your instance.
4. Click New and then select SSH Private Key Credentials.
5. In the Name field, enter a name (Itappwop) .
6. In the SSH Private Key field, paste the contents of the PEM file.
7. In the Credential alias field, enter an alias name (Itappwop).
   The Alias name must be the same name that you entered in the Name field.
8. Click Submit.
9. To discover cloud accounts to sync data from AWS, run ServiceNow® Discovery.
10. Create a cloud catalog item based on AWS CFT to provision a stack.
    1. Navigate to Cloud Admin Portal > Design > Cloud Catalog items
    2. Click New.
       The Cloud Catalog Item screen appears.
11. Enter a unique name for the catalog item in the Name field, select Cloud Template in the Source field and Cloud Formation Template in Template type field.
12. Click Submit.
    The catalog item is generated.
13. Create a cloud template and associate the template with the catalog item.
    1. Navigate to Cloud Admin Portal > Design > Cloud Catalog Items.
    2. Open the catalog item record that you want to create a cloud template for and click Cloud Templates > New.
       The Cloud Template Versions screen appears.
    3. In the Ingestion Method list, select Use template body and paste the contents of the AWS CFT in the Body field.
    4. Click Save.

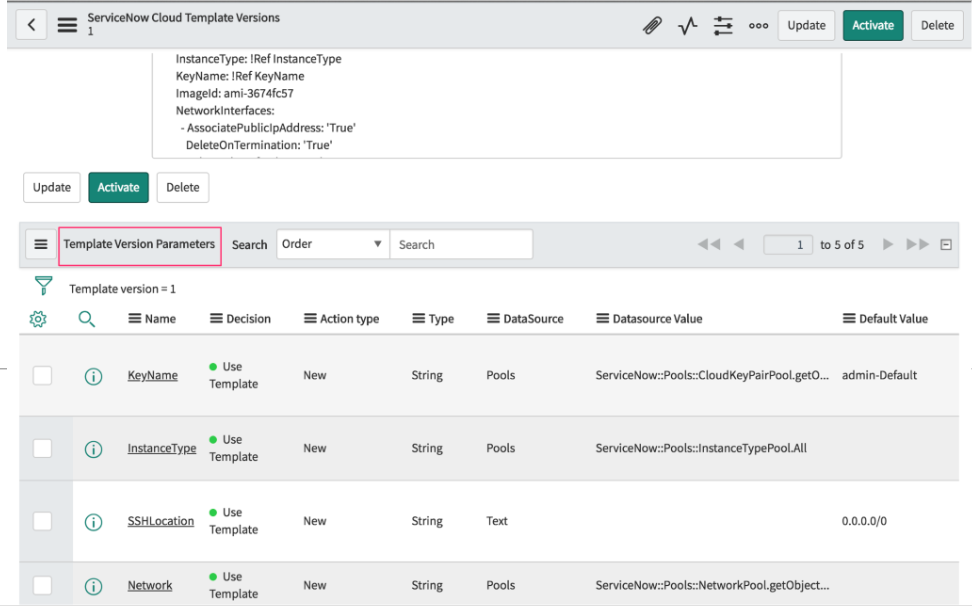

       All variables extracted from the AWS CFT appear in the Template Version Parameters section.



    5. Click Activate.
       The catalog item is generated.
14. Go to the Cloud User Portal and open the catalog item that you just generated.
    On the Provision tab, you can see all variables extracted from the template. You can add a workflow post provision operation to the catalog item.
15. Navigate to Cloud Admin Portal > Design > Cloud Catalog Items.
16. Open the catalog item record that you want to create the workflow post provisioning operation for.
17. Click the Post Provisioning Operation subtab and then click New.
    The Operation Step screen appears.
18. Select Workflow in the Setup Type list and select SSH_Workflow_New in the Flow list.
19. Click Submit.
    Parameters for the workflow operation are automatically created as operation attributes in the Manage Attributes screen.
20. Click Manage Attributes.
    The Manage Attributes screen appears.
21. Click Provision EC2 Instance with SSH Script.Post Provision.
22. Click the key_name attribute and enter either the Credential alias value (Itappwop), or enter an expression mapping in the Mapping field.
    Mappings specify where to pull the information in the system. See Using expressions in Cloud Provisioning and Governance.
23. Click the Stack ID attribute and enter the expression mapping $(context.order.stack).
24. Click Apply Changes.
    Workflow is mapped as a post provision operation to the catalog item that you generated.
25. Provision the CFT-based catalog item in the Cloud User Portal.
    1. Navigate to Cloud User Portal and click Launch a Stack.
    2. Open the catalog item that you want to provision and enter values in all the mandatory fields on the General Info and Provision tabs.
26. To provision the catalog item, click Submit.
27. Validate the provisioned catalog item upon completion.
