Bind alerts to application CIs

  • Release version: Xanadu
  • Updated August 1, 2024
  • 1 minute to read

    • Create an event rule to bind alerts to the host CI and also to the application CI. An incoming event from an application CI can bind to an alert based on event rule transform information.

    Before you begin

    Role required: evt_mgmt_admin

    About this task

    For example, you can bind alerts to an SQL server application when the CPU on sqlServer.exe is over 90%:
    • Make sure that the event includes the host name.
    • Create an event rule with an Event Match Field entry that maps the process name to the sa_process_name mapping variable. In this case, do not use the CI type.
    • Use the Process to CI Type Mapping module to add custom patterns.

    In the binding process, the following steps occur:

    • Identify the host.
    • If the host is found, find the application on the host. An application is considered to be running on the host if it has a "Runs on:Runs" relationship from the application to the host CI in the cmdb_rel_ci table.
    • If the event rule for the transform CI type is defined, find an application CI on that host in the CMDB.
    • If all the alert additional_info about the CI matches CMDB CI fields, bind the alert to the application CI.

    Procedure

    1. Navigate to All > Event Management > Rules > Event Rules.
    2. Click New and fill in the appropriate fields of the event rule.

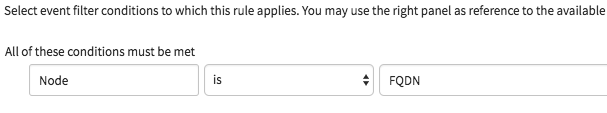

    3. In the Event Filter tab, select Node, select an operator, and then enter the CI name, FQDN, IP, or MAC address values for the host binding.

      For example, you can specify that the node is FQDN.

      Event field binding value
    4. Click Submit.
