Database rotation

  • Release version: Xanadu
  • Updated August 1, 2024
  • 1 minute to read

    • Database rotation involves managing table size growth and archiving old data.

    Instance data grows quickly, and as these tables grow in size they require management. Database rotation preserves instance performance and averts risk associated with querying growing data sets utilizing three techniques. These techniques are based on the concept of managing large quantities of data by separating whole sets into individual tables. After this task is performed, each technique handles data in a different manner:
    • Table Rotation works by rotating among a small set of tables, and deleting and reusing the old tables for new data.
    • Table Extension works by periodically starting a new table and allowing old tables to be easily archived and removed from the system.
    • Table Sharding works by enabling records to be grouped in a single table by document ID.
    Table 1. Database Rotation
    Functionality Tables applied to
    Table Rotation syslog

    sys_querystat

    ecc_queue

    ecc_event

    cmdb_metric

    sysevent
    Table Extension

    sys_email

    Table rotation and extension

    The Table Rotations module allows you to define a new table rotation, a new table extension, a new table shard, or modify an existing one. You can access a list of table rotations on your instance by navigating to All > System Definition > Table Rotations > .

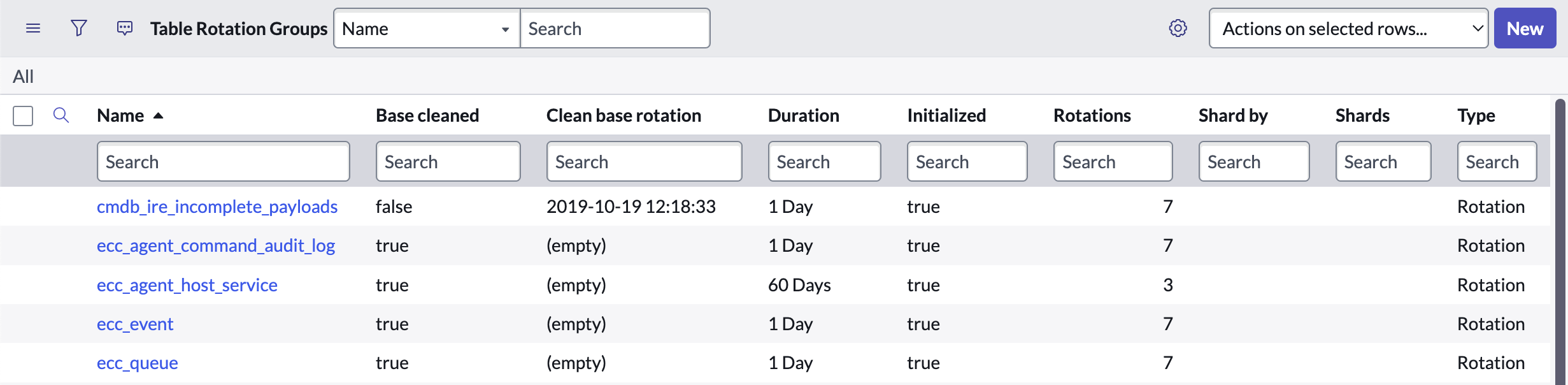

    Figure 1. Table rotation groups
    Table rotation groups
    • Name: auto-generated from table name
    • Duration: overall time parameter for function
    • Initialized: sets function as active (true) or inactive (false)
    • Rotations: number of tables to be created within Duration
    • Type: indicates Extension (archiving), Rotation (deletion), or Shard (doc ID) functionality

    When you define a new rotation, a schedule is created and new data is subsequently written to one of the tables in the rotation group. You will notice the that the group includes the original table plus a number of additional tables. Be aware that deleting a rotation will delete the additional tables and all the data, therefore the rotation should not be deleted if the data is needed.
