Values to associate with choice labels for scripting

  • Release version: Xanadu
  • Updated August 1, 2024
  • 1 minute to read
  • When you write a script that references a choice list, you need to know the value that is associated with each choice.

    For example, to check whether the incident_state field is active, you could not use the condition current.incident_state == "active" because the value associated with the choice labeled Active is the integer 2. Instead, you would use the condition current.incident_state == 2.

    The Type field on the choice list dictionary entry determines the data type of the values.

    To determine the value associated with a choice, right-click the field label and select Show Choice List, and then locate the choice for which you need to know the value.

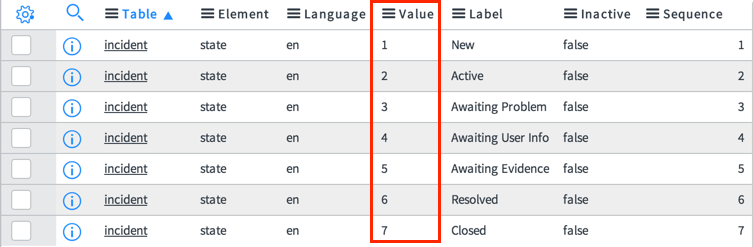

    Figure 1. Show choices list values
    The -- None -- option may not have a sys_choice record associated with it. A choice list field set to -- None -- evaluates to these values, depending on the script context as listed below.
    • For client-side scripts,such as client scripts: "" (empty string)
    • For server-side scripts, such as business rules: "0" (string of the number zero)
