Create a dynamic schema reference

  • Release version: Xanadu
  • Updated August 1, 2024
  • 1 minute to read

    • Add a reference field that points to the dynamic schema metadata that you've created.

    Before you begin

    Role required: admin

    Procedure

    1. Navigate to All > System Definition > Tables.
    2. Select the table that you want use for storing dynamic attributes.
    3. In the Table Columns related list, select New.
    4. Create a reference to your dynamic schema for a group, multiple groups, category, or multiple categories.
      Reference TypeSteps
      Dynamic attribute group reference
      1. In the Type field, select Reference.
      2. Enter a name for the dynamic attribute group that you're referring to in the Column label field.
      Dynamic attribute groups reference
      1. In the Type field, select List.
      2. Enter a name for the dynamic attribute groups that you're referring to in the Column label field.
      Dynamic category reference
      1. In the Type field, select Reference.
      2. Enter a name for the dynamic category that you're referring to in the Column label field.
      Dynamic categories
      1. In the Type field, select List.
      2. Enter a name for the dynamic categories that you're referring to in the Column label field.
    5. In the Reference Specification tab, select the dynamic schema element that contains the attributes you want to store on a record.
      • Reference attributes in one or more dynamic attribute groups by selecting Dynamic Attribute Group in the Reference field.
      • Reference attributes in one or more dynamic categories by selecting Dynamic Category in the Reference field.

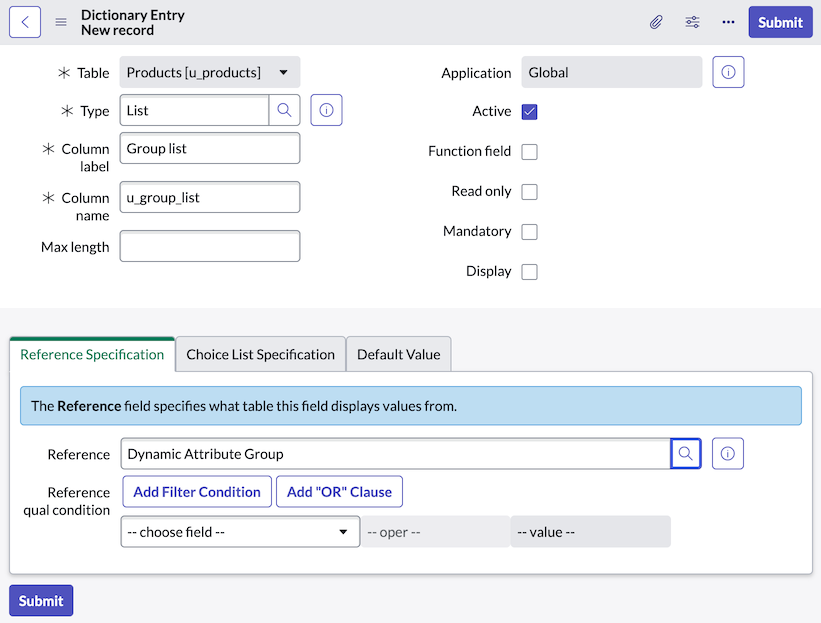

    Add a reference to a dynamic attribute group

    Add a List field that references a dynamic attribute group.

    What to do next

    Create a dynamic attribute store field
