Troubleshoot a slow pattern

Identify the source of a slow pattern and prioritize potential performance improvements.

Before you begin

Role required: sn_app_insights.admin or admin

Procedure

1. Navigate to All > Application Insights > Application Insights > Slow Patterns.
2. Look for potential performance issues by viewing the Slow Events, Slow Transactions, Slow Queries, and Slow Scripts tables.
   • Focus on a 1-day, 7-day, or 30-day period by selecting a day range.
   • Identify patterns with consistently high execution times by sorting on the Average execution time in range column.
   • Find out which patterns are executed the most often by sorting on the Execution count in range column.
3. Select a slow pattern with a high execution time and high execution count.

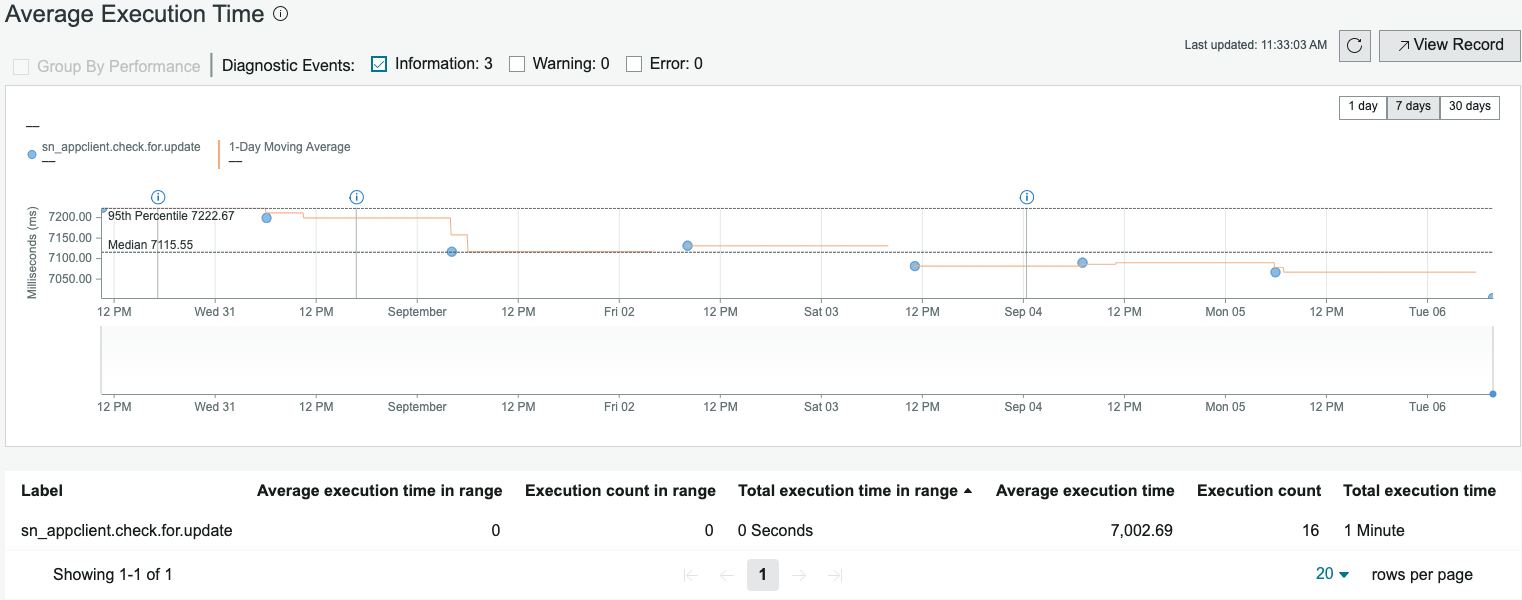

   The Average Execution Time detail graph shows the slow pattern's execution time and its 1-day moving average.
4. View the performance for the slow pattern over time by analyzing the Average Execution Time detail graph.



   • Look for spikes within the selected time range. Look for correlations to impactful system events that might indicate a false alarm by overlaying diagnostic events.
   • View the number of times the pattern was executed in the selected time range.
   • Determine whether performance is worsening over time by viewing the direction of the 1-Day Moving Average trend line.
5. Find out what is triggering the slow pattern by selecting View Record.
   The slow pattern record appears and provides additional details including the query or script contents, the first time it was executed, and the last time it was executed.
6. To access additional helpful information for troubleshooting, add the Referenced Scripts and Related Slow Patterns related lists.

   Option	Description
   Slow scripts	Select the form context menu (). Change the form view by selecting View > Slow Script Insights.
   Slow queries	Select the form context menu (). Change the form view by selecting View > Slow Query Insights.

7. Determine the cause of the slowness.
   • When investigating a slow query, determine which script or business rule triggered the slowness by finding the entry with the highest calling order in the Referenced scripts related list. For example, suppose a slow query is triggered by a script whose calling order is 2 that is called by a business rule whose calling order is 1. That script directly triggered the slow query because it has the highest calling order.
   • When investigating a slow script, identify the slow patterns triggered by the script by viewing the patterns in the Related slow patterns related list. Determine which slow patterns to investigate first by sorting on the Average Execution Time in Range and Average Execution Count in Range columns. Investigate the slow patterns with the highest values in each column first.
   • Confirm a potential issue by viewing the Related slow patterns list, which provides a list of other slow patterns that have referenced scripts in common. If multiple slow patterns reference the same script include or business rule, you can be confident that is where the issue lies.
8. Optional: For troubleshooting multiple slow patterns, open each record, check the number of entries in the Related Slow Patterns related list, and prioritize debugging or resolving the slow pattern with the higher count.
   Debugging the slow pattern with the higher count is more likely to make a greater performance improvement.
9. Take actions to solve the performance issue.
   • Optimize or remove the offending script include or business rule.
   • Determine whether you can avoid using the slow query. If the query is required, try to optimize it with additional query conditions or a sys_id query so that it returns only the information that is needed.
   • Determine whether an index can optimize the performance of the slow query.

Troubleshooting a slow query

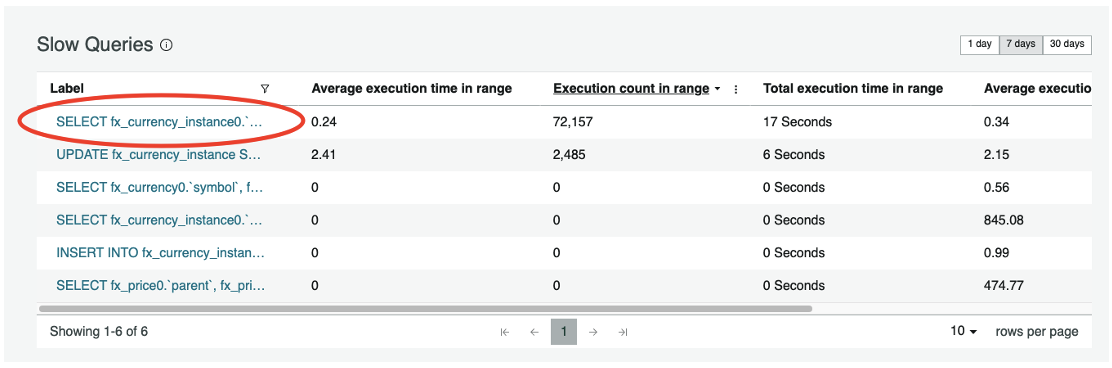

After sorting the Slow Queries table by the Execution count in range field, you see a SELECT statement with a high execution count over the last 7 days.

To find out what is triggering this slow query you would select the query name to open the detail graph, and then select View record.

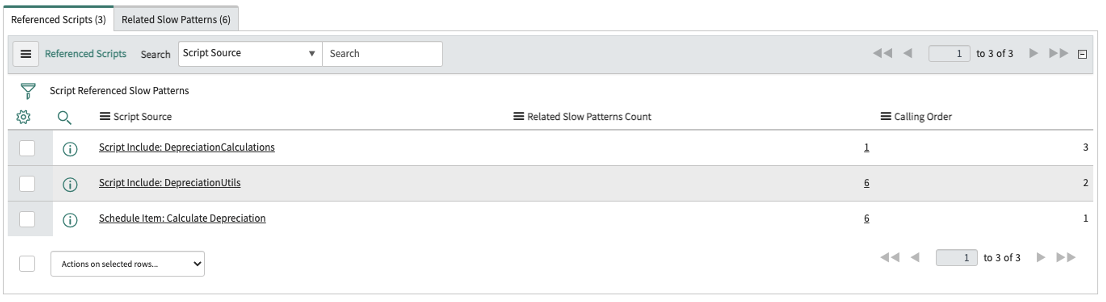

The Referenced Scripts related list displays three scripts. The DeprecationCalculations script has the highest calling order of all the referenced scripts, indicating that it directly triggered the slow pattern.

To remedy the issue:

• Examine the DeprecationCalculations script include and determine whether you can avoid using this query. In this example, the query is against the fx_currency table, which implies a currency calculation is happening. Try to circumvent this calculation or remove it if it isn't necessary.
• If the query cannot be avoided in DeprecationCalculations, determine whether the call to the other scripts with lower call orders could be avoided or decreased in execution count. In this example, DepreciationUtils needs to call into DeprecationCalculations, but perhaps you could set the scheduled job Calculate Depreciation to be run less frequently.
• If adjustments to the scripts lower in the call order are not viable, consider adding an index to potentially help with performance.
