Parameters

  • Release version: Xanadu
  • Updated August 1, 2024
  • 1 minute to read

    • The following parameters are available in a direct JDBC probe.

    Parameter Description
    jdbc_driver Required. Java class name for the JDBC driver to use, the currently supported drivers are:
    • Oracle: oracle.jdbc.OracleDriver
    • Microsoft SQL Server: com.microsoft.sqlserver.jdbc.SQLServerDriver
    • MySQL: com.mysql.jdbc.Driver
    Example
    com.microsoft.sqlserver.jdbc.SQLServerDriver
    Parameter Description
    connection_string Required. The JDBC connection string/URL for defining the connection usually contains information about the database server and name, the user ID, and password for connecting to the database. The syntax is vendor-specific. See the following links for reference:
    • Oracle: [jdbc:oracle:thin:<username/password>@<database>]
    • Microsoft SQL Server: [jdbc:sqlserver://localhost;user=MyUserName;password=*****;]
    • MySQL - [jdbc:mysql://localhost/database?user=username%26password=passwd]
    Example
    jdbc:sqlserver://xxx.service-now.com;
databaseName=SMS;
user=sms_user;
password=sms_password;
    Parameter Description
    work Required if not using the table_name parameter short cut.

    Parent element of an XML fragment describing the SQL command to execute.
    Example
    ...
  <parameter name= "work" ><select table = "System_DATA" where = "InstanceKey=692" ><MachineID /><SMSID0 /></select></parameter>
  ...
    Parameter Description
    query_timeout Optional during SELECT. Number of seconds the JDBC driver waits for a query (SELECT) to complete. Zero means no timeout. If timeout is exceeded, the integration considers the JDBC result inaccessible and places it in an error state.
    Parameter Description
    table_name Optional (except required during count_rows == true).

    Alternate way of executing a select * query; instead of using the work element. Equivalent to executing select * from <table_name>.
    Parameter Description
    count_rows Optional. Indicates whether a select count(*) query should return the number of rows (true/false). The result of the count is returned as a row_count element in the result element.
    Parameter Description
    query Optional. Type of query. Possible choices are "All Rows from Table" or "Specific SQL." If "Specific SQL", the sql_statement will be required to specify the SQL statement.
    Parameter Description
    sql_statement Optional. Use a specific SQL query. The presence of this element executes a direct query specified in the value attribute.
    Example
    ...
  select * from any_table where id = 123
  ...
    Parameter Description
    skip_sensor Optional. Determines if Discovery attempts to process the ECC input from the JDBCProbe. Default = true
    For example, to query a table using a direct JDBC probe, requires the following parameters:
    • JDBC driver class name
    • JDBC connection string
      • Database server
      • Database name
      • User name
      • User password
    • The table name

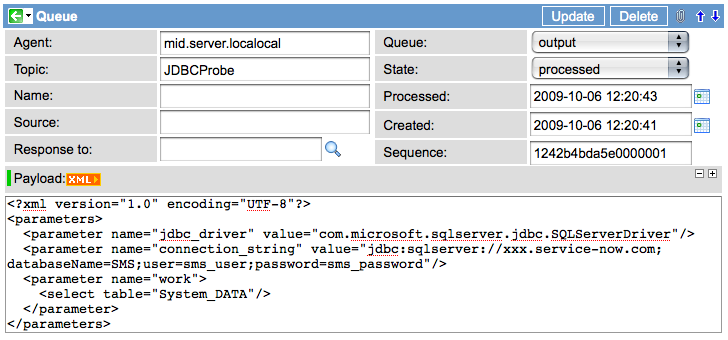

    Figure 1. Queue form
    Queue form.
