VMware NSX load balancer extension classes

  • Release version: Xanadu
  • Updated August 1, 2024
  • 1 minute to read

    • The CMDB CI Class Models store app adds or updates classes for VMware NSX load balancers.

    The app adds class models that extend the CMDB class hierarchy, including class descriptions, identification rules, identifier entries, and dependent relationships if applicable. You can use the added classes as any other CMDB class. Applications such as Discovery and Service Mapping patterns can use these class extensions to populate CIs and discover various technologies and software.

    Request apps on the Store

    Visit the ServiceNow Store website to view all the available apps and for information about submitting requests to the store. For cumulative release notes information for all released apps, see the ServiceNow Store version history release notes.

    VMware NSX load balancer

    NSX is a network virtualization solution offered by VMware. Among the virtual resources included in the NSX solution are virtual LANs (VLANs), virtual load balancers, virtual routers, switches, and firewalls.

    ServiceNow Discovery uses the VMware NSX Advanced load balancer discovery pattern to find VMware NSX load balancers and their components: Listeners, pools, pool members, and health services.

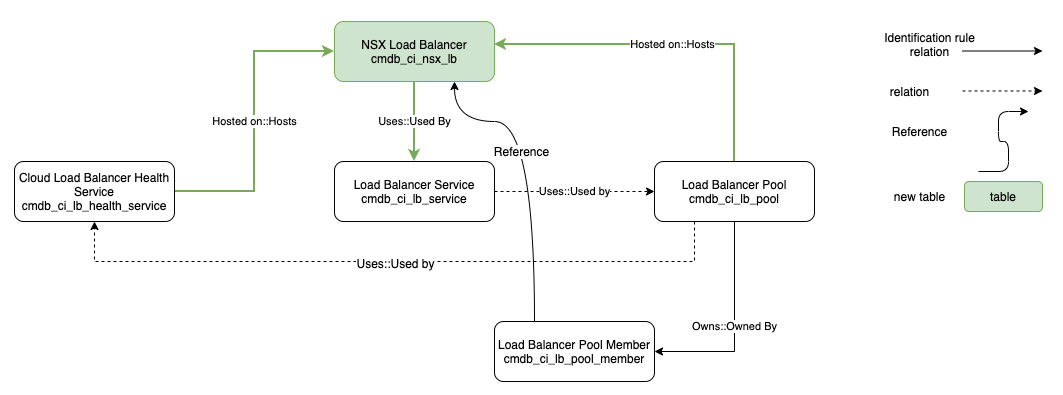

    Figure 1. VMware NSX load balancer classes integrated with the CMDB class hierarchy

    VMware NSX load balancer classes integrated with the CMDB class hierarchy.

    Classes

    This section lists the classes that the CMDB CI Class Models store app adds or updates.

    CMDB CI Class Models: Release 1.10.0 adds the following classes for the VMware NSX load balancer. For the list of CMDB classes in a base system, including ones that this store app is extending, see CMDB tables descriptions.

    Class Extends Description
    NSX Load Balancer [cmdb_ci_nsx_lb] Load Balancer [cmdb_ci_lb] The table containing the NSX Load Balancer resources.

    Class columns

    The VMware NSX Advanced load balancer discovery pattern introduces one new table with one identification rule and entry. The table uses only the columns inherited from its parent.
