Dependency Views map
Summarize
Summary of Dependency Views map
Dependency Views maps in ServiceNow graphically represent configuration items (CIs) that support application or business services and illustrate their relationships. These maps highlight dependencies, making it easier to visualize the infrastructure supporting IT services. The Unified Map feature within the CMDB Workspace combines Dependency Views with Service Mapping into a cohesive mapping experience.
Show less
Key Features
- Root CI: Each map features a root CI, which is prominently displayed with a pulsing effect to draw attention.
- Dependency Levels: By default, maps show three levels of upstream and downstream dependencies, with the option for administrators to adjust this setting.
- Cluster Management: Clusters in the map are collapsed by default for better visibility and can be expanded as needed.
- Issue Indicators: CIs are marked with indicators to show any active or pending issues, allowing for quick investigation.
- Automatic Refresh: The map updates automatically to reflect changes in the CMDB.
- User Roles: Users with itil and ecmdbadmin roles can access and interact with maps, including using saved filters.
Key Outcomes
ServiceNow customers can expect Dependency Views maps to enhance their ability to manage IT services by providing a clear visual representation of service dependencies. This functionality supports proactive issue resolution and improved service delivery. The unified experience of the maps allows for easier navigation and better data management, ultimately contributing to more effective IT operations.
ServiceNow® Dependency Views maps graphically display CIs that support application or business services and the relationships between the CIs.
The CMDB Workspace store app provides the Unified Map feature as an alternative to using Dependency Views. Unified Map combines the capabilities of Dependency Views and Service Mapping into a single map experience.
A ServiceNow service (application service or business service) is work or goods that are supported by an IT infrastructure. For example, delivering email service to an employee can require services such as email servers, web servers, and the work to configure the user's account.

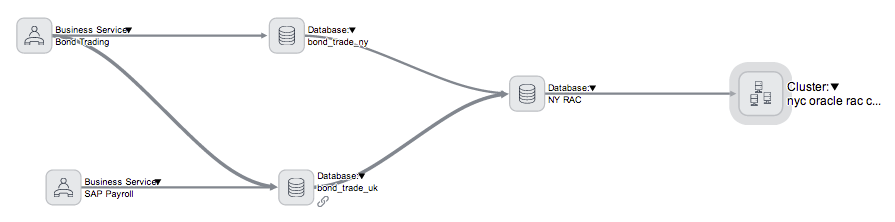

A Dependency Views map has one starting point, called the root CI or root node of the map. The root CI is surrounded by a darker frame that repaints itself with a pulsing effect drawing the attention to the root CI. The maps can show both upstream and downstream dependencies for the root CI. By default the Dependency Views map displays 3 levels, both upstream and downstream relationships. Administrators can configure the number of levels displayed. The map collapses and expands clusters to make them easier to view. By default, clusters are collapsed.
In a Dependency Views map, map indicators indicate if a CI has any active, pending issues. You can investigate the tasks that are connected to a CI to get more details. When you return to the map from another form, the system
restores the last map viewed, using the default filter and layout settings. When you click the icon (
) on a CI record or on a task record that identifies a CI, the map opens.
Many of the relationships in map are created through the discovery process. You can also create, define, and delete CI relationships in the map. You can display the map from different perspectives and open specific records that relate to configuration items. The system refreshes the map automatically to reflect changes to the CMDB.
The Dependency Views module is active in all instances, and includes demo data.
When you click the map icon [] on a CI record or on a task record that identify a CI, a map opens.
Roles
Users with the itil and ecmdb_admin roles can view maps and perform all actions in the map. Actions include access to the map views and saved filters, both from the lists in the map and from the Saved Filters module.
