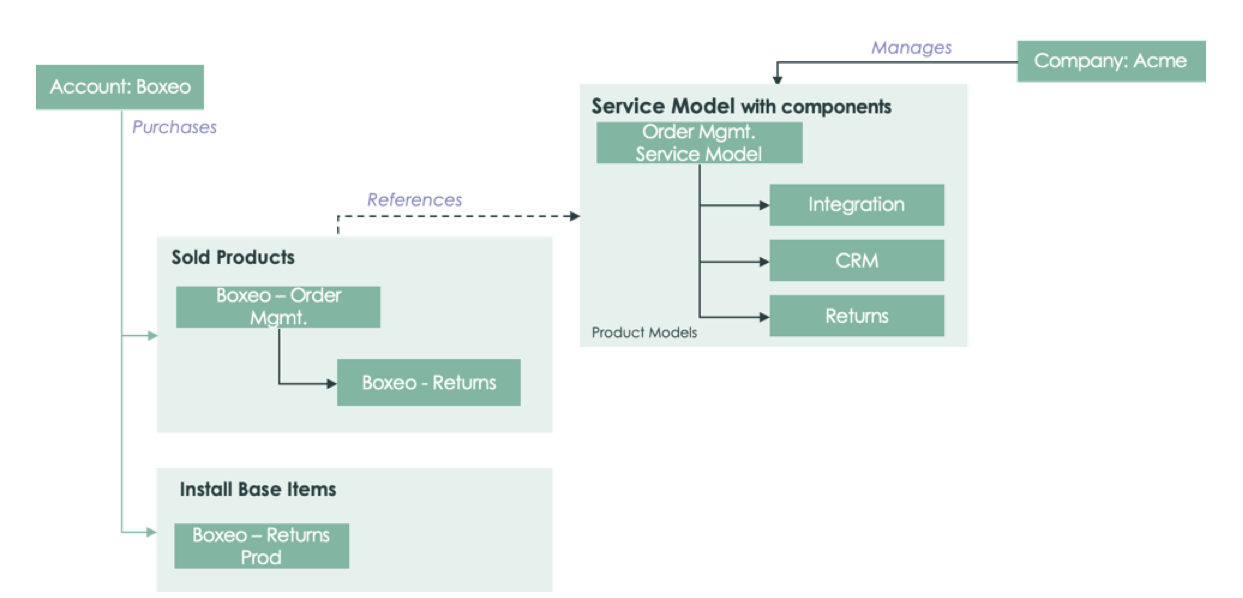

On-Premises Service Usage: Services tracked in the ServiceNow AI Platform but deployed on customer premises (e.g., Order Management).

Benefits for ServiceNow Customers

By leveraging CSM and CSDM, customers can:

Gain visibility into customer purchases, installations, and service health, enhancing support and service delivery.
Enable proactive case creation and communication between NOC engineers and customer service agents, improving response to service issues.
Track subscriptions and service usage across multiple customers and deployment models, supporting flexible service management.
Facilitate customer self-service by providing access to product and service information, outages, and service requests.

Additional Resources

ServiceNow customers can explore further configuration and operational capabilities such as:

Integrating Service Portfolio Management with customized form views.
Viewing product and install base information via Customer Service Portal and Agent Workspace.
Creating proactive cases from alerts and managing service health and outage tracking.

In this example, the CSDM helps the fictitious ACME technology company use CSM to manage network monitoring services for customers.

Example scenario: Key personas and how they benefit

ACME offers a network monitoring service to its enterprise customers who can purchase either the Platinum, Gold, or Silver offering. A customer, Boxeo, has purchased the network monitoring Platinum offering (Sold Product) and is using it in development and production environments (Install Base Item).

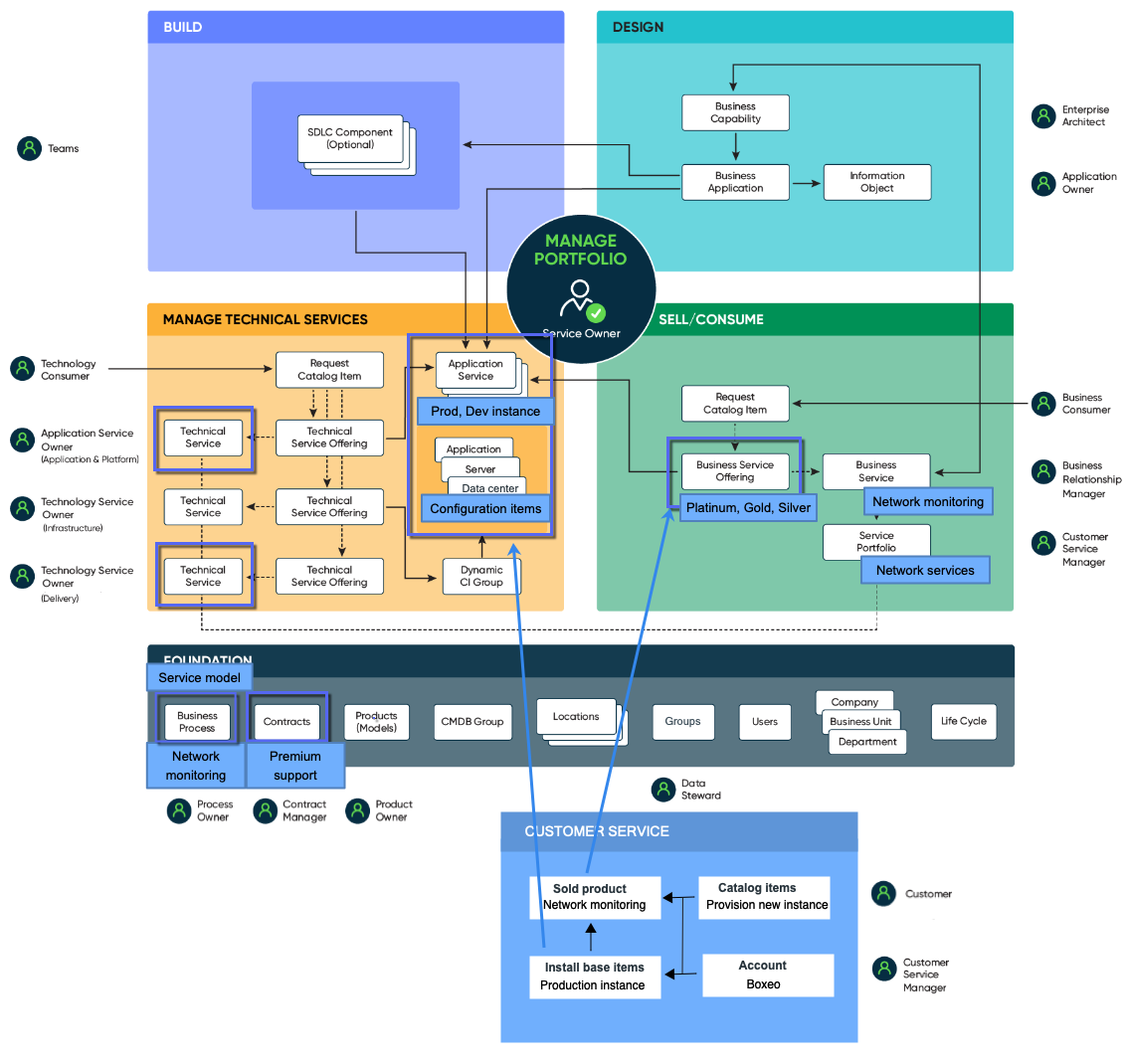

CSM data model example. — Figure 1. CSM data model example

The key personas (customer service agents, network operations center (NOC) engineers, service owners, and customers) can complete the following tasks:

Customer service agents can:

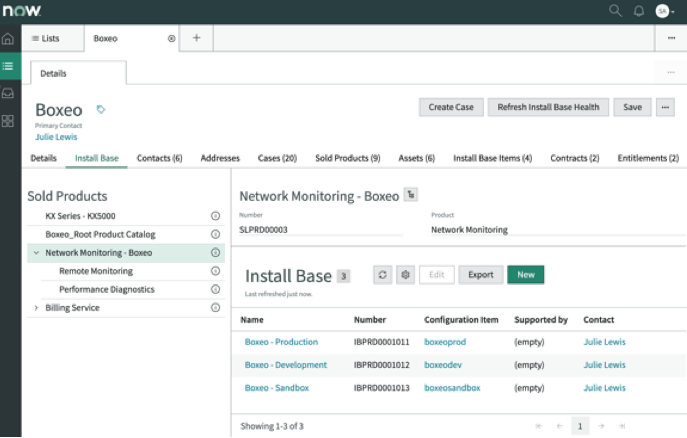

View the products and services that the customer has purchased (Sold Product) and installed (Install Base).

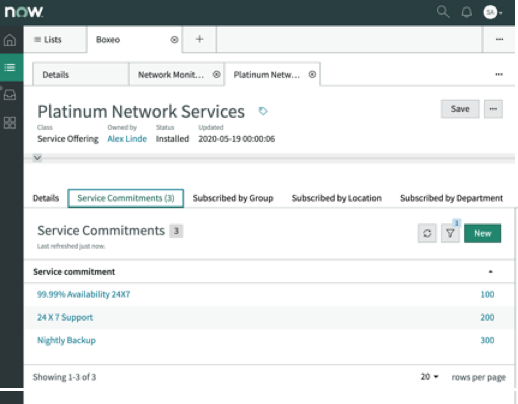

View the service offering associated with the sold product. The sold product references the service offering.

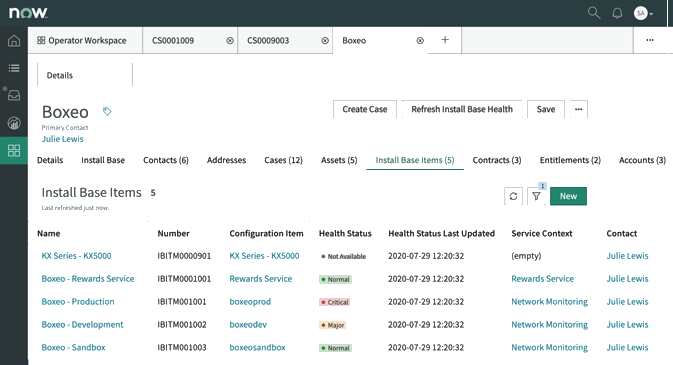

View the health status of Install Base Items

NOC engineers can: View customers affected by a service issue and inform customer service. Specifically, they can perform the following operations:

View the affected Install Base Items and add it to or remove it from an Account. The Install Base item references the application service (CI). The CI it depends on should be one of the CIs affected. The CI should also be referenced in the Alert to show that Install Base Item (and therefore the Account or Consumer) as affected.
Create a proactive case from an alert and inform the customer service team of the service issue or outage.

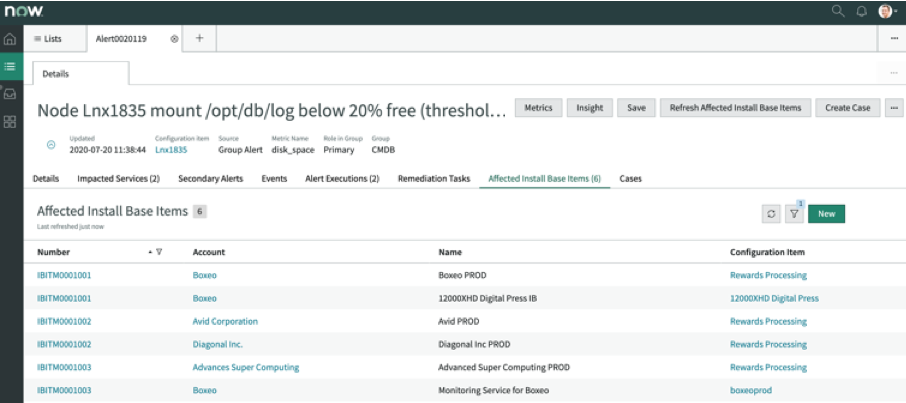

NOC engineers can view the customers affected by the service issue.

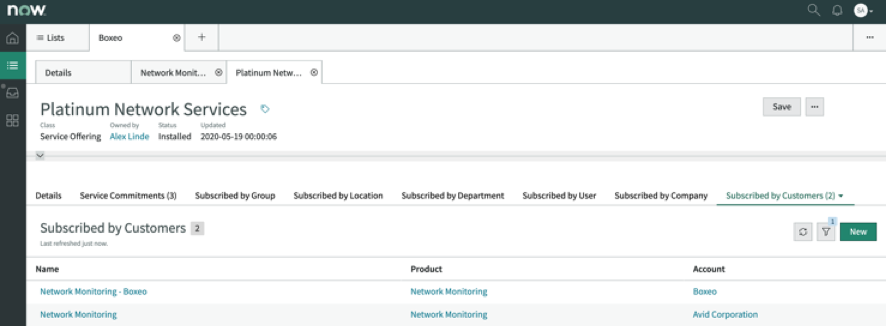

Service owners can: View the customers that are subscribed to a service offering. Service owners can view customers subscribed to a service offering.

Customers can:

View the install base items and details.

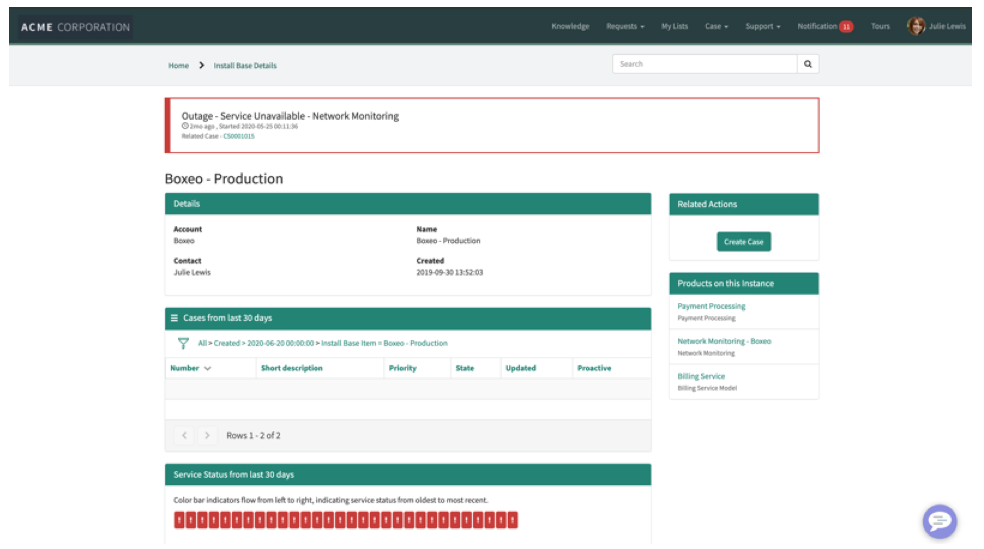

View outages and service issues.

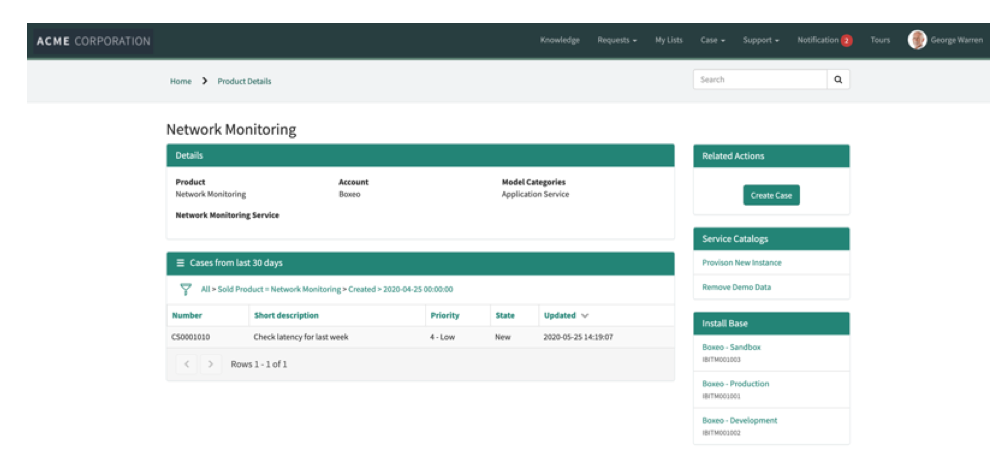

View products they have purchased.
Request services related to the products they’ve purchased.

Example CSM and CSDM use cases

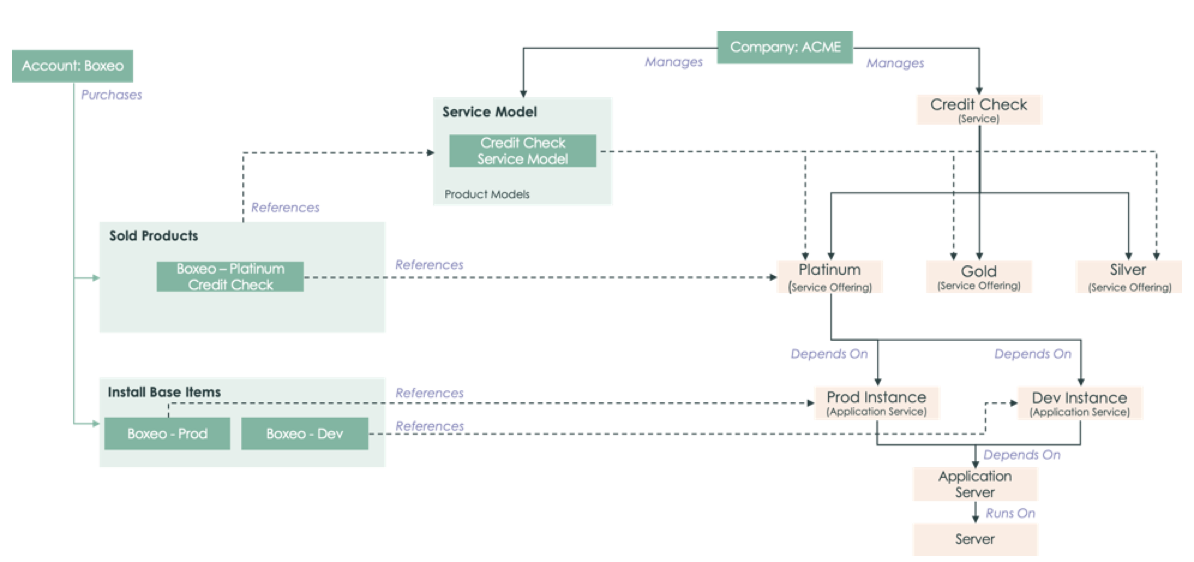

Service with multiple packages

ACME offers a Credit Check Service to its enterprise customers. They can purchase the Platinum, Gold, or Silver offering.

Service with multiple packages.

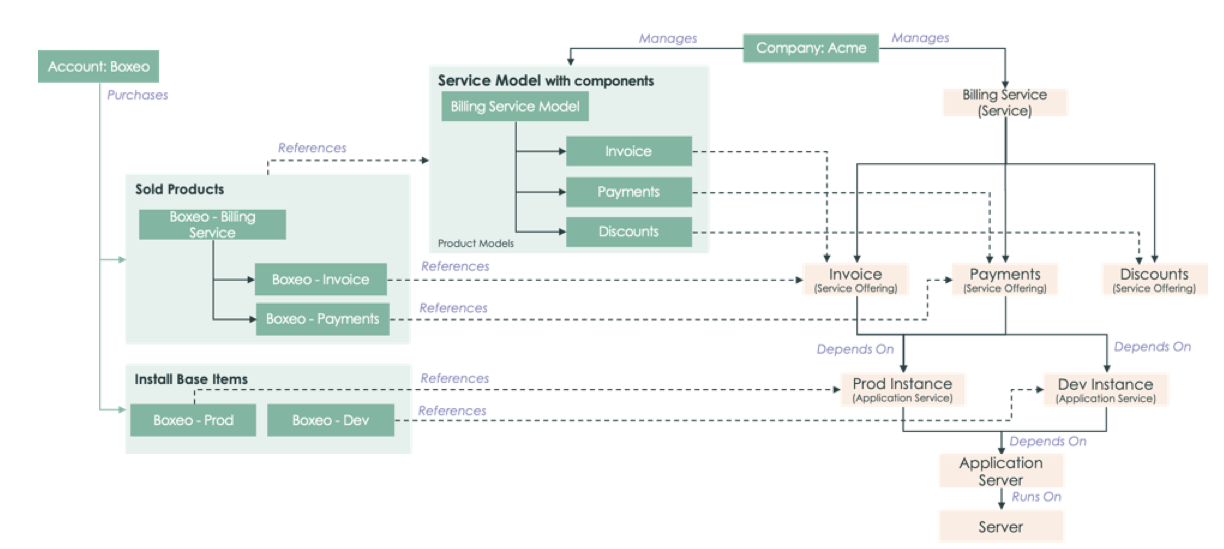

Service with optional components

ACME offers a Billing Service to its enterprise customers. They can purchase the bundle or one or more of the component offerings (for example, invoices, payments, or discounts).

Service with optional components.

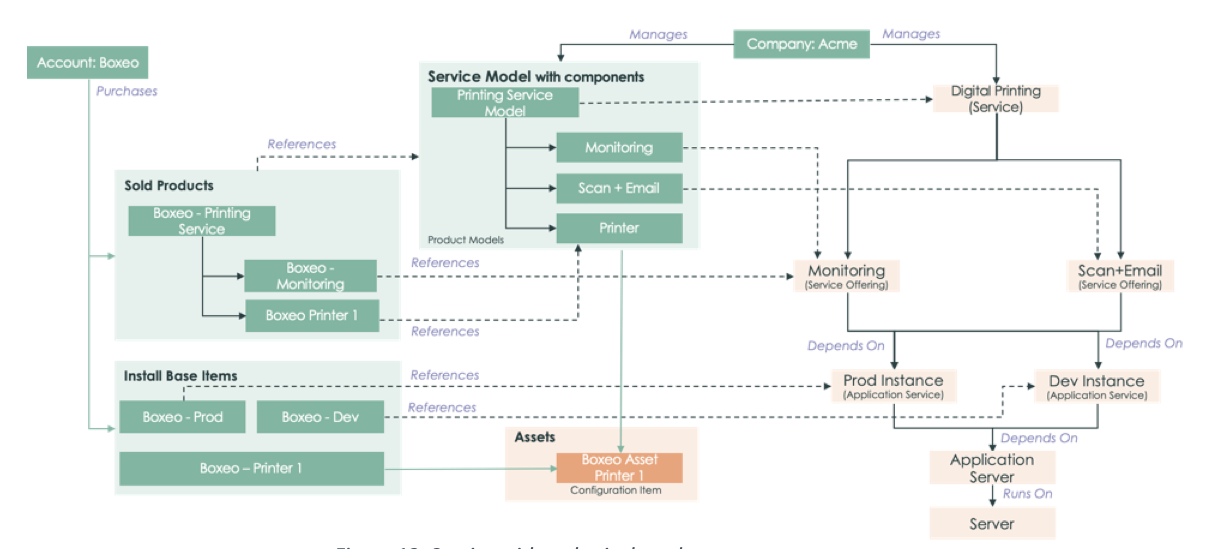

Service with a physical product

ACME offers a Digital Printing Solution. Customers can purchase either the bundle or the printer along with one more service offering (for example, Scan and Email Monitoring).

Service with a physical product.

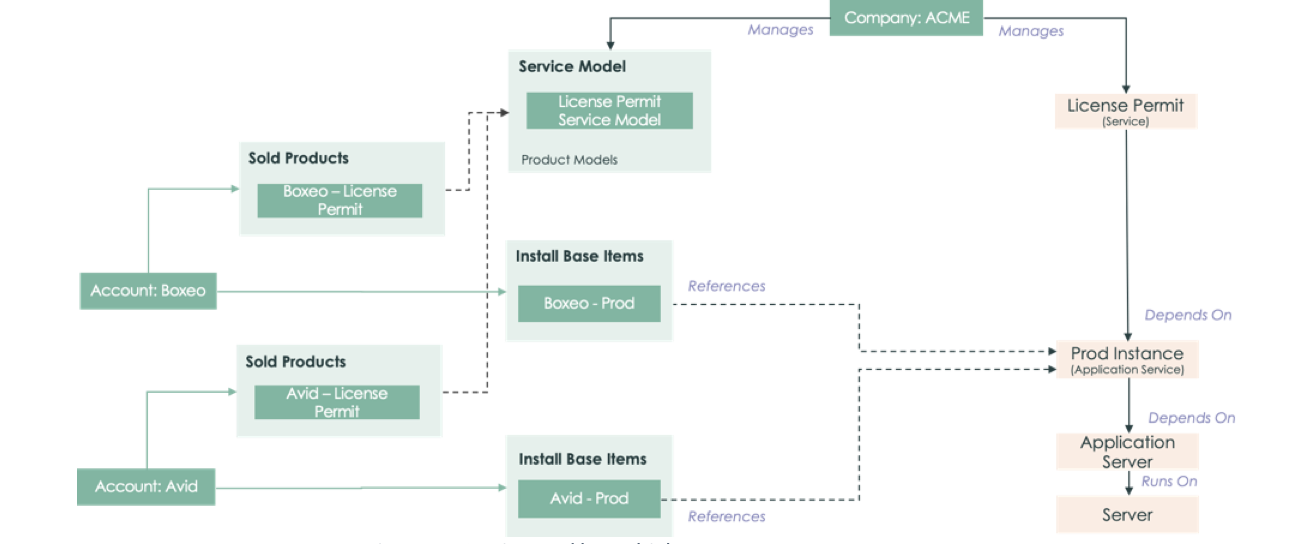

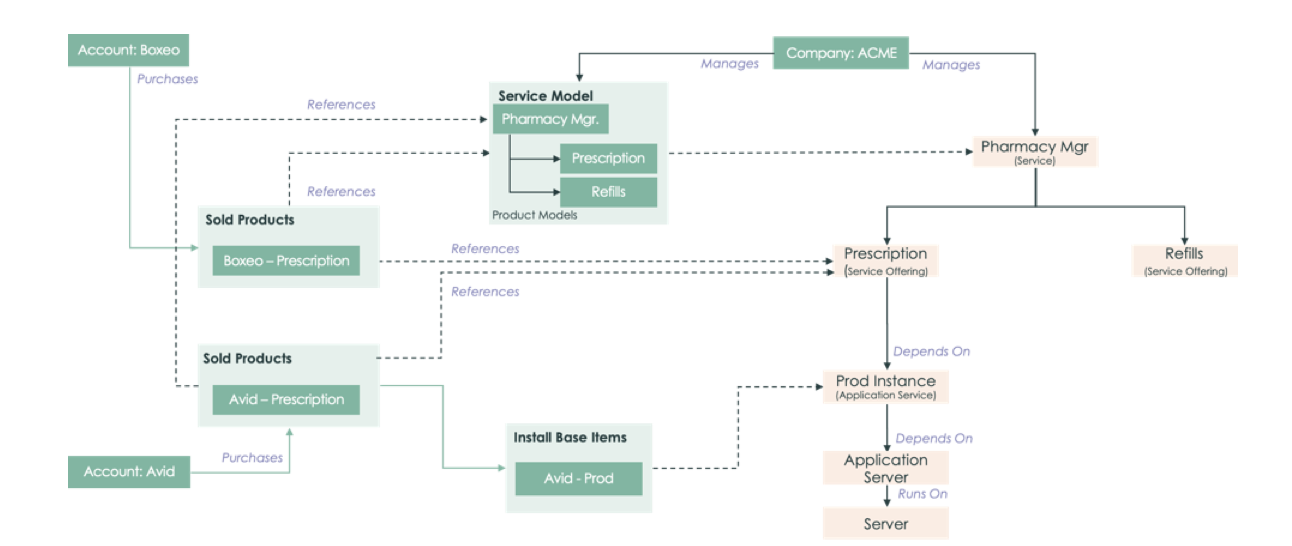

Service sold to multiple customers
