    • Directions are used to compute routes from point A to point B on the map. Map administrators can manually draw lines on the floor map areas where people are allowed to walk within a building. This cannot be automated and has to be done manually.

    Before you begin

    Role required: map admin, map editor, map editor limited

    Procedure

    1. Two direction modes (Accessible and Default) are enabled by default in Indoor Mapping.
      • Accessible: This mode is for users with reduced mobility and so by default, the stairs and escalators are inactive, while elevators and ramps are added.
      • Default: Configured for general public and pedestrians.
    2. New direction modes require icons.
      For more information, see Create Indoor Mapping icons and place types
    3. To create a new direction mode, navigate to All > Indoor Mapping > Direction modes.
      On the form, fill in the fields
      Table 1. New Direction modes
      Field Description
      Name Direction mode name.
      Title Direction mode title will be displayed on the map studio when you select the direction mode of a direction.
      Icon Select an icon from the list.
      Average speed Average speed for the type of transportation used.
      Active Option to activate the direction mode on the map.
      Note:
      Turning off the direction mode does not remove it's just made inactive on your map and the directions will not be shown on the map.
    4. Click Submit.
      The newly added direction mode is available in the list.
      Note:
      On the direction mode record, select Route to direction mode associations to find the list of campuses and buildings for which the direction mode is active.
    5. Navigate to All > Indoor Mapping > Map Studio.
    6. Select a campus.
    7. Go to Manage Workplace, select Directions.
      Alternatively, select Manage Directions from the Map Studio menu.
    8. Select a building and floors where you want to add the directions to edit.
    9. From the Direction modes drop-down list, select a direction mode from the available options:
      • All modes
      • Accessible
      • Default
    10. To draw directions from one point to another, select Draw and begin drawing routes along all the hallways for each floor.
      Note:
      Lines must be straight as they are used by the wayfinding application to display routes within a building.

      All segments created are by default set to Active, this state can be edited at any time on the Studio to reflect any changes (incidents, renovation, and so on). Change the state by selecting the toggle option Active or Inactive.

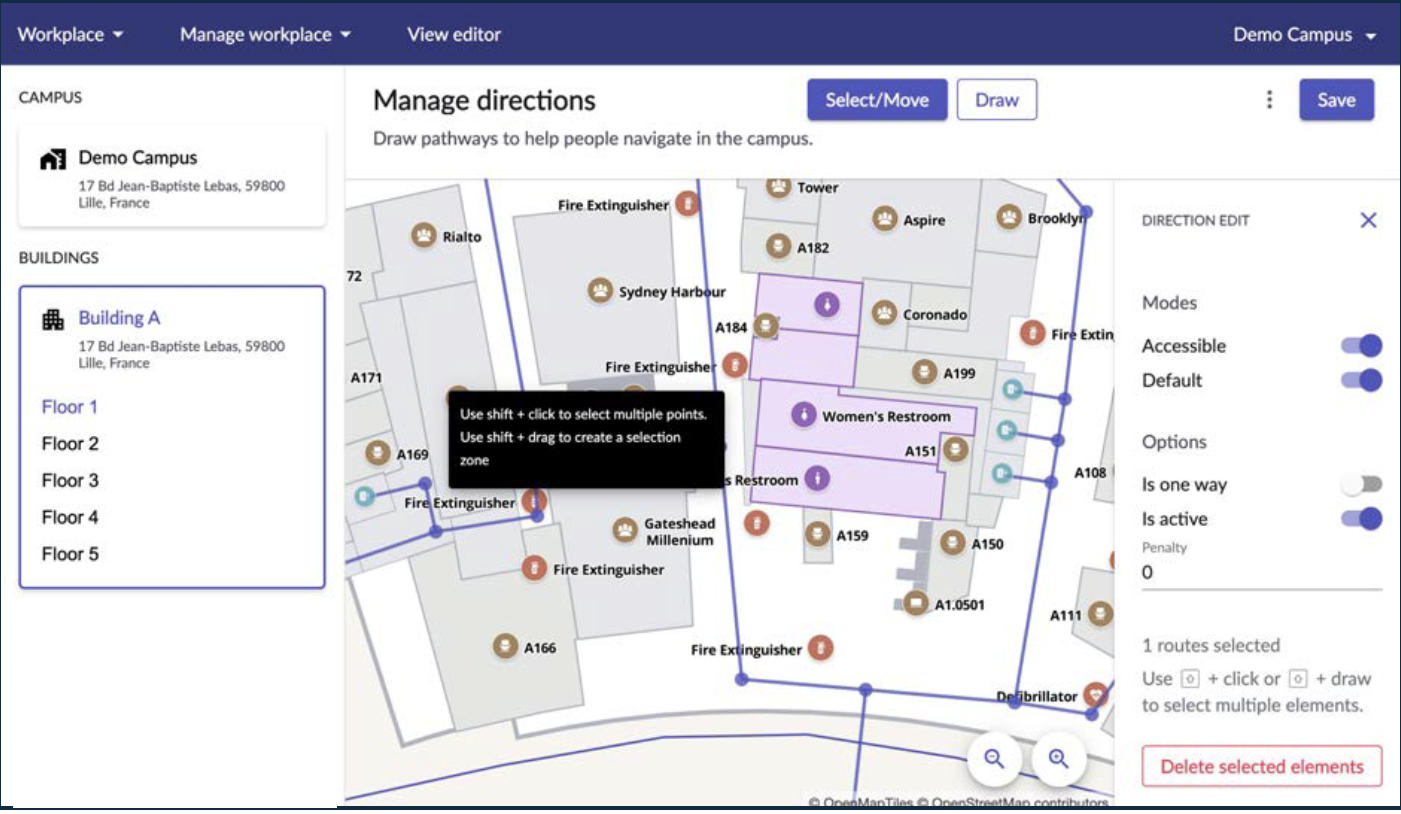

      Figure 1. Draw directions

      Draw directions for wayfinding

    11. To stop drawing, select Select/Move or press esc (escape) on the keyboard.
      All segments that are created are by default set to Active. The Active state can be edited any time on the Map Studio to reflect any changes (incidents, renovations, etc.).
    12. To change the state, click the toggle option Active or Inactive.
      States help the wayfinding application to calculate a similar route without going through the inactive routes or segments.
    13. Use the All modes option to use segment in both ways Accessible or Default.
      You can also change it to enable only one-way directions.
    14. Select a way and define in which way the segment can be used.
    15. Small arrows appear on the map.
      The route with the selected direction mode is highlighted on the map.
    16. Each of the segments of the direction graph can be edited.
    17. By default, both default and accessible modes are shown as active on each segment.
    18. Once the direction graph is complete, make sure you clearly identify the connectors to link your floors together.
      For more information, see Create a connector type.
    19. Select the Display settings icon Manage directions toggle optionadjacent to the Save button.
    20. Select Connector links.
    21. Select the node that represents a connector and ensure that the correct building is selected.
      For more information, see Create a connector type.
    22. After creating the connectors, link additional floors of your building together.
    23. Select the node and ensure that you link it with the same node you have created for the same connector.
    24. After creating direction graphs for every floor in a building, repeat the process to add a graph on the campus.
    25. Ensure you link two graphs by connecting the two end nodes.
    26. Click Save.
    27. To unlink a connector, select Detach connector.
    28. Select Place entrances from Display settings to display the place entrances for a selected campus or building.
      This option displays on the map where the entrance is located and the point or points that are going to be used by graph directions as start points.
    29. Select System generated paths to entrances from Display settings:
      This option is used to connect place entrances connect to a generated path. The paths marked in green show system generated paths. Users do not have draw manually. The application automatically computes paths from an entrance.
    30. Click Save.
    31. Click the other options icon (Other options icon).
    32. Select Copy directions.

      This option helps in mapping or copying directions where several floors have the same layout. You can also reuse directions defined for a previous floor. For more information, see Copy direction graphs to multiple floors.

    33. Click Save to save all your changes.
    34. After editing the directions, you must activate the direction mode in the map View Editor so that it is available for all map users.
    35. Select View Editor on the Campus menu and click Edit.
    36. After making the required changes, click Save.
    37. If you want to remove a content, select it and click Delete.
