Set up the Salesforce spoke

  • Release version: Yokohama
  • Updated January 30, 2025
  • 10 minutes to read

    • Integrate your Salesforce account with your ServiceNow instance. Create a custom OAuth application in Salesforce and authenticate requests from ServiceNow.

    Before you begin

    • Request an Integration Hub subscription
    • Activate the Salesforce spoke
    • Role required: admin.
    Note:
    Two spoke setup procedures are outlined here. Perform one of the procedures as per your requirement.
    Note:
    Don't delete the default connection alias record. This can result in an unexpected behavior. Configure your connection using the default connection alias.

    Configure a connection for Salesforce spoke

    Add and configure a Salesforce connection to authenticate ServiceNow requests in Salesforce spoke.

    Before you begin

    Role required: admin

    Procedure

    1. Navigate to Process Automation > Workflow Studio.
    2. Select Integrations.
    3. Select the Connections tab.
    4. Use the search box to find the Salesforce connection alias.

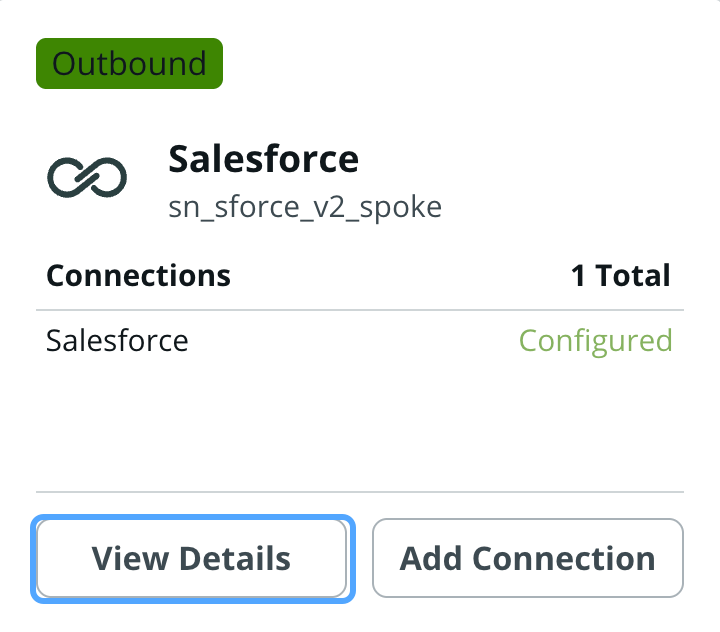

    5. Select View Details.Connection template for Salesforce spoke
    6. Configure the Salesforce connection.
      1. Add or edit a connection.
        • To set up an existing connection, select Configure or Edit.
        • To create and configure a new connection, select Add Connection.
        Note:
        To support multiple connections through a spoke, see Supporting multiple connections.
      2. On the configuration form, fill in the fields.
        Field Description
        Connection Name Name to uniquely identify the connection. For example, Salesforce.
        Connection URL (Instance URL) URL to make a connection to Salesforce. Use this format: https://<organization_name>.my.salesforce.com.
        Grant Type OAuth grant type for authentication. Select one of the following options:
        • Authorization Code
        • Client Credentials
        OAuth Client ID Client ID generated in Salesforce for OAuth authentication.
        OAuth Client Secret Client Secret generated in Salesforce for OAuth authentication.
        OAuth Redirect URL URL where Salesforce redirects after successful authentication. Use this format: https://<instance_name>.service-now.com/oauth_redirect.do.
      3. Select Save and Get OAuth Token.

    Result

    The Salesforce spoke connection is configured and ready to be used.

    Create a connected app in Salesforce

    Create a connected app in your Salesforce account to enable OAuth 2.0 authentication with the Salesforce spoke.

    Before you begin

    • Salesforce account
    • Role required: Salesforce admin

    About this task

    Complete these steps from your Salesforce account. See Create a Connected App in Salesforce Trailblazer forum documentation for instructions on creating and configuring connected apps.

    Procedure

    1. From your Salesforce account, create a connected app.
    2. Configure the connected app to enable your Salesforce application to share data with your ServiceNow instance.
      1. Select Enable OAuth Settings and configure the authentication settings.
      2. If you want to set up the spoke using JWT signing key, select Use Digital Signatures and upload a Java KeyStore (JKS) certificate.
      3. Select the OAuth scopes:
        Grant Type OAuth scopes
        Authorization Code
        • Access and manage your data (api)
        • Perform requests on your behalf at any time (refresh_token, offline_access)
        Client Credentials Access and manage your data (api)
      4. Specify ServiceNow instance URL in Callback URL in this format: https://<instance-name>.service-now.com/oauth_redirect.do
      5. After creating the connected app, under OAuth Policies on the Edit Policies page, set these values:
        Field Value
        Permitted Users Admin approved users are pre-authorized
        IP Restrictions Relax IP Restrictions
      6. Configure user provisioning for the connected app as per your requirement.
    3. Record the values of Consumer Key and Consumer Secret.
      Note:
      • Assign profile and permission set as per your requirement.
      • In OAuth app IP restrictions, specify OAuth policies to ensure that the connected app works like a default app.

    Result

    The connected app is created in Salesforce.

    Option 1: Set up the Salesforce spoke using OAuth authorization template

    Integrate your Salesforce account with your ServiceNow instance. Create a custom OAuth application in Salesforce and authenticate requests from ServiceNow using OAuth authorization template.

    Before you begin

    Procedure

    1. Navigate to Connection & Credentials > Connection & Credential Aliases.
    2. Open the record, Salesforce.
    3. Click the Create New Connection & Credential related link.
    4. On the form, fill these values.
      Table 1. Create Connection and Credential form
      Field Description
      Connection name Name to identify the connection record.
      Connection URL (Instance URL) Base URL to connect to your Salesforce instance in this format: https://<instance-name>.salesforce.com
      OAuth Client ID Consumer key that you generated during the Salesforce connected app configuration.
      OAuth Client Secret Consumer secret that you generated during the Salesforce connected app configuration.
      OAuth Redirect URL URL of the OAuth provider that users are redirected to after authentication. This field populates automatically.
    5. Click Create and Get OAuth Token.
      The OAuth2 authentication dialog box is displayed.
    6. Log in to the Salesforce admin account that you used to create your Salesforce application.
      Your ServiceNow instance creates an OAuth token for Salesforce and then automatically returns you to the Integration Profile form.
    7. Click Publish.

    Option 2: Set up the Salesforce spoke using JWT signing key

    Integrate your Salesforce account with your ServiceNow instance. Create a custom OAuth application in Salesforce and authenticate requests from ServiceNow using JWT signing key.

    Before you begin

    Attach a Java Key Store certificate to the Salesforce spoke

    Enable the JSON Web Token (JWT) Bearer Grant token authentication by attaching a valid Java KeyStore (JKS) certificate to the Salesforce spoke.

    Before you begin

    • Valid Java KeyStore certificate
    • Role required: admin

    Procedure

    1. Navigate to All > System Definition > Certificates.
    2. Click New.
    3. On the form, fill in the fields.
      Table 2. X.509 Certificate form
      Field Description
      Name Name to uniquely identify the record. For example, Salesforce Certificate.
      Expiration notification Option to send a notification when the certificate is about to expire.
      Notify on expiration Users that are notified when the certificate expires.
      Warn in days to expire Number of days to send a notification before the certificate expires.
      Active Option to actively use the certificate.
      Format Certificate format. The instance supports the PEM and DER formats.
      Type Type of certificate. Select Java Key Store.
      Valid from Date from which the certificate is valid.
      Expires Date on which the certificate expires.
      Expires in days Number of days until the certificate expires.
      Key store password Password associated with the certificate.
      Short description Summary about the certificate.
      PEM Certificate Contents of the X509 certificate.
    4. Click the attachments icon (Attachments icon) and attach a JKS certificate.
    5. Click Validate Stores/Certificates.

    Result

    The JKS certificate is created and attached to the Salesforce spoke.

    Create a JWT signing key for the Salesforce spoke

    Create a JSON Web Token (JWT) signing key to assign to your Java KeyStore certificate.

    Before you begin

    Role required: admin

    Procedure

    1. Navigate to All > System OAuth > JWT Keys.
    2. Click New.
    3. On the form, fill in the fields.
      Table 3. JWT Keys form
      Field Description
      Name Name to uniquely identify the JWT signing key. For example, Salesforce JWT Keys.
      Signing Keystore Valid JKS certificate attached in the previous task. For example, Salesforce Certificate.
      Key Id Key ID to identify which key is used when multiple keys are used to sign tokens.
      Application Application scope that contains this record. Select Salesforce spoke.
      Signing Algorithm Algorithm to sign with the JWT key.
      Signing Key Password Password associated with the signing key.
      Active Option to actively use the certificate.
    4. Click Submit.

    Result

    The JWT key is created and assigned to the JKS certificate.

    Create a JWT provider for the Salesforce spoke

    Add a JSON Web Token (JWT) provider to your ServiceNow instance.

    Before you begin

    Role required: admin

    Procedure

    1. Navigate to All > System OAuth > JWT Providers.
    2. Click New.
    3. On the form, fill in the fields.
      Table 4. JWT Provider form
      Field Description
      Name Name to uniquely identify the JWT provider. For example, Salesforce JWT Provider.
      Expiry Interval (sec) Number, in seconds, to set the lifespan of JWT provider tokens.
      Signing Configuration JWT signing key from the previous step. For example, Salesforce JWT Keys.
    4. Right-click the form header, and click Save.
      The Standard Claims and Custom Claims related lists are displayed.
    5. In the Standard Claims related list, enter values for iss, sub, and aud.
      See OAuth 2.0 JWT Bearer Flow for Server-to-Server Integration in Salesforce Trailblazer forum documentation for instructions.
    6. Click Update.

    Result

    The JWT provider is added to your ServiceNow instance.

    Register Salesforce as an OAuth Provider

    Use the information generated during Salesforce connected app configuration to register Salesforce as an OAuth provider and enable the instance to request OAuth 2.0 tokens.

    Before you begin

    Role required: admin

    Procedure

    1. Navigate to All > System OAuth > Application Registry.
    2. Click New.
      The system displays the message What kind of OAuth application?
    3. Select Connect to a third party OAuth Provider.
      The system displays a blank Application Registries form.
    4. On the form, fill in the fields.
      Field Value required
      Name Name to uniquely identify the record. For example, enter Salesforce OAuth.
      Client ID Consumer key that you generated during the Salesforce connected app configuration.
      Client Secret Consumer secret that you generated during the Salesforce connected app configuration.
      OAuth API Script Optional script to customize the request and response.
      Default Grant type Grant type used to establish the token. Select JWT Bearer.
      Refresh Token Lifespan Time, in seconds, that the refresh token is valid. The default time is 8,640,0000 seconds.
      PKCE required Option to enable public clients to require PKCE for an authorization.
      Note:
      You can use only Authorization Code as the Default Grant type when PKCE is enabled.
      Application Application scope that contains this record. Select Salesforce.
      Accessible from Application scope that this registry is accessible from.
      Active Option to actively use the application registry.
      Authorization URL This field should be left blank.
      Token URL OAuth server token endpoint.
      • For production instance, enter https://login.salesforce.com/services/oauth2/token.
      • For sandbox instance, enter https://test.salesforce.com/services/oauth2/token
      Token Revocation URL This field should be left blank.
      Redirect URL This field should be left blank.
    5. Right-click the form header, and click Save.
      • The system validates the OAuth credentials and populates the Redirect URL field.
      • The system populates OAuth Entity Profile with Grant Type as JWT Bearer. For example, OAuth Entity Profile is created with default Name, Salesforce JWT provider default_profile .
    6. Copy the value from the Redirect URL field.
    7. Click Update.
    8. Log in to your Salesforce account to edit the configuration of your connected app.
      See the Salesforce Trailblazer forum documentation for instructions.
    9. Paste the Redirect URL value into the Callback URL of your Salesforce connected app.
      For example, paste https://<instance-name>.service-now.com/oauth_redirect.do.

    Result

    The instance can request OAuth 2.0 tokens for the Salesforce spoke.
    Note:
    When an OAuth token expires, the spoke automatically regenerates a new token in most cases. If a token expires and is not regenerated, a user with the admin role can regenerate the spoke OAuth token.

    Create credential records for the Salesforce spoke

    Create Credential records for the Salesforce connected app that you created. The Salesforce spoke connection and credential alias use these credentials to authorize actions.

    Before you begin

    Role required: admin

    Procedure

    1. Navigate to All > Connections & Credentials > Credentials.
    2. Click New.
      The system displays the message What type of Credentials would you like to create? .
    3. Select OAuth 2.0 Credentials.
      The pop-up window displays a blank OAuth 2.0 Credentials form.
    4. On the form, fill in the fields.
      Field Value required
      Name Name to uniquely identify the record. For example, enter Salesforce Credentials.
      Active Option to actively use the credential record.
      OAuth Entity Profile OAuth profile that you created when you registered the Salesforce connected app as an OAuth provider. For example, select Salesforce OAuth default_profile.
      Applies to MID Servers that can use this credential. For example, select All MID Servers.
      Order Order to apply this credential. For example, enter 100.
    5. Save the record.
    6. Click the Get OAuth Token related link to generate the OAuth token.

    Result

    The credential record for the Salesforce spoke is created.

    Create connection records for the Salesforce spoke

    Create connection records for your Salesforce account. The Salesforce spoke connection and credential alias use these connections to perform actions in Salesforce.

    Before you begin

    Role required: admin

    Procedure

    1. Navigate to All > Connections & Credentials > Connection & Credential Aliases.
    2. Open for the record for Salesforce.
    3. On the Connections tab, click New.
      The system displays a blank HTTP(s) Connection form.
    4. Enter these values.
      Field Value required
      Name Name to uniquely identify the connection record. For example, enter Salesforce Connection.
      Credential Credential record you that created for Salesforce. For example, select Salesforce Credentials.
      Connection alias Alias record associated with this connection.
      URL builder
      Note:
      Do not select the check box.
      Connection URL Base URL to connect to your Salesforce instance. For example, https://<instance-name>.salesforce.com.
      Use MID server Option to use a MID Server. If you select this check box, define the fields in the Advanced MID Server Configuration related list.
      Active Option to actively use the connection.
      Domain Domain that the action or activity runs in.
    5. Right-click the form header and click Save.
    6. Ensure that api_version is set v48.0 in the Attributes related list.

    Result

    The Salesforce spoke is set up and integrated with the ServiceNow instance.
