NetApp SolidFire storage system discovery
Summarize
Summary of NetApp SolidFire Storage System Discovery
ServiceNow Discovery leverages the NetApp SolidFire storage system discovery pattern to identify and map clusters and nodes within SolidFire storage systems. This enables comprehensive visibility and management of your storage infrastructure in the CMDB. To discover certain resources, ensure the latest Discovery and Service Mapping Patterns application is installed from the ServiceNow Store.
Show less
Prerequisites
- Keep the Discovery and Service Mapping Patterns, Visibility Content, and CMDB CI Class Models applications updated.
- Create a basic authentication credential alias for a SolidFire Cluster Admin user to facilitate secure discovery.
- Verify MID Server connectivity to the SolidFire devices to enable communication during discovery.
- Configure a serverless discovery schedule targeted at SolidFire clusters and nodes for efficient resource scanning.
Data Collected and CI Details
The discovery process populates detailed configuration item (CI) records in the CMDB across several tables, capturing essential attributes such as:
- Storage Server: Name, serial number, firmware version, IP address, OS version, manufacturer, model ID, and operational status.
- Storage Cluster: Name, IP address, cluster version (Element OS API), manufacturer, and operational status.
- Storage Cluster Node: Name, operational status, and cluster reference.
- Storage Node Element: Hardware details including chassis type, RAM, CPU type/manufacturer, serial number, and operational status.
- Disk: Device ID, serial number, storage type, size, manufacturer, model ID, and associated storage server.
- Network Adapter: Name, IP and MAC addresses, netmask, and linked storage server.
- IP Address: IP, netmask, and linked network adapter.
CI Relationships and References
The discovery pattern establishes important relationships to accurately represent the SolidFire environment topology, including:
- Clusters containing cluster nodes.
- Cluster nodes hosting storage node elements.
- Storage node elements managing clusters and allocating storage servers.
- Storage servers running clusters and containing disks and network adapters.
- Network adapters owning IP addresses.
References link CI records across tables to maintain data consistency and enhance impact analysis within the CMDB.
Practical Implementation
- Use the provided guidance to create a basic authentication credential alias specific to NetApp SolidFire discovery for secure access.
- Set up a dedicated serverless discovery schedule focused on SolidFire clusters and nodes to automate and optimize discovery runs.
Benefits for ServiceNow Customers

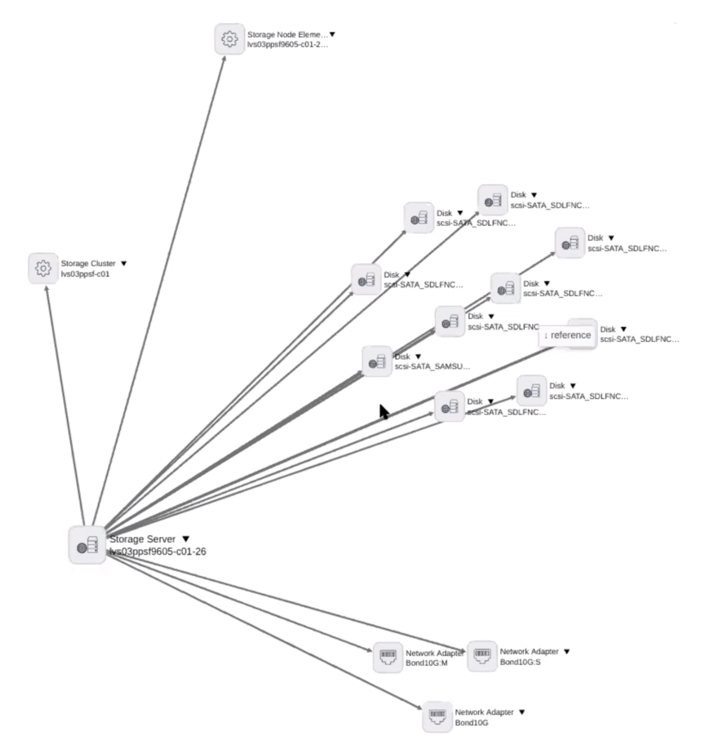

By implementing this discovery pattern, customers gain automated, detailed visibility of their NetApp SolidFire storage infrastructure within the CMDB. This enables improved asset management, operational status tracking, and relationship mapping critical for service impact analysis and change management. The structured data and relationships support accurate dependency views showing the interconnections between storage clusters, nodes, and components.
ServiceNow Discovery uses the NetApp SolidFire storage system discovery pattern to find clusters and nodes on the SolidFire storage system. Discovering some of these resources may require updating to the latest version of the Discovery and Service Mapping Patterns application from the ServiceNow Store.
Request apps on the Store
Visit the ServiceNow Store website to view all the available apps and for information about submitting requests to the store. For cumulative release notes information for all released apps, see the ServiceNow Store version history release notes.
Prerequisites
- Verify that the following apps are up to date
-
- Discovery and Service Mapping Patterns
- Visibility Content
- CMDB CI Class Models
- Create credential alias for basic authentication credential
-
Configure a credential alias for basic authentication credentials for a SolidFire Cluster Admin user. For more information, see Create a basic authentication credential alias for NetApp SolidFire discovery.
- Verify that the MID Server has access
- Verify the MID Server can access the target device.
- Create a serverless discovery schedule
-
Create a serverless discovery schedule to perform targeted discovery of SolidFire clusters and nodes. For more information, see Create a serverless discovery schedule for NetApp SolidFire discovery.
Data collected by Discovery during horizontal discovery
Discovery populates the data in the CMDB when running the NetApp SolidFire Storage System pattern.
| Field | Description |
|---|---|
| Name [name] | The name of the CI. |
| Serial number [serial_number] | The serial number associated with the CI. |
| Firmware version [firmware_version] | The firmware version of the CI. |
| IP Address [ip_address] | The IP address of the CI. |
| Description [short_description] | A short textual description of the CI. |
| Manufacturer [manufacturer] | The device manufacturer. |
| Model ID [model_id] | The device model ID. |
| OS Version [os_version] | The version of the OS running on the CI. |
| Operating System [os] | The OS running on the CI. |
| Operational status [operational_status] | Operational status of the resource. Default value is Operational. |
| Field | Description |
|---|---|
| Name [name] | The name of the CI. |
| IP Address [ip_address] | The IP address of the storage cluster. |
| Description [short_description] | A short textual description of the CI. |
| Manufacturer [manufacturer] | The device manufacturer. |
| Cluster Version [cluster_version] | Element OS API version running on the cluster. |
| Operational status [operational_status] | Operational status of the resource. Default value is Operational. |
| Field | Description |
|---|---|
| Name [name] | The name of the CI. |
| Operational status [operational_status] | Operational status of the resource. Default value is Operational. |
| Cluster [cluster] | References the Storage Cluster [cmdb_ci_storage_cluster] table. |
| Field | Description |
|---|---|
| Name [name] | The name of the CI. |
| Description [short_description] | A short textual description of the CI. |
| Manufacturer [manufacturer] | The device manufacturer. |
| Serial number [serial_number] | The serial number associated with the CI. |
| Model ID [model_id] | The device model ID. |
| Chassis type [chassis_type] | The type of chassis that contains the server. |
| RAM (MB) [ram] | The memory size of the CI. |
| CPU type [cpu_type] | The CPU type. |
| CPU manufacturer [cpu_manufacturer] | The CPU manufacturer. |
| Operational status [operational_status] | Operational status of the resource. Default value is Operational. |
| Field | Description |
|---|---|
| Name [name] | The name of the CI. |
| Device ID [device_id] | The ID of the device. |
| Serial number [serial_number] | The serial number associated with the CI. |
| Storage type [storage_type] | The storage type. |
| Size bytes [size_bytes] | The available storage size in bytes. |
| Manufacturer [manufacturer] | The device manufacturer. |
| Model ID [model_id] | The device model ID. |
| Computer [computer] | References the Storage Server [cmdb_ci_storage_server] table. |
| Field | Description |
|---|---|
| Name [name] | The name of the CI. |
| IP Address [ip_address] | The IP address of the CI. |
| MAC Address [mac_address] | The MAC address of the network adapter. |
| Netmask [netmask] | The netmask of the server hosting the network adapter. |
| Configuration Item [cmdb_ci] | References the Storage Server [cmdb_ci_storage_server] table. |
| Field | Description |
|---|---|
| IP Address [ip_address] | The IP address of the CI. |
| Netmask [netmask] | The netmask of the server hosting the CI. |
| Nic [nic] | References the Network Adapter [cmdb_ci_network_adapter] table. |
CI relationships
The NetApp SolidFire Storage System pattern creates the following relationships and references to support storage system discovery. References link to records in other tables and don't appear in the CI Relationship [cmdb_rel_ci] table.
| CI | Relationship | CI |
|---|---|---|
| Storage Cluster [cmdb_ci_storage_cluster] | Cluster of::Cluster | Storage Cluster Node [cmdb_ci_storage_cluster_node] |
| Storage Cluster Node [cmdb_ci_storage_cluster_node] | Hosted on::Hosts | Storage Node Element [cmdb_ci_storage_node_element] |
| Storage Node Element [cmdb_ci_storage_node_element] | Managed by::Manages | Storage Cluster [cmdb_ci_storage_cluster] |
| Storage Server [cmdb_ci_storage_server] | Allocated to::Allocated from | Storage Node Element [cmdb_ci_storage_node_element] |
| Storage Server [cmdb_ci_storage_server] | Runs on::Runs | Storage Cluster [cmdb_ci_storage_cluster] |
| Storage Server [cmdb_ci_storage_server] | Contains::Contained by | Disk [cmdb_ci_disk] |
| Storage Server [cmdb_ci_storage_server] | Owns::Owned by | Network Adapter [cmdb_ci_network_adapter] |
| Storage Server [cmdb_ci_storage_server] | Owns::Owned by | IP Address [cmdb_ci_ip_address] |
| CI | Field | Referenced CI |
|---|---|---|
| Storage Cluster Node [cmdb_ci_storage_cluster_node] | Cluster [cluster] | Storage Cluster [cmdb_ci_storage_cluster] |
| Disk [cmdb_ci_disk] | Computer [computer] | Storage Server [cmdb_ci_storage_server] |
| Network Adapter [cmdb_ci_network_adapter] | Configuration Item [cmdb_ci] | Storage Server [cmdb_ci_storage_server] |
| IP Address [cmdb_ci_ip_address] | Nic [nic] | Network Adapter [cmdb_ci_network_adapter] |
| Serial Number [cmdb_serial_number] | Configuration Item [cmdb_ci] | Storage Server [cmdb_ci_storage_server] |
| Serial Number [cmdb_serial_number] | Configuration Item [cmdb_ci] | Storage Node Element [cmdb_ci_storage_node_element] |
