Add test results to change requests using test API

Release version: Yokohama

Updated July 31, 2025

5 minutes to read

Summarize

Summarized using AI

Summary of Add test results to change requests using test API

This functionality enables ServiceNow customers to add test results directly to DevOps change requests using the DevOps - POST /devops/tool/{capability} API. It supports various test types from multiple orchestration tools integrated with DevOps Change Velocity, including Azure DevOps, GitHub, and Jenkins. This integration helps streamline the tracking of test outcomes within change requests, improving visibility and traceability in the DevOps lifecycle.

Show full answer Show less

Prerequisites

Role required: sndevops.admin.
The test type must be defined and available in DevOps Change Velocity under DevOps Change Workspace > Administration > Integrations > Test types.
The test type must be mapped to the corresponding orchestration tool under Test type mappings.

Key Features

API Usage: The API endpoint /api/sndevops/v1/devops/tool/test accepts parameters such as toolId (ID of the connected tool) and testType (mapped test type) to post test results.
Test Types Supported: Performance, functional, unit tests, and others depending on your DevOps Change Velocity configuration.
Test Result Details: The API payload includes details like test name, duration, counts of passed/failed/skipped tests, timing metrics, build number, pipeline and stage names, and statistical data for performance tests.
Integration Examples: Provides specific pipeline configurations and example payloads for Azure DevOps, GitHub Actions, and Jenkins pipelines to facilitate seamless API calls within CI/CD workflows.

Using the API with Popular Orchestration Tools

Azure DevOps: Use the specified URL suffix with parameters toolId and testType. Include test-specific parameters in the request body. Sample YAML pipelines demonstrate invoking the API with performance and functional test data.
GitHub Actions: Sample workflows show how to execute POST requests with authentication and detailed test result payloads to the API endpoint, handling performance and smoke test scenarios.
Jenkins: Declarative pipeline examples illustrate building the JSON request body, setting authorization headers, and sending POST requests to add test results for performance and functional/unit tests.

Limitations

The API does not handle waiting logic for asynchronous test execution.
Re-run scenarios cannot be managed via this API.

Practical Benefits for ServiceNow Customers

By leveraging this API, customers can automatically push test results from their CI/CD pipelines into ServiceNow DevOps change requests, enhancing change visibility and improving coordination between development, testing, and operations teams. This helps maintain a comprehensive audit trail of test activities linked directly to changes, supporting higher quality and compliance standards.

Add test results to DevOps change requests using the test capability of the DevOps - POST /devops/tool/{capability} API. The API is available for all test types for various tools connected to DevOps Change Velocity.

For more information about the API, see DevOps - POST /devops/tool/{capability}. To use the API in Azure DevOps, GitHub, and Jenkins, you must use the format mentioned in the respective sections below.

Prerequisites

Role required: sn_devops.admin

You must make sure that the test type you want to use in the API is available as a test type in DevOps Change Velocity and that it is mapped with the respective orchestration tool.

Navigate to DevOps Change Workspace > Administration > Integrations > Test types.
You can also use the classic UI navigation DevOps > Integrations > Test Types.

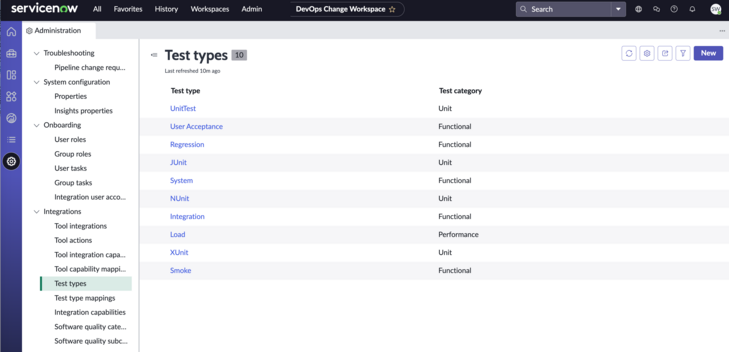

Verify if the test type is available in the Test types table.
For custom test types, select New and add the test type to the list.
1. In the Test type field, enter a name for your test type.
2. From the Test category list, select the category of your test type.
3. Select Save.

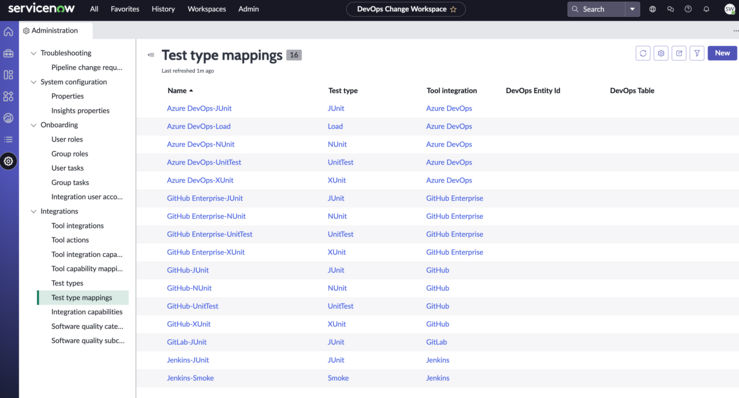

Navigate to DevOps Change Workspace > Administration > Integrations > Test type mappings.
You can also use the classic UI navigation DevOps > Integrations > Test Type Mappings.
Verify if the test type is mapped to your orchestration tool.
If the mapping is not available, then select New and create the mapping.
1. From the Test type list, select the test type that you want to map.
2. From the Tool integration list, select your orchestration tool.
3. Select Save.

Azure DevOps

For Azure DevOps pipelines, use the format given here to add test results to change requests for various test types.

Format for URL suffix and parameters:

/api/sn_devops/v1/devops/tool/test?toolId=<devops_ToolID>&testType=<test_type>

The parameter toolId must be a valid Tool Id from a connected and configured tool in DevOps Change Velocity.
The parameter testType should have a test type mapping in DevOps Change Velocity.

Within the Body, you must pass the parameters based on the test type.

Note:

For the generic connection, use the following:

username: devops.integration.user
password: <devops.integration.user password>

Pipeline configuration for performance tests

Sample parameters for the body:

{
  "name": "Perf. tests DEMO5",
  "duration": 0,
  "maximumVirtualUsers": 10,
  "throughput": "5/min",
  "maximumTime": 10000,
  "minimumTime": 5000,
  "averageTime": 7000,
  "ninetyPercent": 8000,
  "standardDeviation": 2,
"startTime": "2023-12-14T23:31:31z",
  "finishTime": "2023-12-14T23:40:32z",
  "buildNumber": $(Build.BuildNumber),
  "stageName": "Test API Job",
  "pipelineName": "TEST-CI-PIPELINE"
}

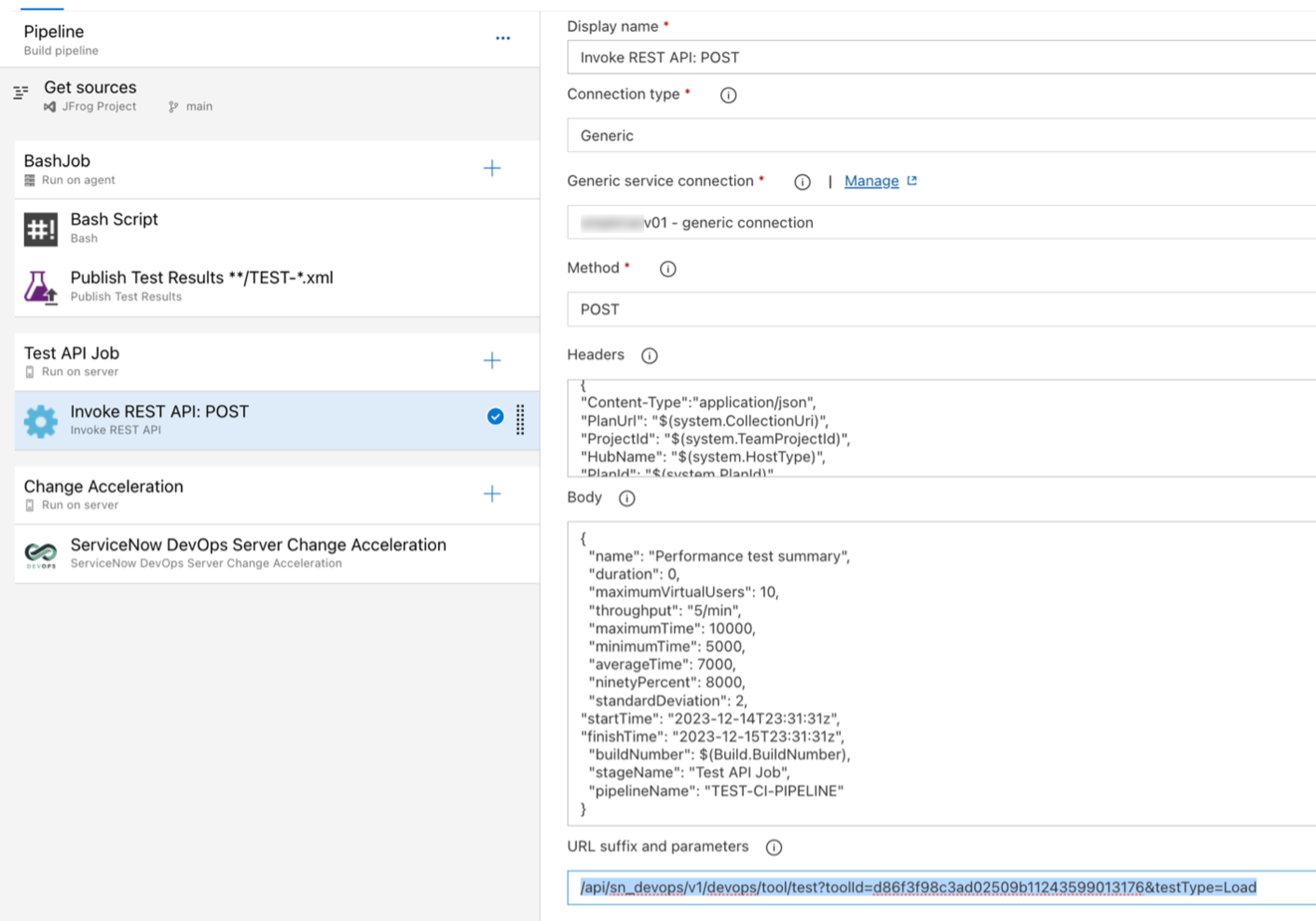

Sample Azure DevOps pipeline configuration for performance tests.

Performance test summary in your Now instance:

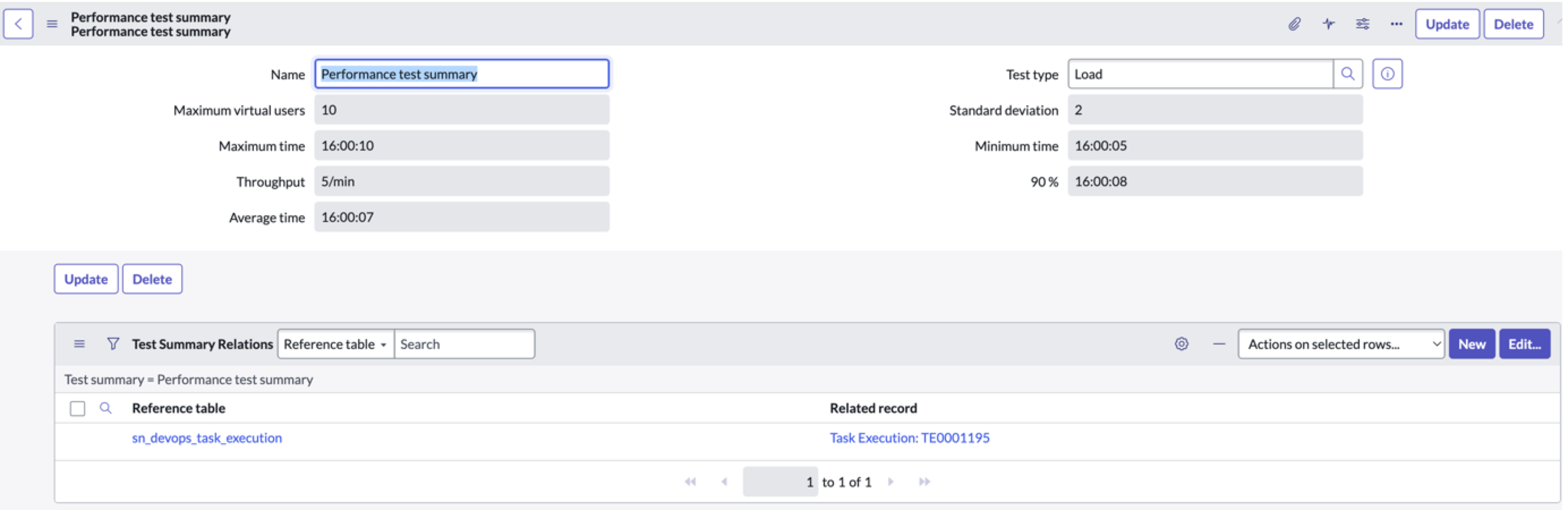

Performance test summary.

Test summary attached to your DevOps change request:

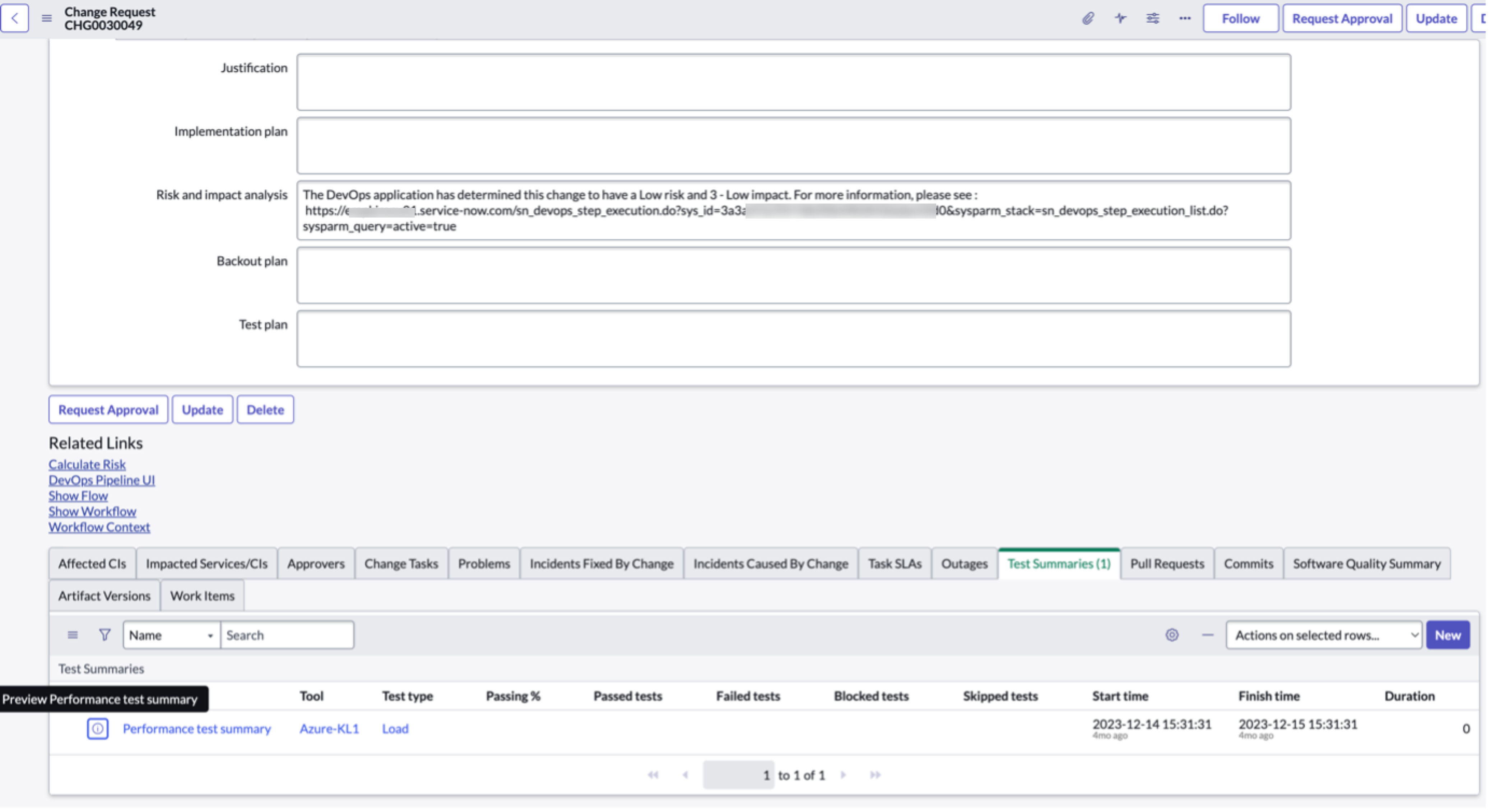

Change request test summary.

Pipeline configuration for other functional and unit tests

Sample parameters for the body:

{
  "name":" Smoke Test summary",
   "duration":0.0,
   "passedTests":1,
   "failedTests":1,
   "skippedTests":1,
   "blockedTests":1,
   "totalTests":4,
  "startTime": "2023-12-14T23:31:31z",
  "finishTime": "2023-12-15T23:31:31z",
  "buildNumber": $(Build. BuildNumber),
 "stageName": "Test API Job",
  "pipelineName": "TEST-CI-PIPELINE"
}

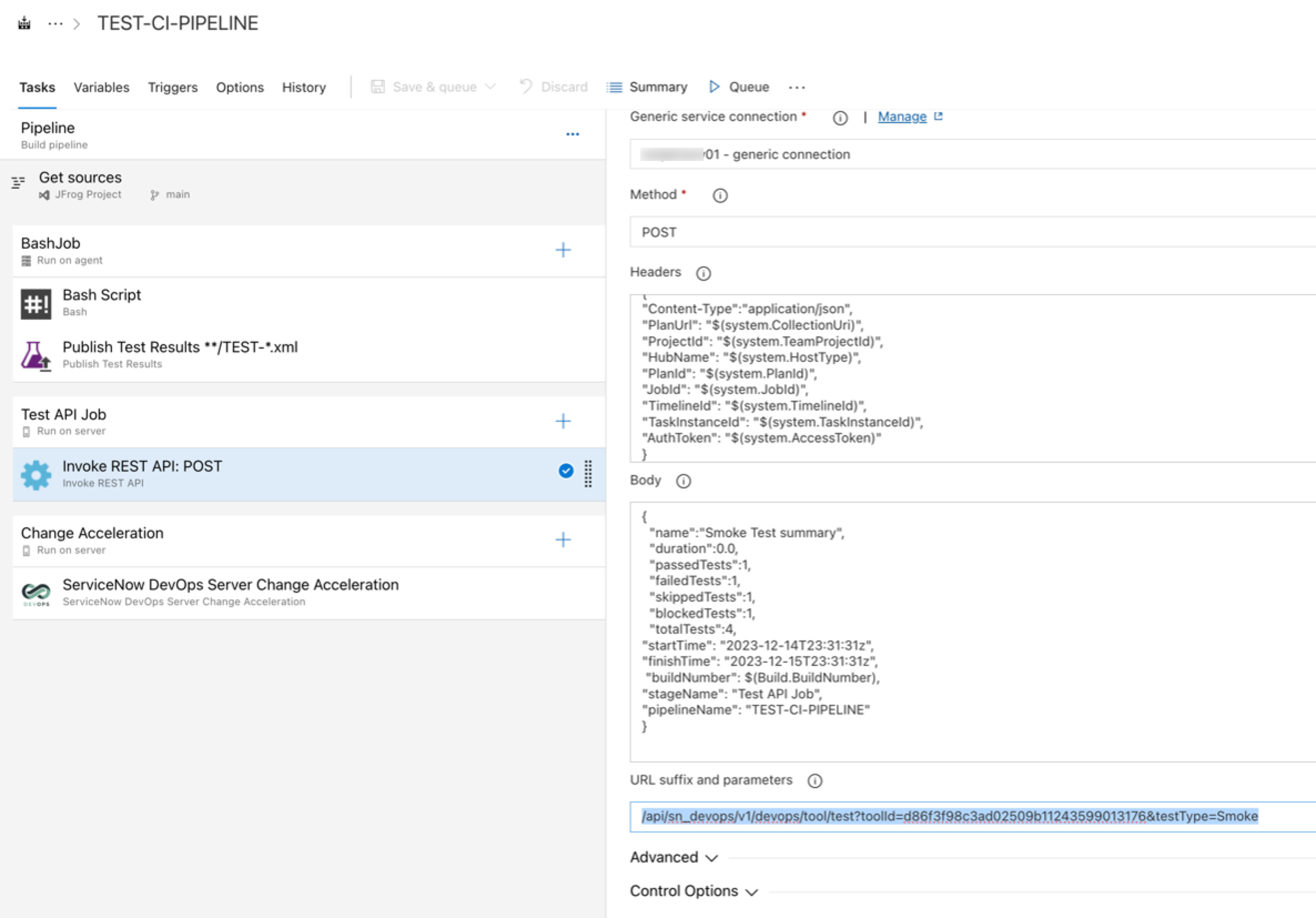

Sample Azure DevOps pipeline configuration for other functional tests.

Test summary attached to your DevOps change request:

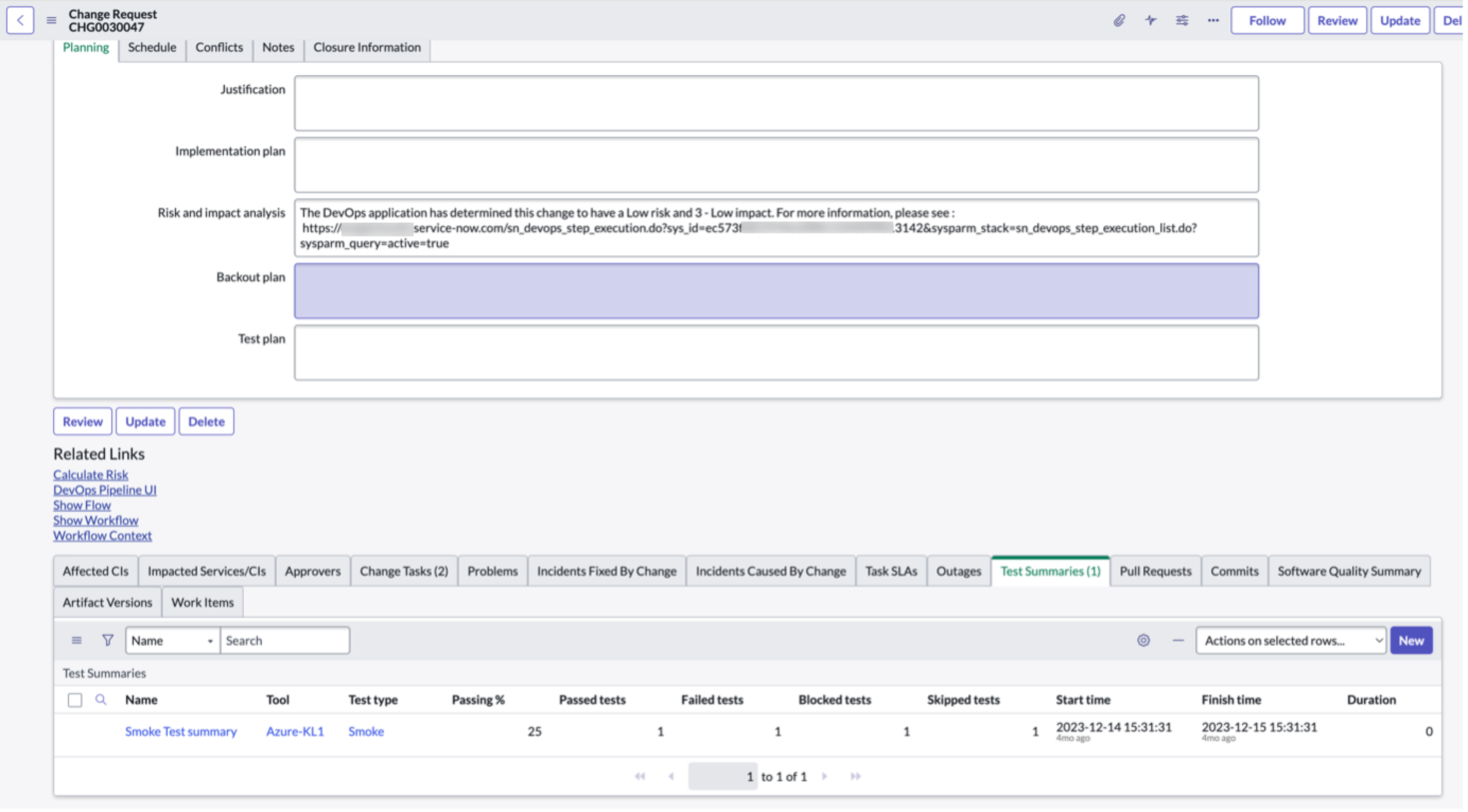

Change request test summary.

Azure DevOps YAML pipeline

Sample pipeline:

stages:
  - stage: BashScript
    jobs:
      - job: 'bash'
        steps:
        - script: echo Hello, world!
          displayName: 'BashScript'


  - stage: TestAPI
    dependsOn: BashScript
    jobs:
      - job: 'RESTTestAPI'
        # dependsOn: BashScript
        pool: server
        steps:
        - task: InvokeRESTAPI@1
          displayName: 'Invoke REST API: POST'
          inputs:
            connectionType: 'connectedServiceName'
            serviceConnection: 'v01 - generic connection'
            method: 'POST'
            body: |
              {
                            "name": "Performance test summary kl2",
                            "duration": 0,
                            "maximumVirtualUsers": 10,
                            "throughput": "5/min",
                            "maximumTime": 10000,
                            "minimumTime": 5000,
                            "averageTime": 7000,
                            "ninetyPercent": 8000,
                            "standardDeviation": 2,
                            "startTime": "2023-12-14T23:31:31z",
                            "finishTime": "2023-12-14T23:40:32z",
                            "buildNumber": $(Build.BuildId),
                            "stageName": "TestAPI/RestTestAPI",
                            "pipelineName": "TESTYMLPipeline"
                          }
            urlSuffix: '/api/sn_devops/v1/devops/tool/test?toolId=<devops_ToolID>&testType=<test_type>'
            waitForCompletion: 'false'

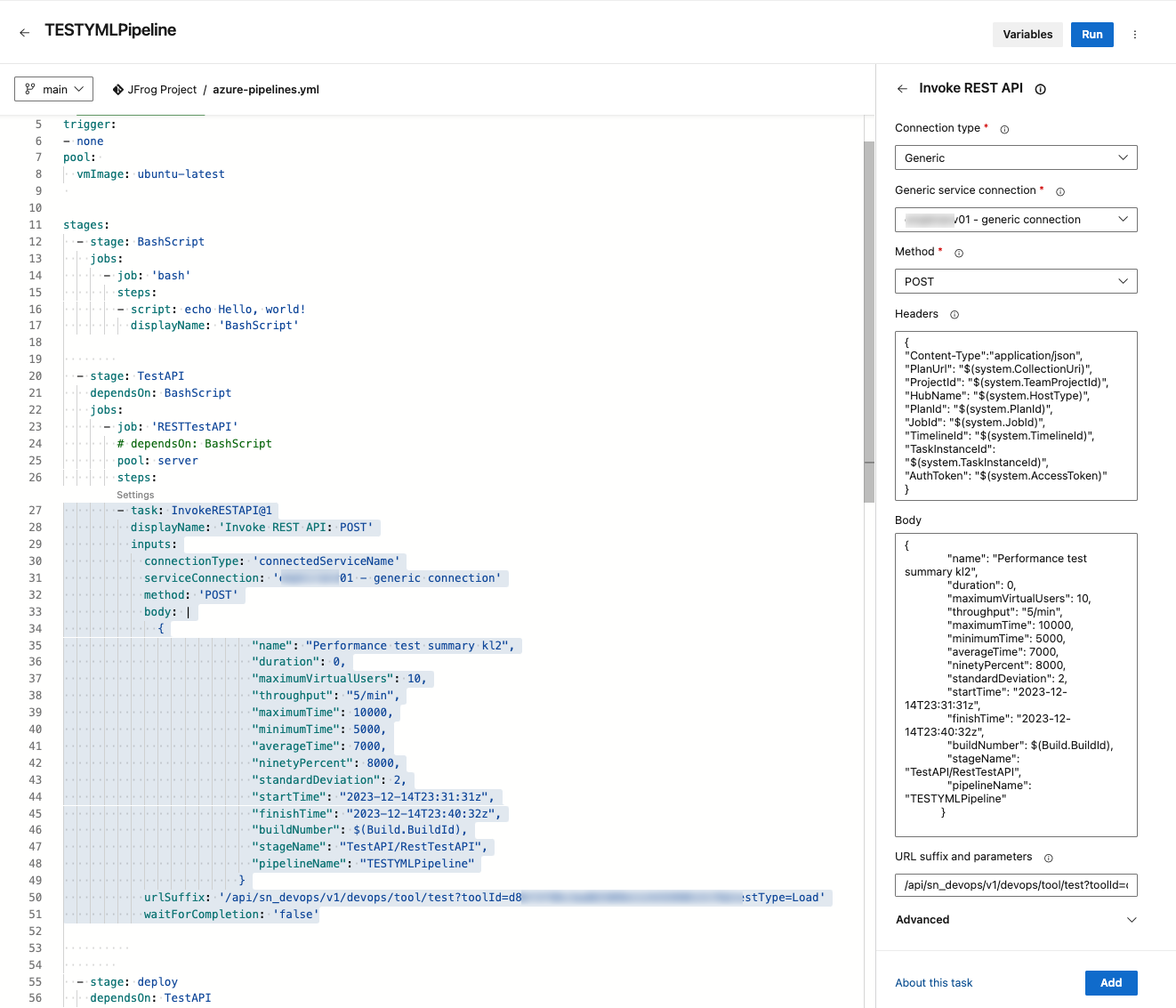

Azure DevOps yml pipeline.

Release pipeline

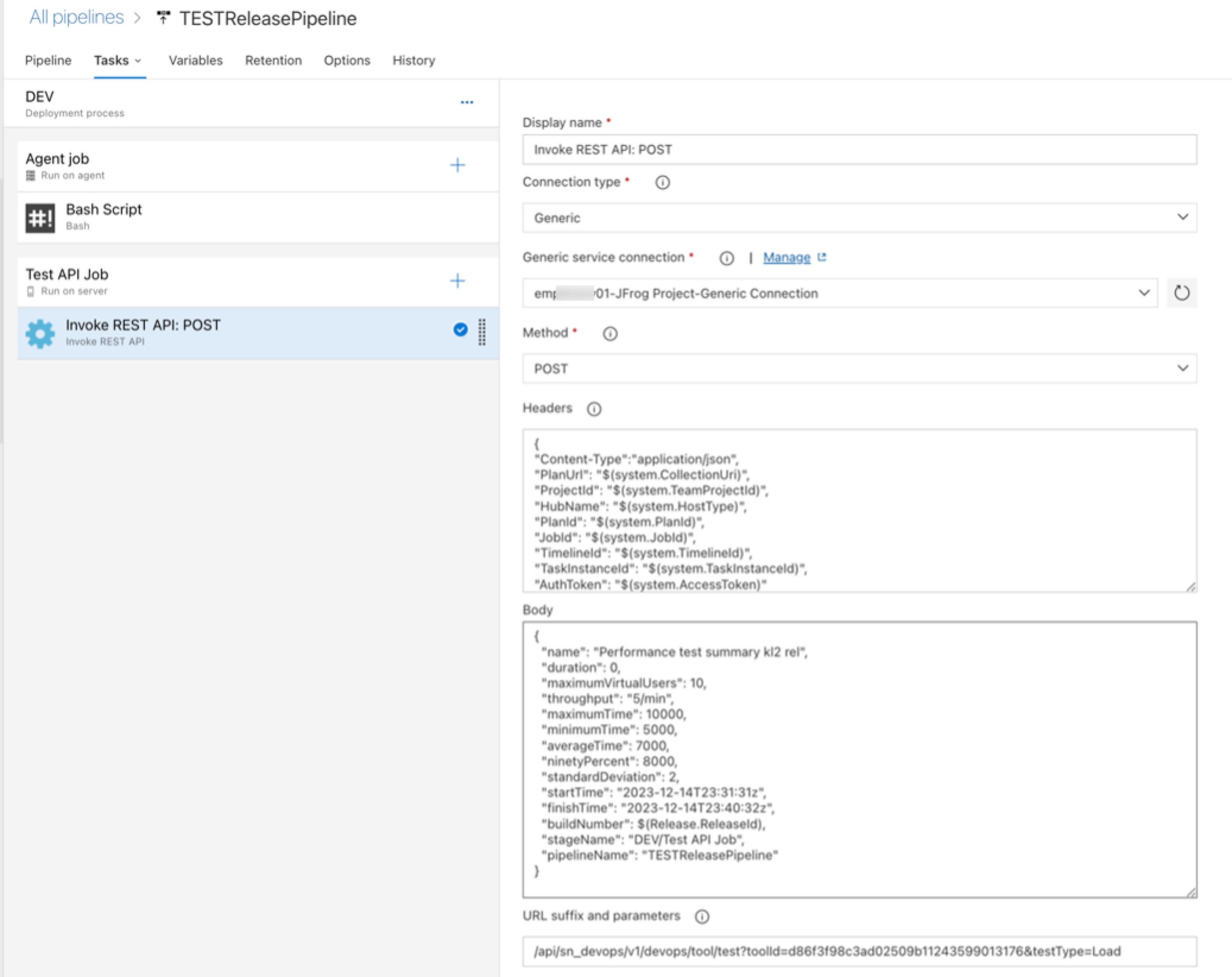

Azure DevOps release pipeline yml.

GitHub

For GitHub pipelines, use the format given here to add test results to change requests for various test types.

Pipeline configuration for performance tests

Sample pipeline:

name: Test API Call Perf

on:
  workflow_dispatch:

jobs:
  post_api_call_perf:
    runs-on: ubuntu-latest

    steps:
    - name: Checkout Repository
      uses: actions/checkout@v2

    - name: post_api_call_perf
      run: |
        apiUrl="https://<your_instance>.service-now.com/api/sn_devops/v1/devops/tool/test?toolId=<devops_ToolId>&testType=<performance_test_type>"
        requestBody='{"toolId": "<devops_ToolId>", "buildNumber": '${{ github.run_number }}' , "workflow": "Test API Call Perf", "repository": "<your_GitHub_repository>", "stageName":"post_api_call_perf","pipelineName":"Test API Call Perf", "testType": "Load", "buildNumber": '${{ github.run_number }}', "buildId": '${{ github.run_id }}' , "attemptNumber" : '${{ github.run_attempt }}', "name": "GitHub Test Summary - Performance 1.0","duration": 0.0,"maximumVirtualUsers": 10,"throughput": "5/min","maximumTime": 1000,"minimumTime": 5000,"averageTime": 7000,"startTime": "2023-12-14T23:31:31z","finishTime": "2023-12-14T23:31:31z","ninetyPercent": 8000, "standardDeviation": 2.0 }'
        auth="devops.integration.user:<password> in base64 encoded"
        authHeader="Basic $auth"
        response=$(curl -X POST -H "Content-Type: application/json" -H "Authorization: $authHeader" -d "$requestBody" $apiUrl)
        exitCode=$?

        if [ $exitCode -eq 0 ]; then
          echo "API call successful!"
          echo "Response: $response"
        else
          echo "API call failed!"
          echo "Response: $response"
          exit 1
        fi

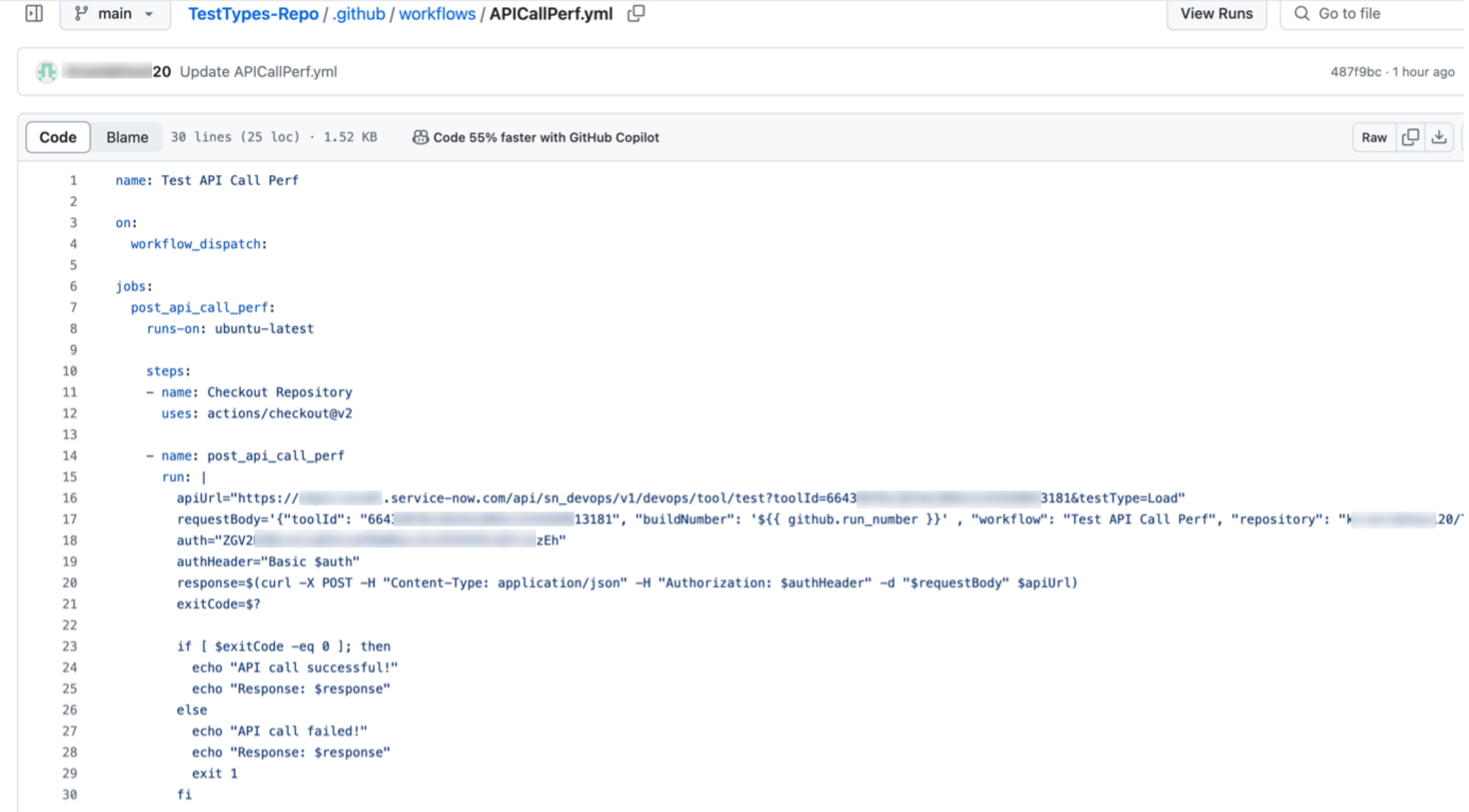

Sample GitHub pipeline configuration for performance tests.

Pipeline configuration for other functional and unit tests

Sample pipeline:

name: Test API Call

on:
  workflow_dispatch:

jobs:
  post_api_call:
    runs-on: ubuntu-latest

    steps:
    - name: Checkout Repository
      uses: actions/checkout@v2

    - name: post_api_call
      run: |
        apiUrl="https://<your_instance>.service-now.com/api/sn_devops/v1/devops/tool/test?toolId=<devops_ToolID>&testType=<test_type>"
        requestBody='{"toolId": "<devops_ToolID>", "buildNumber": '${{ github.run_number }}' , "workflow": "Test API Call", "repository": "<your_GitHub_repository>", "stageName":"post_api_call","pipelineName":"TestAPICall", "testType": "Smoke", "buildNumber": '${{ github.run_number }}', "buildId": '${{ github.run_id }}' , "attemptNumber" : '${{ github.run_attempt }}', "testSummaries": [{"name": "GitHub Test Summary - smoke","passedTests": 1,"failedTests": 1,"skippedTests": 1,"ignoredTests": 0,"blockedTests": 1,"totalTests": 4,"startTime": "2023-12-14T23:31:31z","endTime": "2023-12-14T23:31:31z","duration": 0.0,"testType": "Smoke", "suites": []}] }'
        auth="devops.integration.user:<password> in base64 encoded"

        authHeader="Basic $auth"
        response=$(curl -X POST -H "Content-Type: application/json" -H "Authorization: $authHeader" -d "$requestBody" $apiUrl)
        exitCode=$?

        if [ $exitCode -eq 0 ]; then
          echo "API call successful!"
          echo "Response: $response"
        else
          echo "API call failed!"
          echo "Response: $response"
          exit 1
        fi

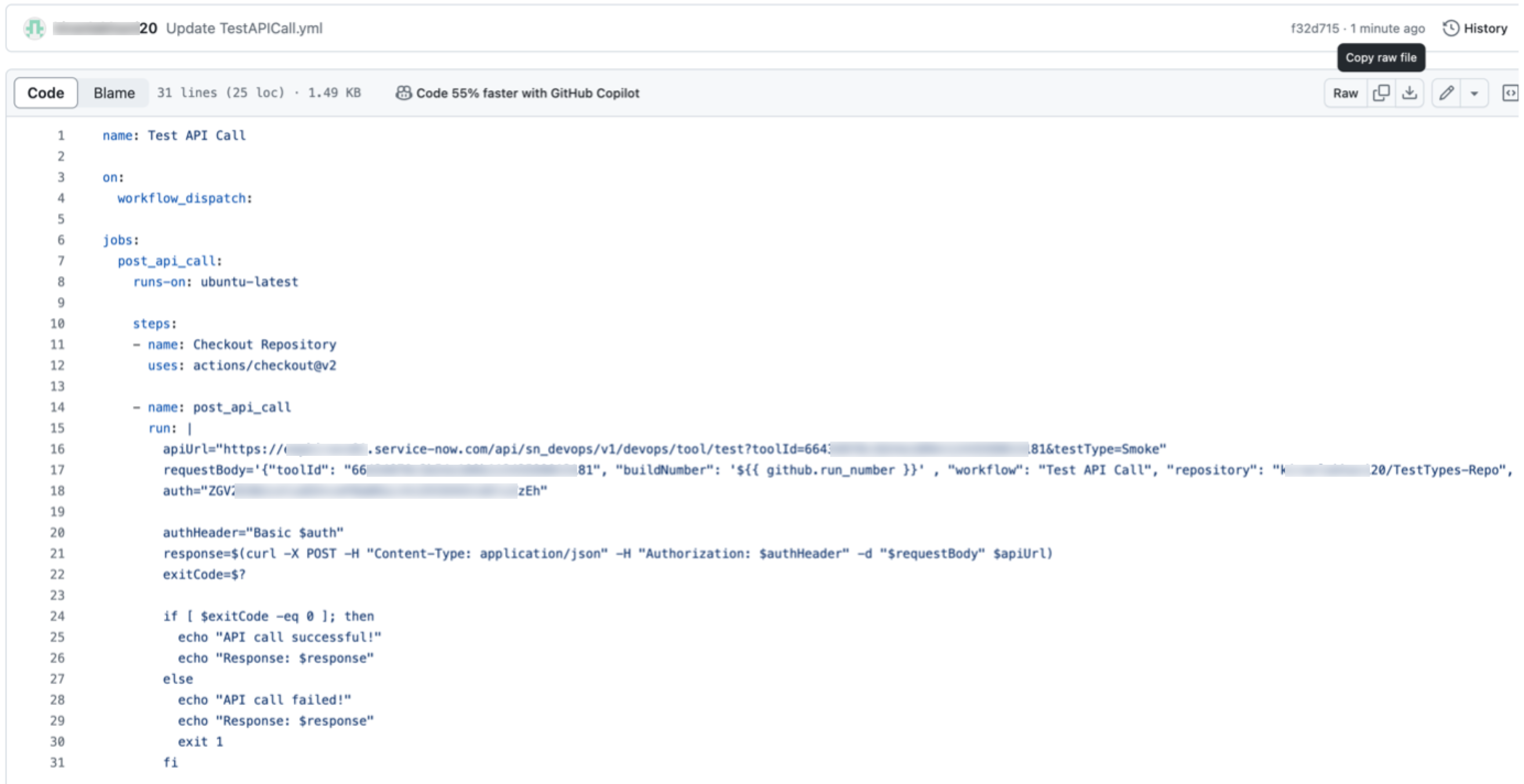

Sample GitHub pipeline configuration for other functional tests.

Jenkins

For Jenkins pipelines, use the format given here to add test results to change requests for various test types.

Pipeline configuration for performance tests

Sample pipeline:

pipeline {
    agent any
    stages {
        stage('POST API Call') {
            steps {
                script {
                    def apiUrl = 'https://<your_instance>.service-now.com/api/sn_devops/v1/devops/tool/test?toolId=<devops_ToolID>&testType=<performance_test_type>'
                    def requestBody = [
                        name: "Performance Load tests jenkins",
                        duration: 0.0,
                        maximumVirtualUsers: 10,
                        throughput: "6/min",
                        maximumTime: 1000,
                        minimumTime: 300,
                        averageTime: 700,
                        ninetyPercent: 600,
                        standardDeviation: 2.0,
                        startTime: "2023-12-14T23:31:31z",
                        finishTime: "2023-12-14T23:40:32z",
                        buildNumber: env.BUILD_NUMBER,
                        stageName: "POST API Call",
                        pipelineName: "KLPerformanceTestPipeline"
                    ]
                    def auth = "<password>" // devops.integration.user:<password> in base64 encoded.
                    def authHeader = "Basic " + auth
                    def response = httpRequest(
                        contentType: 'APPLICATION_JSON',
                        httpMode: 'POST',
                        requestBody: groovy.json.JsonOutput.toJson(requestBody),
                        url: apiUrl,
                        customHeaders: [[name: 'Authorization', value: authHeader]]
                    )

                    if (response.status == 200 || response.status == 201) {
                        echo "API call successful!"
                        echo "Response: ${response.content}"
                    } else {
                        error "API call failed with status ${response.status}"
                    }
                }
            }
        }
    }
}

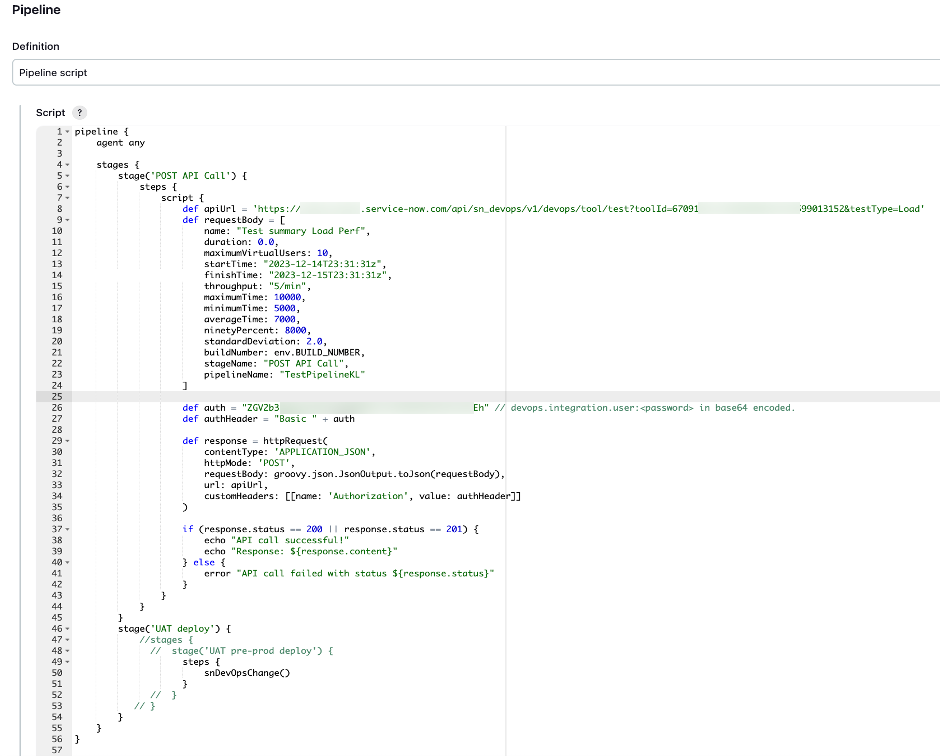

Sample Jenkins pipeline configuration for performance tests.

Pipeline configuration for other functional and unit tests

Sample pipeline:

pipeline {
    agent any

    stages {
        stage('POST API Call') {
            steps {
                script {
                    def apiUrl = 'https://<your_instance>.service-now.com/api/sn_devops/v1/devops/tool/test?toolId=<devops_ToolID>&testType=<test_type>'
                    def requestBody = [
                        name: "Smoke tests",
                        duration: 0.0,
                        passedTests: 1,
                        failedTests: 1,
                        skippedTests: 1,
                        blockedTests: 1,
                        totalTests: 4,
                        startTime: "2023-12-14T23:31:31z",
	                    finishTime: "2023-12-15T23:31:31z",
                        buildNumber: env.BUILD_NUMBER,
                        stageName: "POST API Call",
                        pipelineName: "TestPipelineKL"
                    ]

                    def auth = "<password>" // devops.integration.user:<password> in base64 encoded.
                    def authHeader = "Basic " + auth

                    def response = httpRequest(
                        contentType: 'APPLICATION_JSON',
                        httpMode: 'POST',
                        requestBody: groovy.json.JsonOutput.toJson(requestBody),
                        url: apiUrl,
                        customHeaders: [[name: 'Authorization', value: authHeader]]
                    )

                    if (response.status == 200 || response.status == 201) {
                        echo "API call successful!"
                        echo "Response: ${response.content}"
                    } else {
                        error "API call failed with status ${response.status}"
                    }
                }
            }
        }
    }
}

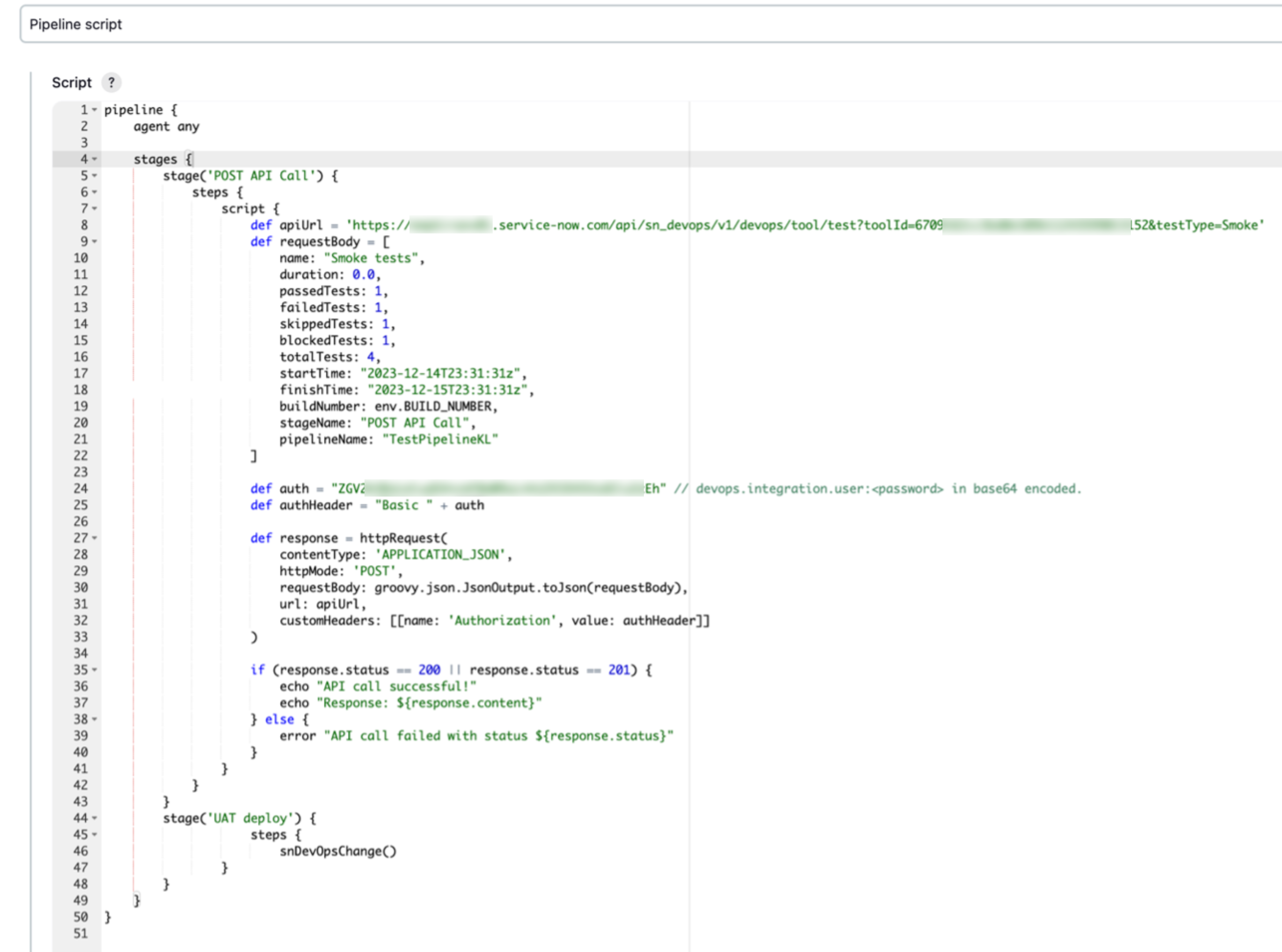

Sample Jenkins pipeline configuration for other functional tests.

Limitations of the test API

Waiting logic will not be taken care of.
Re-run scenarios cannot be handled.
