Configuring the TinyMCE toolbar via Dictionary attributes

You can configure the TinyMCE HTML editor for a specific table by configuring the dictionary attributes.

For information on configuring the toolbar, see Change the TinyMCE default toolbar. For information on configuring specific plugins, see Change TinyMCE plugins for a specific table. For information on configuring the default height of an HTML field, see Change the default height of an HTML field. For information on configuring the default font size in an HTML field, see Change the default font size of an HTML field. For information on configuring the menu bar on the TinyMCE HTML editor, see Configure the menu bar on the TinyMCE HTML editor.

Change the TinyMCE default toolbar

Set the toolbar items in your system properties to enable or disable throughout Workspace.

Before you begin

Role required: admin

Procedure

1. Navigate to All > System Properties > UI Properties.
2. Update the Configures the editing toolbar for HTML fields(TinyMCE v6.8.2) (glide.ui.html.editor.toolbar) property to add or remove buttons for the toolbar.
   Note:

   Use a vertical bar ("|") to add a section separator.

   Type	Buttons
   Default buttons	bold italic underline undo redo | fontfamily fontsize table | forecolor backcolor link unlink | image media code | alignleft aligncenter alignright | bullist numlist fullscreen
   Valid buttons	newdocument, bold, italic, underline, strikethrough, justifyleft, justifycenter, justifyright, justifyfull, blocks, fontfamily, fontsize, tablecontrols, cut, copy, paste, pastetext, pasteword, search, replace, bullist, numlist, outdent, indent, blockquote, undo, redo, link, unlink, image, cleanup, code, forecolor, backcolor, removeformat, hr, visualaid, sub, sup, charmap, media, preview, fullscreen, accordion

3. Select Save.

Change the TinyMCE toolbar for a specific table

Set the attributes in the TinyMCE dictionary to determine which TinyMCE attributes show in a specific table.

Before you begin

Role required: admin

Procedure

1. Navigate to a record with an HTML-type field that you want to change.
   For example, select an incident, problem, or knowledge record.
2. Right-click the field label (for example, Article body) and select Configure Dictionary.
3. In the Related Links section, select Advanced View.
4. In the Attributes field, input editor.toolbar= followed by the desired toolbar buttons.
   For example, editor.toolbar=blocks|bold italic underline strikethrough blockquote subscript superscript removeformat| bullist numlist outdent indent|undo redo|table hr|link unlink|image media code|visualblocks preview fullscreen.

   Note:

   • Include all the toolbar items that you want displayed, not just the toolbar items you want to add.
   • The configurations made to a field's Attribute field on the associated Dictionary record overrides the value of the System Property glide.ui.html.editor.toolbar.
   • Multiple attributes, such as height, toolbar buttons, and toolbar plugins, can be combined within the Attributes field. For example, editor.height=300,editor.plugins=table colorpicker textcolor link image media codemirror lists advlist fullscreen charmap directionality emoticons hr insertdatetime nonbreaking pagebreak print searchreplace wordcount anchor codesample visualblocks visualchars compat3x autolink align_listitems,editor.toolbar= fontfamily fontsize | bold italic underline strikethrough forecolor backcolor pastetext removeformat | blocks searchreplace undo redo | bullist numlist outdent indent alignleft aligncenter alignright | tableofcontents table link unlink image media codesample | code fullscreen.
5. Select Update.

Change TinyMCE plugins for a specific table

Set the attributes in the TinyMCE dictionary to enable or disable plugins in a specific HTML field.

Before you begin

Role required: admin

Procedure

1. Navigate to a record with an HTML-type field that you want to change.
   For example, select an incident, problem, or knowledge record.
2. Right-click the field label (for example, Article body) and select Configure Dictionary.
3. In the Related Links section, select Advanced View.
4. In the Attributes field, input editor.plugins= followed by the desired plugins, separated with a space.

   For example, editor.plugins=table colorpicker textcolor link image media codemirror lists advlist fullscreen charmap directionality emoticons hr insertdatetime nonbreaking pagebreak print searchreplace wordcount anchor tableofcontents codesample visualblocks visualchars compat3x autolink align_listitems.

   Note:

   • Include all the toolbar items that you want displayed, not just the toolbar items you want to add.
   • The configurations made to a field's Attribute field on the associated Dictionary record overrides the value of the System Property glide.ui.html.editor.toolbar.
   • Allowed plugins include: advlist align_listitems anchor autolink autoresize bbcode charmap codemirror codesample colorpicker directionality emoticons fullscreen hr image insertdatetime link lists media nonbreaking pagebreak preview print readonlynoborder searchreplace table textcolor tableofcontents visualblocks visualchars wordcount
   • Multiple attributes, such as height, toolbar buttons, and toolbar plugins, can be combined within the Attributes field. For example, editor.height=300,editor.plugins=table colorpicker textcolor link image media codemirror lists advlist fullscreen charmap directionality emoticons hr insertdatetime nonbreaking pagebreak print searchreplace wordcount anchor codesample visualblocks visualchars compat3x autolink align_listitems,editor.toolbar= fontfamily fontsize | bold italic underline strikethrough forecolor backcolor pastetext removeformat | blocks searchreplace undo redo | bullist numlist outdent indent alignleft aligncenter alignright | tableofcontents table link unlink image media codesample | code fullscreen.
5. Select Update.

Change the default height of an HTML field

Change the default height of a specific HTML field to expand the size of a journal field.

Before you begin

Role required: admin

About this task

HTML field height is configured per HTML field.

Procedure

1. Navigate to a record with an HTML-type field that you want to change.
   For example, select an incident, problem, or knowledge record.
2. Right-click the field label (for example, Article body) and select Configure Dictionary.
3. In the Related Links section, select Advanced View.
4. In the Attributes field, enter editor.height=X, where X is the desired height.
   For example, editor.height=250

   Note:

   HTML fields can range from 72 to 2000. HTML fields are by default 64.

5. Select Update.
6. To configure the height of form fields dynamically as the text line increases rather than providing a specific height, complete the following steps:
   1. Navigate to All > System Properties > All Properties
   2. In the search bar, enter glide.ui.html.editor.enabled_plugins and select the property.
   3. In the value field, add autoresize.
   4. Select Update.
      The autoresize plugin is active.

Change the default font size of an HTML field

Change the default font size of a specific HTML field to use a standard font size across forms.

Before you begin

Role required: admin

About this task

HTML font size is configured per HTML field.

Procedure

1. Navigate to a record with an HTML-type field that you want to change.
   For example, select an incident, problem, or knowledge record.
2. Right-click the field label (for example, Article body) and select Configure Dictionary.
3. Select the Default Value tab.
4. In the Default value field, enter <p style="font-size:X;"></p>, where X is the default value.
   For example:

   • To set the font to large, enter <p style="font-size:large;"></p>
   • To set the size to 10, enter <p style="font-size:10pt;"></p>
5. Select Update.

Configure TinyMCE to allow deprecated tags

You can set a dictionary attribute on a TinyMCE field to allow the use of deprecated HTML tags, such as <b> and <i>. By default, TinyMCE uses the <strong> and <em> tags for bold and italic formatting.

Before you begin

Role required: personalize_dictionary or admin

About this task

After you set the dictionary attribute, use code view to manually enter deprecated tags. The editor does not validate any tags you enter manually, for example, if you type an incorrect character.

Procedure

1. Navigate to the form with an HTML field that uses TinyMCE.
2. Right-click the HTML field label and select Configure dictionary.

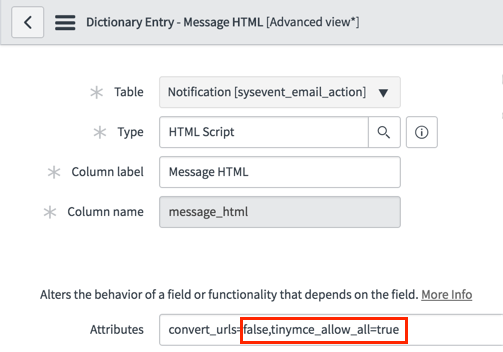

3. In the Attributes field, enter tinymce_allow_all=true, separated by a comma if needed.

   Dictionary entry attributes can only be added to when the dictionary entry form is in advanced view, as they are not shown in default view.



   If other attributes are already listed, use a comma as a separator.

4. Select Update.

Configure TinyMCE to allow JavaScript in URLs

You can set a dictionary attribute on a TinyMCE field to allow the use of JavaScript in a URL.

Before you begin

Role required: personalize_dictionary or admin

Procedure

1. Navigate to the form with an HTML field that uses TinyMCE.
2. Right-click the HTML field label and select Configure dictionary.



3. In the Attributes field, enter tinymce_allow_script_urls=true, separated by a comma if needed.

   Dictionary entry attributes can only be added to when the dictionary entry form is in advanced view, as they are not shown in default view.



   If other attributes are already listed, use a comma as a separator.

4. Select Update.

Configure the menu bar on the TinyMCE HTML editor

You can enable the menu bar on the TinyMCE HTML editor in both CoreUI and workspaces. When enabled, the menu bar appears on the top of the HTML editor which can be used to create, edit and format content. By default, the menu bar is inactive. You can enable it for a specific table via dictionary attribute configuration.

Before you begin

Role required: admin

Procedure

1. Navigate to a record with an HTML-type field that you want to change.
   For example, select an incident, problem, or knowledge record.
2. Right-click the field label and select Configure Dictionary.



3. In the Related Links section, select Advanced View.

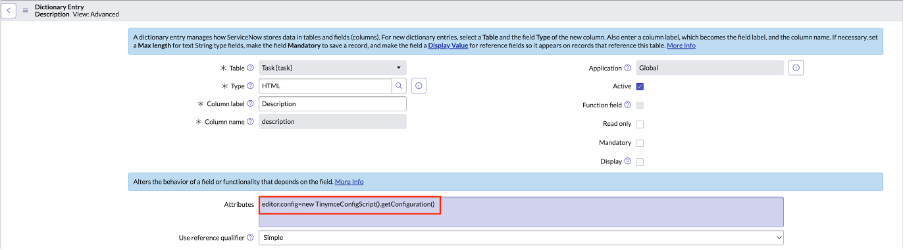

4. In the Attributes field, input editor.config=new TinymceConfigScript().getConfiguration().



   This editor.config attribute points to a script: TinymceConfigScript().

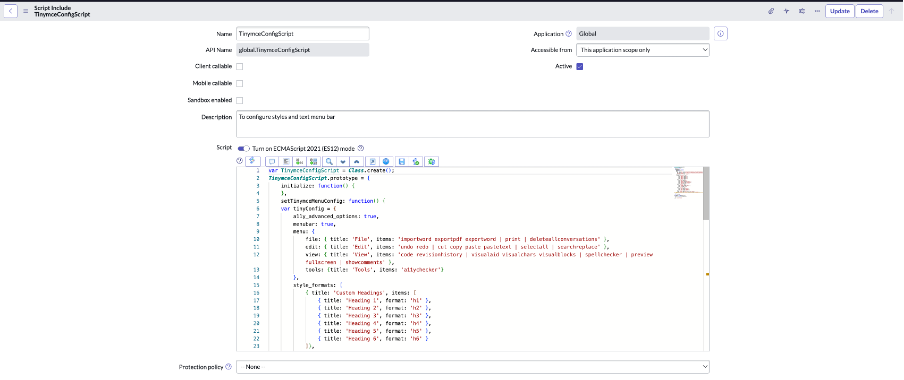

5. Access the TinymceConfigScript.
   1. Navigate to All > System Definition > Script Includes.
   2. Enter TinymceConfigScript in the search bar near the top of the form, and select enter or return.
   3. Select TinymceConfigScript.

      You will be able to see the following script by default.



      var TinymceConfigScript = Class.create();
      TinymceConfigScript.prototype = {
          initialize: function() {
          },
          setTinymceConfig: function() {
          var tinyConfig = {
              menubar: 'edit format',
              menu: {
                  file: { title: 'File', items: 'importword exportpdf exportword | print | deleteallconversations' },
                  edit: { title: 'Edit', items: 'undo redo | cut copy paste pastetext | selectall | searchreplace' },
                  view: { title: 'View', items: 'code revisionhistory | visualaid visualchars visualblocks | spellchecker | preview fullscreen | showcomments' }
              },
              style_formats: [
                  { title: 'Headings', items: [
                      { title: 'Heading 1', format: 'h1' },
                      { title: 'Heading 2', format: 'h2' },
                      { title: 'Heading 3', format: 'h3' },
                      { title: 'Heading 4', format: 'h4' },
                      { title: 'Heading 5', format: 'h5' },
                      { title: 'Heading 6', format: 'h6' }
                  ]},
                  { title: 'Inline', items: [
                      { title: 'Bold', format: 'bold' },
                      { title: 'Italic', format: 'italic' },
                      { title: 'Underline', format: 'underline' },
                      { title: 'Strikethrough', format: 'strikethrough' },
                      { title: 'Superscript', format: 'superscript' },
                      { title: 'Subscript', format: 'subscript' },
                      { title: 'Code', format: 'code' }
                  ]},
                  { title: 'Blocks', items: [
                      { title: 'Paragraph', format: 'p' },
                      { title: 'Blockquote', format: 'blockquote' },
                      { title: 'Div', format: 'div' },
                      { title: 'Pre', format: 'pre' }
                  ]},
                  { title: 'Align', items: [
                      { title: 'Left', format: 'alignleft' },
                      { title: 'Center', format: 'aligncenter' },
                      { title: 'Right', format: 'alignright' },
                      { title: 'Justify', format: 'alignjustify' }
                  ]}
              ]
          };
          return tinyConfig;
      },
      getConfiguration: function() {
          var config = this.setTinymceConfig();
          answer = JSON.parse(JSON.stringify(config));
      },

          type: 'TinymceConfigScript'
      };

   4. Set the menu bar attribute to true in the script to enable the menu bar.
      This will enable all the options “File” “Edit” “View” “Insert” “Format” “Table” in the menu bar.
   5. If you want to disable the menu bar set the menu bar attribute to false.
   6. If you only want to enable specific options on the menu bar, you can change the script by listing those specific options in the menu bar.

      For example, menu bar: 'file edit format' so that only these 3 options appear on the menu bar.

   7. You can also configure the buttons that display within a menu by changing the script.

      tinymce.init({
          selector: 'textarea', // change this value according to your HTML
          menu:{
              file: { title: 'File', items: 'newdocument restordraft | preview | importword exportpdf exportword | print | deleteallconversations' },
              edit: { title: 'Edit', items: 'undo redo | cut copy paste pastetext | selectall | searchreplace' },
              view: { title: 'View', items: 'code revision history | visualaid visualchars visualblocks | spellchecker | preview fullscreen | showcomments' },
              insert: { title: 'Insert', items: 'image link media addcomment pageembed codesample inserttable | math | charmap emoticons hr | pagebreak nonbreaking anchor tableofcontents | insertdatetime' },
              format: { title: 'Format', items: 'bold italic underline strikethrough superscript subscript codeformat | styles blocks fontfamily fontsize align lineheight | forecolor backcolor | language | removeformat' },
              tools: { title: 'Tools', items: 'spellchecker spellcheckerlanguage | a11ycheck code wordcount' },
              table: { title: 'Table', items: 'inserttable | cell row column | advtablesort | tableprops deletetable' },
              help: { title: 'Help', items: 'help' }
          }
      });

6. Configure custom style format options in the TinyMCEConfigScript by appending the CSS in the style_formats section.

   Example of style_formats section of the TinyMCEConfigScript:

   style_formats: [
     { title: 'Headings', items: [
       { title: 'Heading 1', format: 'h1' },
       { title: 'Heading 2', format: 'h2' },
       { title: 'Heading 3', format: 'h3' },
       { title: 'Heading 4', format: 'h4' },
       { title: 'Heading 5', format: 'h5' },
       { title: 'Heading 6', format: 'h6' }
     ]},
     { title: 'Inline', items: [
       { title: 'Bold', format: 'bold' },
       { title: 'Italic', format: 'italic' },
       { title: 'Underline', format: 'underline' },
       { title: 'Strikethrough', format: 'strikethrough' },
       { title: 'Superscript', format: 'superscript' },
       { title: 'Subscript', format: 'subscript' },
       { title: 'Code', format: 'code' }
     ]},
     { title: 'Blocks', items: [
       { title: 'Paragraph', format: 'p' },
       { title: 'Blockquote', format: 'blockquote' },
       { title: 'Div', format: 'div' },
       { title: 'Pre', format: 'pre' }
     ]},
     { title: 'Align', items: [
       { title: 'Left', format: 'alignleft' },
       { title: 'Center', format: 'aligncenter' },
       { title: 'Right', format: 'alignright' },
       { title: 'Justify', format: 'alignjustify' }
     ]}
   ]

   Example with three new style formats added (Bold text, Red text, My-inline):

   tinymce.init({
     selector: 'textarea',  // change this value according to your HTML
     style_formats: [
       { title: 'Bold text', inline: 'b' },
       { title: 'Red text', inline: 'span', styles: { color: '#ff0000' } },
       { name: 'my-inline', title: 'My inline', inline: 'span', classes: [ 'my-inline' ] }
     ],
     // The following option is used to append style formats rather than overwrite the default style formats.
     style_formats_merge: true
   });

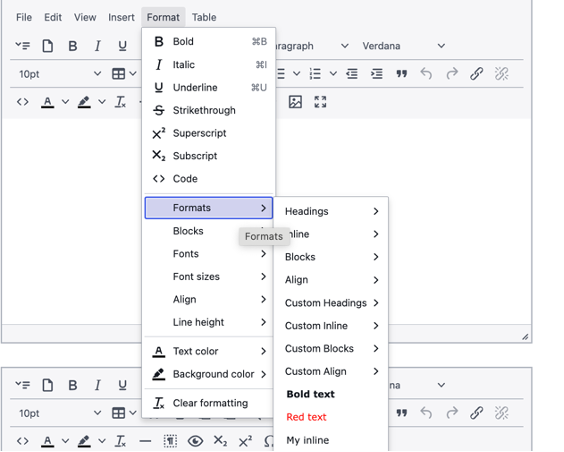

   Access the HTML editor and you will see that the new custom style formats (Bold text, Red text, My-inline) appear in the formats section of the menu bar.
