Add a module to test connection speed

  • Release version: Yokohama
  • Updated January 30, 2025
  • 1 minute to read

    • A connection test can indicate the connection speed between your computer and your instance. A connection speed test (/connection_test.do) is available as a UI page.

    Before you begin

    Role required: admin

    Procedure

    1. Perform the appropriate action for your version of the UI.
      UI versionSteps
      Core UI
      1. Navigate to System Definition > Application Menus.
      2. Open the application menu to which you want to add the module, for example, System Diagnostics.
      UI15 Select and hold (or right-click) an application menu, such as System Diagnostics, and select Edit Application Menu or the pencil icon.
    2. Select New in the list of modules.
    3. Complete the Module form using the following values:
      • Title: Unique name such as Connection Test
      • Link type: URL (from Arguments)
      • Arguments: connection_test.do

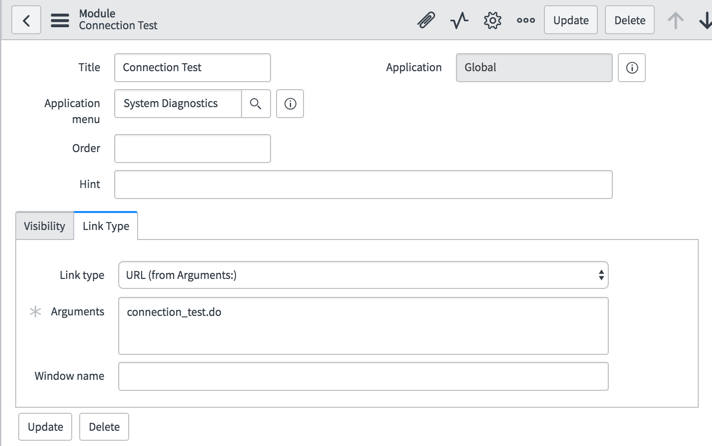

      Module form for an example connection test, using the same values previously described.
    4. Select Submit.
