Consumer replication set status in Instance Data Replication

Review the status of your consumer replication set and research error messages to identify or fix Instance Data Replication (IDR) replication issues.

Consumer replication set status and status message

Navigate to Instance Data Replication > Consumer Replication Sets to access a consumer replication set, and view the status and status messages.

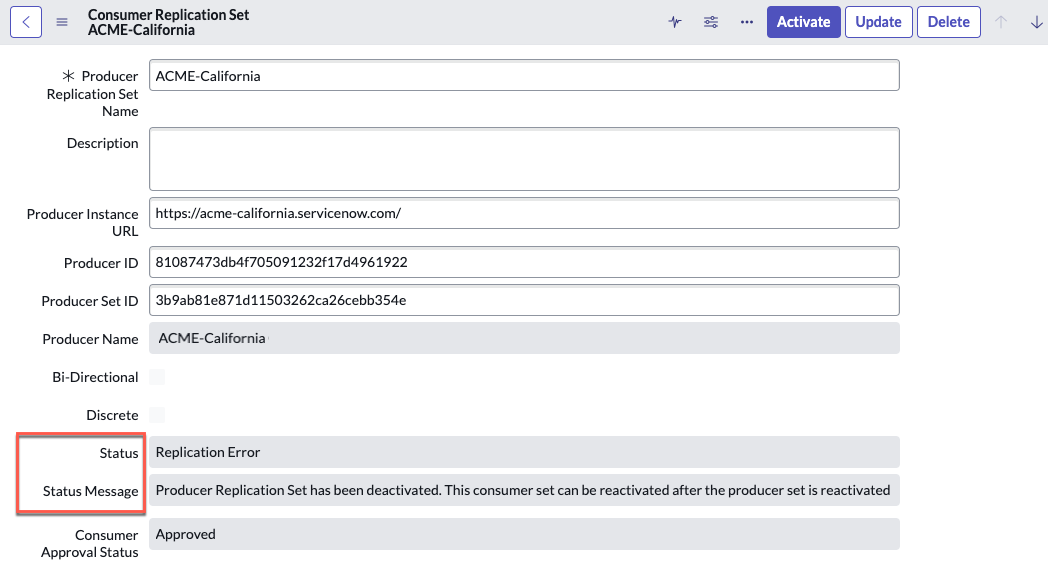

Figure 1. Consumer Replication Set

Table 1. Status

Status	Description
In Draft	To use your consumer replication set, click Activate.
Activation Requested	After you initiate an activation, you must wait for the producer instance to respond to your request. If the wait time is excessive, then check the replication log for errors.
Seeding	The seeding job must complete before replication can resume.
Seeding Paused	The seeding job must resume before the seeding can continue.
Active	Normal status.
Replication Stopped	Check the Status Messages in the following table for a specific message and associated fix.
Replication Paused	The replication process must resume before the replication can continue.
Replication Error	Check the Status Messages in the following table for a specific message and associated fix.
Replication Deactivated	Activate the producer and consumer instances.
Subscription Requested	Approve the request for a consumer subscription on the producer instance.

Table 2. Status Messages

Message	Action
All Producer Replication Sets have been deactivated due to fatal replication error	All consumer replication sets are moved to the error state. Contact Customer Service and Support.
Consumer replication set received out of order messages	Contact Customer Service and Support.
Error while seeding data. Please refer to the Replication Payload Error table for details	On the consumer instance, more than one record failed to seed. To recover, go to the Replication Payload Error table to find and fix the error, and then activate the consumer replication set.
Error while seeding data. Please retry seeding this table	To recover, reseed the table.
Producer has encountered an error while seeding	To recover, contact the administrator of the producer instance to determine the cause of the problem.
Producer Replication Set configuration has been modified	On the consumer instance, click Synchronize Replication Entries and then click Activate.
Producer Replication Set has been deactivated due to replication error	Contact Customer Service and Support.
Producer Replication Set has been deactivated	To recover, activate the producer replication set, and then activate the consumer replication set.
Producer Replication Set has been deleted	To recover, delete the consumer replication set.
Producer Replication Set is inactive	To recover, activate the producer replication set, and then synchronize and activate the consumer replication set.
Producer Replication Set not found	To recover, delete the consumer replication set.
Replication Set Paused	To recover, click Resume or Activate.
Replication set was in pause/error/seeding pause state for more than 7 days	The consumer replication set has been in the pause state, error state, or seeding pause state for more than the timeout period. The replication set is put into the disabled state. To recover, check for seeding errors and activate the consumer replication set with seeding.
Seeding has been terminated due to timeout	To recover, retry the seeding request or contact Customer Service and Support.
Seeding request for a Producer Replication Set containing more than X number of records is not supported	To recover, change the filter criteria to reduce the number of records to be seeded or use partial seeding. The default limit is 10 million records. Contact Customer Service and Support to change the default limit.
Seeding was cancelled by a consumer admin	To recover, activate the consumer replication set.
Seeding was cancelled by a producer admin	To recover, activate the consumer replication set. Only seeding requests in the queued, paused, or started states can be canceled. In this case, the consumer replication state is Replication Error.
Shared key not matching	The producer and consumer replication sets have different shared keys. To recover, copy the shared encryption key on the producer replication set, paste it into the consumer replication set, and activate the replication set.
