Automation Center Executions dashboarb
Summarize
Summary of Automation Center Executions dashboard
The Automation Center Executions dashboard in ServiceNow provides a centralized view to monitor the health and performance of automations running in your environment. It consolidates execution data, including metrics imported from third-party providers, allowing you to track how often automations run and their current status.
Show less
You can access the dashboard via two paths:
- All > Automation Center > Automation Center Home, then select the Executions tab
- Workspaces > Automation Center Workspace > Executions
Key Features
- Execution Overview: Visual charts and tables provide insights into automation execution states, incidents affecting automations, and changes impacting automations or related business applications.
- Filtering Capability: Use filters such as Department, Automation Source, and Application to refine the displayed data. Without filters, all data is shown.
- Execution State Over Time: Analyze execution trends within a customizable date range, defaulting to the last week.
- Execution and Transaction Summaries: Detailed metrics on executions by automation name and transaction statistics over the past 24 hours, including active applications, actions used, total transactions, and status trends.
- Insights Panel: Highlights issues within the Automation Center that require attention to prevent unexpected automation behavior, allowing you to address or ignore identified problems.
- Role-Based Access: To view widgets related to Automation incidents, changes, and business application changes, users must have Automation Center roles plus itil or snincidentread and snchangeread roles.
Practical Benefits
This dashboard empowers ServiceNow customers to:
- Quickly assess the health and status of all automation executions in one place.
- Identify and respond to incidents or changes that impact automation performance.
- Track execution trends and transaction details to optimize automation workflows.
- Gain actionable insights to proactively resolve issues before they affect automation outcomes.
The Automation Center Executions dashboard helps you manage the health of automations in one central place. You can also import automation metrics and data from third-party providers regardless of the technology used.
Executions refer to the times each automation runs.
You can access the Executions dashboard in either of two ways:
- By navigating to and then selecting the Executions tab.
- By navigating to .
Executions dashboard details
The Executions dashboard provides the details about the automation executions in the form of charts and tables. These charts give an overview of the entire execution process.
- Department
- Automation
- Source
- Application
If you don’t specify any filter, then all available data is displayed.
| Section | Description |
|---|---|

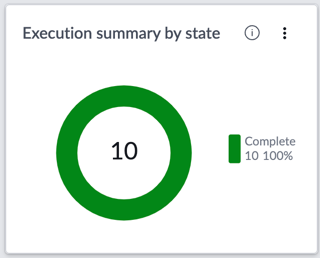

| Execution summary by state | This chart displays the execution status of automations in different states. This information helps in understanding the status of the automations. |

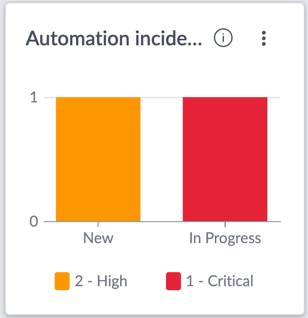

| Automation incidents | This chart provides information about any incidents that have a direct impact on the automations. For example, if five automations are on hold, this chart lets you know about those five automations. This
information enables you to manage the automations better. |

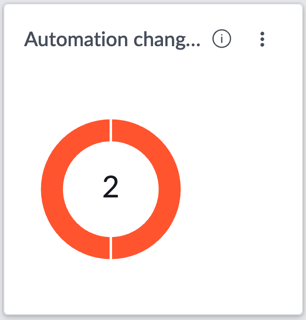

| Automation changes | This chart focuses on any change that has a direct impact on the automations. |

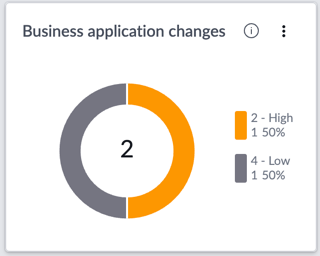

| Business application changes | This chart provides information about any change to the business applications that are associated with the automations. |

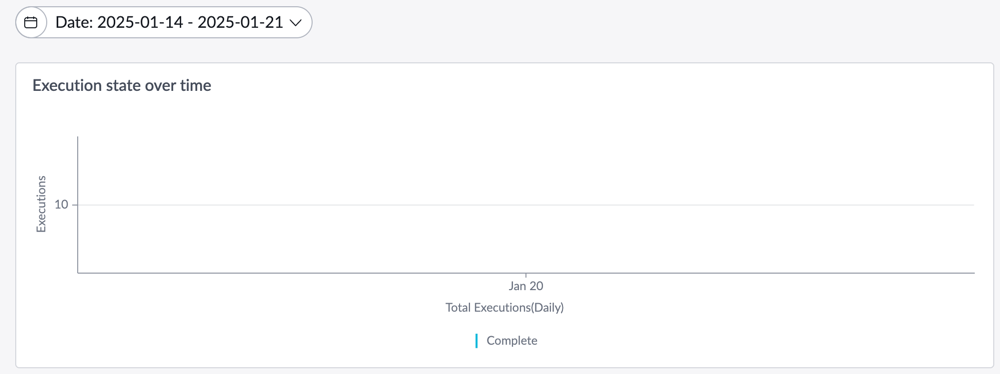

| Execution state over time | This chart provides information about the state of the executions for a time period. There’s a date range filter for this chart. If you select a date range, the data is limited to the selected date range, or else
the default date range is selected, which is last one week. |

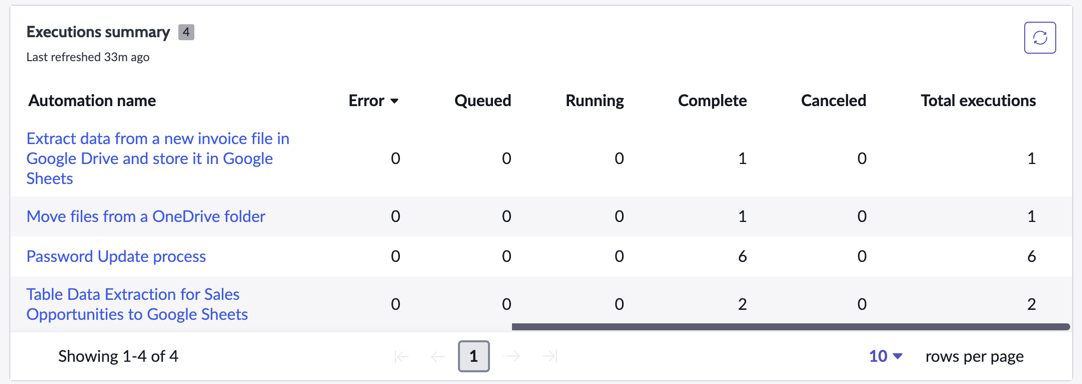

| Execution summary | This chart displays the number of executions and their respective states sorted by automation name. |
Transaction summary
The Transaction summary section displays execution details of the spokes for the last 24 hours.
| Section | Description |
|---|---|

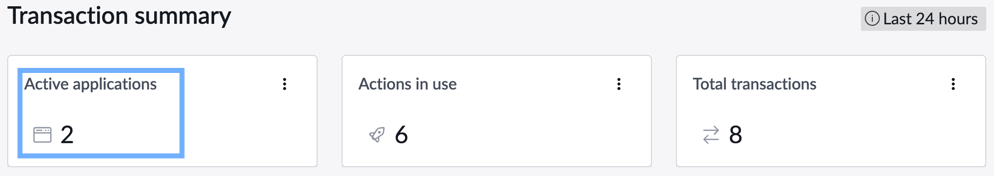

| Active applications | Displays the number of active applications running in your instance for the last 24 hours. |

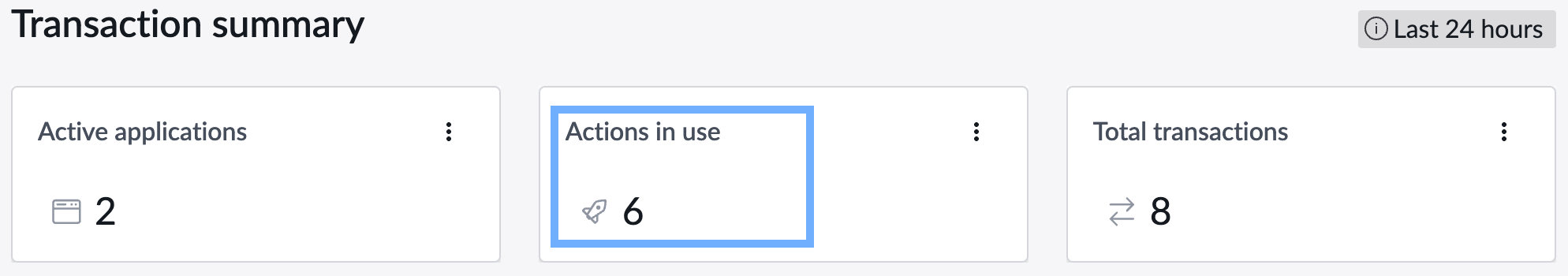

| Actions in use | Displays the number of actions that are used in your instance in the last 24 hours. |

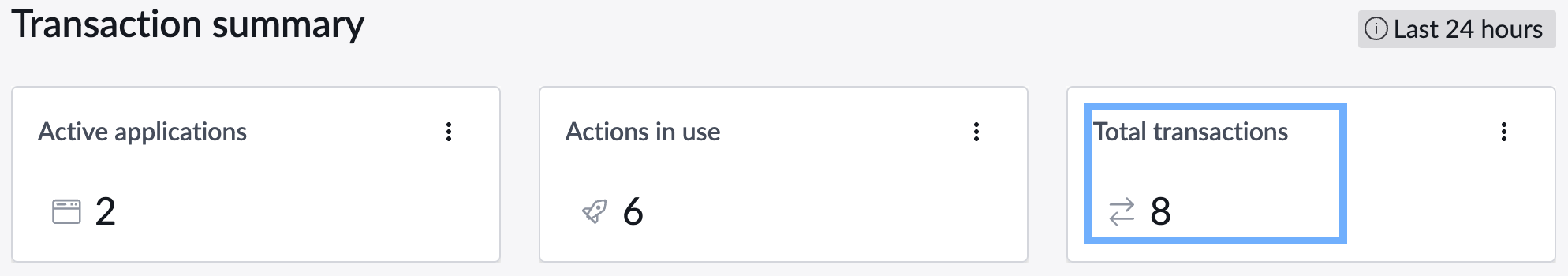

| Total transactions | Displays the total number of transactions in your instance in the last 24 hours. |

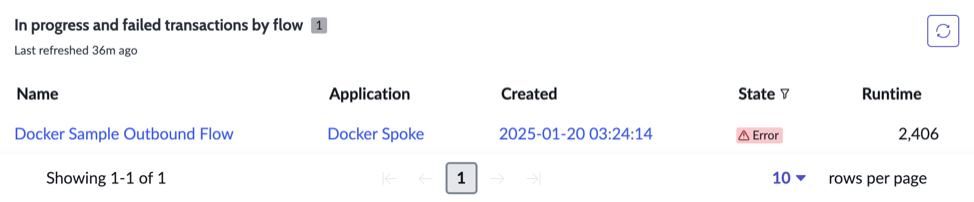

| In progress and failed transactions by flow | Displays all the in progress and failed transactions by flow in your instance in the last 24 hours. |

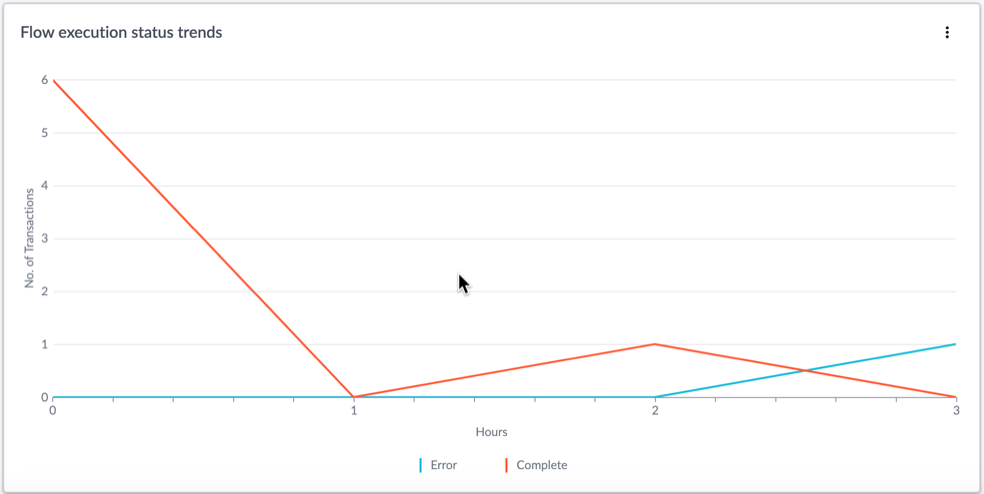

| Flow execution status trends | Displays the flow execution trend for all states in your instance in the last 24 hours. |

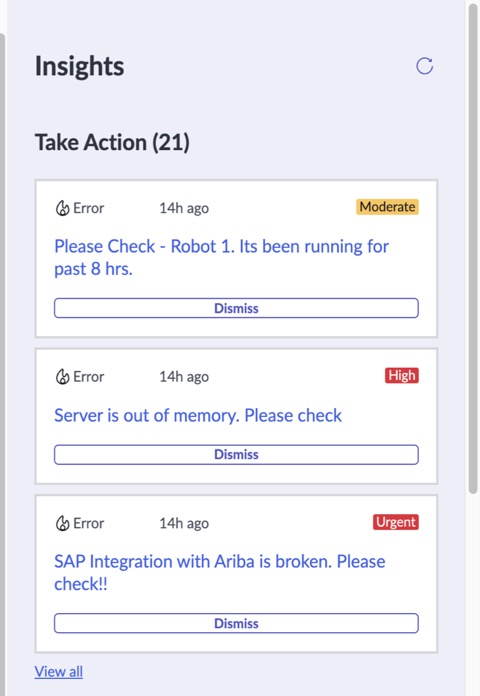

Insights panel
The Insights panel provides information about insights, which draw your attention to any issues within Automation Center. You can fix the issues or choose to ignore them. If you delay fixing issues, some automations might not behave as expected.
