Set up the Craft spoke

Integrate the ServiceNow instance and Craft spoke by using the basic authentication to authenticate ServiceNow requests.

Before you begin

• Request an Integration Hub subscription.
• Activate the Craft spoke.
• Role required: admin.

Configure a connection for Craft spoke

Add and configure a Craft spoke connection to authenticate ServiceNow requests.

Before you begin

Role required: admin

Procedure

1. Navigate to All > Process Automation > Workflow Studio..
2. Click the Integrations tab.
3. Under Connections, toggle and enable the Outbound connections.

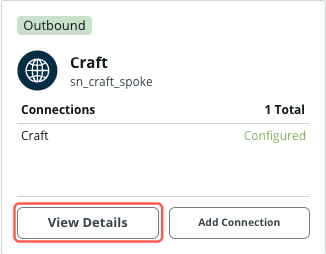

4. Locate the alias for sn_craft_spoke and click View Details.
   • To configure the default connection and credential alias record that is shipped along with the Azure DevOps Boards spoke, click View Details.
   • To manage more than one Azure DevOps Boards spoke connection records, you should create a new child alias record by clicking Add Connection. For more information about using multiple connections, see Supporting multiple connections.

   If you are configuring the spoke for the first time, click Configure. Otherwise, click Edit.

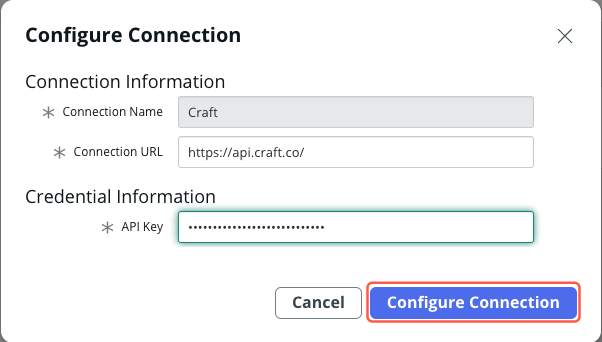

5. On the Configure Connection form, fill in the fields.

   Field	Description
   Connection name	Name to uniquely identify the connection record. For example, Craft connection.
   Connection URL	URL of the Craft instance. For example, enter the URL in this format: https:://api.craft.co/
   API Key	API key from your Craft account.


6. Click Configure Connection.

Result

The spoke connection is configured and ready to be used.
