Set up the Jira spoke for Jira Server

Integrate the ServiceNow instance and Jira Server using user name and password to authenticate ServiceNow requests.

Before you begin

Important:

• Starting with the Australia release, instructions for generating and using API tokens have been removed from our documentation to align with Atlassian's Acceptable Use Policy.
• As of February 15, 2024 PT, your Jira Server products reached the end of support. Starting from Jira Software 9.13 and Jira Service Management 5.13, new Jira releases support only Data Center licenses.
• End of life for impacted Data Center products will take place on March 28, 2029 at 23:59 PST. Data Center subscriptions and any associated Marketplace apps will expire on this date, making Data Center products and apps read-only. For more information, see Data Center EOL General Questions.
• Apps that collect API tokens to create individual 3LO apps don't comply with Atlassian security requirements for cloud apps and Atlassian acceptable use policy.

• Request an Integration Hub subscription.
• Activate the Jira spoke.
• Role required: admin.

Option 1: Using user name and password

Integrate the ServiceNow instance and Jira Server using user name and password to authenticate ServiceNow requests.

Before you begin

Role required: admin

Create credential record for the Jira spoke

Create a credential record for the Jira account. The Jira spoke connection and credential alias uses this credential to authorize actions.

Before you begin

Role required: admin

Procedure

1. Navigate to All > Connections & Credentials > Credentials.
2. Click New.
   The system displays the message What type of Credentials would you like to create?
3. Select Basic Auth Credentials.
4. On the form, fill these values.

   Field	Description
   Name	Name to identify the credential record for the Jira spoke. For example, Jira Data Center Basic Cred.
   Username	Username to log in to the Jira Data Center or Jira Server.
   Password	Password to log in to the Jira Data Center or Jira Server.

5. Right-click the form header and click Save.

Create a connection record for the Jira spoke

Create a connection record for the Jira account. The connection and credential alias uses this connection to perform actions in Jira.

Before you begin

Role required: admin

Procedure

1. Navigate to All > Connections & Credentials > Connection & Credential Aliases.
2. Open the alias record for Jira that shipped with the spoke.
3. On the Connections tab, click New.
   The system displays a blank HTTP(s) Connection form.
4. Enter these values and click Submit.

   Field	Value required
   Name	Enter any name to uniquely identify the connection record. For example, enter Jira cloud OAuth Connection.
   Credential	Select the Credential record created for Jira. For example, select Jira Data Center Basic Cred.
   Connection URL	Base URL of the Jira server.

5. Click Submit.
   The Jira spoke is configured to use Basic Auth credentials.

Option 2: Using API Token

Integrate the ServiceNow instance and Jira Server using API Token to authenticate ServiceNow requests.

Before you begin

Important:

Apps that collect API tokens to create individual 3LO apps don't comply with Atlassian security requirements for cloud apps and Atlassian acceptable use policy.

Role required: admin

Generate a personal access token

Generate a personal access token from the Jira Server instance.

Before you begin

• Access to Jira Server instance.
• Role required: admin

Procedure

1. Log in to the Jira Server instance as an admin.

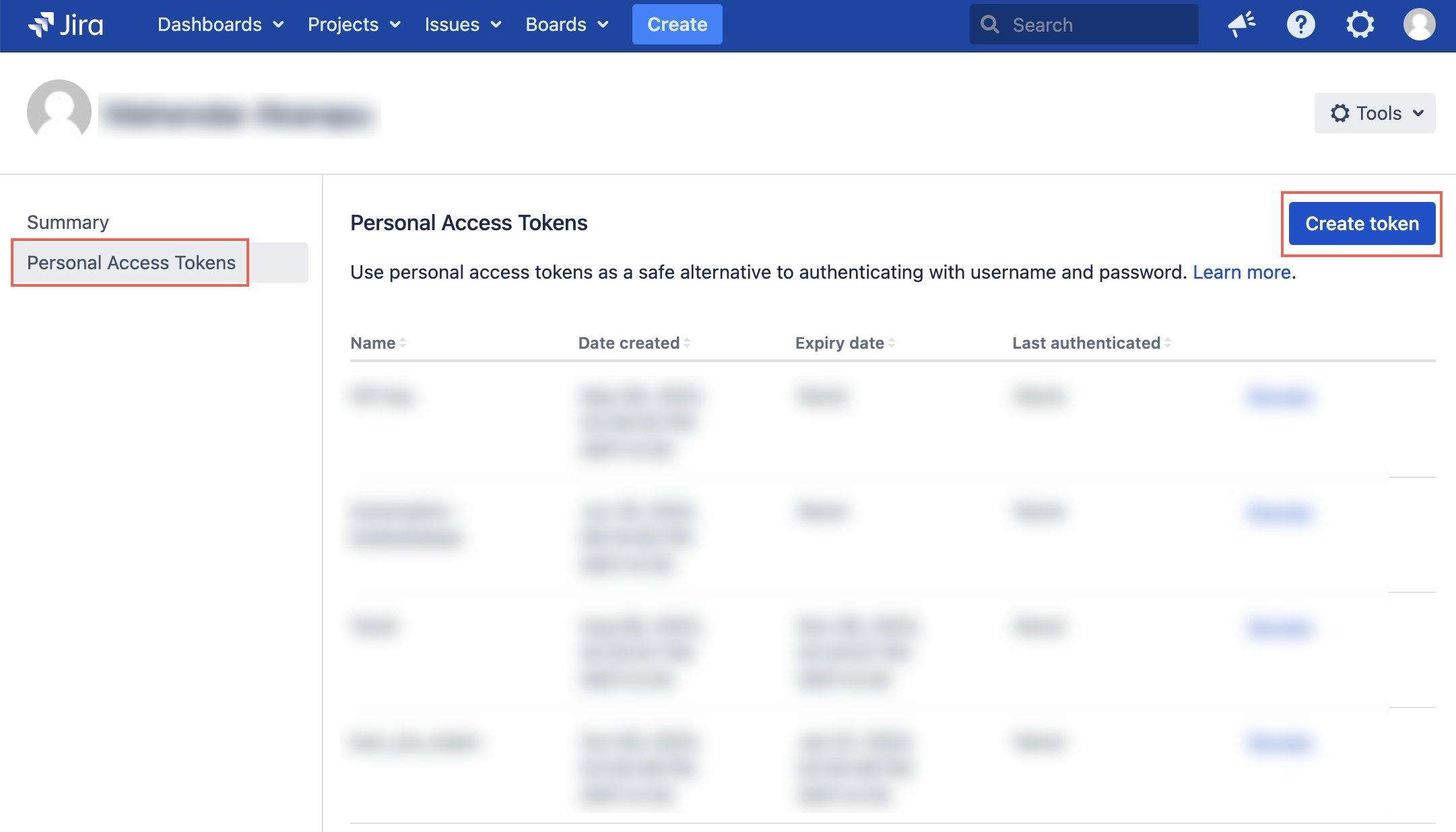

2. Click the user profile icon and click Profile.
3. Under Personal Access Tokens, click Create token.

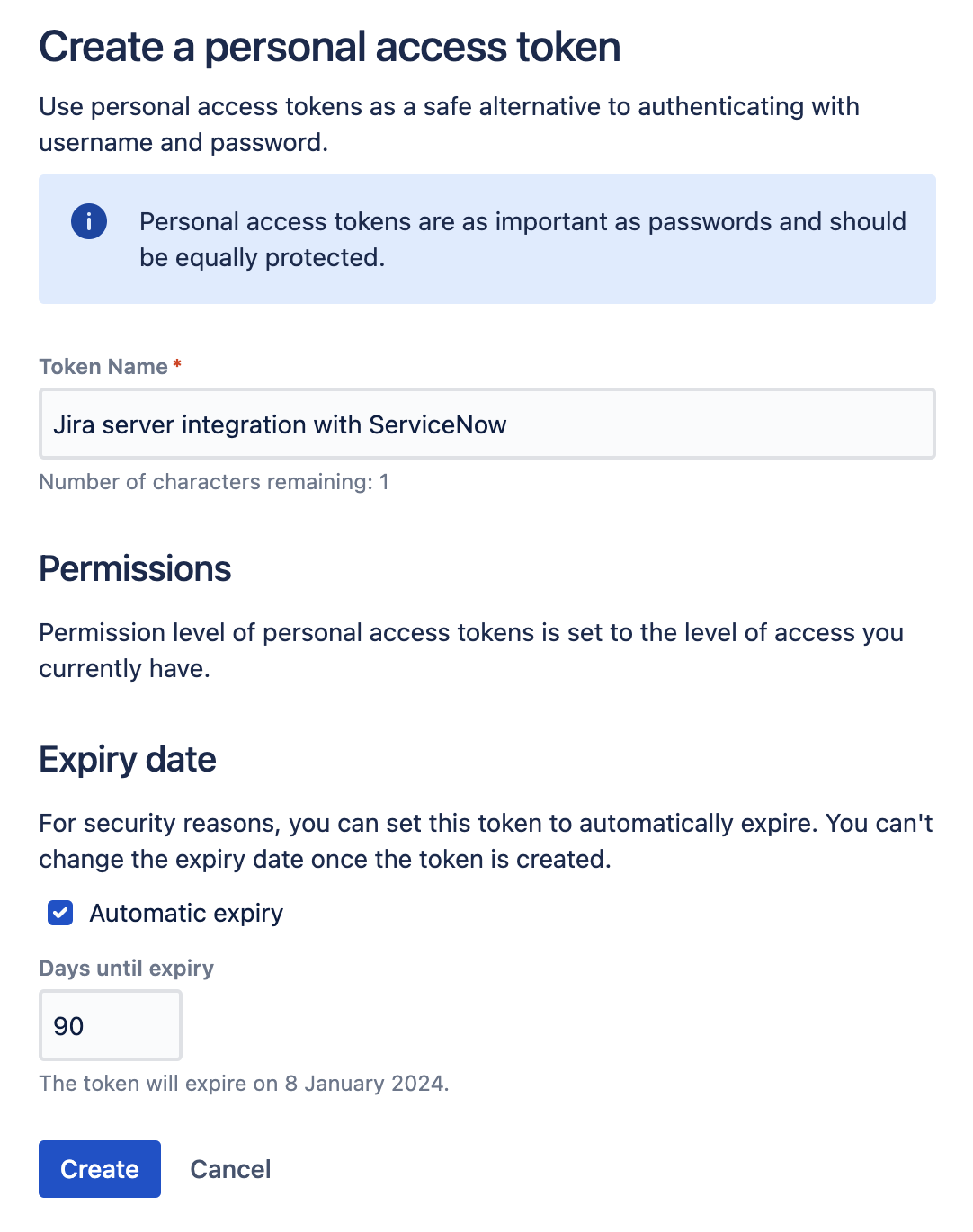

4. On the Create a personal access token form, fill in the required values.

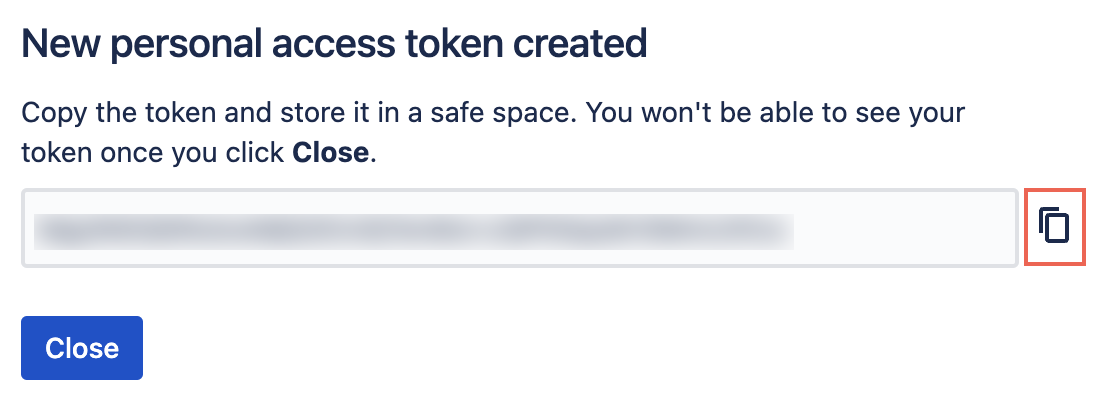

   The value of personal access token is generated and displayed. Copy this value for later use.

Create a credential record for the Jira spoke

Create an API key credential record to authenticate the requests from ServiceNow.

Before you begin

Role required: admin

Procedure

1. Navigate to All > Integration Hub > Connection & Credential Aliases > Credentials.
2. Click New.
   The system displays the message, What type of Credentials would you like to create?
3. Select API Key Credentials.
4. On the form, fill these values.

   Field	Description
   Name	Name to identify the credential record. For example, Jira Server API Token Cred.
   API Key	Enter value in this format: Bearer <Personal Access Token>. <Personal Access Token> is the value of personal access token you had created in the Jira system dashboard.

5. Click Submit.

Create a connection record for the Jira spoke

Create a connection record for the Jira account. The connection and credential alias uses this connection to perform actions in Jira.

Before you begin

Role required: admin

Procedure

1. Navigate to All > Connections & Credentials > Connection & Credential Aliases.
2. Open the alias record for Jira that shipped with the spoke.
3. On the Connections tab, click New.
   The system displays a blank HTTP(s) Connection form.
4. Enter these values and click Submit.

   Field	Value required
   Name	Enter any name to uniquely identify the connection record. For example, enter Jira Server API Token Connection.
   Credential	Select the Credential record created for Jira. For example, select Jira Server API Token Cred.
   Connection URL	Enter the URL of your Jira Server instance.

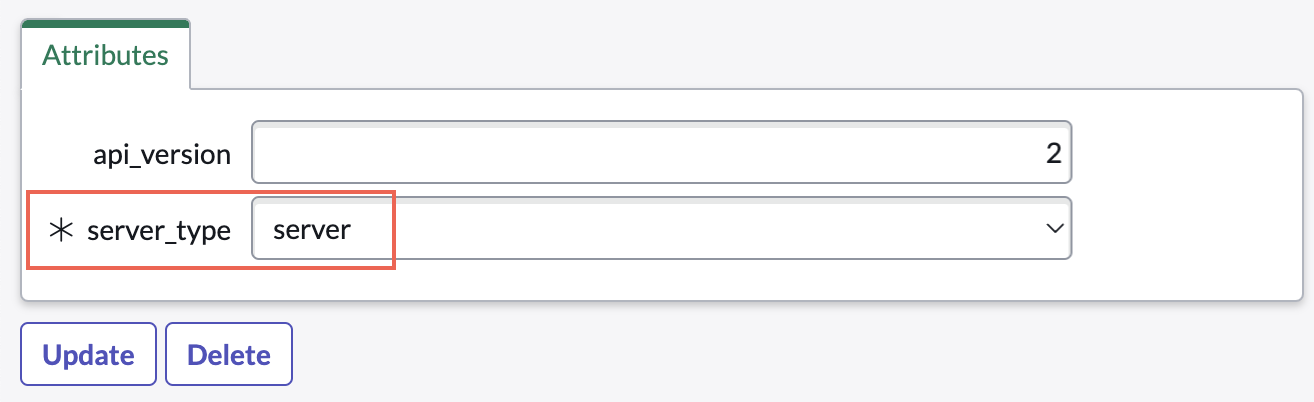

5. In the Attributes related list, provide these values.
   1. Enter the value 2 for api_version.
   2. Enter the value server for server_type.

6. Click Submit.
