Bitbucket integration with DevOps Change Velocity

  • Release version: Australia
  • Updated March 12, 2026
  • 3 minutes to read

    • Connect to your Bitbucket instance to track Bitbucket repositories, commits, branches, and pull requests.

    Bitbucket integration overview

    DevOps Change Velocity supports the Code (Repository) capability for the Bitbucket tool.

    Authentication methods

    You can connect to Bitbucket Cloud using one of the following authentication methods:

    Basic Auth

    When you select the credential type as Basic Auth the repositories for all the workspaces in the organization are discovered. You need the email address and API token with scopes of your Bitbucket Cloud account to connect using Basic Auth. You can copy your email address by navigating to Profile avatar > Personal settings > Account settings > Email of your Bitbucket Cloud account.

    To get the API token with scopes, perform the following steps:
    1. Select your profile avatar at the bottom-left of the Bitbucket sidebar, then select Account settings.
    2. From the Atlassian Account page, select the Security tab on the top navigation bar.
    3. Select Create and manage API tokens.
    4. Select Create API token with scopes.
    5. Give the API token a name and an expiry date, usually related to the application that will use the token and select Next.
    6. Select Bitbucket as the app and select Next.
    7. Select the following scopes (permissions) and select Next.
      • read:account — Required to view users profiles.
      • read:project:bitbucket — View your projects
      • read:pullrequest:bitbucket — View your pull requests
      • read:repository:bitbucket — View your repositories
      • read:webhook:bitbucket — View your webhooks
      • write:webhook:bitbucket — Modify your webhooks

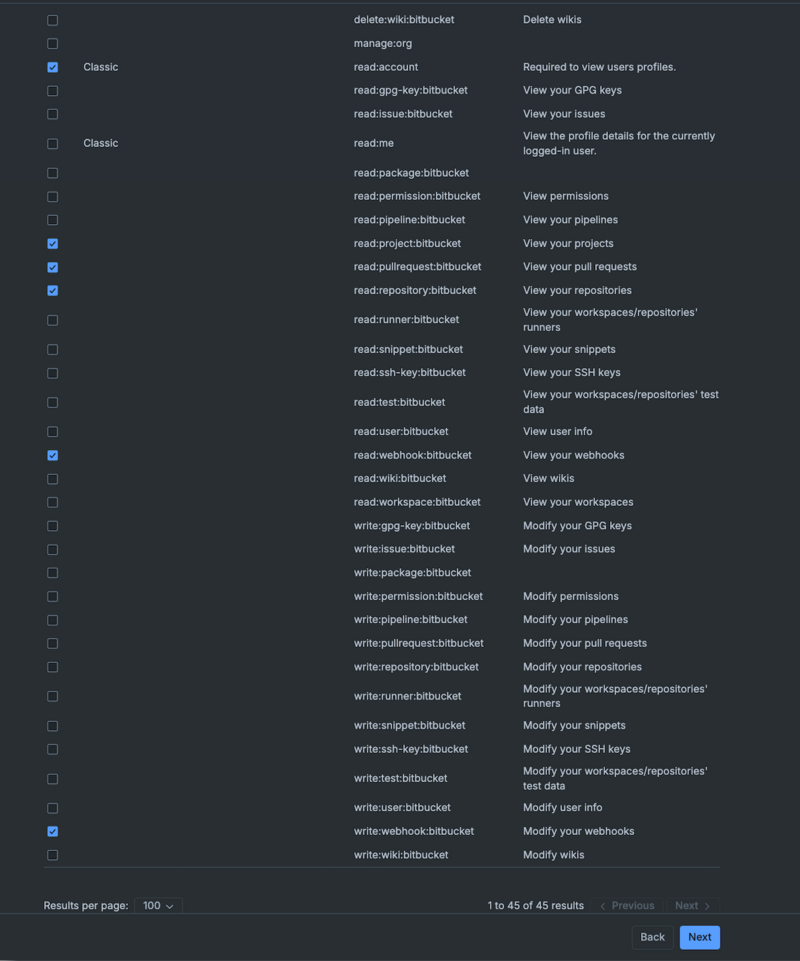

      Permissions for Bitbucket basic auth
    8. Review your token and select the Create token button.
    9. Copy the generated API token and either record or paste it into the application you want to give access.
    OAuth 2.0 - Authorization Code

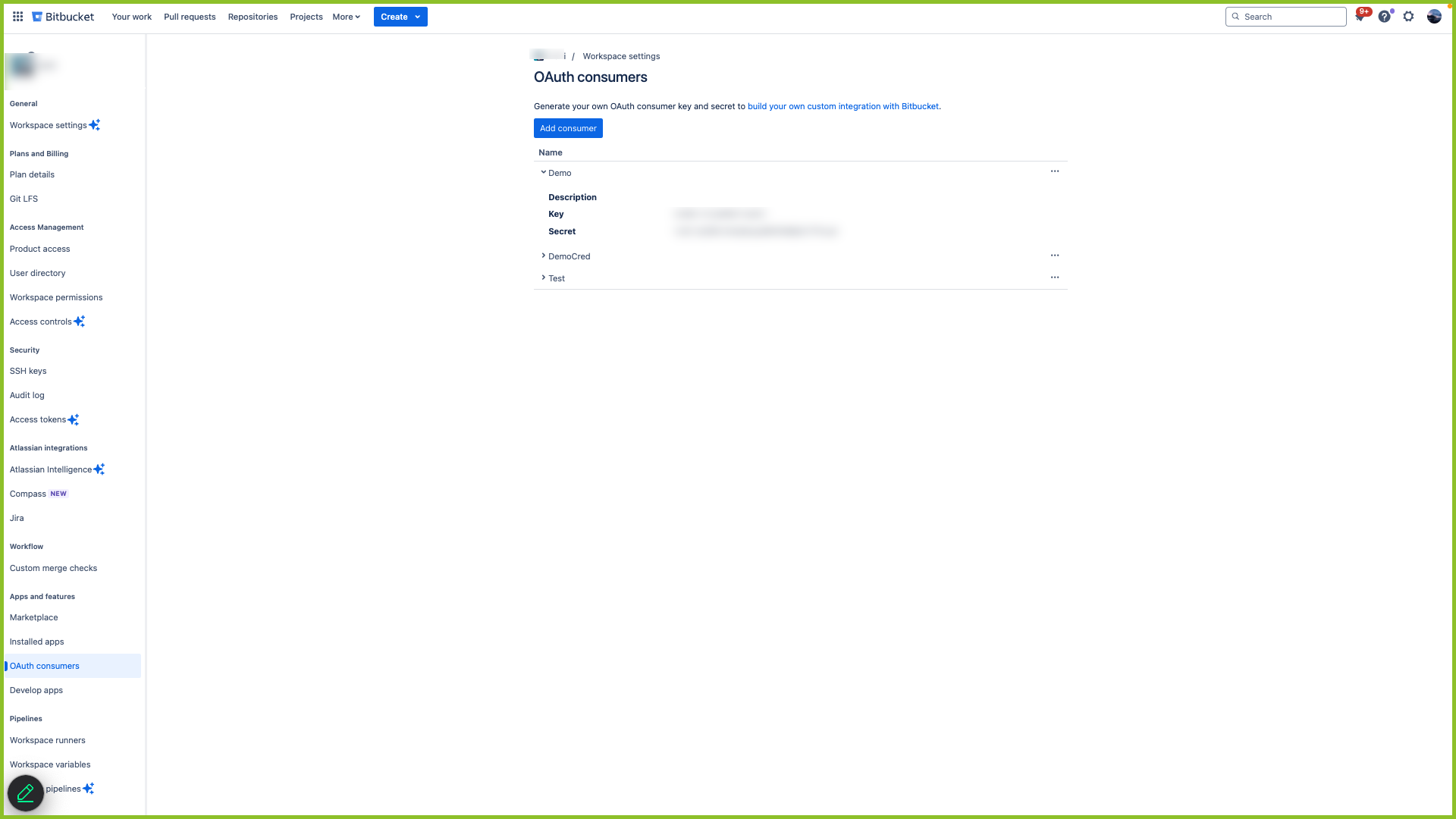

    You must create the OAuth consumer in the Bitbucket tool with the required permissions before creating the OAuth record for Authorization Code. You can navigate to Workspace settings > OAuth consumers > Add consumer in Bitbucket to add the OAuth consumer. OAuth consumer page Select the following permissions for the OAuth consumer.
    • Account: Read
    • Projects: Read
    • Webhooks: Read and write
    • Pull requests: Read
    Ensure that the This is a private consumer option isn’t selected. You must enter your ServiceNow instance URL in the Callback URL field in the following format.
    https://<instanceurl>/oauth_redirect.do

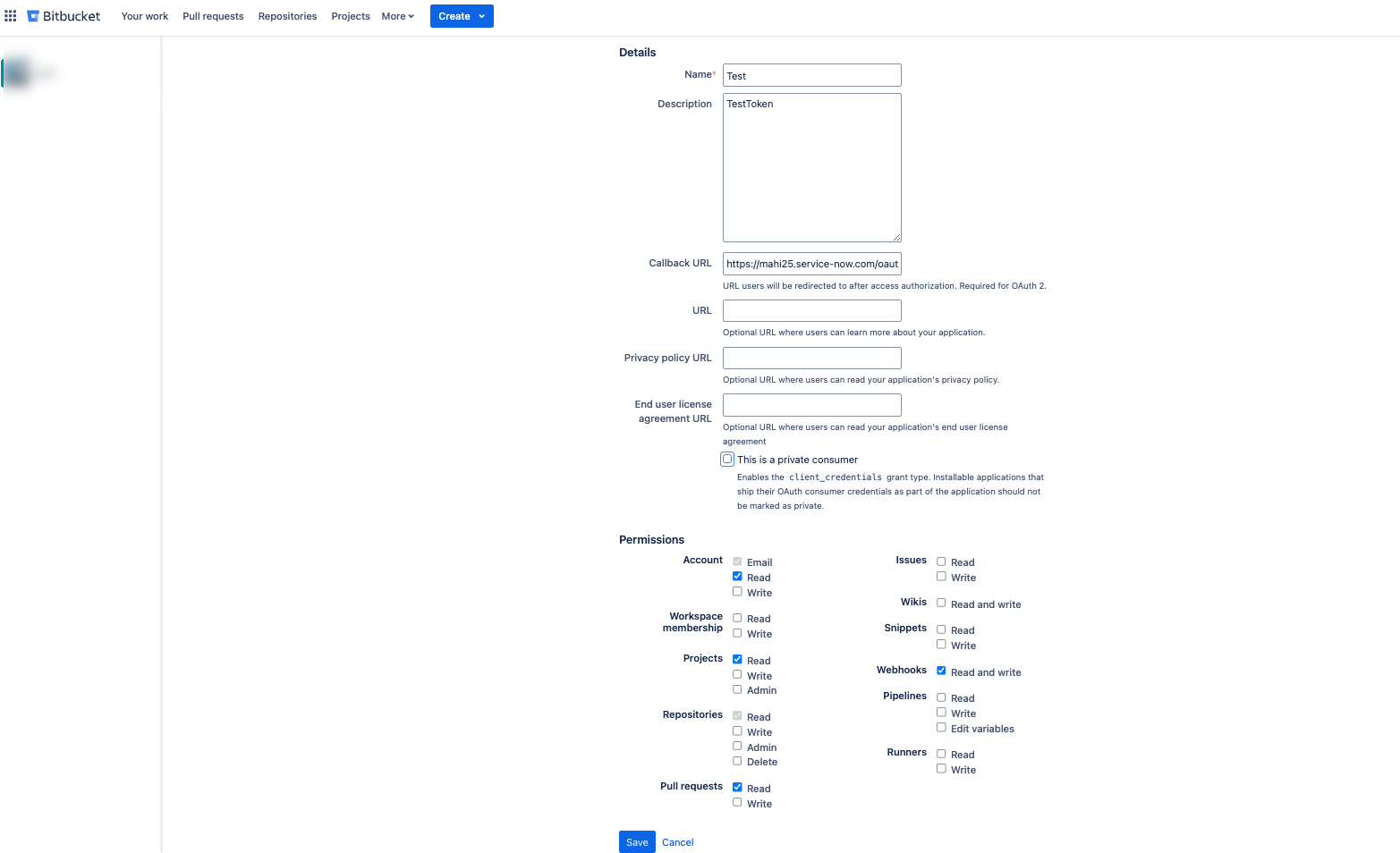

    Permissions for Bitbucket OAuth 2.0 - Authorization Code

    You can create an OAuth 2.0 - Authorization Code credential by performing the steps specified in the Set up OAuth 2.0 Authorization Code for Bitbucket Cloud procedure.

    Note:
    When you select the credential type as Oauth 2.0 - Authorization Code for Bitbucket Cloud, the repositories for all the workspaces are discovered. This is a limitation from Bitbucket side
    OAuth 2.0 - Client Credentials
    You must create the OAuth consumer in the Bitbucket tool with the required permissions before creating the OAuth record for Client Credentials. You can navigate to Workspace settings > OAuth consumers > Add consumer in Bitbucket to add the OAuth consumer. OAuth consumer page Select the following permissions for the OAuth consumer.
    • Account: Read
    • Projects: Read
    • Webhooks: Read and write
    • Pull requests: Read
    Ensure that the This is a private consumer option is selected as well. You must enter your ServiceNow instance URL in the Callback URL field in the following format.
    https://<instanceurl>/oauth_redirect.do

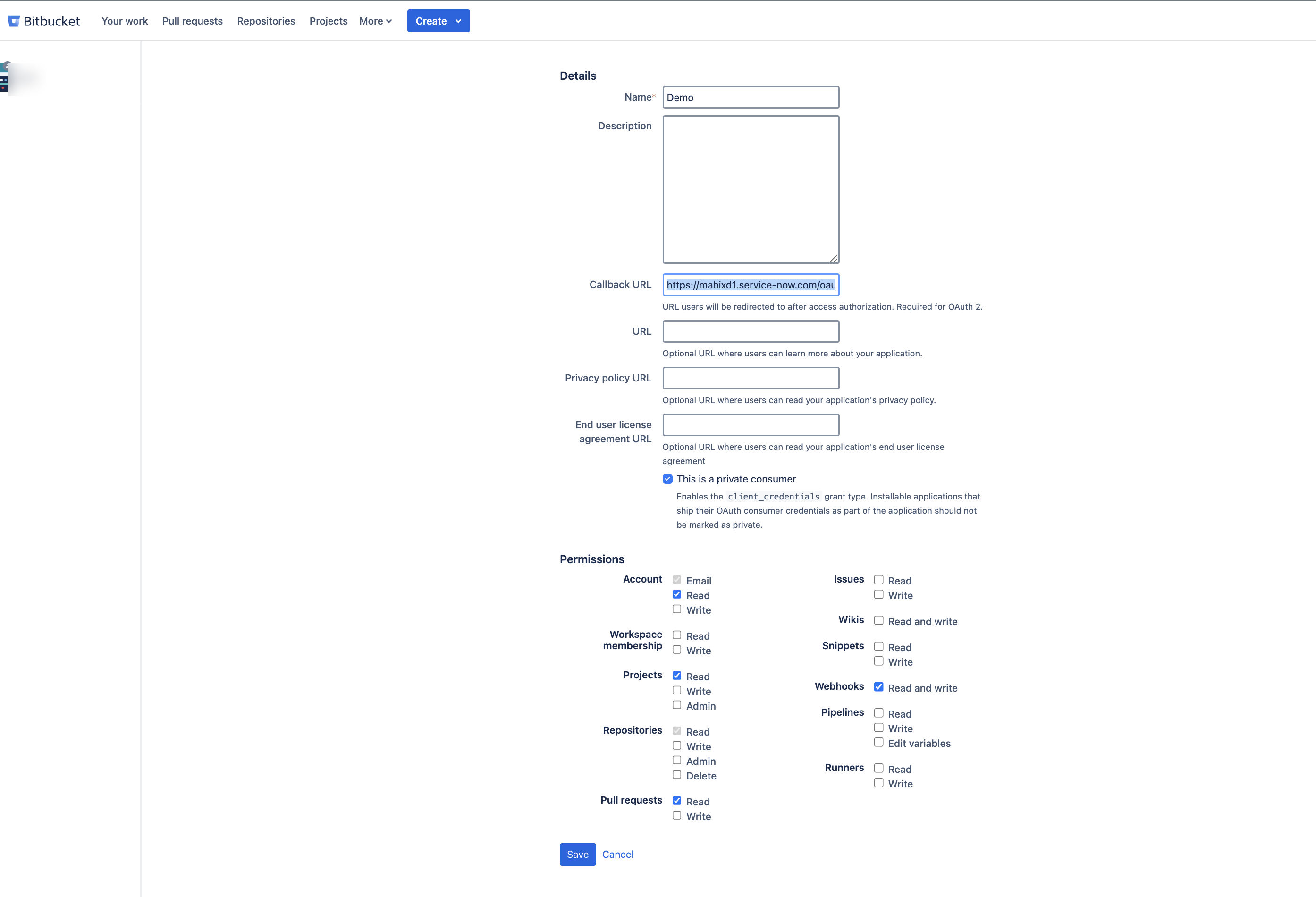

    Permissions for Bitbucket OAuth 2.0 - Client Credentials
    You can create an OAuth 2.0 - Client Credential record in the workspace UI while onboarding the tool. You need the Client Id and Client secret values of your Bitbucket workspace. Client ID of your Bitbucket tool is available in the OAuth consumers section of your workspace settings (Workspace settings > OAuth consumers > Add consumer) in the Key field. Client secret of your Bitbucket tool is available in the OAuth consumers section of your workspace settings (Workspace settings > OAuth consumers > Add consumer) in the Secret field. OAuth consumer page
    Access Token
    You can create the access token by performing the steps specified in the Atlassian documentation. Ensure that the following permissions are provided while creating the access token:
    • Account: Read
    • Projects: Read
    • Webhooks: Read and write
    • Pull requests: Read

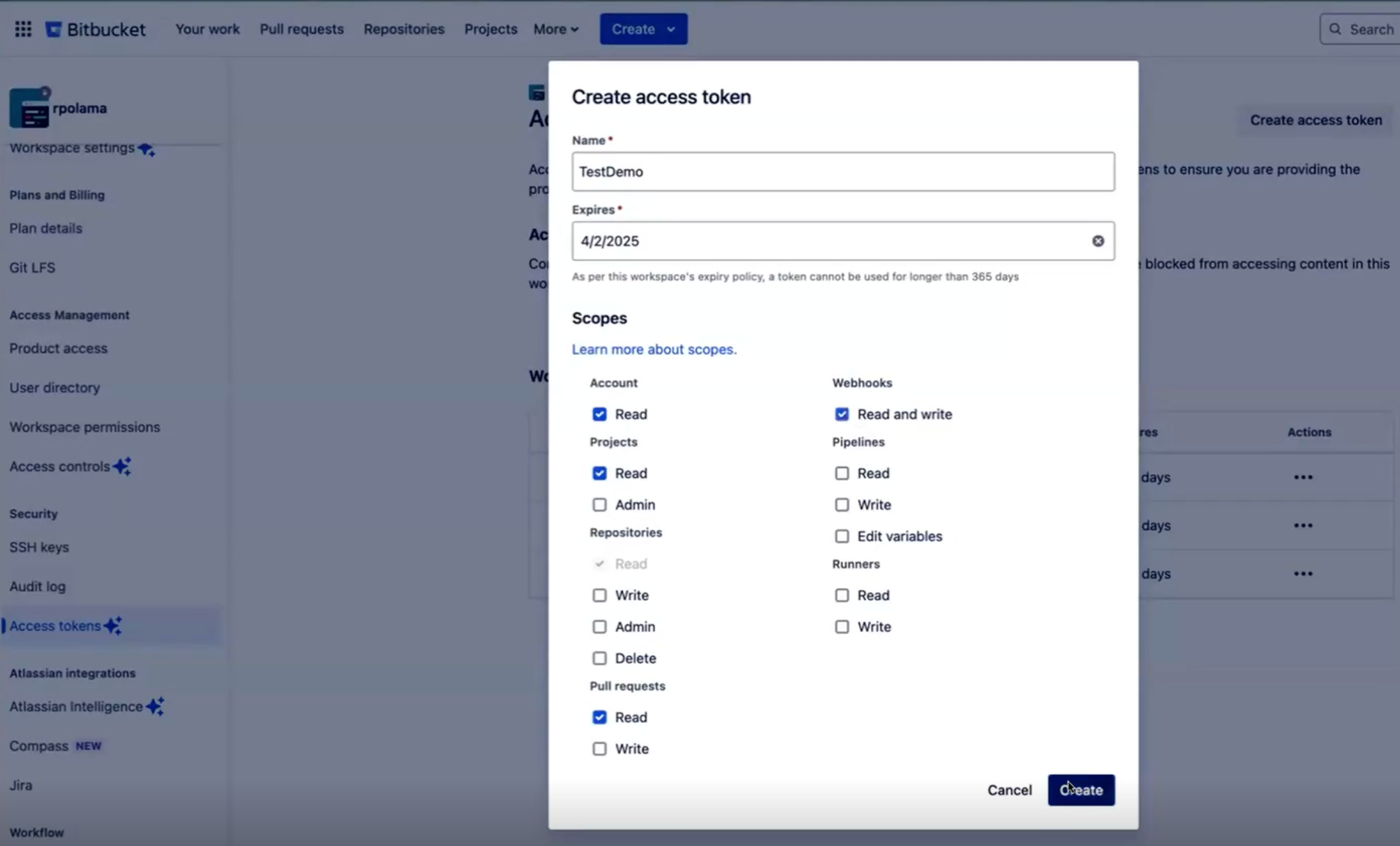

    Create Access Token in Bitbucket

    You also need the workspace ID of your Bitbucket workspace. Copy it from the Workspace ID field in the Workspace settings of your Bitbucket Cloud account.

    Get started

    Use one of the following options to onboard Bitbucket. For a guided experience, use the workspace to onboard a tool. Alternatively, you can use the Service Catalog or Classic experience.
