Kong extension classes
Summarize
Summary of Kong extension classes
The CMDB CI Class Models store app for ServiceNow adds and updates classes specifically for managing Kong API gateways within the Configuration Management Database (CMDB). These classes extend the existing CMDB class hierarchy and enable detailed modeling of Kong gateway components such as gateways, load balancers, and backend targets. This extension supports applications like Discovery and Service Mapping Patterns to populate CIs and discover Kong-related technologies and software efficiently.
Show less
Key Features
- New CMDB Classes for Kong:
- Kong Gateway [cmdbcikonggateway]: Represents the Kong gateway application hosting and managing APIs.
- Kong Load Balancer [cmdbcikonglb]: Models the load balancer component directing traffic to backend services.
- Kong Target [cmdbcikongtarget]: Represents backend targets that fulfill API requests.
- Class Attributes: Each class includes specific attributes to capture essential details such as admin URLs, database types, load balancing algorithms, unique identifiers, and target URLs for integrations.
- Defined Relationships: The extension models important relationships between Kong components and API classes, including dependencies between gateways, load balancers, and targets to accurately reflect the infrastructure.
- Integration with Non-CMDB Tables: The Kong Gateway class connects to the Kong Workspace non-CMDB table, allowing for additional metadata like workspace names and IDs linked to API gateways.
Key Outcomes
By implementing these Kong-specific CMDB classes and relationships, ServiceNow customers can:
- Accurately represent Kong API gateway infrastructure within their CMDB.
- Leverage automated discovery and service mapping to populate Kong CIs and understand dependencies.
- Use the dependency views to bind alerts, configure dynamic service views, and integrate Kong components into incident workflows.
- Improve visibility and management of API traffic and backend service dependencies through a structured CI model.
The CMDB CI Class Models store app adds or updates classes for Kong gateways.
The CMDB CI Class Models app adds class models that extend the CMDB class hierarchy, including class descriptions, identification rules, identifier entries, and, if applicable, dependent relationships. You can use the added classes just like any other CMDB class. Applications such as Discovery and Service Mapping Patterns can use the class extensions to populate CIs and discover technologies and software.
See the CMDB CI Class Models release notes.
Request apps on the Store
Visit the ServiceNow Store website to view all the available apps and for information about submitting requests to the store. For cumulative release notes information for all released apps, see the ServiceNow Store version history release notes.
Kong
Kong is an API management platform that enables enterprise companies to better manage client and host traffic.
Classes
This section lists the classes that the CMDB CI Class Models store app adds or updates. For the list of classes in the base system, including classes that this app might extend, see CMDB tables descriptions.
CMDB CI Class Models: Release 1.49.0 adds the following classes for Kong.
| Class | Extends | Description |
|---|---|---|
| Kong Gateway [cmdb_ci_kong_gateway] |
API Gateway [cmdb_ci_api_gateway] |
The Kong gateway application that hosts and manages individual APIs. Example: Kong Gateway instanceName. |
| Kong Load Balancer [cmdb_ci_kong_lb] |
Load Balancer Application [cmdb_ci_lb_appl] |
The default load balancer on the Kong gateway application that points to backend service instances when fulfilling API requests. Example: httpbin-upstream. |
| Kong Target [cmdb_ci_kong_target] |
API Component [cmdb_ci_api_component] |
The load-balanced backend of the gateway that fulfills API requests. Example: httpbin-target1. |
Class attributes
CMDB CI Class Models: Release 1.49.0 adds the following attributes to the respective classes.
| Attribute | Data type | Description |
|---|---|---|
| Admin URL | String (255) | URL for making admin API requests. |
| Database | String | Type of database used by the Kong gateway. Example: Postgres or Cassandra. |
| Attribute | Data type | Description |
|---|---|---|
| Algorithm | String | Type of algorithm used for load balancing. Example: round robin. |
| ID | String (255) | Unique identifier from the source system. |
| Attribute | Data type | Description |
|---|---|---|
| Target | String (255) | URL of target integration. |
Key Relationship Structures
There are a number of key relationships that must be defined for API and Kong classes.
| Parent class | Relationship | Child class | Relationship type |
|---|---|---|---|
| API Backend [cmdb_ci_api_backend] | Uses::Used By | Kong Load Balancer | Suggested |
| Kong Load Balancer [cmdb_ci_lb_appl] | Contains::Contained By | Kong Target | Dependent |
| Kong Gateway [cmdb_ci_kong_gateway] | Provides::Provided By | Kong Load Balancer | Dependent |
Related non-CMDB tables
The Kong Gateway class uses the Kong Workspace non-CMDB table as a related list:
| Attribute | Data type | Description |
|---|---|---|
| Name | String (100) | Name of the Kong workspace. |
| ID | String (255) | Unique identifier from the source system. |
| API Gateway | Reference | Reference to the Kong API gateway. |

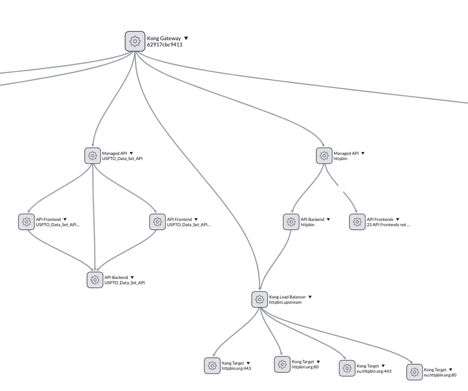

Kong gateway example
Here is an example of a dependency view for the Kong gateway class that shows how a gateway would populate the dependent managed API-dependent class with related APIs and components. The Managed API class is considered a first-level relationship with respect to the gateway, while the frontend and backend components are considered second-level relationships. From here, you can then bind alerts to these CIs, configure dynamic CIs for service views and incidents, or establish any additional workflows that use CIs.
