Using the Stream Connect Dashboard

View detailed statistics for your Stream Connect integrations. Manage producers and consumers, view data usage, and create or edit topics and replicators with the ServiceNow® Stream Connect dashboard.

The Stream Connect Dashboard combines several capabilities into a single environment, so you can:

• Manage multiple Stream Connect integrations through a single application.
• Gain insights into how your integrations use and process data with detailed charts, lists, and statistics.
• View total data usage, data usage per month, and data usage per topic, for the last 13 months.
• Edit topics, producers, consumers, and replicators through a simplified interface.
• View data for Hermes and Direct Kafka environments.

Request apps on the Store

Visit the ServiceNow Store to view all the available apps, and for information about submitting requests to the store. For cumulative release notes information for all released apps, see the ServiceNow Store version history release notes.

Workflow Data Fabric subscription

This application requires a Workflow Data Fabric subscription and a Stream Connect subscription. For more information, see https://www.servicenow.com/now-platform/workflow-data-fabric.html.

Stream Connect Dashboard organization

To view the dashboard, navigate to All > Integration Hub > Stream Connect > Stream Connect Home.

The dashboard has the following components.

• Overview section, with data usage tab.
• Topics
• Consumers
• Producers
• Message Replications
• Topic Replications
• Alerts

The following sections explain each component in greater detail.

Overview section

View detailed information about your Stream Connect integrations.

The Overview section has two tabs: Stream activity and Data usage.

• The Stream activity tab shows the activity on topics, consumers, producers, replicators, and alerts.
• The Data usage tab shows Stream Connect usage over time.

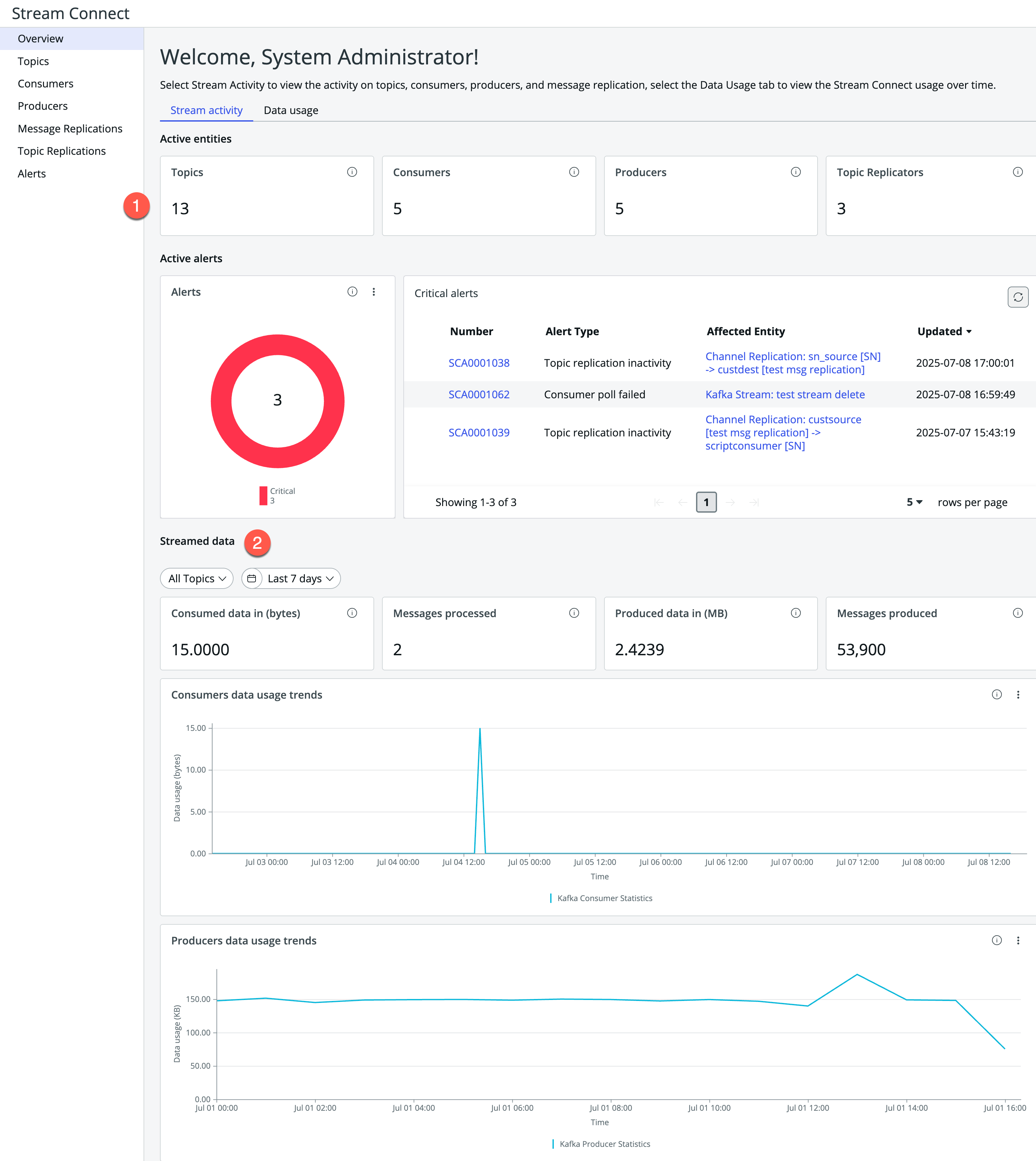

図 : 1. Stream Connect Dashboard Overview, Stream activity

The Stream activity tab has these components.

1. Active entities and alerts

The Active entities section displays the number of topics, consumers, producers, and topic replicators created. The Active alerts section shows the total number of active alerts with each alert's number, type, affected entity, and date updated.

2. Streamed data overview

This section has several charts detailing the amount of data and messages consumed and produced. By default, the charts display data for all topics. You can view data for a single topic by selecting one from the All Topics list. Each topic is listed by its topic alias. For a Direct Kafka topic, the alias name is followed by the system name, in brackets. For example, a topic with an alias of my_topic and a system name of c_platform appears as my_topic [c_platform]. If plugins for both Hermes and Direct Kafka are installed, alias names for Hermes topics are followed by [Hermes]. If only the Hermes plugin is installed, topic aliases appear without the system name.

You can also organize the displayed data by time, viewing data for the Last 24 hours, Last 2 days, Last 7 days, or by setting a Custom range.

This section has the following charts.

• Consumed data: The total amount of data consumed.
• Messages processed: The total number of processed messages.
• Produced data: The total number of data produced.
• Messages produced: The total number of messages produced.
• Consumers data usage trends: The amount of data consumers used over the last seven days.
• Producers data usage trends: The amount of data producers used over the last seven days.

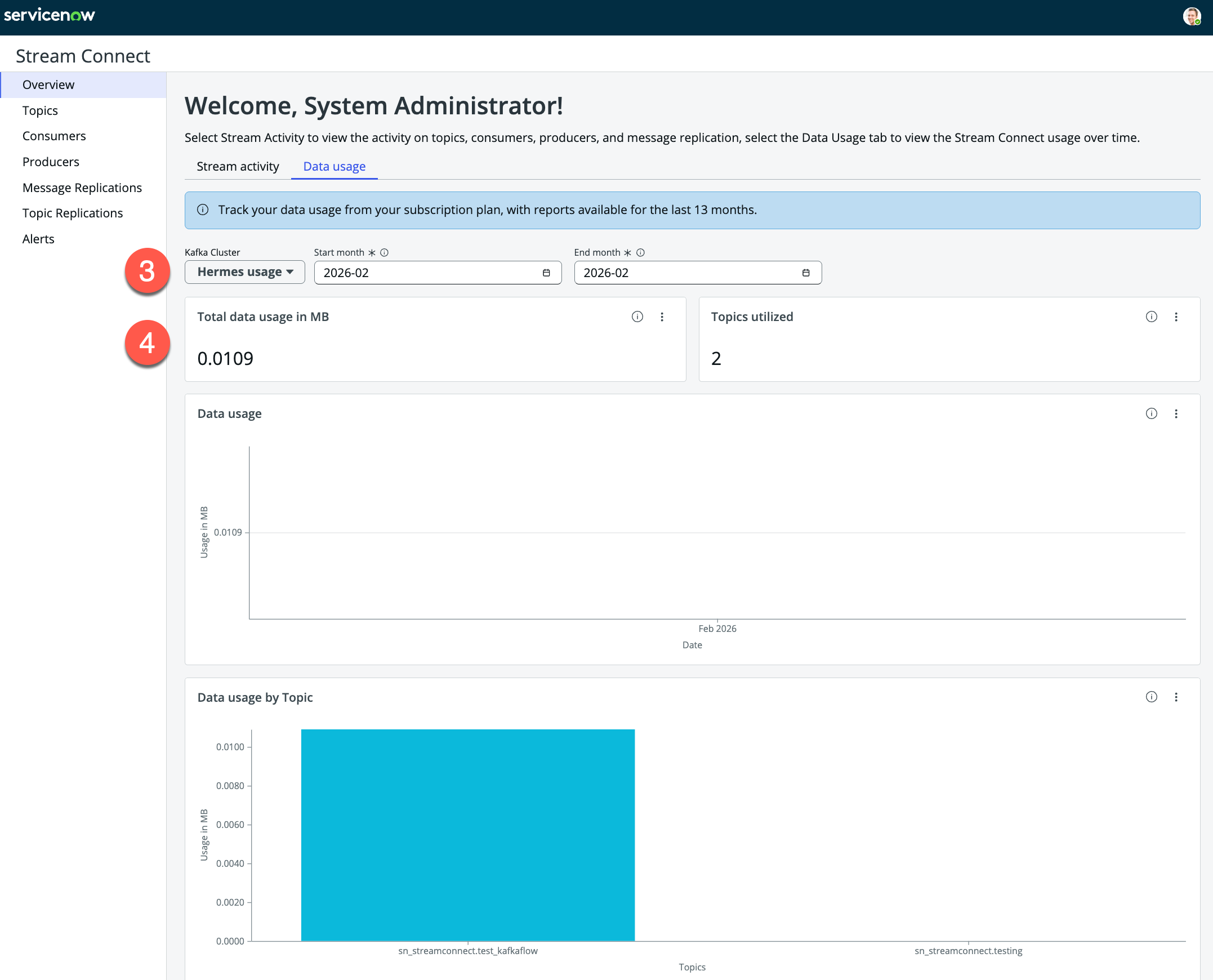

図 : 2. Stream Connect Dashboard Overview, Data usage

The Data usage tab has these components.

3. Kafka Cluster and Month selectors

Use the Kafka Cluster list to select data for either Hermes usage or Direct Kafka usage.

注:

The Kafka Cluster list only appears if the plugins for both Hermes and Direct Kafka are installed. If only one plugin is installed, the Kafka Cluster list is hidden and the dashboard displays data for either Hermes or Direct Kafka, depending on the plugin. For more information about plugins, see Integration Hub plugins.

Select a start month and end month to view data usage over time. Data usage history is available for the last 12 complete months plus the current month.

4. Data usage details

Displays the following charts.

• Total data usage in MB: The total data usage for the selected months.
• Topics utilized: The total number of topics with data usage for the selected months.
• Data usage: The data usage per month for the selected months.
• Data usage by topic: The data usage per topic for the selected months.

Topics

View topics and add, edit, or export a topic.

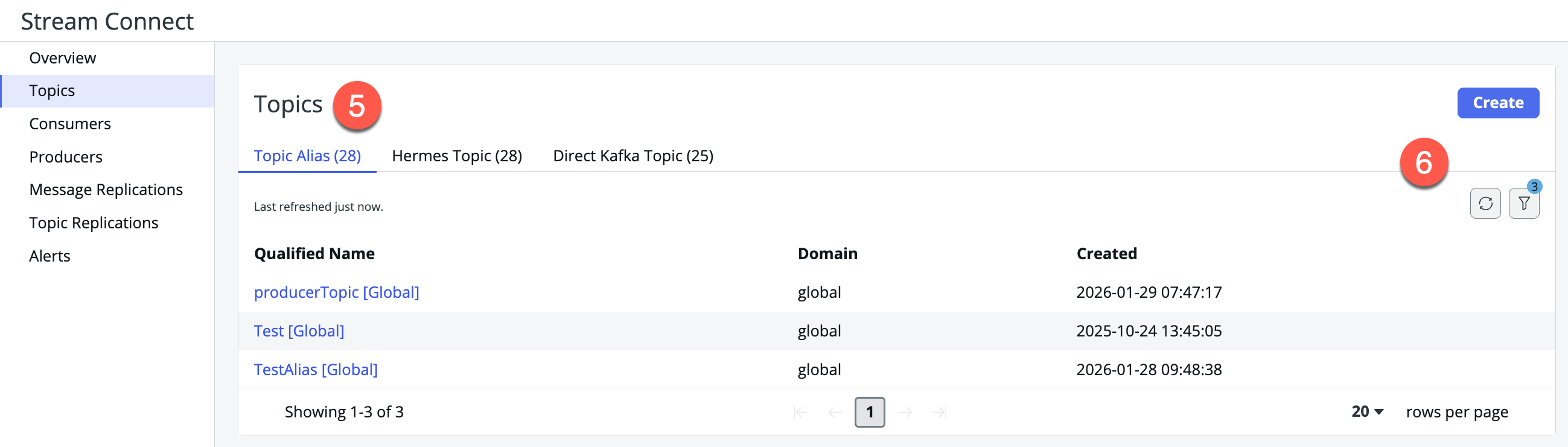

図 : 3. Stream Connect Dashboard Topics page

The Topics page has the following components.

5. Topics list

Displays all topics organized into tabs.

• The Topic Alias tab lists each topic alias and its domain and creation date.
• The Hermes Topic tab lists each Hermes topic with its name, topic alias, namespace, application ID, domain, and creation date. This tab only appears if you have the ServiceNow Stream Connect Hermes (com.glide.hub.stream_connect.hermes) plugin installed.
• The Direct Kafka Topic tab lists each Direct Kafka topic with its name, topic alias, Direct Kafka cluster, and creation date. This tab only appears if you have the ServiceNow Stream Connect Installer (Direct Kafka) (com.glide.hub.stream_connect.onprem_installer) plugin installed.

6. Action buttons

Contains several buttons that you can use to perform different tasks. Create a new topic, refresh the list of topics, or view and edit the list filters.

You can select a topic or topic alias from the list to view more detailed information. The following image shows an example of a topic page for a Hermes topic. The pages for topic aliases and Direct Kafka topics are similar but have a few differences. For example, a topic page for a Direct Kafka topic doesn't have a Replications tab because Direct Kafka topics don't use them.

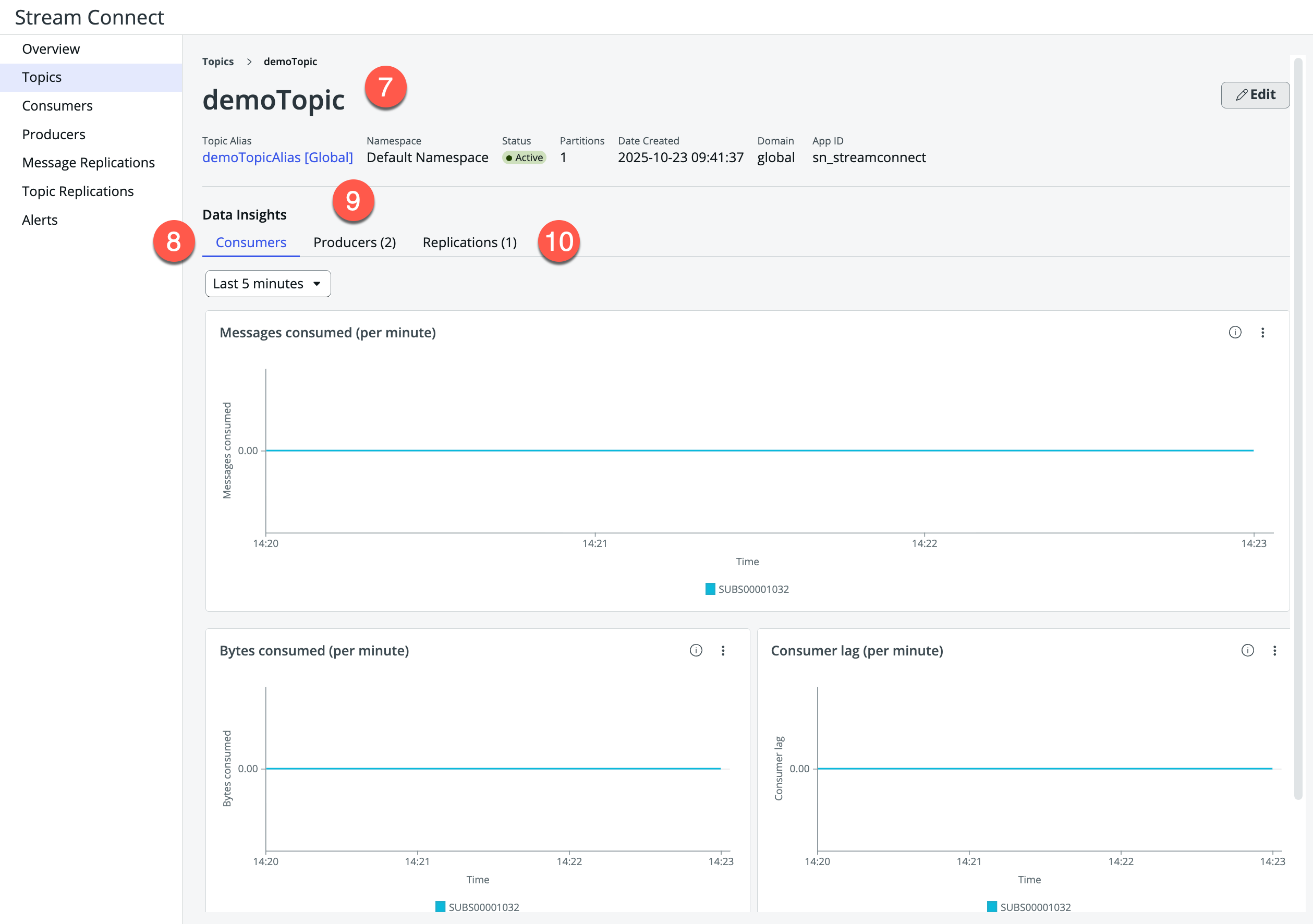

図 : 4. Individual topic page for a Hermes topic

The Hermes topic page has the following components.

7. Topic information section

Displays details about the topic, including the topic alias, namespace, status, number of partitions, date created, domain, and app ID. There’s also an Edit button so you can edit the topic directly from this page.

8. Consumers tab

Displays the following charts.

• Messages consumed (per minute): The total number of messages consumed by consumers in the selected topic.
• Bytes consumed (per minute): The total number of bytes consumed.
• Consumer lag (per minute): The consumer lag in this topic group, by consumer.

All three charts can be filtered to display data for the Last 5 minutes, Last hour, or Last 24 hours. When the Last 24 hours is selected, the data is displayed in five minutes increments instead of every minute.

The Consumers tab may also have a Consumer list, which lists the consumers associated with the topic. Each consumer is listed with its number, state, error status, max concurrency, and consumer table. You can select the consumer number to view additional details for that consumer.

9. Producers tab

The Producers tab displays the following charts.

• Messages Produced: The total number of messages produced. Updated hourly.
• Bytes Produced in (bytes): The total number of bytes produced. Updated hourly.

Both charts can be filtered to display data for the Last 2 days, Last 7 days, Today, Yesterday, or a Custom range.

The Producers tab also has a Producer list, which lists the producers associated with the topic, and each producer's name, type, Id, table, and domain. You can select a producer to view additional details.

10. Replications tab (only on Hermes topic pages)

Displays the topic replications associated with the topic, and each replication's name, topic name, direction, status, whether it's active, and error message. You can select the replication name to view additional details for that topic replication.

Consumers

View and manage consumers.

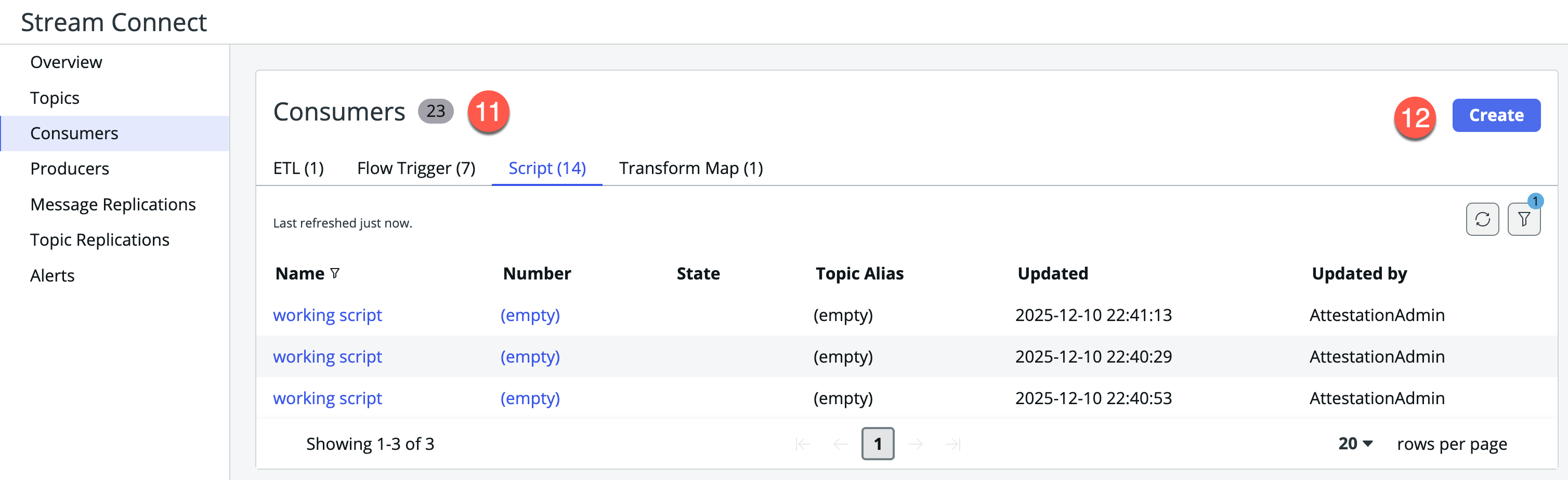

図 : 5. Stream Connect Dashboard Consumers page

The Consumers page has the following components.

11. Consumer list

Displays all consumers, organized by type. The possible types are:

• ETL
• Flow Trigger
• Script
• Transform Map

Each consumer is listed with its name, number, state, topic alias, date updated, and who updated it.

12. Create button

To Create a new consumer, select this button, then select the type of consumer you want to create, then fill in the fields on the consumer's form. For form field descriptions, see the ETL consumer, Transform Map consumer, or Script consumer page.

注:

If you're creating a Flow Trigger consumer, there isn't a form to fill out. Instead, the dashboard opens Workflow Studio so you can build your flow trigger there. For a detailed guide, see Create a flow with a Kafka Message trigger.

You can select a consumer from the list to view detailed information for that consumer.

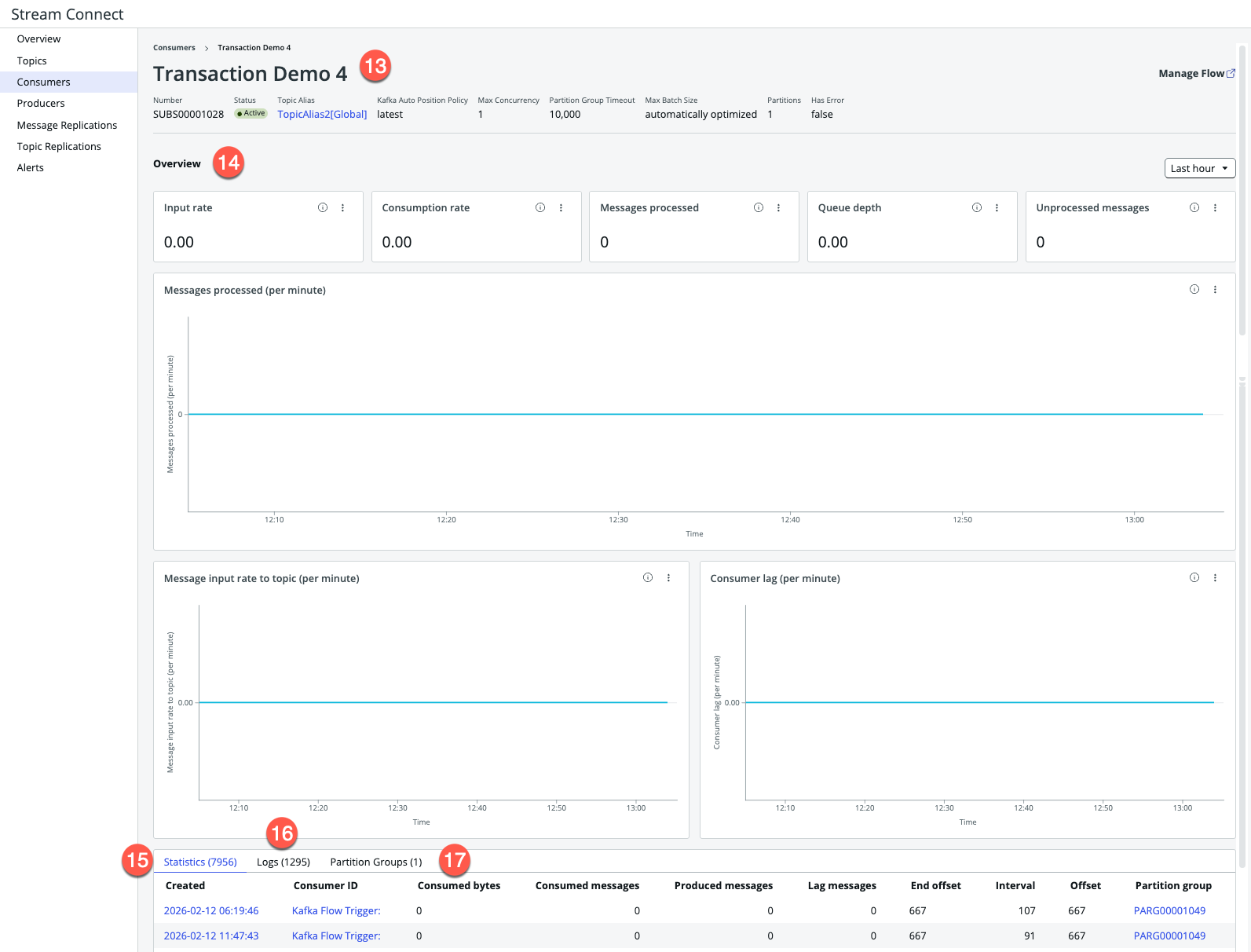

図 : 6. Individual Consumer page

Each individual consumer page has the following components.

13. Consumer information section

Displays details about the consumer, including its number, status, topic alias, Kafka auto position policy, max concurrency, partition group timeout, max batch size, partitions, and an error flag.

14. Overview

Displays the consumer's input and consumption rate, messages processed, queue depth, and any unprocessed messages. It also displays the following charts.

• Messages processed (per minute): The total number of processed messages.
• Message input to topic (per minute): The total number of messages input to the topic.
• Consumer lag (per minute): The lag for the selected consumer.

All three charts can be filtered to display data for the Last 5 minutes, Last hour, or Last 24 hours. When the Last 24 hours is selected, the data is displayed for every five minutes instead of every minute.

15. Statistics tab

Displays consumer statistics, including the date it was created, the consumer ID, consumed bytes, consumed messages, produced messages, lag messages, end offset, interval, offset, and partition group.

16. Logs tab

Displays the created logs and each log's level, message, alert, and source.

17. Partition Groups tab

Displays partition groups with each one's number, first and last partition, and poll time.

For a detailed explanation of consumer data and statistics, including log, and partition group information, see Viewing Kafka subscriptions and statistics.

Producers

View, filter, and export producers.

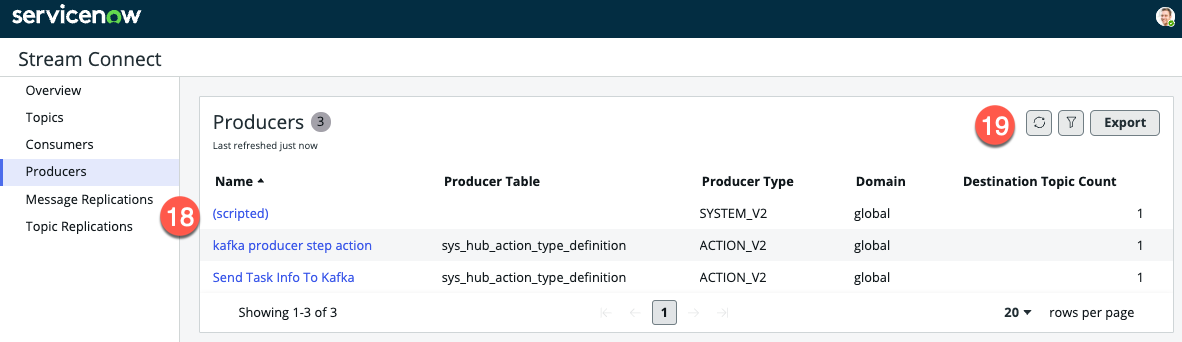

図 : 7. Stream Connect Dashboard Producers page

The Producers page has the following components.

18. Producer list

Displays all producers and each producer's name, table, type, domain, and destination topic count.

19. Action buttons

Contains several buttons that you can use to refresh the list of producers, view or edit list filters, and Export a producer.

You can select a producer from the list to view detailed information for that producer.

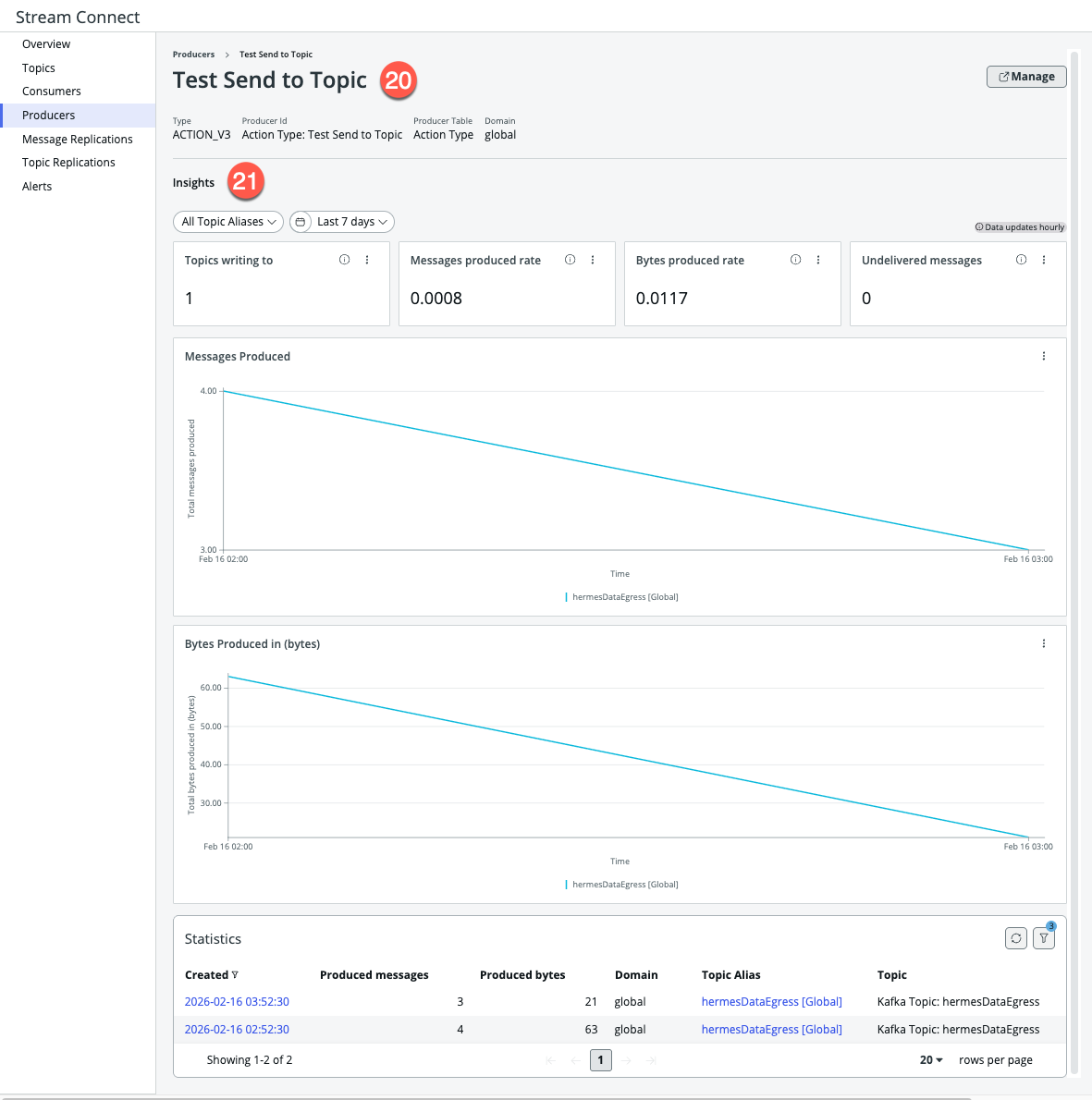

図 : 8. Individual Producer page

Each individual consumer page has the following components.

20. Producer information section

Displays details about the producer, including its type, ID, table, and domain. There’s also a Manage button. The Manage button redirects to the corresponding entity that produced the messages. For example, entering Manage on a business rule producer opens the sys_script record. Entering Manage on a flow action opens that action in Workflow Studio. For background scripts, the Manage button is inactive because the script that was executed isn’t saved on the system anywhere.

21. Insights

Displays the following data.

• Topics writing to: The total number of topics the producer is writing to.
• Messages produced rate: The average number of messages produced per second.
• Bytes produced rate: The average number of bytes produced per second.
• Undelivered messages: The total number of undelivered messages for the producer.
• Messages produced: Shows the number of messages produced over the last seven days.
• Bytes Produced: Shows the number of bytes produced over the last seven days.

This data is updated every hour. The Messages produced and Bytes produced charts can be filtered to display data for the Last 2 days, Last 24 hours, Last 7 days, or a Custom range.

22. Statistics

Displays producer statistics, including the date, number of produced messages and bytes, topic alias, and domain.

For a detailed description of Producer data and statistics, see Viewing producer statistics.

Message Replications

View message replications, and add, edit, or export a message replication.

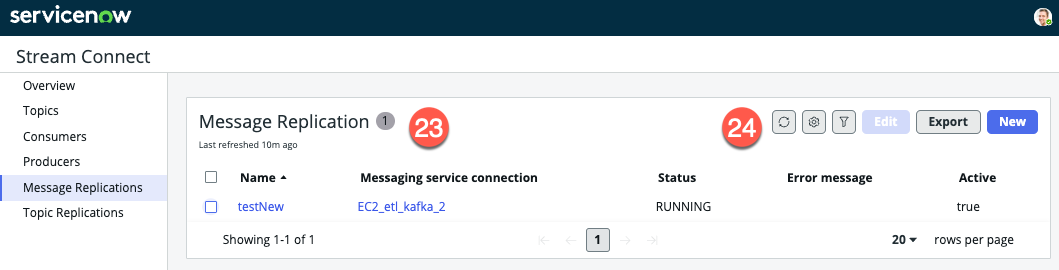

図 : 9. Stream Connect Dashboard Message Replications page

The Message Replications page has the following components.

23. Message Replications list

Displays all message replications and each replication's name, messaging service connection, status, error message (if any), and whether it's active.

24. Action buttons

Contains several buttons that you can use to perform different tasks. Refresh the list of message replications, edit the list columns or reset the column widths, and view or edit the list filters. There are also buttons to Edit a message replication, Export a message replication, and create a New message replication.

• To edit a message replication, select the replication from the list, select the Edit button, then fill in the fields on the Edit Message Replication form.
• To create a new message replication, select New, then fill in the fields on the Create New Message Replication form.

You can select a message replication to view the replication's name, messaging service connection, status, error message (if any), and if it's active. You can also see any associated Kafka Topic Replications.

Topic Replications

View topic replications, and add, edit, or export a topic replication.

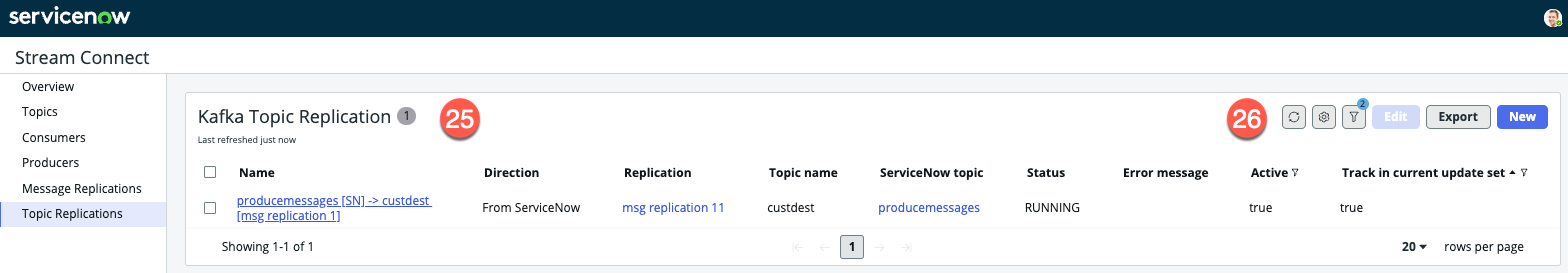

図 : 10. Stream Connect Dashboard Topic Replications page

The Topic Replications page has the following components.

25. Topic Replications list

Displays all topic replications, and each replication's name, direction, replication, topic name, ServiceNow topic, status, error message (if any), whether it's active, and whether it's being tracked in the current update set.

26. Action buttons

Contains several buttons that you can use to refresh the list of topic replications, edit the list columns or reset the column widths, and view or edit the list filters. There are also buttons to Edit a topic replication, Export a topic replication, and create a New topic replication.

• To edit a topic replication, select the replication from the list, select the Edit button, then fill in the fields on the Edit Topic Replication form.
• To create a new topic replication, select New, then fill in the fields on the Create New Topic Replication form.

You can select a topic replication to view its name, direction, replication, topic name, ServiceNow topic, status, error message (if any), if it's active, and if it's being tracked in the current update set. You can also see any associated Message Replication statistics.

Alerts

View active alerts and each alert's severity level, state, type, and affected entity.

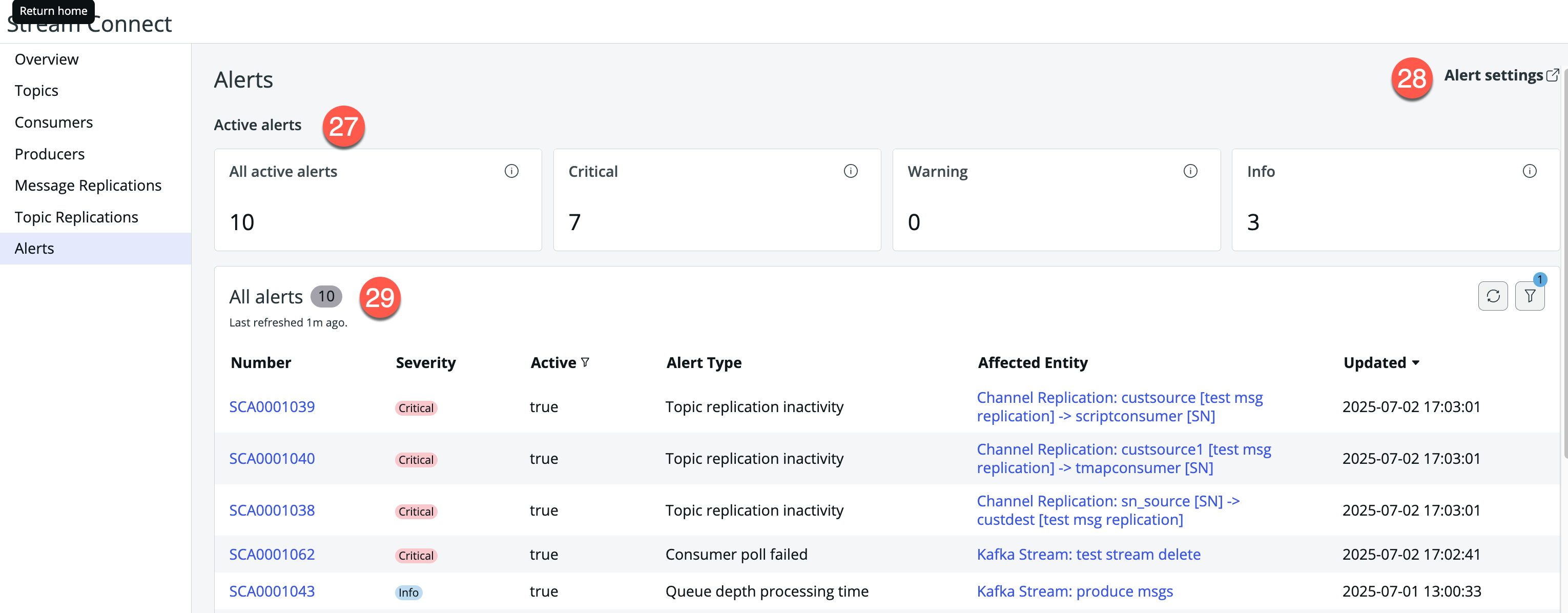

図 : 11. Stream Connect Dashboard Alerts page

The Alerts page has the following components.

27. Active alerts section

Displays the total number of active alerts and the active alerts in each severity level.

28. Alert settings

Opens the Alerting Properties page where you can specify alert properties and how alerts are managed.

29. Alerts list

Lists all alerts. By default, the Active filter is set to true. You can modify the Active filter to view inactive alerts. Each listing shows the alert's number, severity, active status, alert type, affected entity, and date updated.

You can select an alert from the list to view detailed information for that alert.

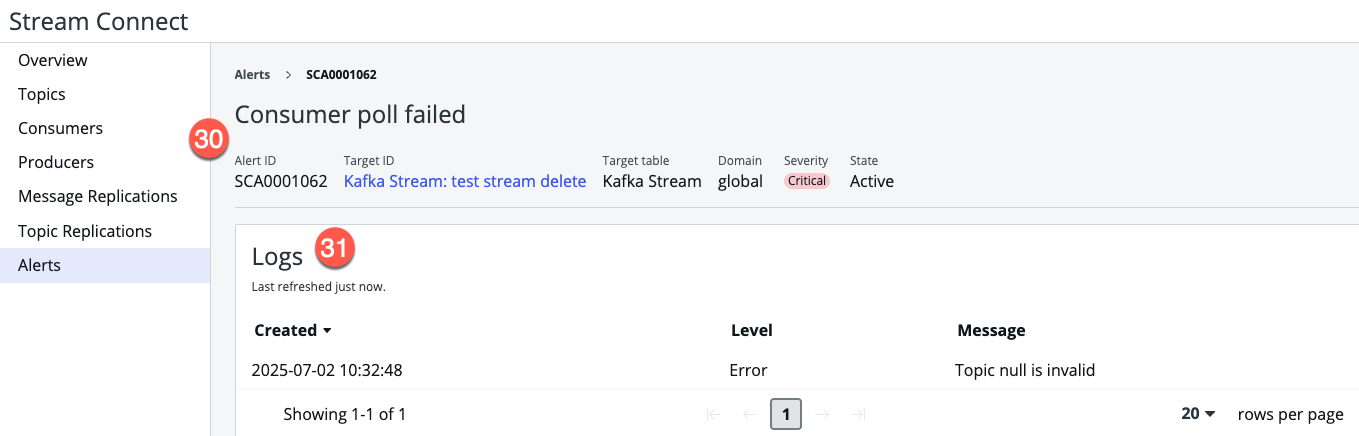

図 : 12. Individual Alert page

Each individual alert page has the following components.

30. Alert information

Shows alert details, including the alert ID, target ID, target table, domain, severity, and state.

31. Alert logs

Displays the alert's log information. Each entry shows when the log was created, its level, and the log message.
