Assign field values to your mobile card

Use Mobile Card Builder to show field labels and values from your tables in mobile cards.

始める前に

Role required: admin or delegated developer

For more information about the delegated developer role, see Delegated development and deployment.

このタスクについて

Data from your records is displayed on your cards using text elements. These elements can display either the label of a field or the value of a field from a record.

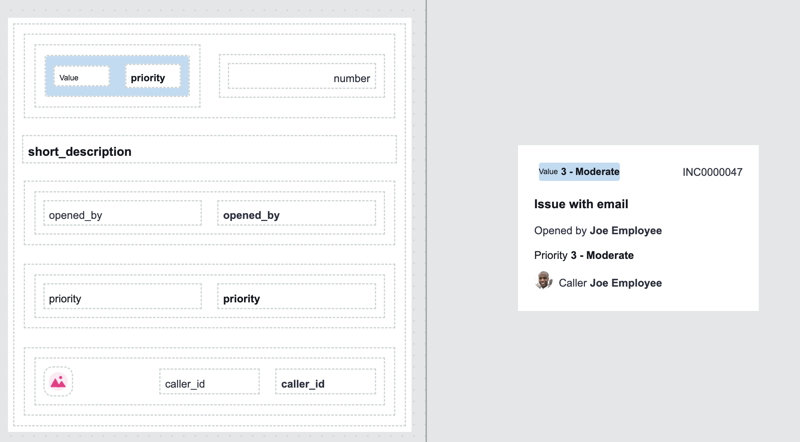

図 : 1. Text elements used to display data from an incident record

In this example, the top three text elements display the values of the State, Number, and Short Description fields. Under these elements, you can see pairs of text elements to display both the label and value of the Opened by and Priority fields. The dotted outlines around these fields are containers used to organize the text.

手順

1. Open your mobile card in Card Builder using one of the following methods.

   オプション	説明
   Open Mobile Card Builder from Mobile App Builder	In Mobile App Builder, open the screen where you want to modify your card, and select open in Mobile App Builder
   Open Card builder from the web-based UI	Navigate to System Mobile > Mobile Card Builder, then select the card or card template you want to modify using the pop-up window that displays when Card Builder first opens.

2. Select a text in your mobile card, or create a new one.
   For details on creating elements, see Mobile Card Builder user interface.

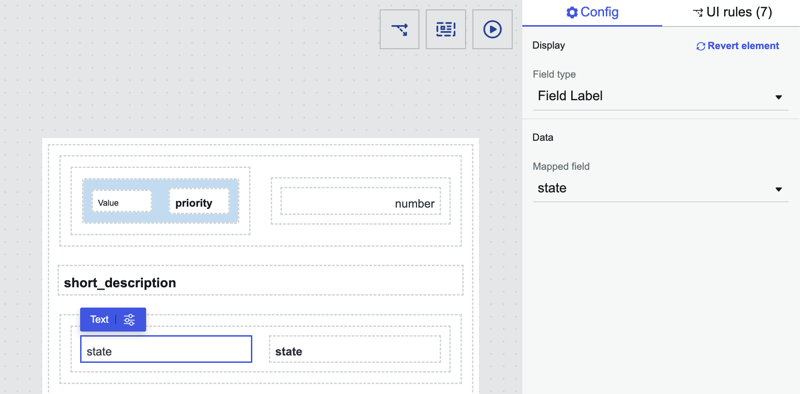

   With your text element selected, you can see the configuration properties in the Component configuration panel on the right of the screen. If you do not see this panel, select the Expand configuration panel () button.
3. Under Field type, select either an option.

   オプション	説明
   Field Value	The text element displays the value of a field on your table. For example, if you select Number, the field displays the record number.
   Field Label	The text element displays the name of a field on your table. For example, if you select Number, the field displays the word Number.

4. Under Mapped field, select the list button () to select a field from your table.

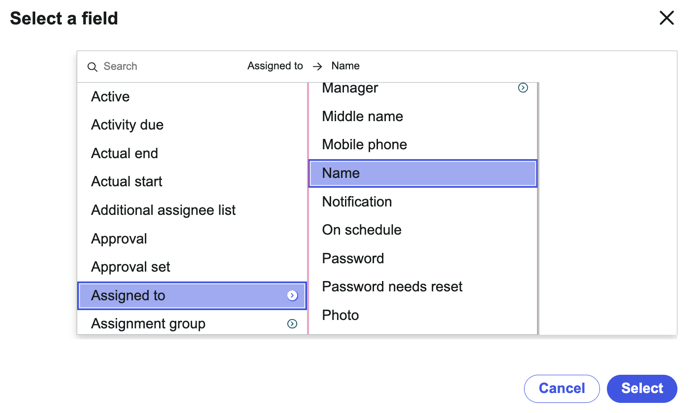

5. Use the Select a field window to select a field.

   When you have chosen your field, select Select.


6. Repeat steps 2 through 5 to assign any other values from your table that you want to appear on your card.

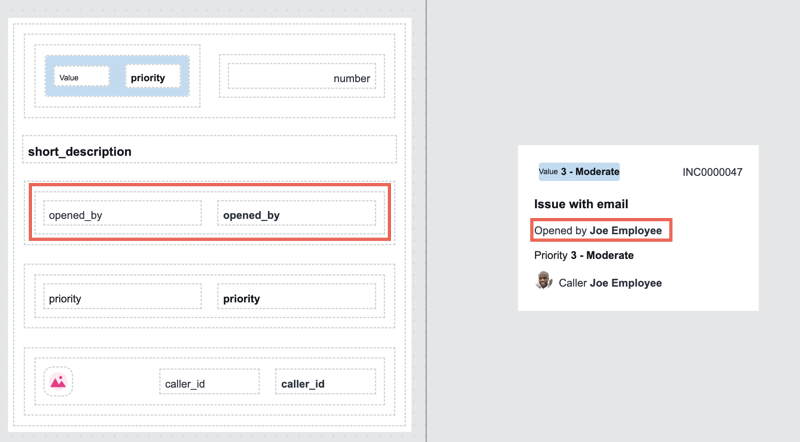

   If you want to display both the name and value of the field, use two text elements side by side, as shown in this example.



7. Select Save.
