Create Microsoft Azure application and authenticate users to access Employee Center in Microsoft Teams

Create a Microsoft Azure application in the Microsoft Azure portal to enable agents to start and import the chat conversations, and assign permissions to users to view the Employee Center dashboard in the Microsoft Teams application.

Before you begin

Role required: Microsoft Azure admin

Procedure

1. Log in to the Microsoft Azure portal.
2. Navigate to Azure Services > Microsoft Entra ID > Manage > App registrations.
3. Select New registration.

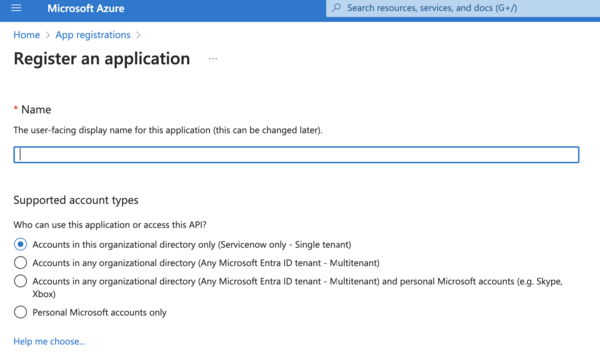

   The Register an application form appears.


4. Enter the name for your application, for example: ServiceNow Auth app, on the Register an application page.
5. Select Accounts in this organizational directory only (Servicenow only - Single tenant).
   For more information on why this option is selected, see Identity and account types for single- and multi-tenant apps.
6. Select Register.
   A new Microsoft Azure app is registered.
7. Navigate to Manage > Authentication.
8. Select Add a platform > Web.

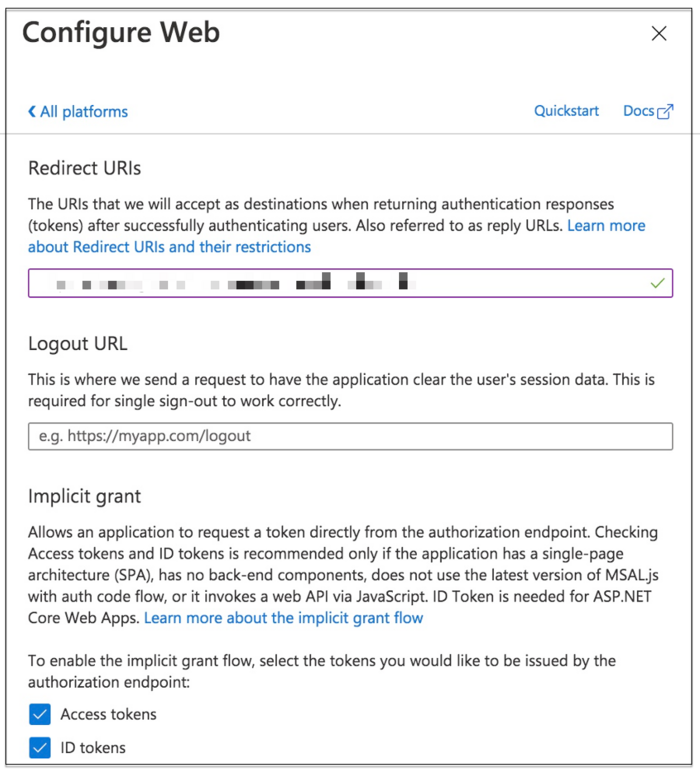

9. On the Configure Web form, fill in the fields.

   Table 1. Configure Web form

   Field	Description
   Redirect URIs	Provide the redirect URI. The redirect URI should be in the following format: https://<instance-url>/sn_now_teams_ms_login.do where <instance-url> is the ServiceNow instance URL.
   Implicit grant	Select Access tokens and ID tokens.



10. Select Configure.

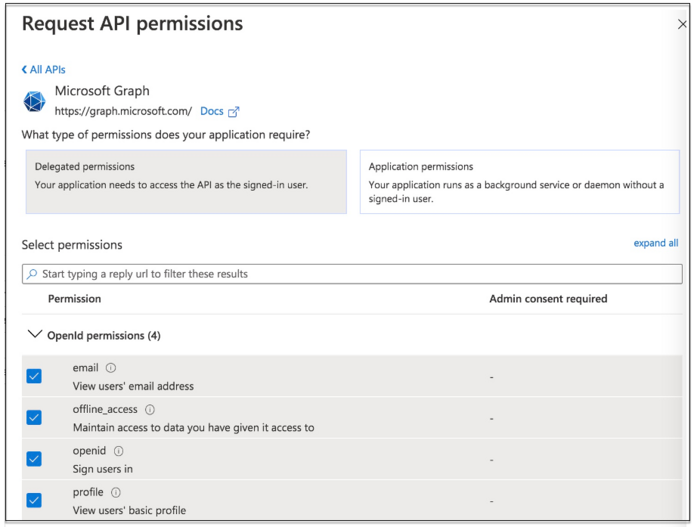

11. Navigate to Manage > API Permissions > Add a permission > Microsoft Graph.
12. Select Delegated permissions.
13. Select Openid permissions accordion, and select email, offline_access, openid, and profile check boxes.

14. Select Add permissions.
15. In the API permissions screen, select the Grant admin consent for {tenant} link.
16. Select Yes on the pop-up dialog box.
17. Navigate to Manage > Expose an API.
18. Select Set against Application ID URI, and enter the application URI in the format: api://<instance>.<domain_name>.com/<client_id>.
    Note:

    The client ID is the application ID from your Microsoft Azure portal.
19. Select Save.
20. Select Add a scope.

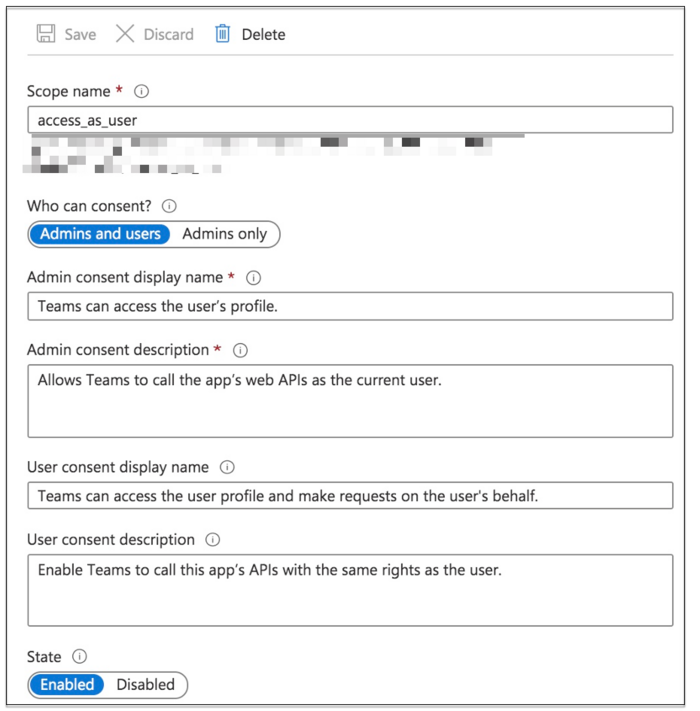

    In the Add a scope form, fill the following fields.

    Table 2. Add a scope form

    Field	Description
    Scope name	access_as_user
    Who can consent	Admins and users
    Admin consent display name	Teams can access the user’s profile.
    Admin consent description	Allows Teams to call the app’s web APIs as the current user.
    User consent display name	Teams can access the user profile and make requests on the user's behalf.
    User consent description	Enable Teams to call this app’s APIs with the same rights as the user.
    State	Enabled



21. Select the Add scope button.

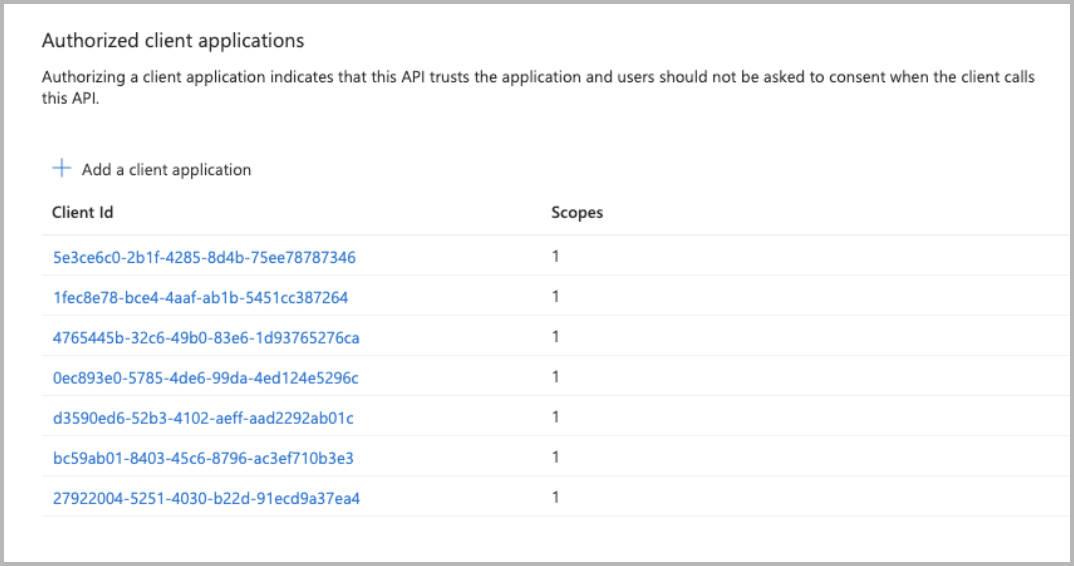

22. Navigate to Authorized client applications > Add a client application.
23. In the Add a client application form, fill the fields.

    Table 3. Add client application form

    Field	Description
    Client ID	Microsoft Teams mobile/desktop application: 1fec8e78-bce4-4aaf-ab1b-5451cc387264 Value for Microsoft Teams web application: 5e3ce6c0-2b1f-4285-8d4b-75ee78787346
    Authorized scopes	Check the authorized scope

    Note:

    For using Employee Center in Microsoft 365 applications, add the following client IDs:

    Table 4. Microsoft 365 applications client IDs

    Client ID	Description
    4765445b-32c6-49b0-83e6-1d93765276ca	Client ID for Microsoft 365 web application
    0ec893e0-5785-4de6-99da-4ed124e5296c	Client ID for Microsoft 365 desktop application
    d3590ed6-52b3-4102-aeff-aad2292ab01c	Client ID for Outlook desktop application web application
    bc59ab01-8403-45c6-8796-ac3ef710b3e3	Client ID for Outlook web application
    27922004-5251-4030-b22d-91ecd9a37ea4	Client ID for Outlook mobile application

    For more information on the client IDs, see Configure your tab app in Microsoft Entra ID in the Microsoft Teams documentation.



24. Select the Add application button.

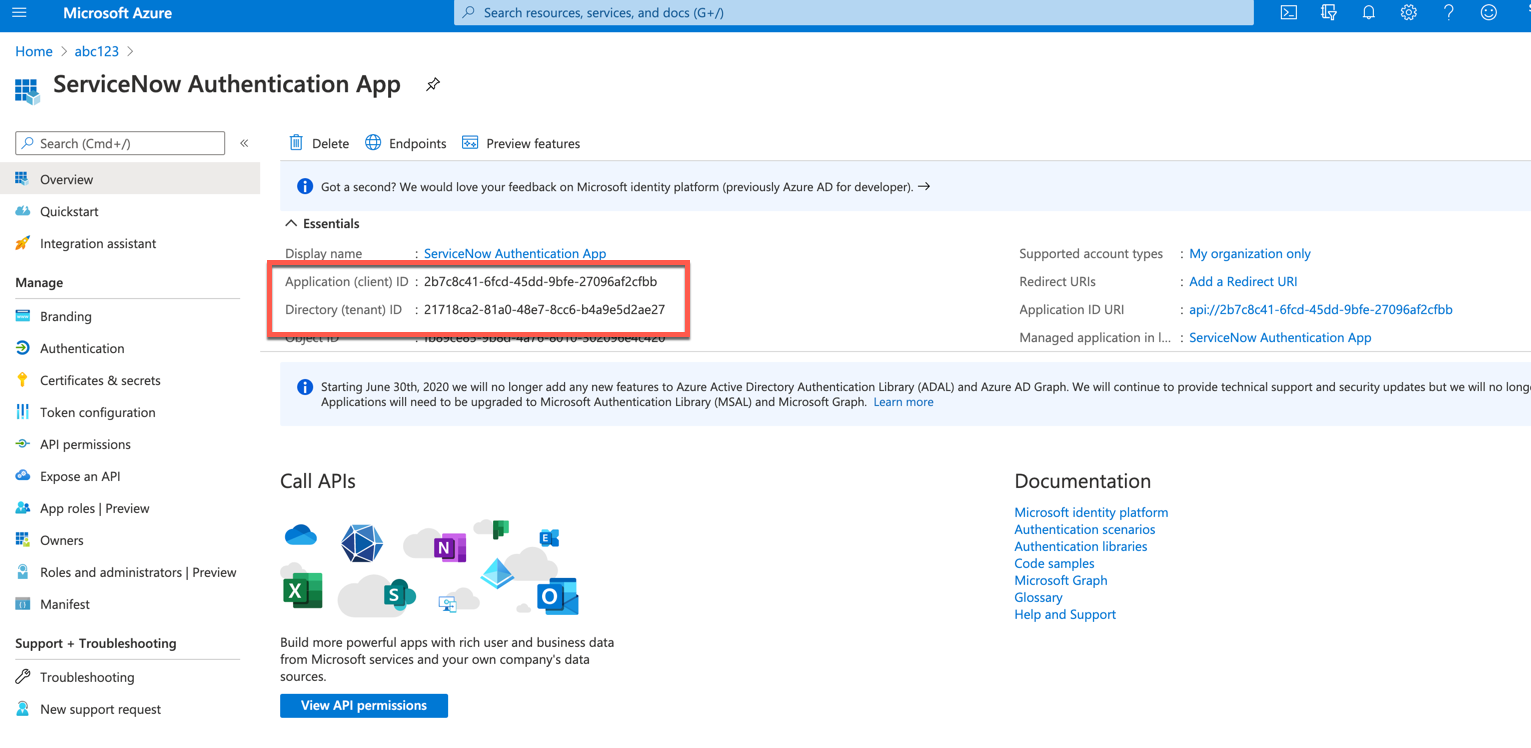

    Copy the Application (client) ID, and Directory (tenant) ID from the application overview page in the Microsoft Azure portal to update the details in the ServiceNow instance.
