Microsoft Azure Inventory discovery

The ServiceNow Discovery application uses the Azure Resource Inventory (LP) pattern to find resources available through Azure that don’t have a dedicated pattern. Discovering some of these resources requires updating the Discovery and Service Mapping Patterns application from the ServiceNow Store.

You can discover up to 10 thousand resources using the Azure Inventory pattern.

Request apps on the Store

Visit the ServiceNow Store website to view all the available apps and for information about submitting requests to the store. For cumulative release notes information for all released apps, see the ServiceNow Store version history release notes.

Prerequisites

Azure service principal

Verify the Azure service principal is configured. For more information, see Azure Cloud Discovery

Privileges

For versions 1.3.0 and later:

On the Microsoft Azure Console, provide a user with the API Management Service Reader role with permissions to run the following REST POST request:

"https://management.<resource url>/providers/microsoft.resourcegraph/resources?api-version=2022-10-01"

<resource url> – The URL varies based on the Azure account type, like "azure.com" or government site address.

For versions 1.0.99 and earlier:

On the Microsoft Azure Console, provide a user with the API Management Service Reader role with permissions to run the following REST GET request:

"https://management.azure.com/subscriptions/<subscription id>/resources"

Create a Cloud Discovery schedule

Create a schedule for the relevant Azure service account as described in Create schedules for discovering cloud resources in Cloud Discovery

Fine-tune Azure inventory discovery using the Resource Inclusion List

If your deployment has custom patterns for Azure discovery, ensure that you don’t discover Azure resources twice.

Note:

Leaving the [pre_resource_whitelist] table empty causes the Pattern to populate all resources and it might cause performance issues.

1. Ensure that the application scope is Discovery and Service Mapping Patterns:
   1. Navigate to Settings > Developer.
   2. Select Discovery and Service Mapping Patterns from the Application list.
2. Navigate to System Definitions > Tables.
3. Open the Cloud Inventory Resource Inclusion List [sa_cloud_inventory_resource_whitelist] table.
4. Under Related Links, click Show List.
5. Select resource types for which you have custom patterns, and select Delete from the Actions on selected rows list.

The Cloud Inventory Resource Inclusion List is predefined with common services. You can expand the inclusion list with additional resource types that you want the pattern to discover. The names of these resource types must conform to the appropriate vendor naming conventions.

Note:

When you modify the out-of-the-box inclusion list, it is no longer updated automatically in application updates. You must maintain the customized list on your own.

1. Open the Cloud Inventory Resource Inclusion List [sa_cloud_inventory_resource_whitelist] table.
2. Click New.
3. Fill in the form, and then click Submit.

   Field	Description
   Cloud Vendor	The vendor of the resource type: Azure.
   Resource Type	The Azure resource type value.
   Application	The application scope: Discovery and Service Mapping Patterns.

The changes are applied the next time you run the pattern.

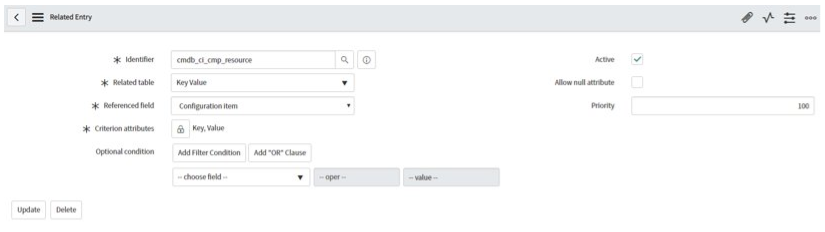

Modify the ServiceNow related entries

1. Navigate to Related Entries.
2. Click New.
3. For the identifier, enter cmdb_ci_cmp_resource.
4. For the related table, select Key Value [cmdb_key_value].
5. For the referenced field, select Configuration Item.
6. For the criterion attributes, add Key and Value.

   You may need to click the lock icon to view and change the criterion attributes.

Data collected by Discovery during horizontal discovery

Table and field	Additional information
Cloud Resource [cmdb_ci_cmp_resource]
Name	A descriptive name used to identify the Azure resource.
Resource type	The type of the resource, for example network, load balancer.
Object ID	The ID of the Azure resource.
Description	The text populated during discovery that specifies that this resource is available from Azure.
Key Value [cmdb_key_value]
Key	The Azure tag key name.
Value	The Azure tag value name.

CI relationships

These relationships are created to support Azure resource inventory discovery:

CI	Relationship	CI
Cloud Resource [cmdb_ci_cmp_resource]	Hosted on:Hosts	Azure datacenter [cmdb_ci_azure_datacenter]
