Exploring Instance Clone
Explore how to use a clone to copy everything in a database from one instance to another.
Clone overview
- Cloning helps reduce divergence between the environments and promotes smooth deployments.
- Cloning is used to test changes such as upgrades, new applications, and new capabilities.
- Cloning data comes from the most recent daily backup.
A list of helpful terminology and definitions for clone is included here Clone terminology.

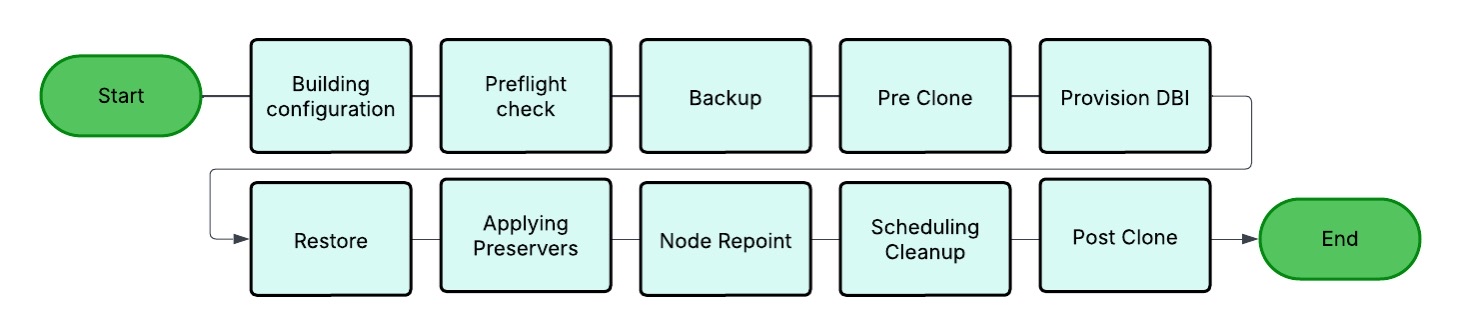

Instance Clone workflow
-
Clone build configuration: Basic definitions, configurations, and profile options are prepared. Data to be included, excluded, or preserved is verified.
- Preflight checks: The clone checks the source and target instances to verify that they are in a healthy state before proceeding with the clone.
-
Backup: Uses the latest daily backup. If there were major recent changes, a new backup is created. You can also trigger a new backup manually by selecting the On-demand backup via the Clone Admin Console.
-
Pre-Clone: Prepares space for the new database before restoring it.
-
Provision database interface (DBI): A new target instance is set up to receive the restored data.
-
Restore: The backup data is restored to the new target instance.
-
Exclusions: Tables marked for exclusion are deleted.
-
Preservers: Data is preserved from the old target (pre-clone instance) and is copied to the new target instance.
- Node repoint: The system switches from the old target to the new clone without user disruption.
- Scheduling scripts: Cleanup scripts and custom scripts are scheduled to run. Scripts with the same priority run at the same time.
-
Post Clone: Cleanup scripts run.
Clone users
| User | Description |
|---|---|
| Administrator | Clone admins with the clone_admin role can request, cancel, schedule, or modify clones. |
Clone benefits
| Benefit | Feature |
|---|---|
| Tidy up data with exclusions and preservers for specific clone scenarios. | Definitions |
| Establish consistent clone outcomes with clone profiles and registered instances. | Configurations |
| Copy data from a production instance to a non-production instance or to copy data between non-production instances. | Request a clone |
Clone Admin Console
The Clone Admin Console is the user interface where administrators can manage, request, and monitor their instance clones.

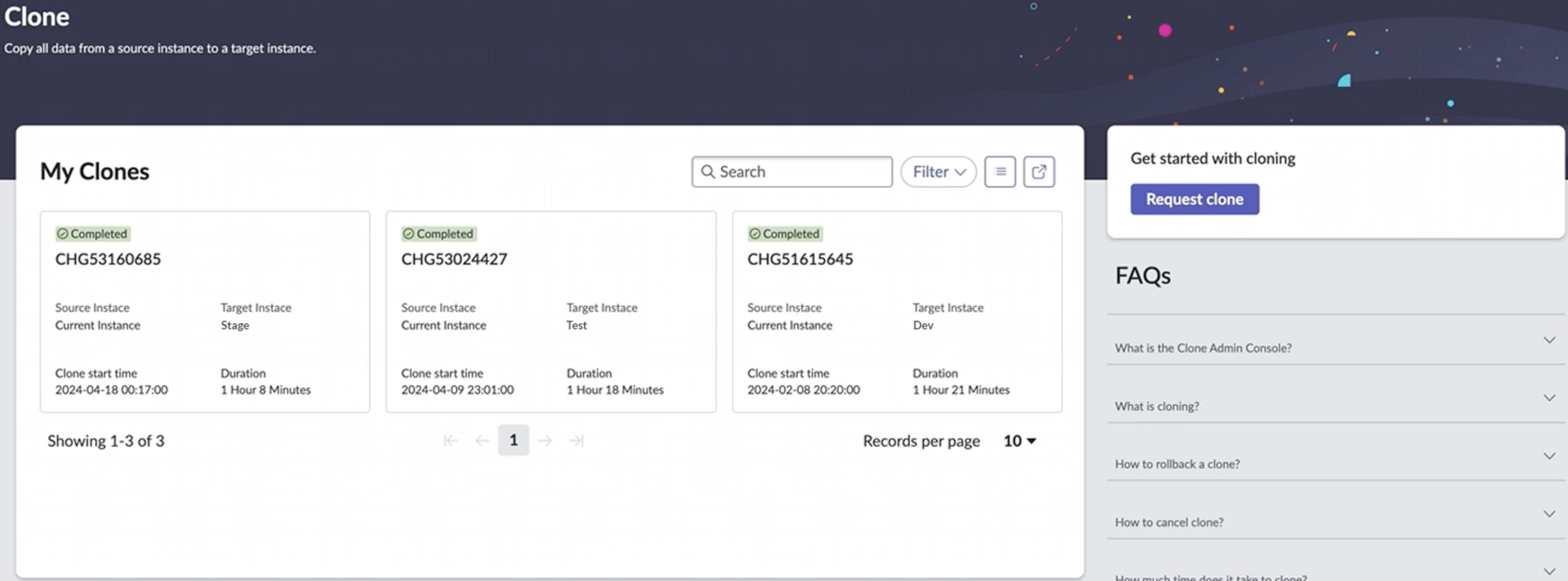

Clone Home
The home page displays the current clones in your instance. Use the search bar to locate your clone.
(clone_instance.do) in the dashboard. To view legacy clones in
either a grid or list view, navigate to .Configurations
The configurations tab displays an overview and information about clone instances and clone profiles. See Configurations for more information.
Definitions
The definitions tab displays an overview for exclusions, preservers, and cleanup scripts. See Definitions for more information.
Request clone
The clone request page contains guidance and explanations for how the various clone settings affect your clone. You can use the scheduling calendar to help to prevent timing conflicts with ServiceNow maintenance windows. To learn more about how to request a clone see Request a clone.
Deprecated Clone Options
You can't request new clones through the legacy request page clone_instance.do. For more information see Request a clone (legacy).
Definitions
Use clone definitions such as exclusions, preservers, and cleanup scripts in your clone.
The Definitions page displays an overview for exclusions, preservers, and cleanup scripts.
Exclusions
The exclusions page lists the tables that aren’t copied during an instance clone. When excluding a table, the clone automation truncates the entire table including its child tables. The clone process excludes (or removes) data from both the parent and the child tables. The child tables, however, aren't individually added to the list of excluded tables. Only the parent table is listed.
To view child tables of a table, you can go to the following link and input their table: [instance].service-now.com/now/nav/ui/classic/params/target/generic_hierarchy_erd.do.
By default, the system excludes tables for logging, auditing, notifications, workflow contexts, and license usage. To configure additional exclusions, see Exclude a table from cloning (legacy).For information on guidelines when adding exclusions see General guidelines for excluding a table from cloning.
Preservers
The preservers page displays a list of available data preservers, which are defined on the source instance. Preservers protect data on the target instance from being overwritten.Preservers work differently compared to exclusions. When preserving a table, the clone automation doesn’t automatically preserve the child tables. Therefore, the child tables must be individually added to the preserver list. To create a preserver see Create a clone preserver.
Cleanup scripts
The cleanup scripts page displays a list of all of your available scripts. Cleanup scripts automate post-clone steps.
Set an order number on each script, to set the order that the active scripts run, with lower numbers having a higher priority. To run some scripts in parallel, you can assign the same order to them.
All cleanup scripts run in the global scope irrespective of the scope in which you have configured the cleanup script.
| Script | Description |
|---|---|
| Bad MID Server credentials after clone | Runs a script include called BadMIDCredentialAfterClone on a cloned instance to detect bad MID Server user credentials. This script include creates scheduled jobs that log MID Servers in the Down state to the MID Server Issue [ecc_agent_issue] table after an instance clone. |
| Clear scheduled job node association | Resets any scheduled jobs that were active on the source instance to the Ready state. This script also clears the value of the System ID and Claimed by fields on all scheduled jobs. |
| Configure Email Accounts | Migrates email accounts that existed on the source instance to the target instance if they aren’t enabled there. This script also migrates the email properties to the target instance. |
| Disable emails | Disables email on the target instance. A default data preserver maintains other email settings from the target instance. |
| Install deactivated plugin | Enables the Domain Separation plugin for instances that use this feature. |
| Regenerate all text indexes | Rebuilds text indexes on the target instance after a clone. Text indexes aren’t cloned from the source to the target instance. |
| Schedule drop backup tables | Schedules the deletion of the data that is contained in the target instance database before the clone. This original data is preserved for 24 hours following a clone to enable you to roll back an instance to the pre-clone state. If the target instance is downgraded as part of the clone, backup data isn’t available. |
To create a cleanup script see Create cleanup scripts.

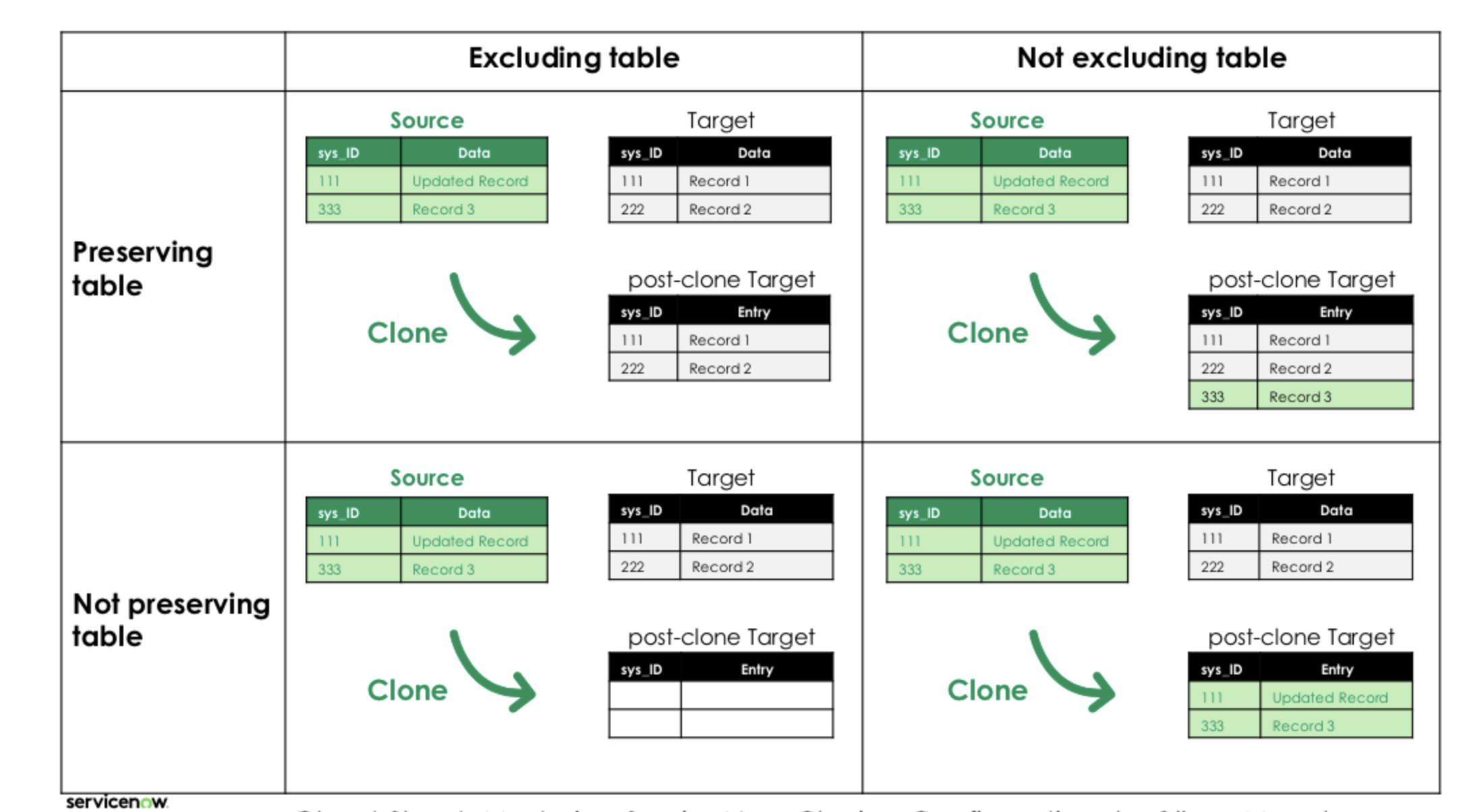

Clarifying exclusions and preservers combinations
Clone exclusions and preservers are both useful for managing your data. The graphics help to identify the expected outcome of the following combinations of preservers and exclusion combinations. For more information, see https://www.servicenow.com/community/servicenow-ai-platform-blog/platform-fundamentals-academy-february-20th-2025-clone-admin/ba-p/3170929
- Scenario 1: Preserving and excluding a table. You want the records on your target instance to remain the same.
- Scenario 2: Preserving and not excluding a table. You want records on your target Instance to remain the same and records for your source instance to be copied over.
- Scenario 3: Not preserving and excluding a table. You want records from your source instance not to be copied over and records on your target instance to be removed: The table is empty but usable after the clone.
- Scenario 4: Not preserving and not excluding a table. You want records from your source instance to replace records on your target instance.
During a clone, data from the source instances replaces data from the target instance. Therefore, any in-progress development work on the target instance is overwritten. For example: Work-in-progress update sets, scoped apps that only exist on the target instance but not on the source instance. If you have in-progress update sets, you must export them before the clone and reimport them after the clone is finished. Custom applications that aren't yet deployed to the source instance must be reinstalled after the clone is completed.
To learn more about clone and app development tips, see Whitepaper here.
Configurations
Use the configurations page to add clone instances or create clone profiles.
- You can add external email addresses to receive clone notifications.
- Some default items can't be removed from the exclusions, preservers, or scripts list.
Configurations overview
The overview page displays the current number of clone instances and clone profiles in your instance.
Clone instances
The clone instances page displays all available instances. You can use instances added to this list as a clone source or clone target for your clones. To add your non-production instance to your clone instances list, select New.
Clone profiles
Clone profiles display all available profiles. Clone profiles are customizable templates for clones and can be saved and reused to achieve consistent outcomes with each of your clones. To learn more about Clone Profiles, see Create a custom clone profile.
The profile System Profile is available by default and can't be modified. Custom profiles use the default Exclusions, Preservers, and Scripts from the System Profile. When creating a custom profile, all existing custom exclusions and preservers are automatically added.
You can create as many custom clone profiles as you'd like and edit them as needed. To change the definitions of a clone profile, such as exclusions, preservers or cleanup scripts, select the number under the definition and select the Edit button on the page.
Clone use cases
Cloning is the easiest way to synchronize your instances. You can clone to a different version, clone from a backup, or clone over production instances.
Clone to an instance on a different version
Clone to a different version
You can clone between instances that are on different family release versions. During a clone, the source version replaces the target version. For example, if you clone from Source (Zurich) to Target (Yokohama) the target will match the source after the clone and be on Zurich release.
.Clone from a backup
The clone uses data from the most recent, daily backup of the source instance when cloning. Backups that are used for cloning are a maximum of 36 hours old. A clone from backup starts only at the date and time processing that it's scheduled to start.
If the source and target instances are on different versions of the ServiceNow AI Platform, the target instance is modified to match the source instance version during this time.
When starting a clone from a backup, the date and time the backup was taken, as well as periodic progress messages, appear in the Clone Log related list.
Clone over production instances
As long as the system property glide.db.clone.allow_clone_target is TRUE, an instance can serve as a clone.
Deprecated Clone Options
You can't request new clones through the legacy request page clone_instance.do. For more information, see Request a clone (legacy).
