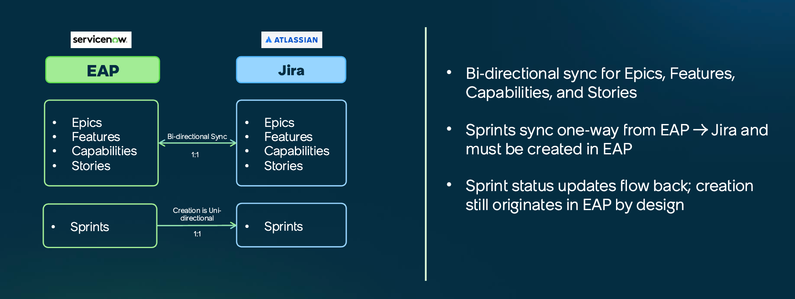

UPDATE - Dec 12th, 2025!!!

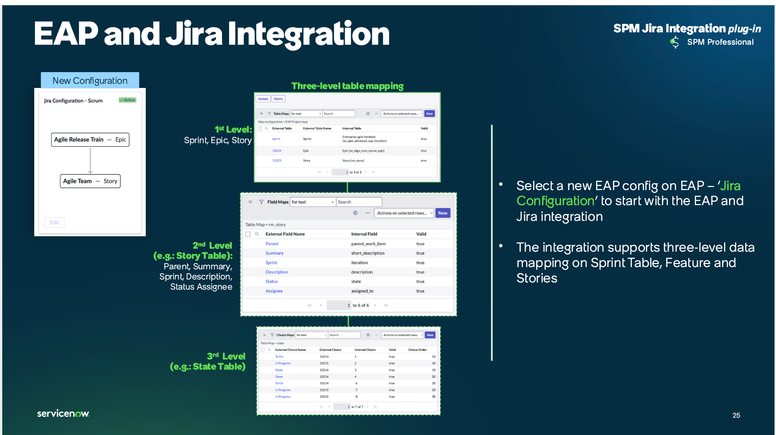

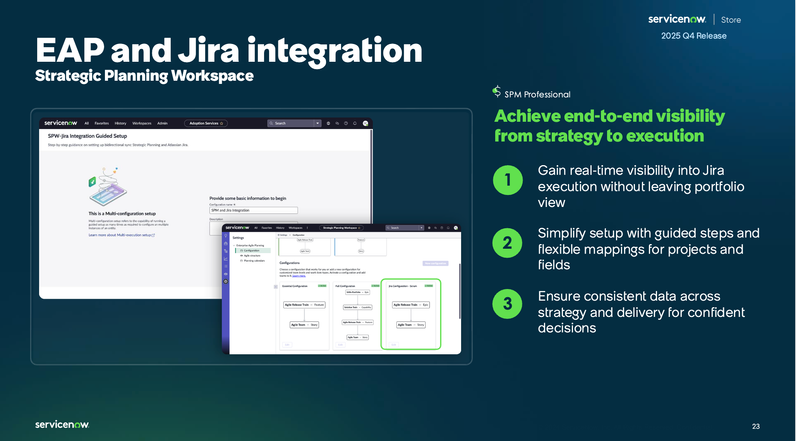

We are excited to announce that with 2025 December store release, integration EAP with Jira is available OOTB. To make the integration smoother, the release includes guided setup walk you through the necessary steps required. Please learn more about the integration from the docs.
Additionally, if you want to see what's new in 2025 December store release, check out the below links:
Overview - Integrating Enterprise Agile Planning (EAP) with Jira or Azure DevOps (ADO)
This guide explains how to integrate Enterprise Agile Planning (EAP) with Jira or Azure DevOps (ADO) using a two-step integration approach:
- EAP → Agile Development
- Agile Development → Jira or ADO
Who should use this integration?
- This approach is an interim solution and a bi-directional integration directly to EAP is currently on the roadmap to be developed as a long term solution. So this approach is suitable for organisations that want to move to Enterprise Agile Planning (EAP) immediately, and cannot wait for the long term solution.
- Sprints cannot be synchronized with this approach, so this approach is ideal for organisations for which the primary motivation of integration is to view the progress of Epics and stories within EAP.
Limitations of This Approach:
Before proceeding, it's essential to be aware of the following limitations:
- Sprints cannot be synched with this approach.
- Epic has to be created in EAP with an Assignment Group (new field created in Step 1 below) assigned.
- Users must update both the EAP Team and Assignment Group fields in the EAP epic (sn_align_core_scrum_epic).
- If Essential SAFe is used with this integration (ADO/Jira <> Essential SAFe <> EAP), only Epics and Features can be synched (stories cannot be synched).
Steps to setup this integration:
Note: This article takes the example of Epic (sn_align_core_scrum_epic → rm_epic → ADO/Jira epic). If you would like to enable sync for other work item types, such as story or feature, the same changes need to be applied to the corresponding Business Rules (BR).
Step 1: Add a new field named "Assignment Group" on the ‘sn_align_core_scrum_epic’ table, referencing the sys_user_group table.
Step 2: Configure Internal Integration Field Mapping
In the Internal Integration Table & Field Mapping, create a field map:
- Go to Nav->StrategicPlanning -> Integrations -> ServiceNow Internal -> Table Maps -> rm_epic
- Map the "Assignment Group" field from sn_align_core_scrum_epic with the Assignment Group field on rm_epic
Step 3: Modify the Business Rule on rm_epic: (Changes in this step are included in the update set)
- For Jira integration, apply "EAP:Jira Integration Workaround.xml". This update Set has the changes on the Business Rule, "Synch Epic with Jira".
- For ADO integration, apply "EAP:ADO Integration Workaround.xml". This update Set has the changes on the Business Rule, "Synch Epic with Azure DevOps".
Explaining the changes in the above update set in Step 3:
1. Prevent Cyclic Updates
Update the script in the BR, “Synch Epic with in ….” to add the following condition:
current.getValue('sys_updated_by') != 'system'
This ensures that updates triggered by system-generated processes (such as Jira/ADO sync) do not cause endless cyclic update, while user-initiated changes still sync properly.
2. Remove the Condition Value
The existing Business Rule checks for:
gs.getSession().isInteractive()
Remove this condition because Jira/ADO updates appear as "system" in ServiceNow and this condition only returns true for UI-based updates (form or list view).
By following these steps, you can successfully integrate Enterprise Agile Planning (EAP) with Jira or AzureDevOps (ADO). This setup enables users to track the progress of Epics, Features, Stories and other work items within EAP and SPW while ensuring smooth synchronization between ServiceNow and Jira or Azure DevOps (ADO).
Thanks for the article & instructions, @SaiShekhar07864 .
I just configured this and wanted to point out that you've forgotten an important step to get the Sync working. Under your EAP Configuration, you have to change the 'Epic Methodology' from SAFE to Scrum in order for Epics created in SPW or Jira to sync. By default this field isn't shown on the EAP configuration form, so you need to add it to the list view, or customize the form in Form Builder to show it. This is important because Epics from the rm_epic table sync to SPW as 'scrum' methodology, but by default EAP sets your methodology to 'SAFE'. This means that you won't be able to assign an EAP team to epics sync'd from rm_epics (which is where Jira/ADO sync to). Changing this config fixes that and allows the sync to work as described. Creating a new Epic in your EAP ART/Team will now use Scrum, and will sync down to rm_epic and Jira with the correct team assignment.
You instructions also requires the EAP Team and new Assignment Group field to be set to the same team. For anyone who wants it, I've created two Business Rules that will automatically sync these two fields in both the sn_align_core_scrum_epic and rm_story tables, so you don't have to do it manually. I can't attach the update set, so the XML is below.
This XML file does not appear to have any style information associated with it. The document tree is shown below.
<unload unload_date="2025-11-01 18:31:56">
<sys_remote_update_set action="INSERT_OR_UPDATE">
<application display_value="Strategic Planning">a38ac49ccbf511104abddcbcf7076dec</application>
<application_name>Strategic Planning</application_name>
<application_scope>sn_apw_advanced</application_scope>
<application_version>4.3.2</application_version>
<collisions/>
<commit_date/>
<deleted/>
<description/>
<inserted/>
<name>Sync EAP Team and Assignment Group</name>
<origin_sys_id/>
<parent display_value=""/>
<release_date/>
<remote_base_update_set display_value=""/>
<remote_parent_id/>
<remote_sys_id>cbf3b1c497c97e94e8fb3756f053afdf</remote_sys_id>
<state>loaded</state>
<summary/>
<sys_class_name>sys_remote_update_set</sys_class_name>
<sys_created_by>DavidBarkhausen</sys_created_by>
<sys_created_on>2025-11-01 18:31:56</sys_created_on>
<sys_id>1544310897c97e94e8fb3756f053affb</sys_id>
<sys_mod_count>0</sys_mod_count>
<sys_updated_by>DavidBarkhausen</sys_updated_by>
<sys_updated_on>2025-11-01 18:31:56</sys_updated_on>
<update_set display_value=""/>
<update_source display_value=""/>
<updated/>
</sys_remote_update_set>
<sys_update_xml action="INSERT_OR_UPDATE">
<action>INSERT_OR_UPDATE</action>
<application display_value="Strategic Planning">a38ac49ccbf511104abddcbcf7076dec</application>
<category>customer</category>
<comments/>
<name>sys_script_0133d50c97817e94e8fb3756f053af17</name>
<payload><?xml version="1.0" encoding="UTF-8"?><record_update sys_domain="global" table="sys_script"><sys_script action="INSERT_OR_UPDATE"><abort_action>false</abort_action><access>package_private</access><action_delete>false</action_delete><action_insert>true</action_insert><action_query>false</action_query><action_update>true</action_update><active>true</active><add_message>false</add_message><advanced>true</advanced><change_fields>false</change_fields><client_callable>false</client_callable><collection>sn_align_core_scrum_epic</collection><condition/><description/><execute_function>false</execute_function><filter_condition/><is_rest>false</is_rest><message/><name>Sync eap_team ⇄ u_assignment_group</name><order>100</order><priority>100</priority><rest_method/><rest_method_text/><rest_service/><rest_service_text/><rest_variables/><role_conditions/><script><![CDATA[(function executeRule(current, previous /* null on insert */) { function isEmpty(v) { return gs.nil(v); } function neq(a, b) { return (a + '') !== (b + ''); } var eapId = current.getValue('eap_team'); // sn_apw_advanced_agile_team.sys_id var grpId = current.getValue('u_assignment_group'); // sys_user_group.sys_id var eapChanged = current.eap_team.changes(); var grpChanged = current.u_assignment_group.changes(); // --- Lookup helpers ---------------------------------------------------- // From team -> group (prefer the explicit reference; fallback by matching name) function resolveGroupFromTeam(teamId) { if (isEmpty(teamId)) return ''; var team = new GlideRecord('sn_apw_advanced_agile_team'); if (!team.get(teamId)) return ''; var ug = team.getValue('user_group'); if (!isEmpty(ug)) return ug; // fallback by matching group name == team.name var name = team.getValue('name'); if (isEmpty(name)) return ''; var g = new GlideRecord('sys_user_group'); g.addQuery('name', name); g.setLimit(1); g.query(); return g.next() ? g.getUniqueValue() : ''; } // From group -> team (prefer user_group match; fallback by matching name) function resolveTeamFromGroup(groupId, groupName) { if (isEmpty(groupId) && isEmpty(groupName)) return ''; // 1) exact link on user_group if (!isEmpty(groupId)) { var t1 = new GlideRecord('sn_apw_advanced_agile_team'); t1.addQuery('user_group', groupId); // If your table has an 'active' field, uncomment: // t1.addQuery('active', true); t1.setLimit(1); t1.query(); if (t1.next()) return t1.getUniqueValue(); } // 2) fallback: match by name equality if (!isEmpty(groupName)) { var t2 = new GlideRecord('sn_apw_advanced_agile_team'); t2.addQuery('name', groupName); // t2.addQuery('active', true); t2.setLimit(1); t2.query(); if (t2.next()) return t2.getUniqueValue(); } return ''; } function getGroupName(groupId) { if (isEmpty(groupId)) return ''; var g = new GlideRecord('sys_user_group'); if (!g.get(groupId)) return ''; return g.getValue('name') || g.getDisplayValue(); } // --- INSERT ------------------------------------------------------------ if (current.operation() === 'insert') { if (!isEmpty(eapId) && isEmpty(grpId)) { current.setValue('u_assignment_group', resolveGroupFromTeam(eapId)); return; } if (!isEmpty(grpId) && isEmpty(eapId)) { current.setValue('eap_team', resolveTeamFromGroup(grpId, getGroupName(grpId))); return; } if (!isEmpty(eapId) && !isEmpty(grpId)) { var expectedGrp = resolveGroupFromTeam(eapId); if (neq(expectedGrp, grpId)) { // Prefer EAP on conflict current.setValue('u_assignment_group', expectedGrp || ''); } } return; } // --- UPDATE ------------------------------------------------------------ // If exactly one changed, mirror it (including clears) if (eapChanged ^ grpChanged) { // XOR if (eapChanged) { // eap_team was modified var newGrp = isEmpty(eapId) ? '' : resolveGroupFromTeam(eapId); if (neq(newGrp, grpId)) current.setValue('u_assignment_group', newGrp); } else { // u_assignment_group was modified var groupName = getGroupName(grpId); var newTeam = isEmpty(grpId) ? '' : resolveTeamFromGroup(grpId, groupName); if (neq(newTeam, eapId)) current.setValue('eap_team', newTeam); } return; } // If both changed and disagree, prefer eap_team if (eapChanged && grpChanged) { var expectedGrp2 = isEmpty(eapId) ? '' : resolveGroupFromTeam(eapId); if (neq(expectedGrp2, grpId)) { current.setValue('u_assignment_group', expectedGrp2); } } // If neither explicitly changed, do nothing. })(current, previous); ]]></script><sys_class_name>sys_script</sys_class_name><sys_created_by>DavidBarkhausen</sys_created_by><sys_created_on>2025-11-01 16:09:57</sys_created_on><sys_domain>global</sys_domain><sys_domain_path>/</sys_domain_path><sys_id>0133d50c97817e94e8fb3756f053af17</sys_id><sys_mod_count>1</sys_mod_count><sys_name>Sync eap_team ⇄ u_assignment_group</sys_name><sys_overrides/><sys_package display_value="Strategic Planning" source="sn_apw_advanced">a38ac49ccbf511104abddcbcf7076dec</sys_package><sys_policy/><sys_scope display_value="Strategic Planning">a38ac49ccbf511104abddcbcf7076dec</sys_scope><sys_update_name>sys_script_0133d50c97817e94e8fb3756f053af17</sys_update_name><sys_updated_by>DavidBarkhausen</sys_updated_by><sys_updated_on>2025-11-01 16:53:23</sys_updated_on><template/><when>before</when></sys_script><sys_translated_text action="delete_multiple" query="documentkey=0133d50c97817e94e8fb3756f053af17"/></record_update></payload>
<payload_hash>1247869176</payload_hash>
<remote_update_set display_value="Sync EAP Team and Assignment Group">1544310897c97e94e8fb3756f053affb</remote_update_set>
<replace_on_upgrade>false</replace_on_upgrade>
<sys_created_by>DavidBarkhausen</sys_created_by>
<sys_created_on>2025-11-01 18:31:56</sys_created_on>
<sys_id>1944310897c97e94e8fb3756f053affb</sys_id>
<sys_mod_count>0</sys_mod_count>
<sys_recorded_at>19a40b01ffd0000001</sys_recorded_at>
<sys_updated_by>DavidBarkhausen</sys_updated_by>
<sys_updated_on>2025-11-01 18:31:56</sys_updated_on>
<table>sn_align_core_scrum_epic</table>
<target_name>Sync eap_team ⇄ u_assignment_group</target_name>
<type>Business Rule</type>
<update_domain>global</update_domain>
<update_guid>a314b9c482c97e94d351b4cd7186868a</update_guid>
<update_guid_history>a314b9c482c97e94d351b4cd7186868a:1247869176,f9bd1d0805457e94f37661f31f2bd624:1247869176,79c351047ac17e944bea3806b1bcf0d2:770609636</update_guid_history>
<update_set display_value=""/>
<view/>
</sys_update_xml>
<sys_update_xml action="INSERT_OR_UPDATE">
<action>INSERT_OR_UPDATE</action>
<application display_value="Strategic Planning">a38ac49ccbf511104abddcbcf7076dec</application>
<category>customer</category>
<comments/>
<name>sys_script_832125cc97457e94e8fb3756f053afc7</name>
<payload><?xml version="1.0" encoding="UTF-8"?><record_update sys_domain="global" table="sys_script"><sys_script action="INSERT_OR_UPDATE"><abort_action>false</abort_action><access>package_private</access><action_delete>false</action_delete><action_insert>true</action_insert><action_query>false</action_query><action_update>true</action_update><active>true</active><add_message>false</add_message><advanced>true</advanced><change_fields>false</change_fields><client_callable>false</client_callable><collection>rm_story</collection><condition/><description/><execute_function>false</execute_function><filter_condition/><is_rest>false</is_rest><message/><name>Sync eap_team ⇄ assignment_group (rm_sto</name><order>100</order><priority>100</priority><rest_method/><rest_method_text/><rest_service/><rest_service_text/><rest_variables/><role_conditions/><script><![CDATA[(function executeRule(current, previous /* null on insert */) { function isEmpty(v) { return gs.nil(v); } function neq(a, b) { return (a + '') !== (b + ''); } var teamId = current.getValue('eap_team'); // sn_apw_advanced_agile_team.sys_id var grpId = current.getValue('assignment_group'); // sys_user_group.sys_id var teamChanged = current.eap_team.changes(); var grpChanged = current.assignment_group.changes(); // --- Helpers ----------------------------------------------------------- // From team -> group: prefer team.user_group; fallback to group by name == team.name function resolveGroupFromTeam(teamSysId) { if (isEmpty(teamSysId)) return ''; var team = new GlideRecord('sn_apw_advanced_agile_team'); if (!team.get(teamSysId)) return ''; var ug = team.getValue('user_group'); if (!isEmpty(ug)) return ug; var teamName = team.getValue('name'); if (isEmpty(teamName)) return ''; var g = new GlideRecord('sys_user_group'); g.addQuery('name', teamName); g.setLimit(1); g.query(); return g.next() ? g.getUniqueValue() : ''; } // From group -> team: ONLY return a team sys_id if a matching team exists. // 1) Prefer team.user_group == groupId // 2) Else fallback to team.name == group.name function resolveTeamFromGroup(groupSysId) { if (isEmpty(groupSysId)) return ''; // try direct user_group reference var t1 = new GlideRecord('sn_apw_advanced_agile_team'); t1.addQuery('user_group', groupSysId); t1.setLimit(1); t1.query(); if (t1.next()) return t1.getUniqueValue(); // fallback to name match var groupName = getGroupName(groupSysId); if (isEmpty(groupName)) return ''; var t2 = new GlideRecord('sn_apw_advanced_agile_team'); t2.addQuery('name', groupName); t2.setLimit(1); t2.query(); if (t2.next()) return t2.getUniqueValue(); // No matching team found -> skip syncing return ''; } function getGroupName(groupSysId) { if (isEmpty(groupSysId)) return ''; var g = new GlideRecord('sys_user_group'); if (!g.get(groupSysId)) return ''; return g.getValue('name') || g.getDisplayValue(); } // --- INSERT ------------------------------------------------------------ if (current.operation() === 'insert') { // team → group if (!isEmpty(teamId) && isEmpty(grpId)) { var g1 = resolveGroupFromTeam(teamId); if (!isEmpty(g1)) current.setValue('assignment_group', g1); return; } // group → team (only if matching team exists) if (!isEmpty(grpId) && isEmpty(teamId)) { var t1 = resolveTeamFromGroup(grpId); if (!isEmpty(t1)) current.setValue('eap_team', t1); return; } // both set: prefer team; ensure group matches team.user_group/name if (!isEmpty(teamId) && !isEmpty(grpId)) { var expectedGrp = resolveGroupFromTeam(teamId); if (!isEmpty(expectedGrp) && neq(expectedGrp, grpId)) { current.setValue('assignment_group', expectedGrp); } } return; } // --- UPDATE ------------------------------------------------------------ // Exactly one changed if (teamChanged ^ grpChanged) { if (teamChanged) { // team was modified if (isEmpty(teamId)) { // clearing team -> clear group if (!isEmpty(grpId)) current.setValue('assignment_group', ''); } else { var g2 = resolveGroupFromTeam(teamId); // only set if we can resolve a group from this team if (!isEmpty(g2) && neq(g2, grpId)) current.setValue('assignment_group', g2); } } else { // group was modified if (isEmpty(grpId)) { // rule: do NOT clear team when group is cleared (no matching team to confirm) // skip } else { var t2 = resolveTeamFromGroup(grpId); // only set if a matching team exists if (!isEmpty(t2) && neq(t2, teamId)) current.setValue('eap_team', t2); } } return; } // Both changed: prefer team (but still respect group resolution) if (teamChanged && grpChanged) { if (isEmpty(teamId)) { // team cleared wins -> clear group if (!isEmpty(grpId)) current.setValue('assignment_group', ''); } else { var expectedGrp2 = resolveGroupFromTeam(teamId); if (!isEmpty(expectedGrp2) && neq(expectedGrp2, grpId)) { current.setValue('assignment_group', expectedGrp2); } // If team->group can't resolve, leave group as user set it. } } // Neither changed: no-op. })(current, previous); ]]></script><sys_class_name>sys_script</sys_class_name><sys_created_by>DavidBarkhausen</sys_created_by><sys_created_on>2025-11-01 17:08:29</sys_created_on><sys_domain>global</sys_domain><sys_domain_path>/</sys_domain_path><sys_id>832125cc97457e94e8fb3756f053afc7</sys_id><sys_mod_count>0</sys_mod_count><sys_name>Sync eap_team ⇄ assignment_group (rm_sto</sys_name><sys_overrides/><sys_package display_value="Strategic Planning" source="sn_apw_advanced">a38ac49ccbf511104abddcbcf7076dec</sys_package><sys_policy/><sys_scope display_value="Strategic Planning">a38ac49ccbf511104abddcbcf7076dec</sys_scope><sys_update_name>sys_script_832125cc97457e94e8fb3756f053afc7</sys_update_name><sys_updated_by>DavidBarkhausen</sys_updated_by><sys_updated_on>2025-11-01 17:08:29</sys_updated_on><template/><when>before</when></sys_script><sys_translated_text action="delete_multiple" query="documentkey=832125cc97457e94e8fb3756f053afc7"/></record_update></payload>
<payload_hash>-1023244664</payload_hash>
<remote_update_set display_value="Sync EAP Team and Assignment Group">1544310897c97e94e8fb3756f053affb</remote_update_set>
<replace_on_upgrade>false</replace_on_upgrade>
<sys_created_by>DavidBarkhausen</sys_created_by>
<sys_created_on>2025-11-01 18:31:56</sys_created_on>
<sys_id>d944310897c97e94e8fb3756f053affb</sys_id>
<sys_mod_count>0</sys_mod_count>
<sys_recorded_at>19a40afefab0000001</sys_recorded_at>
<sys_updated_by>DavidBarkhausen</sys_updated_by>
<sys_updated_on>2025-11-01 18:31:56</sys_updated_on>
<table>rm_story</table>
<target_name>Sync eap_team ⇄ assignment_group (rm_sto</target_name>
<type>Business Rule</type>
<update_domain>global</update_domain>
<update_guid>a814f5c401c97e942362e363d7027416</update_guid>
<update_guid_history>a814f5c401c97e942362e363d7027416:-1023244664,4b2125cc31457e94e6d4ef5fd02a26c9:-1023244664</update_guid_history>
<update_set display_value=""/>
<view/>
</sys_update_xml>
</unload>
