Show any task on a map

Custom tables that are extended from task can be created, shown, and managed on the interactive map. The location field on the task, must be a mappable space (fm_space). There are some location fields on task that may have a reference qualifier that does not allow fm_space be used.

始める前に

Role required: facilities_admin to edit, create, delete records

• Check that the location of the task is mappable (fm_space).
• Check that the reference qualifier on the location field allows fm_space.

手順

1. Navigate to All > Facilities > Workbench Configuration > Map Tasks
2. Click New.
   All the items that extend the task are available.
3. Do one of the following actions:

   オプション	説明
   To show the task on the map	Set Show task to true
   To hide the task from the map	Set Show task to false

   These tasks display on the Task tab on the map.

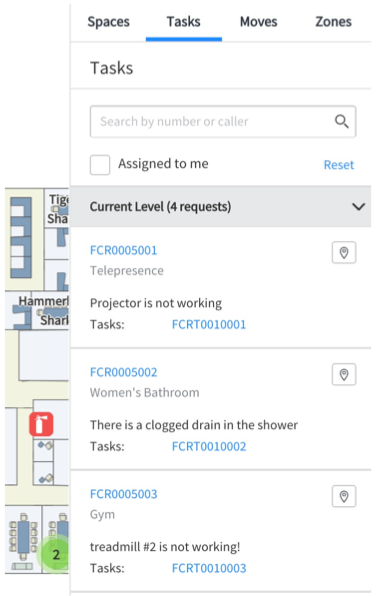

   図 : 1. Tasks Tab
