Databases are essential components in most business applications. Among database servers commonly used today, MySQL is a widely adopted solution. To ensure that your MySQL-dependent applications have reliable and optimized databases supporting them, it's essential to monitor performance and usage metrics. If a database like MySQL exhibits degraded performance, dependent applications—along with the end users of those applications—will suffer.
In MySQL, metrics can be found through the show global status command. You can use the OpenTelemetry Collector to gather these metrics and ingest them into an observability platform for automated, continual monitoring and alerting.
In this guide, I’ll cover:
-
A brief overview of metrics available from MySQL
-
How to set up the OpenTelemetry Collector to ingest MySQL metrics and then send them to Lightstep
-
How to use Lightstep to create charts and alerts to help with MySQL monitoring
MySQL Metrics
From the MySQL client command line, execute show global status to retrieve current metrics for your MySQL server. Check out some of the command output below(truncated for readability):
mysql> show global status;+-----------------------------------+-----------------------------------+
| Variable_name | Value |
+-----------------------------------+-----------------------------------+
| Aborted_clients | 0 |
| Aborted_connects | 0 |
| Acl_cache_items_count | 0 |
| Binlog_cache_disk_use | 0 |
| Binlog_cache_use | 0 |
| Binlog_stmt_cache_disk_use | 0 |
| Binlog_stmt_cache_use | 0 |
| Bytes_received | 387 |
| Bytes_sent | 15728 |
| Connection_errors_accept | 0 |
| Connection_errors_internal | 0 |
| Connection_errors_max_connections | 0 |
| Connection_errors_peer_address | 0 |
| Connection_errors_select | 0 |
| Connection_errors_tcpwrap | 0 |
| Connections | 8 |
…
| Handler_commit | 588 |
| Handler_delete | 8 |
| Handler_discover | 0 |
| Handler_external_lock | 6295 |
| Handler_mrr_init | 0 |
| Handler_prepare | 0 |
| Handler_read_first | 41 |
| Handler_read_key | 1726 |
| Handler_read_last | 0 |
| Handler_read_next | 4038 |
| Handler_read_prev | 0 |
| Handler_read_rnd | 0 |
| Handler_read_rnd_next | 1172 |
| Handler_rollback | 0 |
| Handler_savepoint | 0 |
| Handler_savepoint_rollback | 0 |
| Handler_update | 332 |
| Handler_write | 499 |
…
| Prepared_stmt_count | 0 |
| Queries | 5 |
| Questions | 4 |
…
| Table_locks_immediate | 2 |
| Table_locks_waited | 0 |
…
| Threads_cached | 0 |
| Threads_connected | 1 |
| Threads_created | 1 |
| Threads_running | 2 |
…
+-----------------------------------+-----------------------------------+
The list of MySQL metrics is extensive and MySQL documentation does an excellent job of explaining them and their significance. There are several metrics worth noting, though:
-
Threads_connectedis the number of currently open connections, whileThreads_runningis the number of threads that aren't sleeping. By monitoring the number of active connections to your database server, you can look for excessive connections and how they might impact performance. -
Connectionsis the number of connection attempts (successful or not) to the MySQL server. -
Innodb_buffer_pool_readsis the number of read operations that MySQL’s storage engine, InnoDB, couldn't satisfy from the buffer pool and required a read from the disk. If this value begins to increase unexpectedly, then it might indicate caching or querying issues. -
Innodb_buffer_pool_sizeis the total available size (in bytes) of the buffer pool, which is used by InnoDB to cache table and index data.Innodb_buffer_pool_bytes_data, on the other hand, gives the total number of bytes in the buffer pool currently containing data.
Since the list of MySQL metrics is extensive, it’s important to become familiar with what's available so you can fine-tune your monitoring for the best results. Now, let’s look at how to use OpenTelemetry Collector to gather metrics from MySQL and export them to Cloud Observability.
Configure OpenTelemetry Collector
The MySQL receiver integration for OpenTelemetry Collector gathers metrics from the status and InnoDB tables. The specific metrics captured can be found here.
Because the MySQL receiver is part of the contributor distribution of the OpenTelemetry Collector (GitHub), you need to install this distribution. Follow the installation instructions based on your environment. For this demo, install the Collector like this:
$ wget https://github.com/open-telemetry/opentelemetry-collector-releases/releases/download/v0.72.0/otelcol-contrib_0.72.0_linux_amd64.deb
$ sudo dpkg -i otelcol-contrib_0.72.0_linux_amd64.deb
Next, verify that the Collector is running:
$ sudo systemctl status otelcol-contrib
● otelcol-contrib.service - OpenTelemetry Collector Contrib
Loaded: loaded (/lib/systemd/system/otelcol-contrib.service; enabled; vendor preset: enabled)
Active: active (running) since Thu 2023-03-30 08:56:30 MST; 4s ago
Main PID: 380502 (otelcol-contrib)
Tasks: 14 (limit: 18864)
Memory: 137.9M
CGroup: /system.slice/otelcol-contrib.service
├─380502 /usr/bin/otelcol-contrib --config=/etc/otelcol-contrib/config.yaml
└─380519 /usr/bin/dbus-daemon --syslog --fork --print-pid 4 --print-address 6 --session
Configure the Collector
The configuration file for the Collector can be found at /etc/otelcol-contrib/config.yaml. You’ll modify this file, adding the MySQL receiver. For this configuration, you need to specify a MySQL endpoint (localhost:3306), user credentials, and how often the receiver should collect metrics (every 30 seconds).
receivers:
mysql:
endpoint: localhost:3306
username: root
password: [ENTER YOUR MYSQL ROOT PASSWORD]
collection_interval: 30s
processors:
batch:
exporters:
logging:
verbosity: detailed
service:
pipelines:
metrics:
receivers: [mysql]
processors: [batch]
exporters: [logging]
Make sure that the user who accesses MySQL has permission to perform show global status and read the innoDB table.
Along with your MySQL receiver, you'll use the batch processor and the logging exporter. For now, use the logging exporter to verify that the Collector is working properly; later, you'll export your metrics to Lightstep further down.
Next, save your configuration file, then restart the Collector.
$ sudo systemctl restart otelcol-contrib
Then, verify that the Collector is gathering metrics from MySQL:
$ journalctl -u otelcol-contrib -f
…
Everything is ready. Begin running and processing data.
Mar 30 08:57:01 demo otelcol-contrib[380502]: 2023-03-30T08:57:01.377-0700 info MetricsExporter {"kind": "exporter", "data_type": "metrics", "name": "logging", "#metrics": 22}
Mar 30 08:57:01 demo otelcol-contrib[380502]: 2023-03-30T08:57:01.377-0700 info ResourceMetrics #0
Mar 30 08:57:01 demo otelcol-contrib[380502]: Resource SchemaURL:
Mar 30 08:57:01 demo otelcol-contrib[380502]: Resource attributes:
Mar 30 08:57:01 demo otelcol-contrib[380502]: -> mysql.instance.endpoint: Str(localhost:3306)
Mar 30 08:57:01 demo otelcol-contrib[380502]: ScopeMetrics #0
Mar 30 08:57:01 demo otelcol-contrib[380502]: ScopeMetrics SchemaURL:
Mar 30 08:57:01 demo otelcol-contrib[380502]: InstrumentationScope otelcol/mysqlreceiver 0.68.0
Mar 30 08:57:01 demo otelcol-contrib[380502]: Metric #0
Mar 30 08:57:01 demo otelcol-contrib[380502]: Descriptor:
Mar 30 08:57:01 demo otelcol-contrib[380502]: -> Name: mysql.buffer_pool.data_pages
Mar 30 08:57:01 demo otelcol-contrib[380502]: -> Description: The number of data pages in the InnoDB buffer pool.
Mar 30 08:57:01 demo otelcol-contrib[380502]: -> Unit: 1
Mar 30 08:57:01 demo otelcol-contrib[380502]: -> DataType: Sum
Mar 30 08:57:01 demo otelcol-contrib[380502]: -> IsMonotonic: false
Mar 30 08:57:01 demo otelcol-contrib[380502]: -> AggregationTemporality: Cumulative
Mar 30 08:57:01 demo otelcol-contrib[380502]: NumberDataPoints #0
Mar 30 08:57:01 demo otelcol-contrib[380502]: Data point attributes:
Mar 30 08:57:01 demo otelcol-contrib[380502]: -> status: Str(dirty)
Mar 30 08:57:01 demo otelcol-contrib[380502]: StartTimestamp: 2023-03-30 15:56:31.100878568 +0000 UTC
Mar 30 08:57:01 demo otelcol-contrib[380502]: Timestamp: 2023-03-30 15:57:01.121721216 +0000 UTC
Mar 30 08:57:01 demo otelcol-contrib[380502]: Value: 0
Mar 30 08:57:01 demo otelcol-contrib[380502]: NumberDataPoints #1
Mar 30 08:57:01 demo otelcol-contrib[380502]: Data point attributes:
Mar 30 08:57:01 demo otelcol-contrib[380502]: -> status: Str(clean)
Mar 30 08:57:01 demo otelcol-contrib[380502]: StartTimestamp: 2023-03-30 15:56:31.100878568 +0000 UTC
Mar 30 08:57:01 demo otelcol-contrib[380502]: Timestamp: 2023-03-30 15:57:01.121721216 +0000 UTC
Mar 30 08:57:01 demo otelcol-contrib[380502]: Value: 971
Mar 30 08:57:01 demo otelcol-contrib[380502]: Metric #1
Mar 30 08:57:01 demo otelcol-contrib[380502]: Descriptor:
Mar 30 08:57:01 demo otelcol-contrib[380502]: -> Name: mysql.buffer_pool.limit
Mar 30 08:57:01 demo otelcol-contrib[380502]: -> Description: The configured size of the InnoDB buffer pool.
Mar 30 08:57:01 demo otelcol-contrib[380502]: -> Unit: By
Mar 30 08:57:01 demo otelcol-contrib[380502]: -> DataType: Sum
Mar 30 08:57:01 demo otelcol-contrib[380502]: -> IsMonotonic: false
Mar 30 08:57:01 demo otelcol-contrib[380502]: -> AggregationTemporality: Cumulative
Mar 30 08:57:01 demo otelcol-contrib[380502]: NumberDataPoints #0
Mar 30 08:57:01 demo otelcol-contrib[380502]: StartTimestamp: 2023-03-30 15:56:31.100878568 +0000 UTC
Mar 30 08:57:01 demo otelcol-contrib[380502]: Timestamp: 2023-03-30 15:57:01.121721216 +0000 UTC
Mar 30 08:57:01 demo otelcol-contrib[380502]: Value: 134217728
If it looks like you're up and running, transition toward exporting metrics to Cloud Observability.
Send metrics from OpenTelemetry Collector to Cloud Observability
To send your MySQL metrics to Cloud Observability, log in.
Next, create an access token. The OpenTelemetrey Collector will use this token for authenticating requests when exporting metrics to your Cloud Observability account.

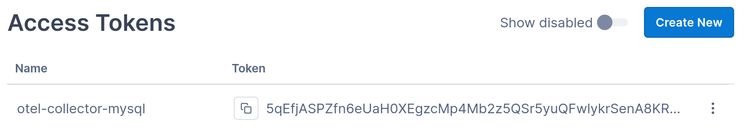

Navigate to Project Settings > Access Tokens. Click on Create New to create a new access token. Copy the token value.
Configure the Collector to export to Lightstep
Go back to your OpenTelemetry Collector configuration file (/etc/otelcol-contrib/config.yaml). Remove the logging exporter and then set up an exporter to export data to Lightstep with OTLP.
Please note: Cloud Observability continues to use lightstep (the former product name) in code for ongoing compatibility.
Our resulting file looks like this:
receivers:
mysql:
endpoint: localhost:3306
username: root
password: [ENTER YOUR MYSQL ROOT PASSWORD]
collection_interval: 30s
processors:
batch:
exporters:
otlp/lightstep:
endpoint: ingest.lightstep.com:443
headers: {"lightstep-access-token": "INSERT YOUR TOKEN HERE"}
service:
pipelines:
metrics:
receivers: [mysql]
processors: [batch]
exporters: [otlp/lightstep]Note: Don’t forget to insert the access token.
After saving the configuration file, restart the Collector.
$ sudo systemctl restart otelcol-contrib
Now, as the Collector gathers metrics from MySQL, it will send them in batches to Cloud Observability.
Work with metrics in Cloud Observability
To get started, create a dashboard to house all of your charts and visualizations for MySQL-related metrics. (You can follow along as we create some basic charts, but there are additional examples here.)
Create a dashboard
Create a dashboard and assign a name and a description.
Add a chart
For the first chart, you'll graph the buffer pool usage against your buffer pool limit. In MySQL, InnoDB uses the buffer pool to cache table and index data. You want to make sure that your buffer pool usage doesn’t get too close to the limits, or you'll encounter some performance issues.

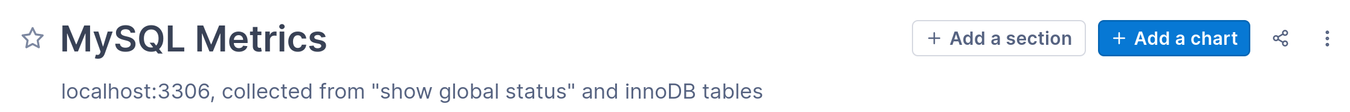

First, click Add a chart. Then, assign a name for the chart (“Buffer Pool Usage vs. Limit”).
Cloud Observability offers two ways to build queries. You can use the Query Builder, with its helpful UI, or you can write your queries directly in the Query Editor, if you’re familiar with Lightstep’s Unified Querying Language (UQL). For illustration purposes, we’ll use the Query Builder.

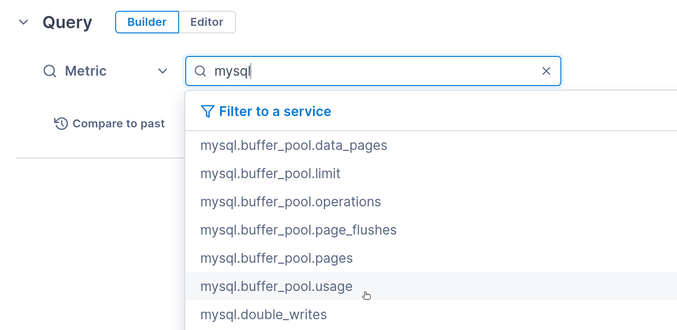

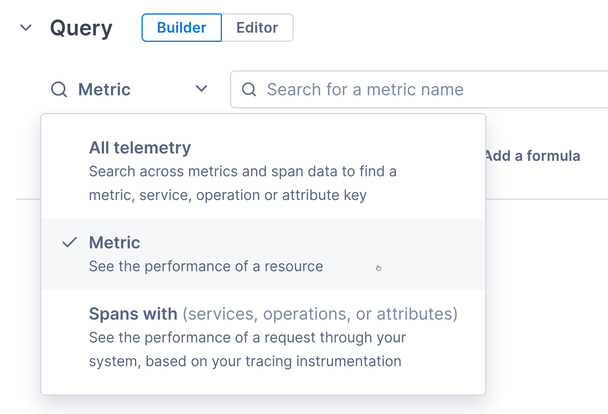

To build the chart, start by selecting the telemetry type that you want (Metric).
Because the metrics listed will include those from all of your components and receivers, you can narrow the list by typing mysql in the search box. From the list of metrics displayed, select mysql.buffer_pool.usage.

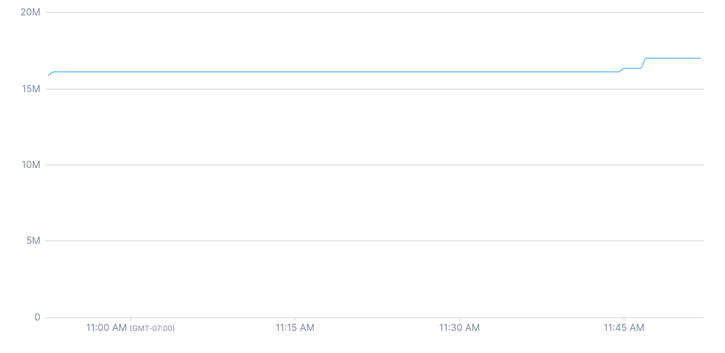

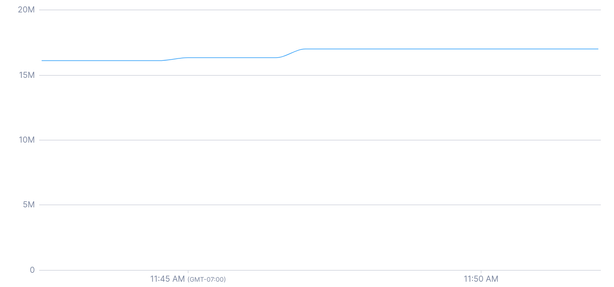

Immediately, you'll see a line chart that shows your buffer pool usage over the last 60 minutes.
If you're also interested in how this compares to the buffer pool limit, click on Plot another metric to show both lines.

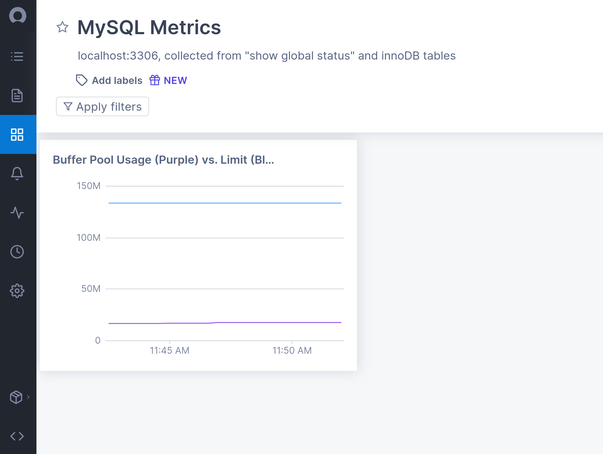

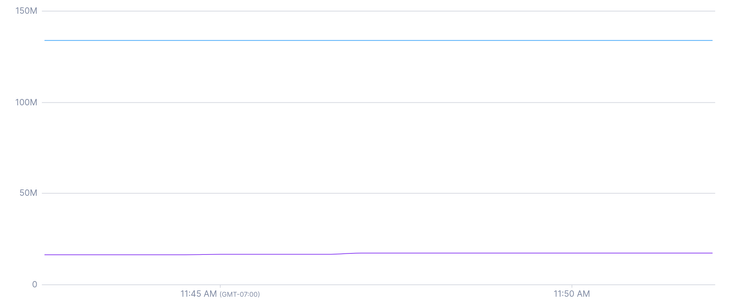

For this metric, query for mysql.buffer_pool.limit. Now, the chart shows two lines—a purple line for the buffer pool usage, and a blue line for your buffer pool limit.
Now, save the chart and add it to your dashboard.
Add a chart with a formula
Seeing usage and limit lines together is helpful, but if you want to see the actual percentage of our buffer pool usage, relative to the limit, you'll need to create another chart.
For this chart, which you’ll call “InnoDB Buffer Pool Usage”, your first two metrics will be identical to the two metrics from the previous chart. Next, click Add a formula.
The formula that you'll use is ((a/b)*100). This formula divides the usage by your limit and then represents the quotient as a percentage.
Y
ou don’t want a line chart for this chart; you only want to see the final percentage value. To do this, modify what is displayed by unchecking metrics a and b.

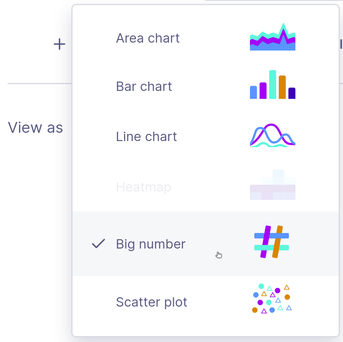

Next, change our chart type to view as Big Number.
You're left with a single big number display of the buffer pool usage percentage (relative to the limit). Add “%” as the chart subtitle so that the units are clear.
Add other charts
You can perform these same techniques to show other MySQL metrics side by side.

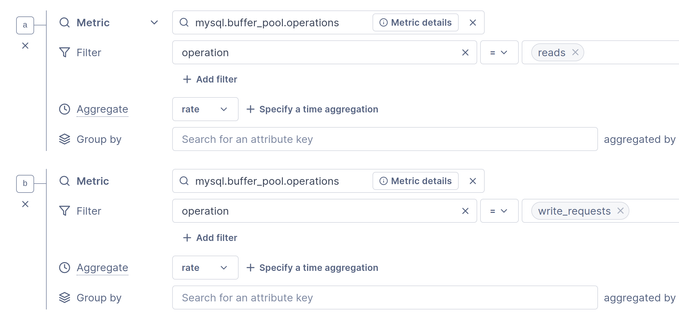

For example, you can add a chart called “Buffer Pool Operations (per second): Reads vs. Write Requests”. This chart uses the mysql.buffer_pool.operations metric, but it filters the first metric to capture the operation=reads data point, and the second metric to capture the operation=write_requests data point. Because this type of metric comes in as a cumulative number, you'll want to learn how this number changes over time. So, you'll aggregate the data points to show the rate of change.

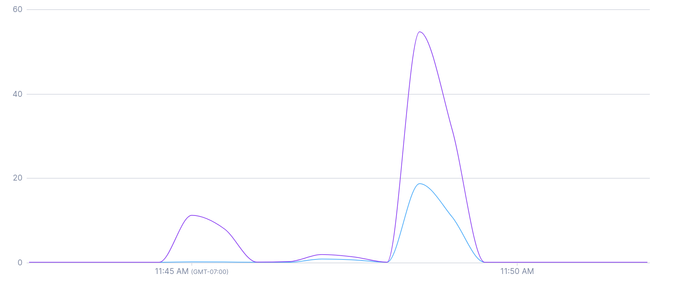

The resulting line chart looks like this:

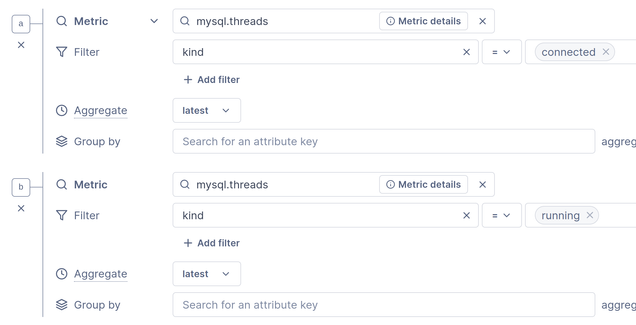

You can create another chart called “Threads: Connected vs. Running”. This chart looks at the mysql.threads metric filtering down to kind=connected and kind=running data points and showing the latest values.

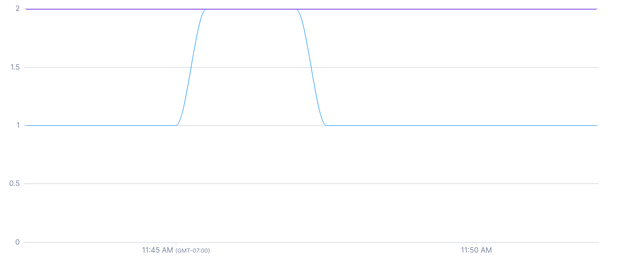

The chart ends up looking like this:

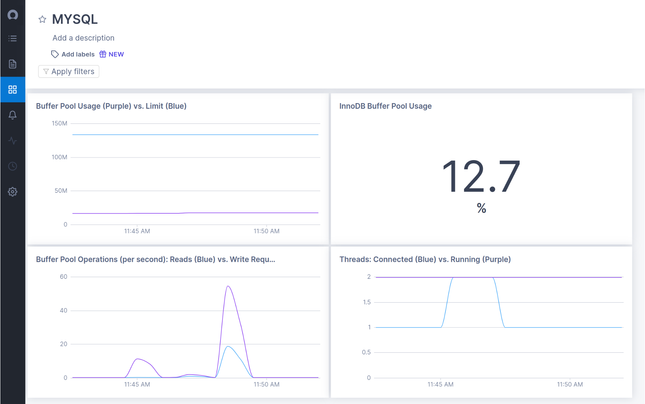

Saved charts are added to your dashboard. Over time, the dashboard starts to take on a useful shape.
Work with alerts and notifications
While it’s helpful to monitor our metrics, you can't be certain that somebody will be monitoring this dashboard every moment of the day. That’s where alerts and notifications come in handy.
Let’s say you wanted to alert your team when the buffer pool usage percentage exceeds a critical threshold of 80%. Start by opening up your “InnoDB Buffer Pool Usage” chart. From there, click Create an alert.
Because of how you've set up the big number chart (displaying the percentage, but not displaying the a or b metrics), Cloud Observability determines what we’re probably interested in, and configures the alert to pay attention to the ((a/b)*100) formula.

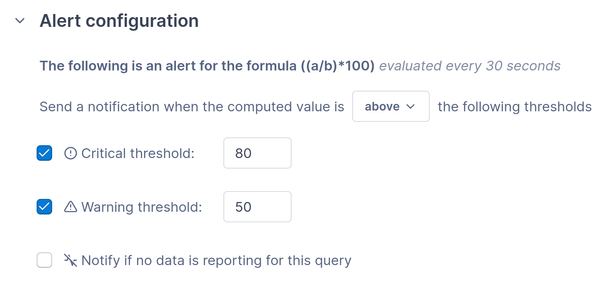

From there, you can set a critical threshold of 80. You could even set a warning threshold of 50.

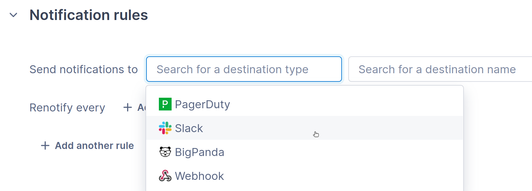

After you complete the configuration, save the alert. From here, Cloud Observability will track your buffer pool usage percentage and notify you if that number creeps too high.
Conclusion
As organizations look to trim costs and increase operational efficiency, observability is key. With Lightstep, you can capture helpful metrics to not only optimize the health of your tech estate, but help minimize risk and overhead, while improving productivity.
