Displaying Pending Approvals in a Workspace Using UI Builder

VaniK6785160520
Tera Contributor

Introduction:

Displaying pending approvals for the logged-in user is a common requirement in ServiceNow. In this article, we’ll build a custom UI Builder page that dynamically shows approval records from the 'sysapproval_approver 'table—ideal for managers, approvers, or any user involved in approval workflows.



Step 1: Create the Workspace Page

First, navigate to UI Builder and create a new page in your workspace.

       1. Open UI Builder: Go to Now Experience Framework > UI Builder

       2.Select Experience: Choose the workspace where you want to display the approvals.                                                                               3Create Page: Click + Page, give your page a name like  'My Approvals' and set the layout as desired



Step 2: Add a Data Resource for Approval Records

You need a data resource that pulls approval records assigned to the currently logged-in user.

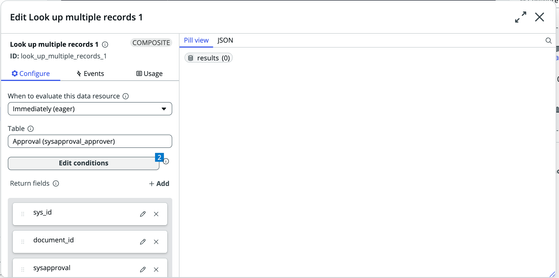

  1. Click on + Add Data Resource and choose Look up multiple records.
  2. Select the table as 'Approval(sysapproval_approver) ', Click on  Edit conditions and write the condition as State is Requested and Approver is (dynamic) Me. Return fields sys_id, document_id, sysapproval




    This ensures the data resource returns only the current user's active approval records.



Step 3: Add a Repeater Component

Now, display the approvals using a Repeater

  1. Drag a Repeater component onto the canvas
  2. Inside the Repeater, drag in a Card Base Container. This ensures each approval record is visually grouped like a card, improving readability and layout.
  3. Within the Card Base Container, add the following:

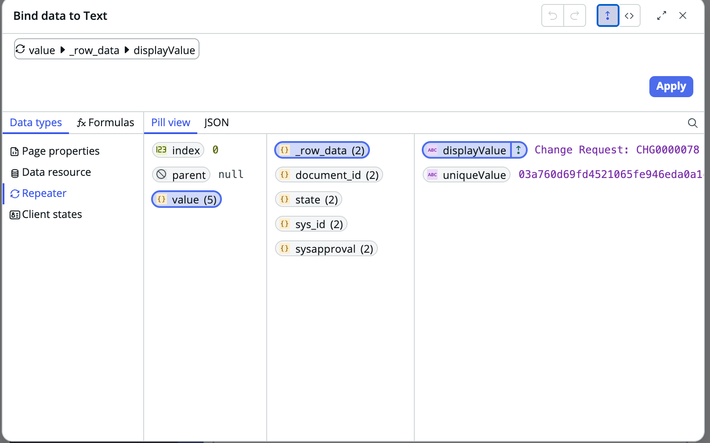

  •   A Stylized Text component to display values. Bind its value to the repeater item.


  •          Add A Column Layout to organize buttons like Approve and Reject



Step 4: Configure the "Approve" Button to Update the Approval Record

Once you've added the Approve button inside the Card Base Container, follow these steps to make it functional:

1. Select the Approve Button inside the Repeater.

2.In the Configuration panel, scroll to Events and click + Add Event Handler.

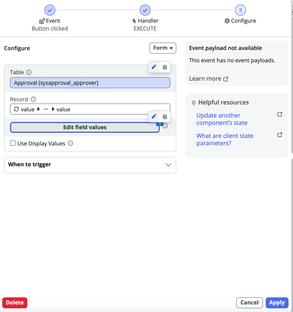

3.Select the Update Record Data source and give the table name as 'Approval(sysapproval_approver)' and Record from the repeater and click on Edit field values and add 'state is approved'.

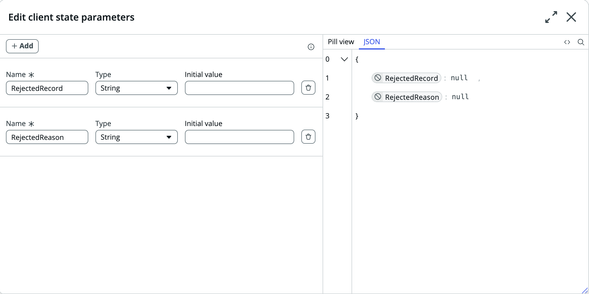

Step 5 : Set Up Client State Parameters

1.  RejectedReason - Stores the rejection comments.

2.  RejectedRecord - Stores the sys_id of the rejected record.                                                                                VaniK6785160520_6-1752825000146.png

                                                                                                                                                                            Step 6: Configure the "Reject" Button to Show a Pop-Up and Capture Rejection Details

1. Add a Modal Pop-Up to the Page

  • In the UI Builder page structure, drag a Custom Modal component to the page (outside the Repeater).
  • Inside the modal, add:
    • A Text Area , add an event Update Client State parameter


































  • Inside the same modal, add a Button component.

  • Label:Submit.

     Now configure two Event Handlers for this button:

     Event Handler 1 – Update Record choose script.



/**
* @Param {params} params
* @Param {api} params.api
* @Param {any} params.event
*/
function evaluateEvent({api, event}) {
return {
table: "sysapproval_approver",
recordId: api.state.RejectedRecord,
templateFields: "state=rejected^comments=" + api.state.RejectedReason,
useSetDisplayValue: null
};
}



Event Handler 2 – Open or close modal dialog.



1. Choose the Custom model that you have created and uncheck the Open modal dialog checkbox.

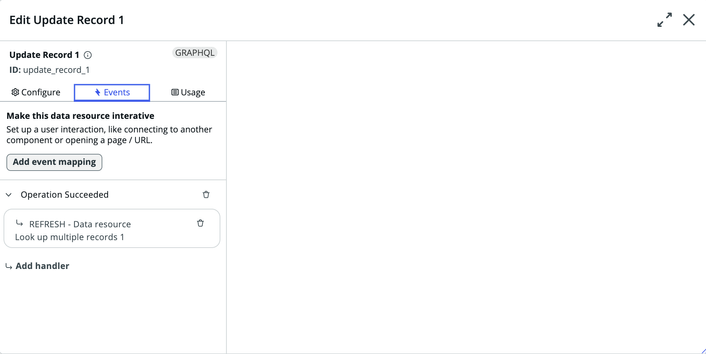

Step 7 : Add an Update Data Resource and configure the event to refresh the data.




Step 8 : Add the page to your workspace

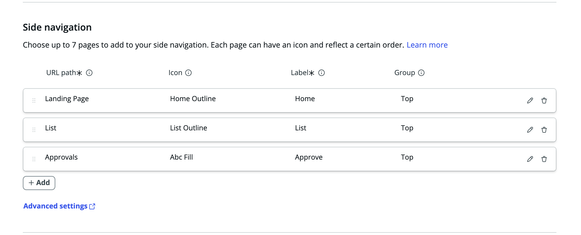

1. Add the page to your workspace by configuring it through the View Experiences settings on the top right side within  the workspace.




Step 9 :  Test the Page functionality

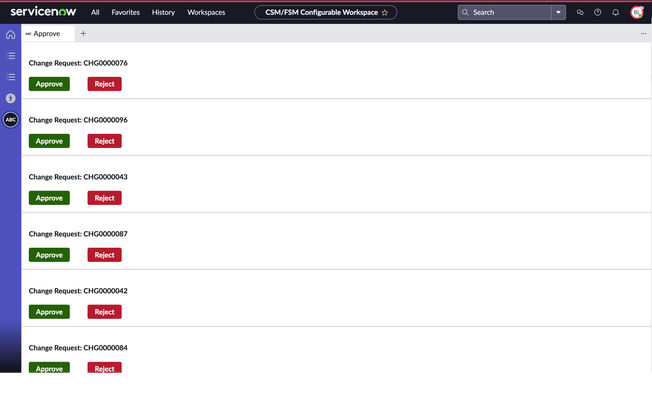

Now verify the page — it displays pending approvals of the logged-in user

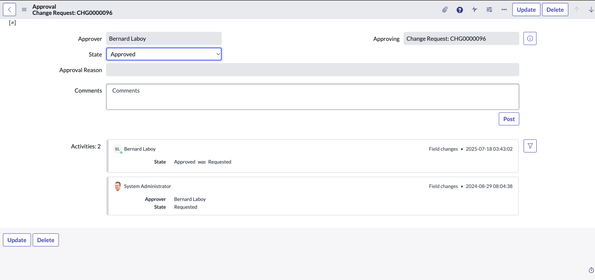

Click on the Approve button.  Verify in the 'sysapproval_approver' table that the state has been updated to "Approved",, and the corresponding card is removed from the view.

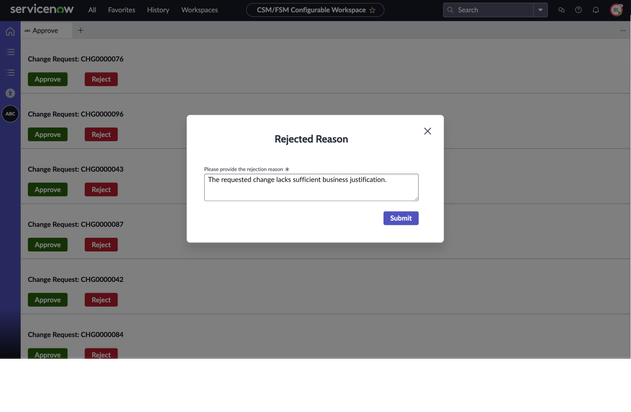

 Click the Reject button. A pop-up will appear—enter the rejection reason and click Submit to continue.

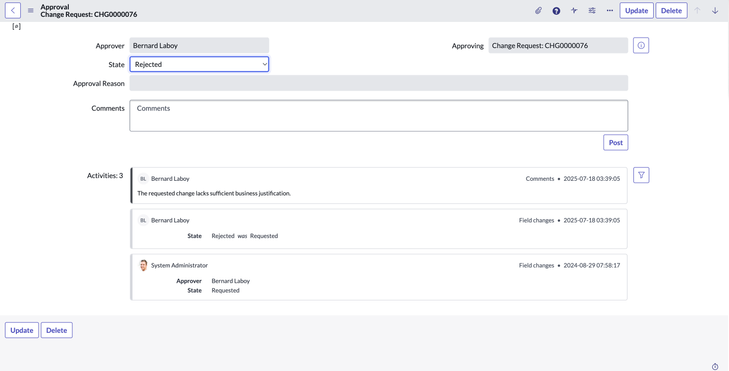

 Verify in the 'sysapproval_approver' table that the state has been updated to "Rejected", the rejection reason is logged in the activity stream, and the corresponding card is removed from the view
