Referencing a value from a referenced record

[phil34]

Hi Community

In the below example I am trying to create a form that collects basic data about a selected user. I am able to display the data that is held in the user table, however, I also want to display the information in another table that is referenced so almost a nested result.

When I select a user there is a value in the user record called location and i can display that without any issue if I update the user the location will also update based on the value of the different user.

I need some help with the next field. Each location has a value for "Division" and I want to display that when the location updates.

My Form

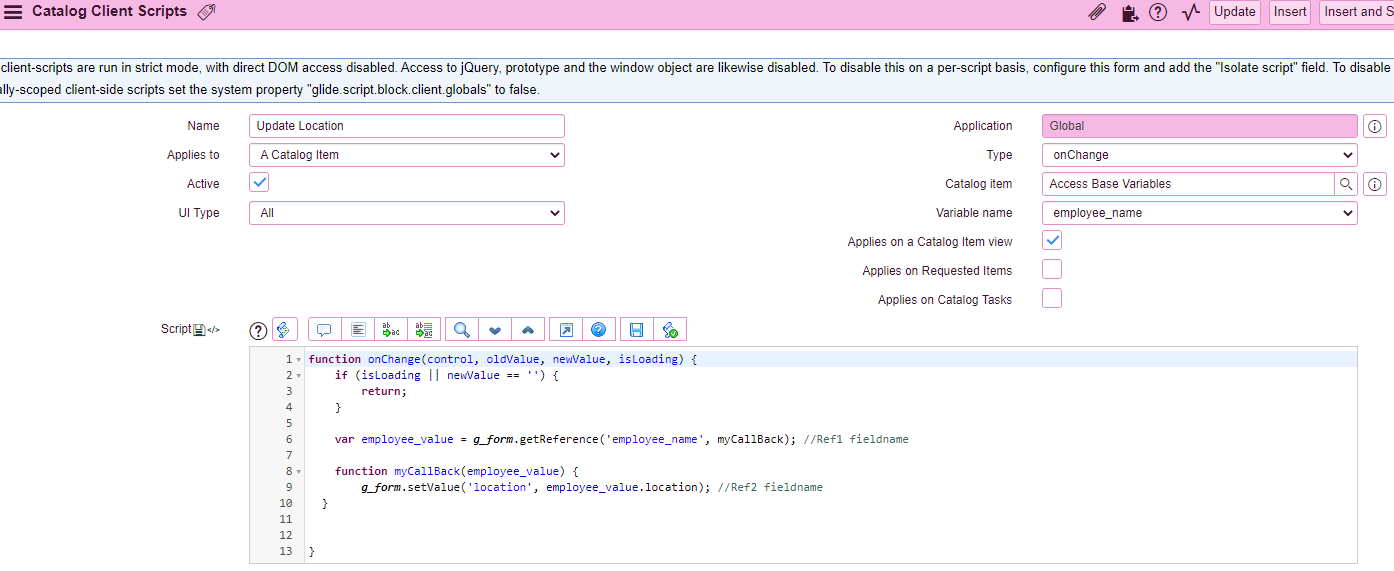

I am updating the location using a catalog Client Script and this is working for the location field just fine

How do I get the Division to display the value held in the location table reference above?

Hope that makes sense

[Muhammad Khan]

Hi,

You can only dot-walk to 1-level using getReference(). If you want to go further then you would need to use GlideAjax.

[Upender Kumar]

Use GlideAjax.

Check the below link for GlideAjax

https://community.servicenow.com/community?id=community_article&sys_id=2323cd2ddb02b058ddb1d9d968961...

[Mahendra RC]

Hello Phil,

Please use the below scripts and replace the location and division field/variable name as per your instance:

Client Script:

function onChange(control, oldValue, newValue, isLoading) {
    if (isLoading || newValue == '') {
        g_form.clearValue('location'); // Clear value if newValue == ""
		g_form.clearValue('division');
        return;
    }

    if (newValue) {
        var getAvaCnt = new GlideAjax('UserLocationDetails');
        getAvaCnt.addParam('sysparm_name', 'getLocationData');
        getAvaCnt.addParam('sysparm_employee', newValue);
        getAvaCnt.getXMLAnswer(parseLocationResponse);
    } else {
        g_form.clearValue('location');
		g_form.clearValue('division');
    }
}

function parseLocationResponse(response) {
    var answer = response.split(",");
	g_form.setValue('location', answer[0]);
    g_form.setValue('division', answer[1]);
}

Script Include:

var UserLocationDetails = Class.create();
UserLocationDetails.prototype = Object.extendsObject(AbstractAjaxProcessor, {

	validateRequestedQuantity: function() {
        var dataArray = [];

        var userGuid = this.getParameter('sysparm_employee');
        var userGR = new GlideRecord('userGuid');
        if (userGR.get(MaterielType)) {
             dataArray.push(userGR.getValue('location'));
			 dataArray.push(userGR.location.division.toString());
        }
        return dataArray.join(",");
	}
    type: 'UserLocationDetails'
});

Please mark my respsone as helpful/correct, if it answer your question.

Thanks

[Mahendra RC]

Hello Phil,

Just wanted to check with you, if the above response answered your question. If yes, then please do close this thread/question by marking the appropriate response as correct.

If you still need any further help or guidance on this then please update those on this question.

Thanks
