How to use 10 new Flow or Flow logic Features of Washington Release - demo (step by step)

[John Zhang1]

I played around Washington Release new features for Flow/Flow diagram so I like to share my hands-on experience with our Community members.

Topics - Demo Features:

1. Workflow Studio (Access and new features)
2. Build Flow with Now Assist
3. Try Catch (Error handling)
4. Revert Change (Undo/Redo)
5. Go Back To
6. Fire Event Action
7. Annotation/Detail Condition View
8. Download flow diagram
9. Auto Save
10. Skip and Exit loop (coming soon)

Use Case Steps

Workflow Studio (Access and new features)

The Washington DC release marks a significant milestone in the evolution of workflow automation in ServiceNow. By introducing features that improve to both the efficiency and flexibility of flow design by introducing "Workflow Studio" with the following new features:

1) Decision Builder;

2) Flow Designer;

3) Integration Hub Connections dashboard;

4) Playbooks

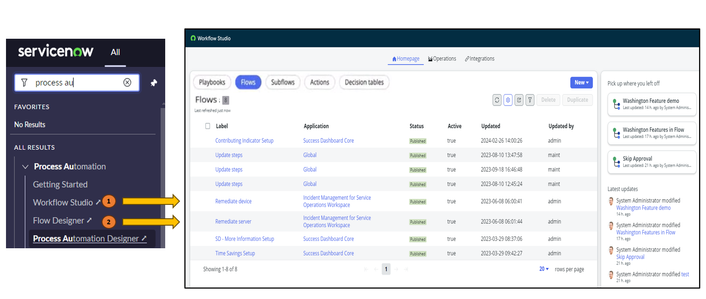

You have the following two ways to access "Workflow Studio"

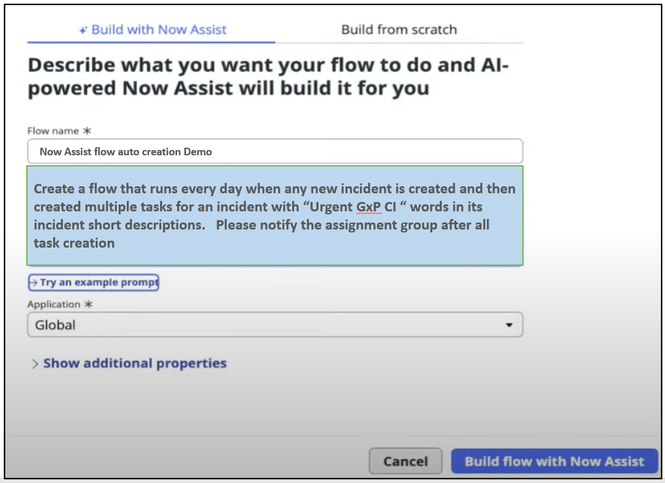

Build Flow with Now Assist

ServiceNow® GenAI solutions are designed for Flow generation by accelerating workflow automation, which
helps admins and developers convert plain text into low-code workflows, freeing them from building flow automation
from scratch (This feature is not available in PDI yet).

Steps

• Navigate to All > Process Automation > Flow Designer.
• Select the Flow Designer tab.
• From the Flow Designer home page, select Create new > Flow.
• From the Build with Now Assist tab, enter a name and description for your flow. ...
• Select Build with Now Assist.

Try Catch (Error handling)

Washington release has added additional feature to flow try catch block by allowing a flow to continue running when an error occurs within a flow logic block. Run a sequence of actions in response to errors within the flow logic block.

• From the Flow Designer home page, select Create new > Flow.
• Complete Flow properties (Flow name, and Description)
• Open Diagramming View

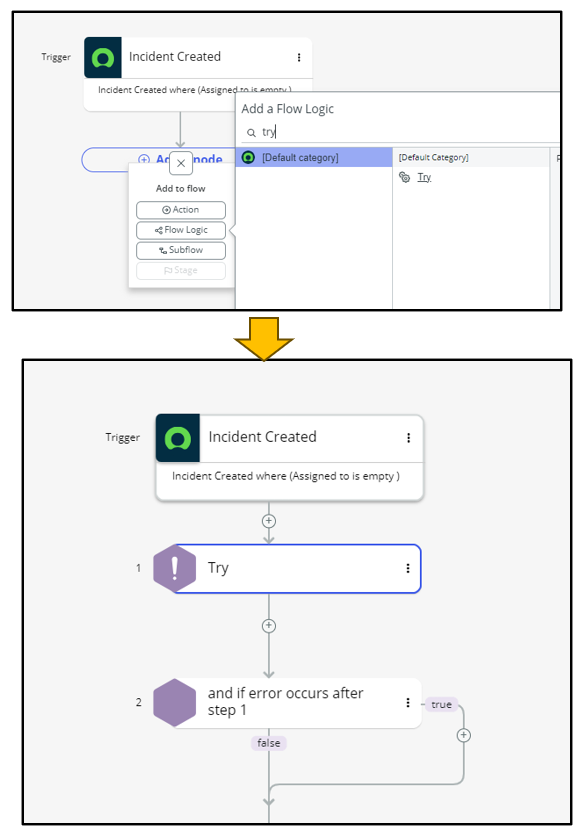

Step 1 - Create try block.

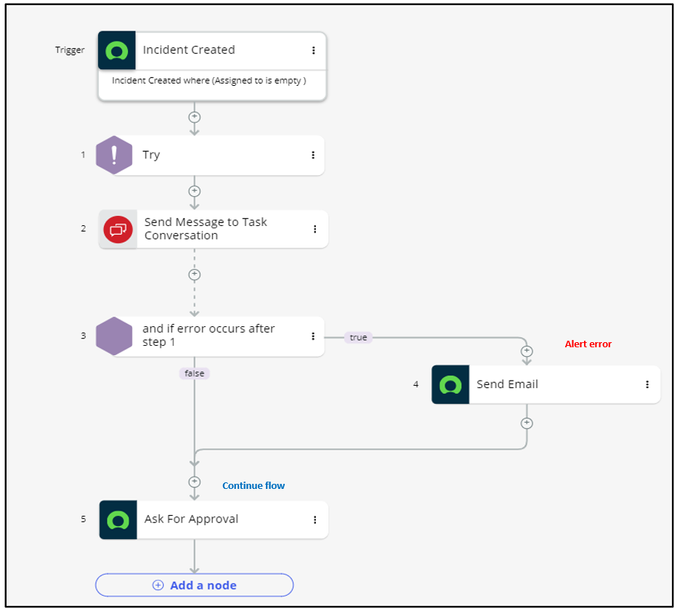

Step 2 - Define the monitoring actions within try catch block

Step 3 - Alert if error occurs using email notification (You can use log too)

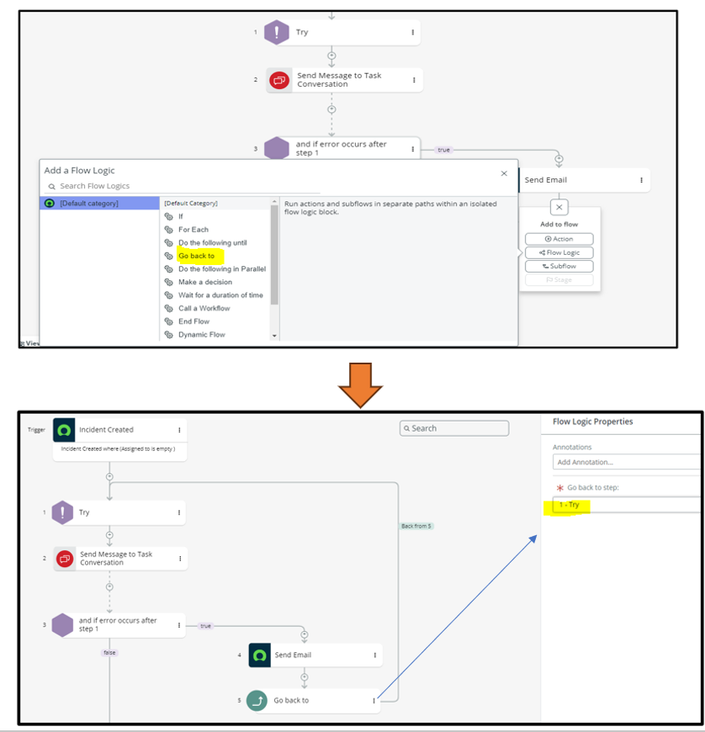

Flow - Go Back to Flow logic

This is new feature of Washington release so you can only add Go back to flow logic to new flows created from the Washington DC family release and forward, not other versions.

The condition to use this feature are follows:

• Within try and catch block
• Within flow logic make decision
• Within then branch of If, Else If, or Else flow logic

Steps to Create

Fire Event Action

I have mentioned h4 ways to trigger an email notification through Flow in my blog- (https://www.servicenow.com/community/in-other-news/four-flow-notification-approaches-action-script-t...) .  However, Washington release release has new feature -"Fire Event" action, which we can trigger any event via your flow like below:

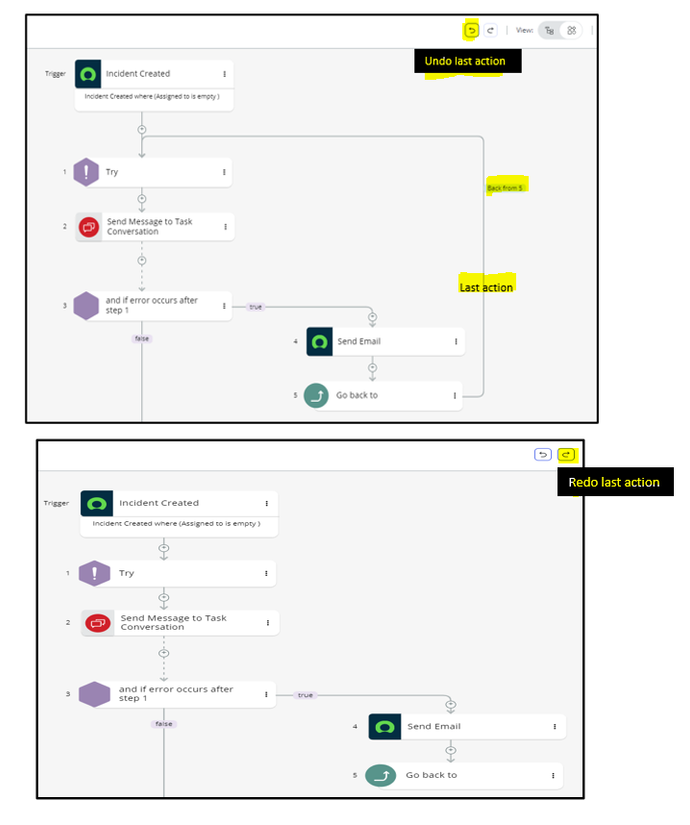

Flow Change revert - Undo/Redo

Washington has added your feature to revert flow changes. You Undo or Redo all your changes.

Annotation/Detail Condition View/Auto Save

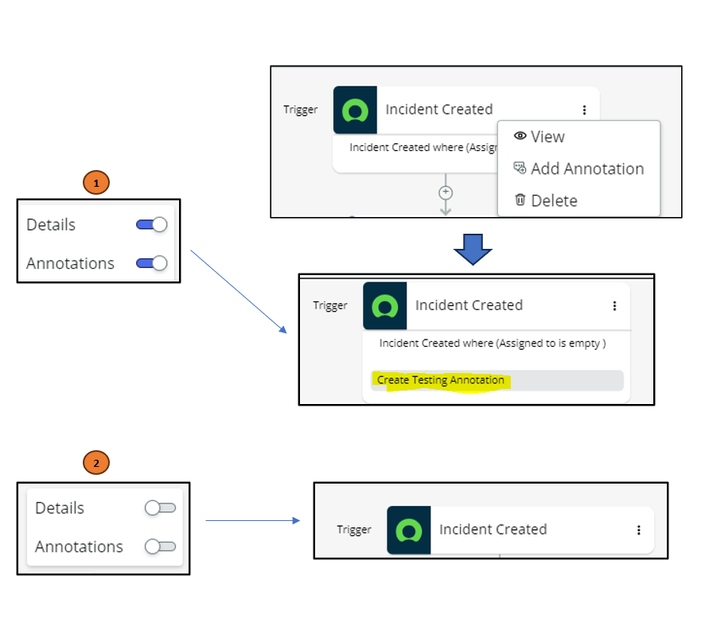

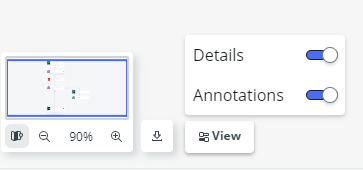

You need to enable both Annotation and Flow action detail within Diagramming View below, but you can undo as well for both (see below)

Step 1 - Create annotation

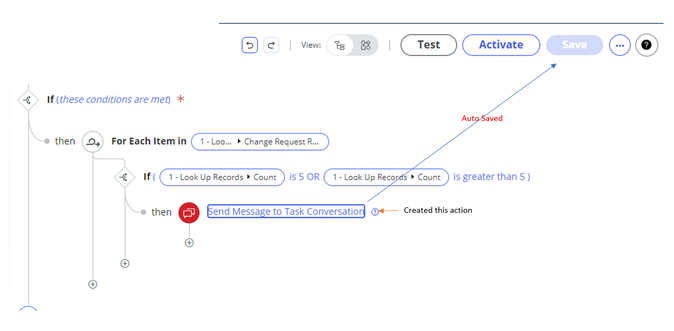

Step - Auto Save

You can create any flow actions or flow logic without clicking "Save" and your change will be auto saved by system

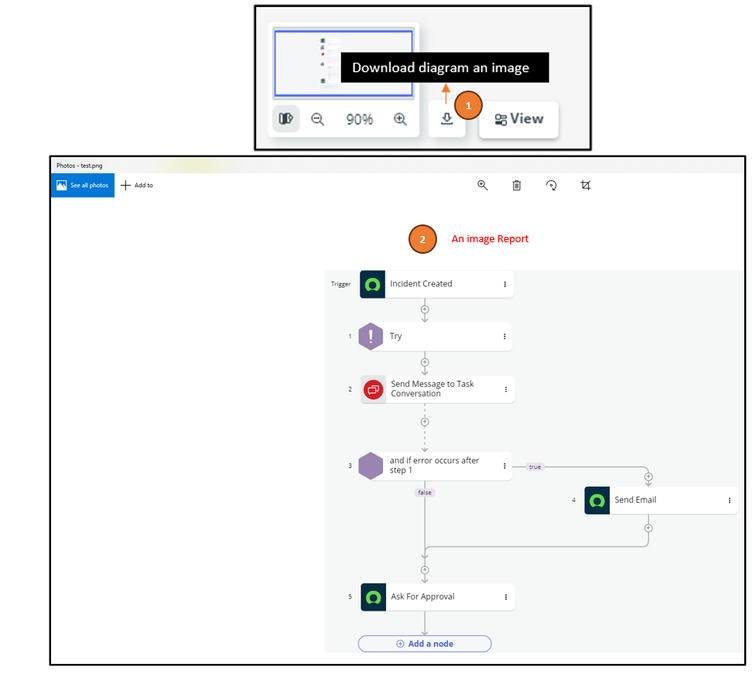

Download whole flow within Diagramming View to an image report

Step 1 -Click "Downloads diagram an image" icon to generated a report

Step 2 - Go "Download folder" to open a report
