Execute Serverless pattern
This lab explains how to execute the pattern you created, so you can see the Bagpipe CI that is created when the pattern executes.
The lab contains the following section:
Execute serverless pattern

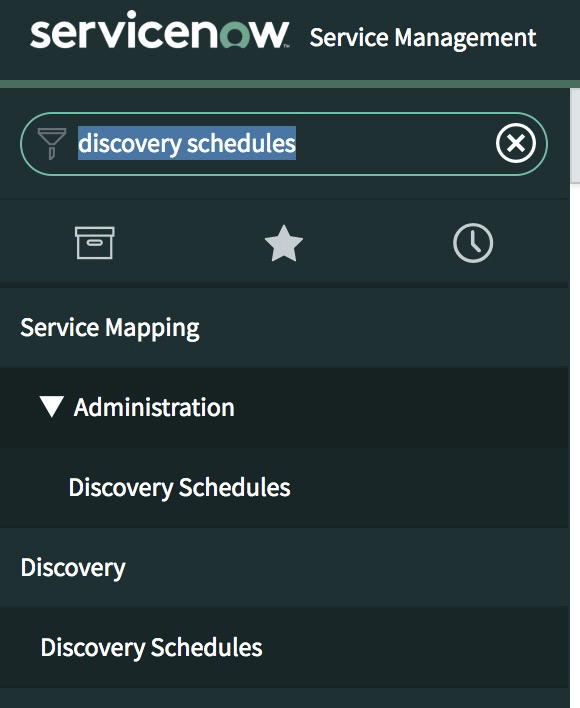

Navigate to Discovery Schedules in the discovery menu

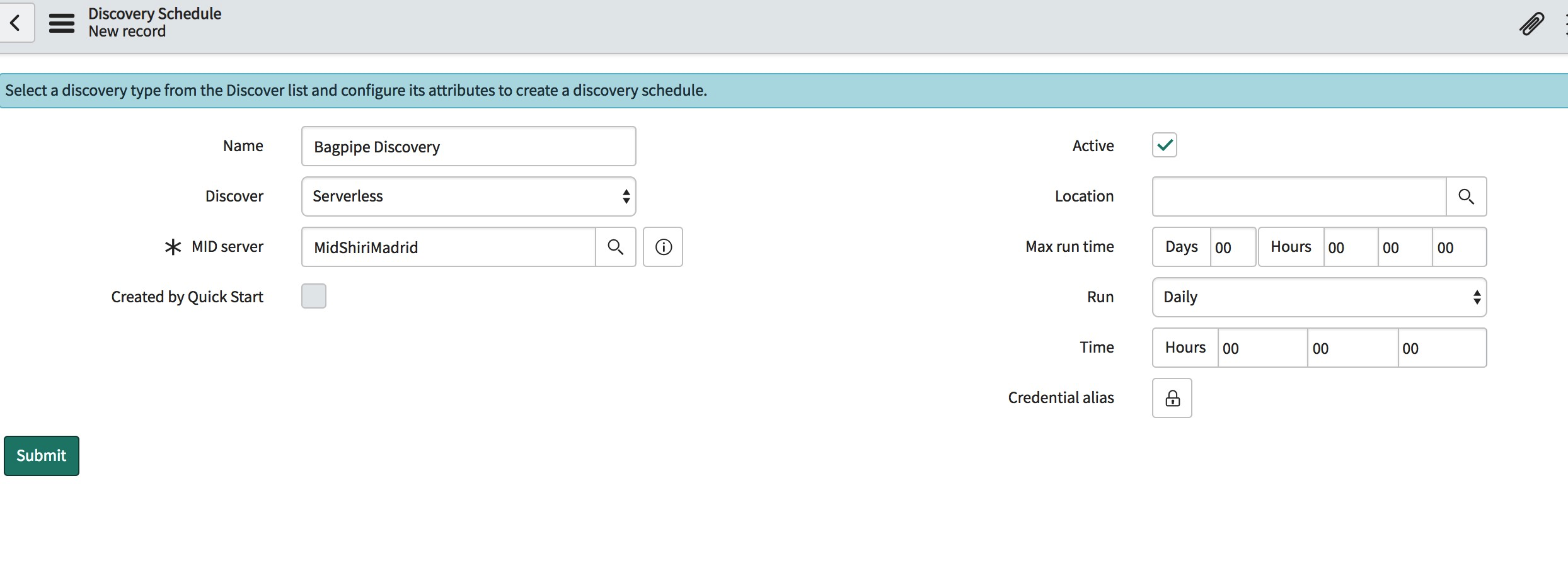

Click New to define your scheduler. The following page opens:
Enter the following attributes in the form:
Name: Bagpipe Discovery
Discover: Serverless
Mid Server: <your mid server>.
Click Submit.

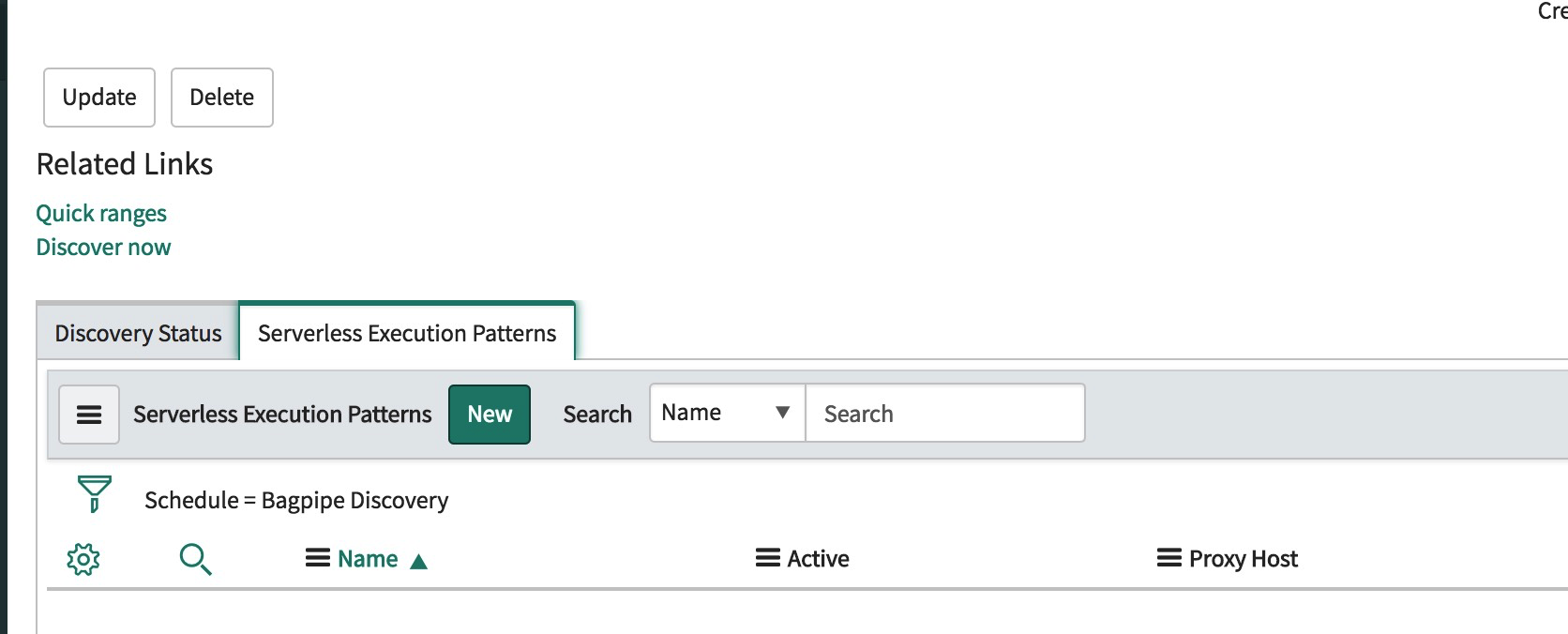

Navigate back to the discovery pattern and in Serverless Execution Patterns related list tab, click New.
Enter the following attributes in the form:
-
Name: BagpipeDemo
-
Pattern: Bagpipe Pattern
Right click on the top of the form and click Submit.

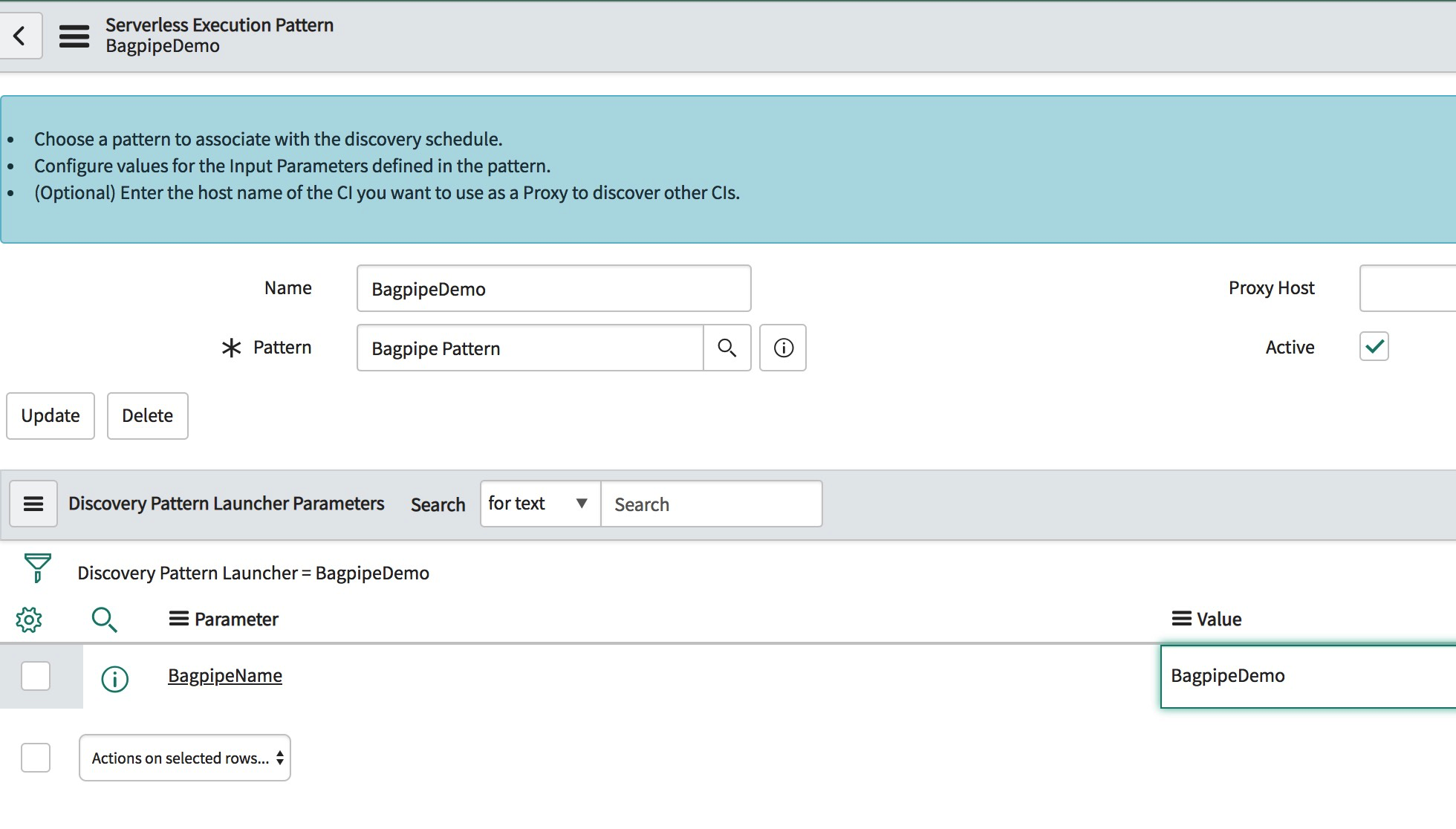

In the resulting related list page, enter the value for the BagpipeName paramter as BagpipeDemo.

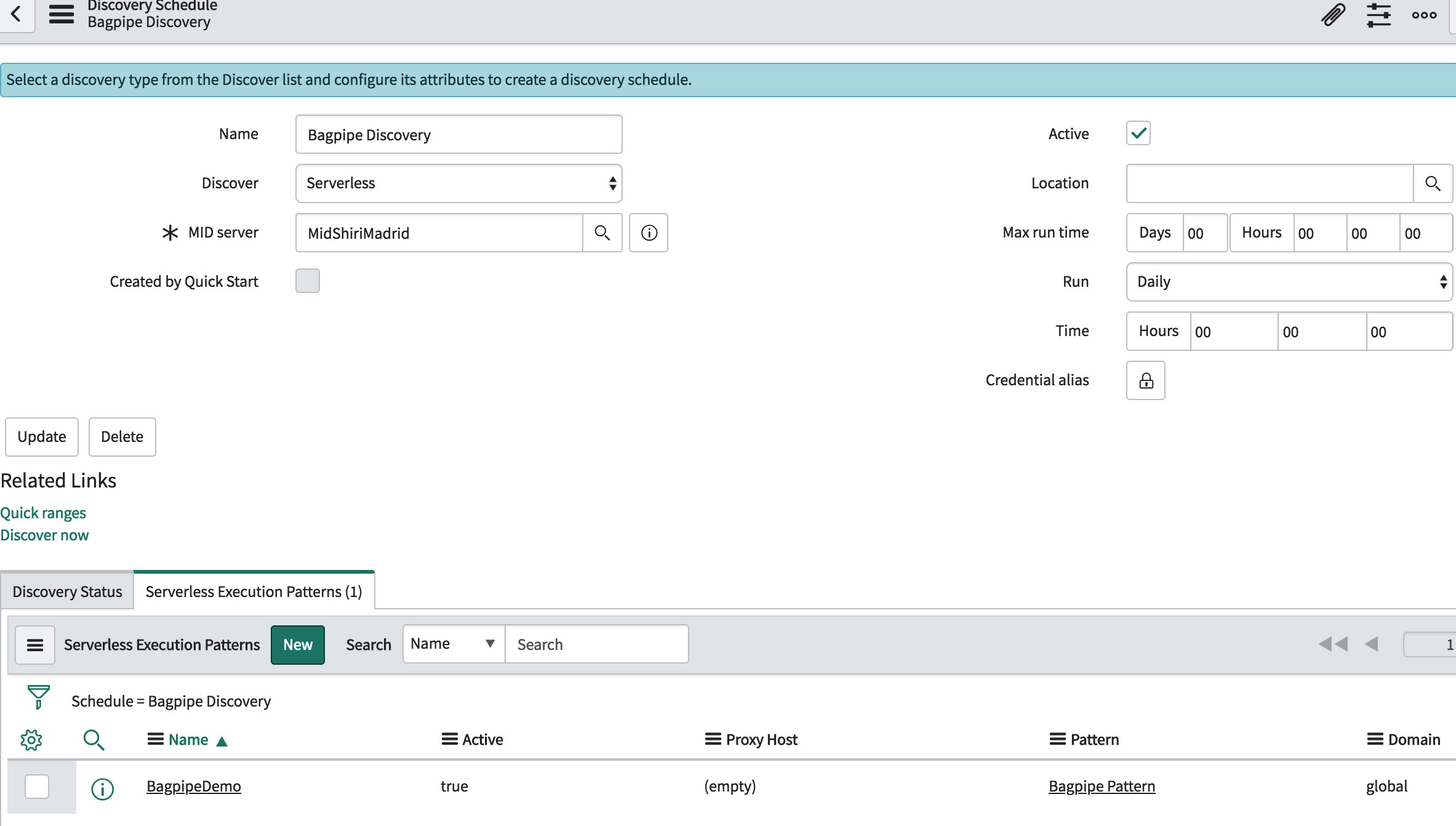

Click Update. The scheduler displays as defined (Active = true).

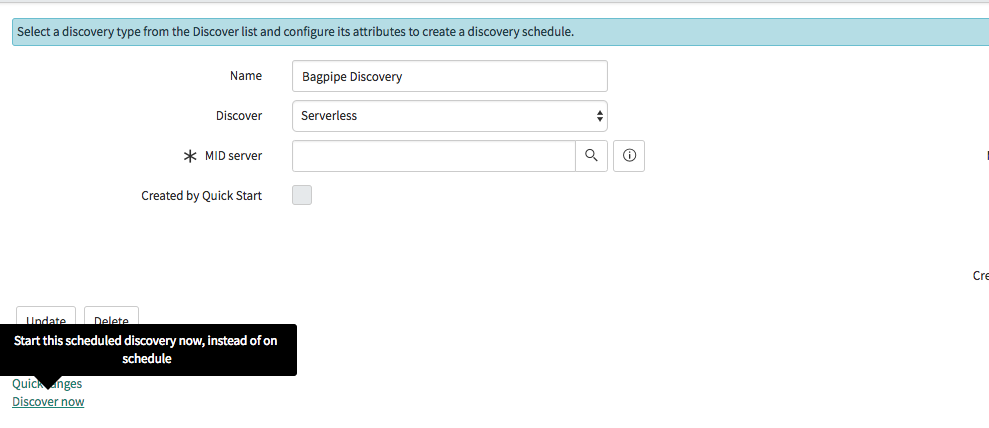

Press on Discover now to execute the scheduler (and it execute the pattern)

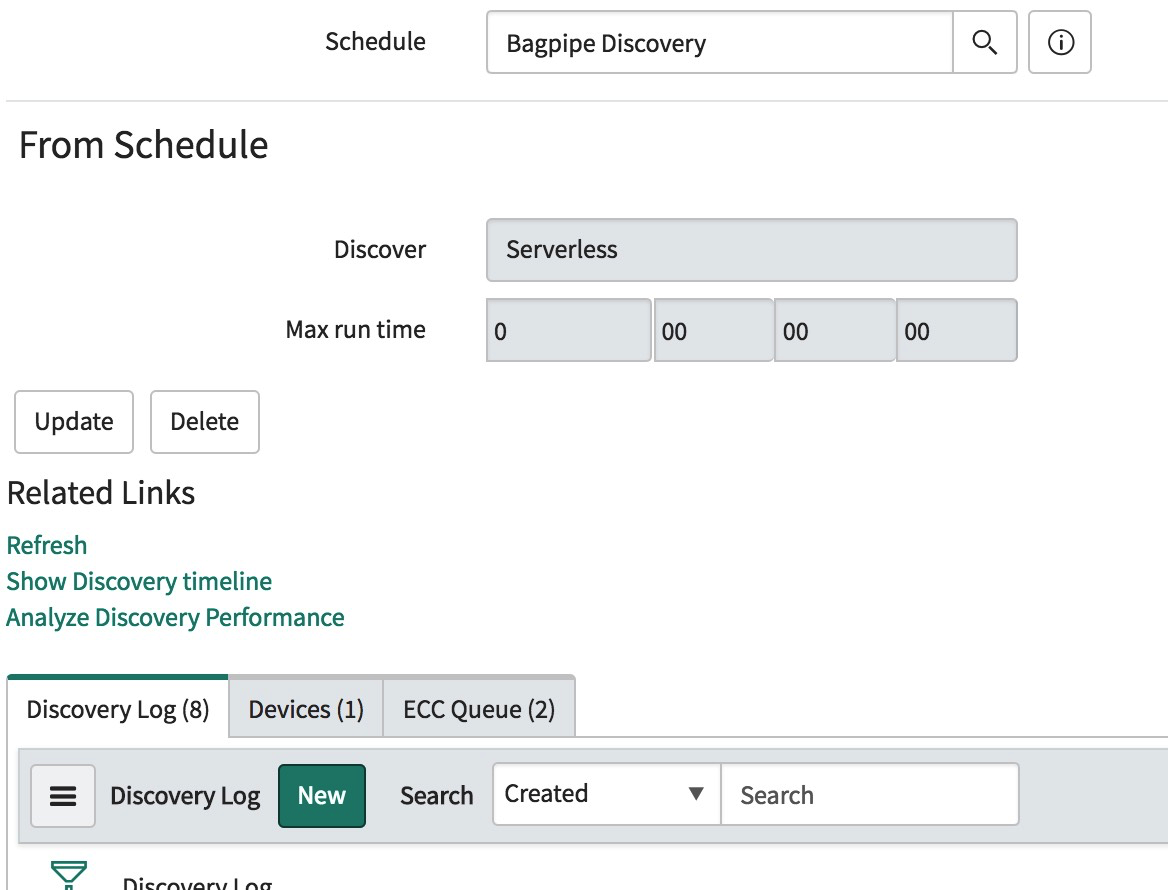

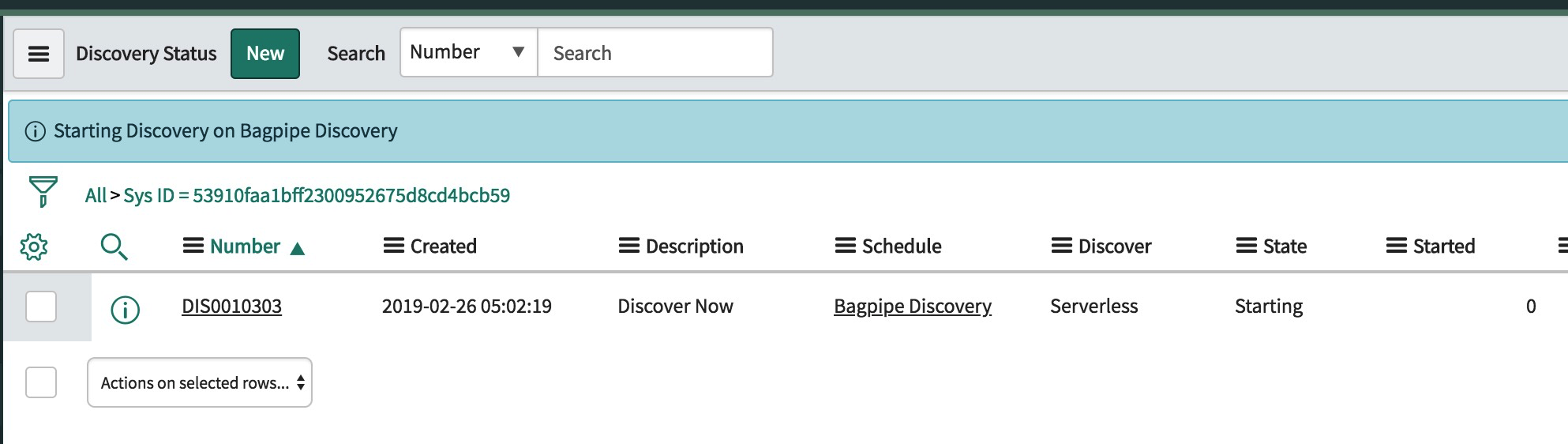

The status is Created:
Click the status link to see the discovery status of your execution.

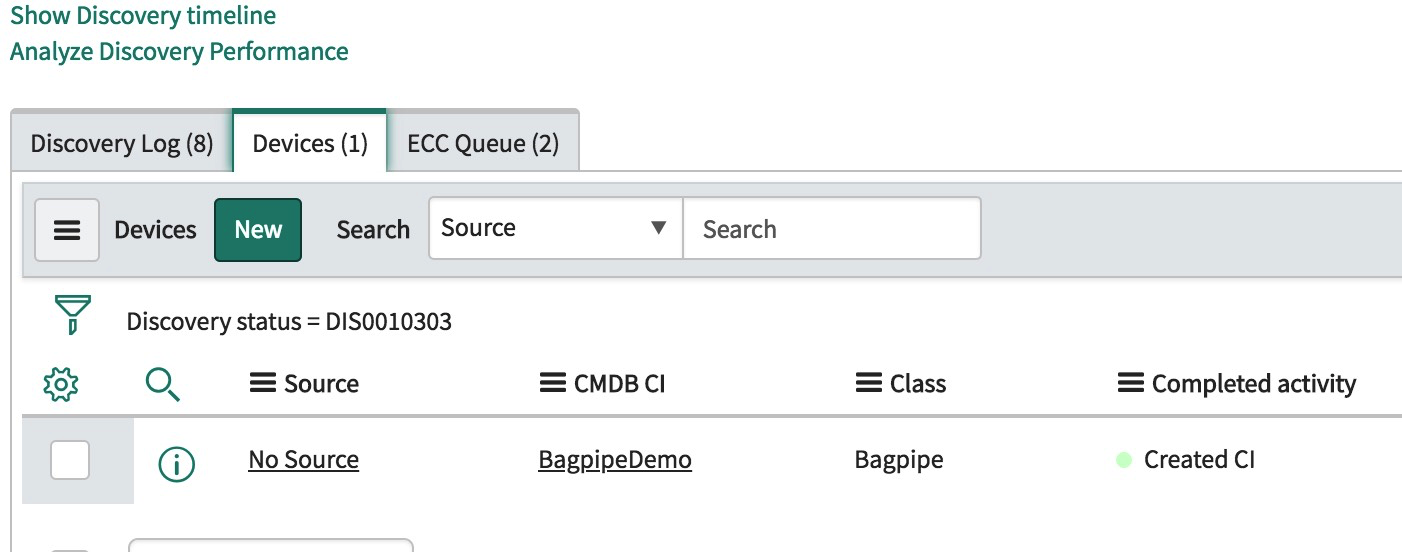

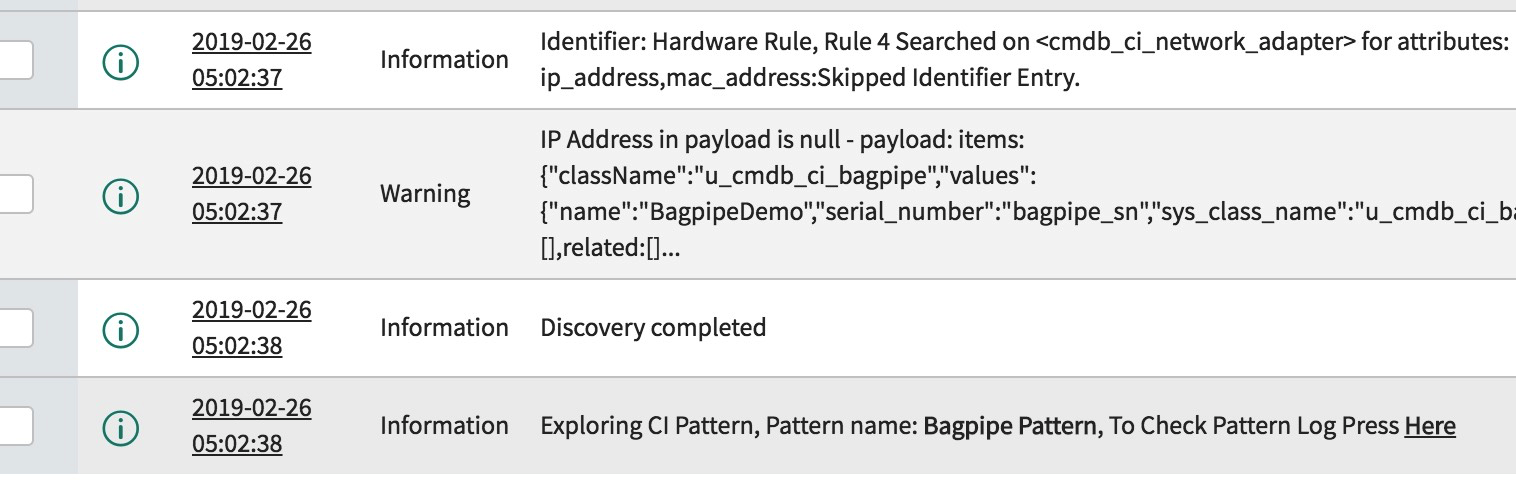

Navigate between the tabs to see that the device was created. The log displays the pattern as Executed.
