ServiceNow Discovery Simulator Question and Answer Blog

[glenn_pinto]

Use this blog to post and respond to questions about the Discovery Simulator tasks available from the Discovery Fundamentals course on NOW Learning. The Discovery Simulator tasks are designed to assess one's proficiency with performing various tasks using ServiceNow Discovery. The simulator covers the following tasks:

01: Navigate Discovery

02: Validate MID Server

03: Run Quick Discovery

04: Create Credentials

05: Create Discovery Schedule

06: Create Windows Only Behavior

07: Reconfigure and Test Discovery Schedule using New Behavior

08: Create iTunes Process Classifier

09: Create iTunes Discovery Pattern (Part 1)

10: Create iTunes Discovery Pattern (Part 2)

11: Extend Windows OS - Servers Pattern

12: Create Asset Record

13: Activate CMDB Health Dashboard

[Peter Seres]

Dear @glenn.pinto ,

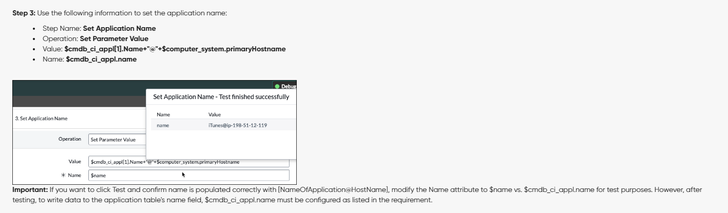

I would like to solicit your help with the Discovery Fundamentals on Demand course Task 1.9.4 from Step 3 and onwards. The first two steps in the pattern setup work just fine. But when I debug / test Step 3, although the task completes successfully I do not get the desired result. From there onwards its of course not working and my simulator fails to validate the task.

I spent hours by now to figure this out, but tried honestly everything I could, and I can't pass through.

Are you in a position to help me out?

Many thanks,
Peter

[pratiksha5]

Any one completed

10: Create iTunes Discovery Pattern (Part 2)?

[Vinay HK]

Can we use shell scripts to identify Unix processes using discovery patterns

[Vinay HK]

No Not yet

[Michelle Romano]

I have been stuck on this one for 2 days.  The steps configured on Identification Section have all tested successfully in debug mode, but when I save, publish, discover it, the version and description are missing.

[stevekrahn]

Hi Michelle,

Can you show me what your variables are in your pattern steps? I'd like to see how they are named compared to the names of the fields they reference.

Thanks,

Steve

[PVJShareKnowled]

Need help. Am unable to RDP the "MID server RDP URL" from my laptop with the credentials provided. I get error saying "RDP not enabled".

[PVJShareKnowled]

Do anyone know answer for this question. I strongly feel "a", "b", "c", "e" are the right ones but this question did not take any combination of answers as correct. Please help.

Which phases can be viewed under Discovery log tab?
Select all that apply
a. Identification
b. Exploration
c. Scanning
d. Probes and ports
e. Classification

[SumanthDosapati]

Identification and Exploration

[PVJShareKnowled]

It works and correct! Thanks. My understanding was log shows from the start of the discovery till its completed which includes scanning phase and other phases till exploration. Please help me understand this.

[stevekrahn]

Are you on VPN? If so, try and disconnect from VPN as that may prevent the RDP protocol.

Also, try to RDP from a non work computer to see if you are restricted from RDP protocol.

[stevekrahn]

Module 3, Slides 6 and 7 break down the phases and which tabs they are viewed.

Scanning and Classification are viewed under the ECC Queue tab, Identification and Exploration are under the Discovery tab, which also provides a link to the Patterns log that was run during Discovery process.

[sreenuvasulu Pu]

Hi team,

Please provide more the documents if any

[sreenuvasulu Pu]

Hi Team,

Please comment on below points

Which phases can be viewed under Discovery log tab?

Select all that apply
a. Identification
b. Exploration
c. Scanning
d. Probes and ports
e. Classification

[Joe125]

c. Scanning

It's showing no results from Classification, Identification or Exploration
Just showing that scanning has started and completed

If there were entries in CI or Device column it may include Classification & Identification... but not Exploration as there are no columns to indicate further information was gathered

And no Probes & Ports are listed

[suseelalingam]

Identification

Scanning

Classification

Exploration

[KKrabbenhoft]

I need some help with Task: Reconfigure and Test Discovery Schedule with New Behavior.

I have tested the credentials for windows with ip 198.51.12.119. successfully.

I have confirmed under the devices tab, 1 device classification Probe Windows-Classify Class = Windows Server and Updated CI successful.

EEC Queue shows

yet the task will not validate.

[Jose Luis Sando]

thanks

[glenn_pinto]

@KKrabbenhoft did you actually reconfigure and save the discovery schedule to use a behaviour. As the script checking the task is done correct is checking the discovery schedule as well. Please name things as described in the task as it can sometimes be different naming convention that are added vs. what the script is checking.

[KKrabbenhoft]

@glenn_pinto yes, I set the reconfigure and save the discovery schedule to use a behavior. It still will not validate. I have since this post, terminated the instance and requested the on-demand to be reset. I want to go through the training once more just to ensure I get things correct in my prod environment when the time comes. Currently we only have CMDB enabled in lower environments.

[pan345y1]

What is the target table name in Extend Windows OS - Servers Pattern task?

[stevekrahn]

Target table?

Are you talking about what table does the Extended section uses from the Windows - OS pattern? It would be the same target table as the Windows OS pattern itself, it's not a new pattern, it's just an added section to the existing Windows OS - Server pattern.

[KKrabbenhoft]

@glenn_pinto The issue with this task resolved itself. Not sure why but for some reason. I reviewed the task, confirmed my steps then selected validate. All of the tasks were validated successfully. Must have been a hick-up.

[glenn_pinto]

@KKrabbenhoft great!

[KimMel Briscoe]

Hello,

I am hoping I can get guidance on the task Extend Windows OS - Servers Pattern.  I configured and tested the steps and achieved the desired results.  However, when I check the discovery log I am getting an error: Identification Engine: Discovery status is FAILURE, Discovery using patterns failed due to lack of existence of the main CI type in the results. Check the discovery logs for more details.

Not sure what I've done incorrectly or where to go to fix the error.  I am unable to validate the task.

Any help is greatly appreciated.

[stevekrahn]

Hello KimMel,

Can you send me screenshots of your pattern that's giving you a challenge?

Thank you!

[KimMel Briscoe]

Hi Steve,

Thank you for getting back to me.

I have been working on this for the past few days, and I just figured out what I did wrong.  I did not add the [*] in the Name string.  Once I added the [*], performed the Pattern Sync, and ran the discovery, the description populated with the correct value.

[Vishal28]

great

[Indira Panneers]

Need help on Create iTunes Discovery Pattern (Part 2)

[pratiksha5]

Where you got stuck?

[Indira Panneers]

unable to get the search function to follow the below steps

• Step Name: Collect Application Name
• Operation: WMI Query
• Namespace: "root/CIMV2"
• Table: Win32_Product
• Fields: Name, Vendor, Version
• Target Table: $cmdb_ci_appl

Hint: Click Test and confirm Name, Vendor, Version are collected for all applications on target 198.51.12.119.

[Indira Panneers]

I am getting the below error

[pratiksha5]

Are you getting it while going to debug mode?

Also share the screenshot without the description please.

[Tatsuki_sanpei]

@Indira Panneers

You don't need the comma in the PID.

[Indira Panneers]

Thank you, I removed the comma and it is working now

[Catherine3]

I'm having issues with the task: Reconfigure and Test Discovery Schedule with New Behaviour. I've reconfigured the Windows and Linux Server Schedule as below (no changes to the IP ranges):

I've validated that both the Windows and Linux credentials are correct.

I'm also receiving the expected outputs that the task asks of me:

Here is the ECC queue output as well:

I'm wondering why this task is failing to validate. Any help is appreciated!

[pratiksha5]

Delete the CI and try the schedule again

[glenn_pinto]

@Catherine3 the script does a validation that the discovery and validating the task all happen within a 15min window. It does seem like you have done everything correct from the screen shot. i would rerun discovery, and after it completes, try to validate again as @pratiksha5 recommends. Thanks.

[Jiasheng Chen]

lab testing

[G24]

Hello all.  I am having some trouble with:

Module 9.1 - Task: Create ITunes Discovery Pattern (Part1)

Actually, I've completed the task, but I'm having trouble with task VALIDATION.

I don't have a "Validate Task" button. Instead I see "Task Result: Pending under the Instance Status section.

How do I get Now Learning or the Simulator to SNAP OUT OF IT, so that I can get my Validate Task button back?

I'm trying to get to a validated task, which looks like this:

Thank you!

[SatwikYadav]

Hi Everyone,

In the Discover Fundamentals course, I am trying to complete Lab 6 : "Task: Create iTunes Process Classifier". But with the device obtained through Discovery from the given IP address, I am not able to find "ITunes" application in the input payload of "Windows - Application Dependency Mapping". I have configured the Process classifier correclty, but without the device having the ITunes running in it, Discovery cant find it.

I wont be able to pass the task without completing this. Please suggest the steps I am missing. Thanks in advance.

[Dharshan N B]

Hi Team,
 I am stuck in This step,
 Task: Create ITunes Discovery Pattern (Part 2) - Failed

for $name i am getting the results

but for "$cmdb_ci_appl.name" i am not getting the results. how to achieve this how to configure name field to "$cmdb_ci_appl.name"
need a help thanks

@glenn_pinto  kindly help me this

[Ranjith95]

@Dharshan N B

Use the name as " $cmdb_ci_appl[1].name" and try you will find the details.

Please mark helpful if you are able to validate it with my solution.

[Mansor2]

Task: Run Quick Discovery

when I validate I ge the below error. can someone share your thoughst on this.

198.51.0.1 is not a reachable host (no response to target ports scanned by MID).

Thank you.

[pratiksha5]

Hi Mansor,

Few things you can check

1)mid server is up and validated

2)credential test you are getting success

3)then try quick discovery.

[sabell2012]

Hey Glenn:

I found that the MID Server was not established until five minutes after the instance came up. Just thought I would pass that along. Otherwise looks good.

Steven.

[stevekrahn]

Mansor,

It looks like you're trying to discover the IP of the router, not the MID IP.

Please double check your IP of the MID Server.

Steve

[Akhtar Rasool]

In the Task: Run Quick Discovery, I have executed the quick discovery for my MID Server IP and it created the CI as well in CMDB.

But i am unable to validate the task.

[Mansor2]

There is a high possibility you have keyed in the router IP instead of MID server. Please validate, it happens to most of them.

[Akhtar Rasool]

Thanks Mansor for the reply,

I am using the correct IP, below is the screenshot from MID Server Page.

Below is the screenshot from the Discovery Status.

More over it has created the CI in the CMDB.

I am not getting the reason for the validation failure
