How to include on-prem server in Tag Based Service Map

[SalilD]

We have an application hosted primarily in Azure, and its components are mapped using tag-based service mapping. However, there's one on-premises server running an NGINX service that directly communicates with a PostgreSQL resource in the cloud.

I want to include this on-prem server in the tag-based service map. Is it possible to establish a connection between the on-prem CI and the cloud-tagged components in the service map?

Specifically:

• Would creating a traversal rule between the cmdb_ci_cmp_resource (cloud resource) and cmdb_ci_nginx_web_server (on-prem server) tables help establish this relationship?
• Is this kind of hybrid mapping (on-prem CI + tag-based cloud components) even supported in Service Mapping?

Looking for guidance on whether this approach is feasible and if there are best practices or alternative methods to achieve this.
#servicemapping #discovery  #itom #cmdb

[AJ-TechTrek]

Hi @SalilD ,

Q1: Can a Traversal Rule between cmdb_ci_cmp_resource (Azure PostgreSQL) and cmdb_ci_nginx_web_server (on-prem) help?

Yes, but with conditions:

* Traversal Rules are used to define how Service Mapping moves from one CI to another in a pattern.
* In your case, creating a custom traversal rule from cmdb_ci_nginx_web_server ➝ cmdb_ci_cmp_resource is feasible if there is a discoverable relationship (like a TCP connection, known config, etc.).
* However, traversal rules are typically used within patterns, not directly across tag-based and discovered nodes unless you’re extending a pattern-based service.

 Key Point: The tag-based mapping mechanism by default does not use traversal rules. But once you convert a service map into a hybrid or semi-dynamic map, you can manually establish and persist such relationships.

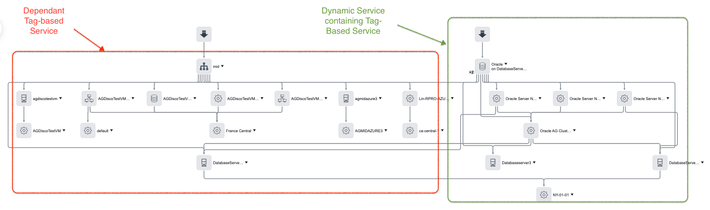

Q2: Is hybrid mapping (on-prem CIs + cloud tag-based CIs) supported?
Yes, ServiceNow does support hybrid service maps, but it requires some manual effort or pattern extension.

Recommended Solution Approach

Here’s how you can link your on-prem NGINX server with the cloud-tagged PostgreSQL in the Service Map

Option 1: Convert to Hybrid Service Map

1. Go to the Service Map of your tag-based service.

2. Click on "Edit Service Map".

3. Manually add the on-prem NGINX CI (from cmdb_ci_nginx_web_server) using:
* Search by name or IP
* Or through related connection (if auto-discovered via Discovery)

4. Create a manual connection or dependency:
* Use cmdb_rel_ci table to create a logical or application dependency between:
* NGINX server (cmdb_ci_nginx_web_server)
* Cloud PostgreSQL (cmdb_ci_cmp_resource)

5. Save the map. This becomes a hybrid service, combining:
* Tag-based components (auto-updated)
* Manually added or discovered on-prem CIs

Option 2: Extend the Tag-Based Pattern (Advanced)
If you want to make this link automated and persistent across refreshes:
1. Create or edit the Tag-Based Pattern used in your cloud application service.

2. Add a custom step or script to include external (on-prem) CIs based on:
* IP range
* Hostname
* Known configuration info (stored in CMDB)

3. Optionally, define a custom traversal rule:
* From cmdb_ci_nginx_web_server ➝ cmdb_ci_cmp_resource
* Based on known connection (port 5432, for example)
