Open Files with Document Viewer at table sys_attachment

[Maik Skoddow]

Introduction

Document Viewer is a platform feature that will enable users to view enterprise class documents inline within the platform attachment, instead of downloading it to the local device and then opening the documents with a locally installed viewer.

After setting table attribute use_document_viewer=true you are offered with an additional "view" option at "Manage Attachments" dialog. When clicking on "View" a browser windows opens and the selected document is rendered.

As most of the important Microsoft Office formats (Word, Excel, Powerpoint) as well as PDF and images can be viewed this plugin is extremely helpful since in this way you can view files without having to have the corresponding program installed on your terminal device.

For more information please see the ServiceNow Documentation

Requirement

At table sys_attachment you only can download files, and it would be nice to have an additional option to view the attachment directly without downloading.

Solution

As you know, it is not possible to open an Attachment record as each time you click on the row in the list view an attachment download will start.

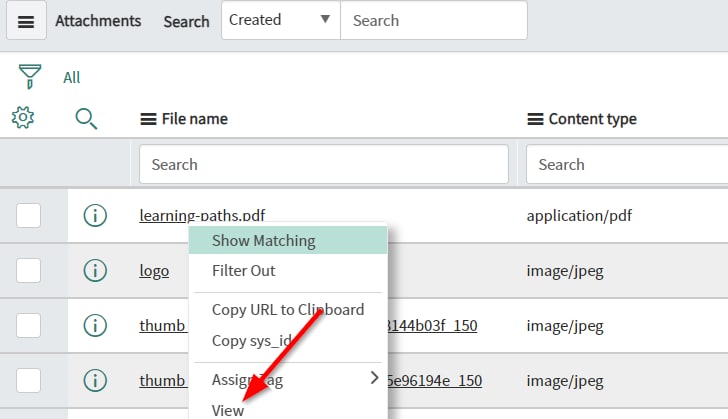

Therefore, the only option we have is providing an additional UI Action "View" for the list view. Since it makes no sense to offer this action for a selection of multiple files, the best option is to introduce the command in the context menu (right-click on a record in the list view).

Downloading an attachment can be triggered by the following URL

http://<YOUR INSTANCE>.service-now.com/sys_attachment.do?sys_id=<ATTACHMENT SYS ID>

And opening the Document Viewer is as easy as adding another parameter to the download URL.

http://<YOUR INSTANCE>.service-now.com/sys_attachment.do?sys_id=<ATTACHMENT SYS ID>&view=true

Now we have everything to create a respective UI Action:

Name	View
Table	sys_attachment
Client	checked
List context menu	checked
onClick	openViewer()
Script	function openViewer() { var sysId = typeof rowSysId == 'undefined' ? gel('sys_uniqueValue').value : rowSysId; var url = new GlideURL('sys_attachment.do'); url.addParam('view', 'true'); url.addParam('sys_id', sysId); g_navigation.open(url.getURL(), '_blank'); }

[Murthy Ch]

Hi @Maik Skoddow

Useful article

Thanks

[Maik Skoddow]

Nice to hear and thank you for the feedback!

[Elias2]

What I find is that the Document Viewer view function only works with record-level attachments. We have custom "File Attachment" fields for specific forms that would really benefit from the view function - is there a way to achieve this?

[Tilly Penn]

We do not have Document Viewer enabled, which means that Documents within KBs are downloaded, rather than opening within the platform.    My requirement is that I would like some documents to download (eg fillable forms), but some documents need to display in the Portal (eg Policy documents which we cannot allow to be changed).

The links above didn't work for me (&view=true).  Everything still downloads.      Any ideas?

[SourabhJadhav]

I want all attachments of supported file types ( Doc,xlsx,pdf,txt) to be viewed in the browser instead of forcing a download so that the users have a better experience. I have installed the plugins and added the use document viewer attributes as well.

Can anyone help me on this?

[Peter Williams]

i have the same situation where i need to have it displayed in the browser window
