08-17-2023 03:44 PM - edited 08-17-2023 03:49 PM
Vancouver: Security Attribute Conditions Explained
In the Vancouver release there is a new “Security Attribute Condition” added to the conditions
In the Access Controls (ACL’s):
As well as on Data filtration records:
Security Attribute Conditions
Description
But what do these new Security Attribute Conditions mean? What do they do? There is no documentation on this in the Vancouver docs (as per the last version of August 3rd😞
https://docs.servicenow.com/bundle/vancouver-platform-security/page/administer/contextual-security/t...
When the Docs do not tell us about these nice new Gems, it is up to the Community to support! After a bit of digging, I found this:
Name |
Description |
Group |
User is member of the specified group |
GroupExplicit |
User is an explicit member of the specified group. |
HasAdminRole |
User has admin role |
Impersonating |
User is impersonating another user |
InteractiveSession |
Current session interactive |
LoggedIn |
User is logged-in/authenticated |
NetworkCriteria |
Network Criteria |
Role |
User has the specified role |
RoleExplicit |
User has the specified role explicitly, that is, it is present in the sys_user_has_role table. |
(Want to view this yourself? It is in the “sys_security_attribute”-table
< yourinstance >.service-now.com/sys_security_attribute_list.do )
Explained
If this provides you with enough information. You can stop reading here. However, I can imagine that from the description there is still some unclarity. Below I try to both visually and in text explain the concepts, so you know how to use it. In case you have any questions, feel free to comment below 😊
Group
User is member of the specified group
If you are added to the Netherlands Group, you are by group inheritance part of the Europe Group. Both direct assignment in the Europe group, as well as the inheritance will evaluate to TRUE.
GroupExplicit
User is an explicit member of the specified group.
Only by direct assignment in the Europe group will evaluate to TRUE.
HasAdminRole
User has admin role
Either inherited or granted directly the (System) Admin role it will evaluate to TRUE.
Impersonating
User is impersonating another user

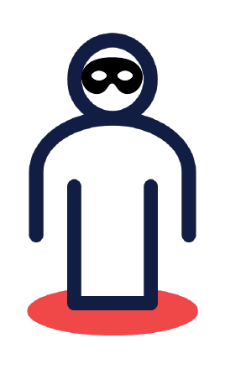

Will evaluate to TRUE if the current logged in user is impersonating another user
InteractiveSession
Current session interactive

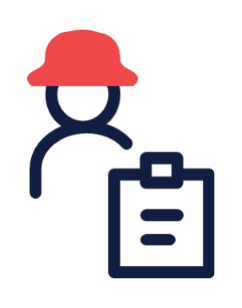

Allows you to distinguish between a logged in user (interactive session) and an integration (user). Returns TRUE for an interactive session.
LoggedIn
User is logged-in/authenticated
Allows you to specify if the ACL is only applicable to logged in users, or users that are not authenticated (public). Returns TRUE if the user is logged in.
NetworkCriteria
Network Criteria

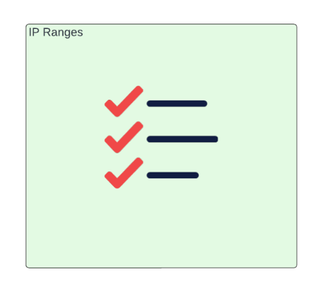

Allows to filter based on IP Ranges. Specify an IP Range (record), the Network criteria will evaluate to TRUE if the user is logged in with an IP within the IP Range.
Role
User has the specified role
Both having for example the HR Manager role, inherited from HR Admin, as well as directly having the HR Manager role will evaluate to TRUE for the Role condition
RoleExplicit
User has the specified role explicitly, that is, it is present in the sys_user_has_role table.
Only having the HR Manager role directly will evaluate to TRUE.
- 20,577 Views
- Mark as Read
- Mark as New
- Bookmark
- Permalink
- Report Inappropriate Content
That DOCS has no mention of this is a bit of an oversight to say the least 🙂
- Mark as Read
- Mark as New
- Bookmark
- Permalink
- Report Inappropriate Content
Thank you for documenting this. It's a pretty neat feature. Do you know if it will be available to install on previous versions as well?
- Mark as Read
- Mark as New
- Bookmark
- Permalink
- Report Inappropriate Content
@Willem Thanks for documenting this.
- Mark as Read
- Mark as New
- Bookmark
- Permalink
- Report Inappropriate Content
Very nice write up!
Any quick insights into what "Existing" vs "Local " means?
- Mark as Read
- Mark as New
- Bookmark
- Permalink
- Report Inappropriate Content
DOCS now has some info.
Here you will find the explanation of Local vs Existing
Local and Existing Security Attributes
Existing and Local Security Attributes enable customers to reuse Security Attribute condition sets.
Local & Existing Attributes
A local defined Security Attribute is saved only to the single ACL where it is created in.
The existing option enables users to reference an existing Security Attributes conditions to the condition builder.
- Mark as Read
- Mark as New
- Bookmark
- Permalink
- Report Inappropriate Content
Looks like SNOW is starting to take the necessary attention to the platform access management area, which is a really hight concern area to be addressed once there is no OOB solution to manage it and the platform complexity doesn't help customers to address it, ie. Separation of Duties conflicts (SOD) OOB; even the OOB roles/personas doesn't have a SOD matrix that helps to identify conflicts between them.
I really hope this is just the start point so ServiceNow will provide more and more OOB tools to help customer to do the platform governance.
Thank you
- Mark as Read
- Mark as New
- Bookmark
- Permalink
- Report Inappropriate Content
How does it work with the previous 3 conditions (role, field condition, script condition)? We could leave the field and script conditions empty and ACL would still grant access based on just role condition. Will that still be a case? Can we leave the security attributes untouched during configuration and still get ACLs working?
Thanks
- Mark as Read
- Mark as New
- Bookmark
- Permalink
- Report Inappropriate Content
@Willem What a great article!
That last one confuses me a little. Many applications are set up to inherit lower-level access to simplify user-role access and ACLs. I read your explanation, which means this won't work with RoleExplicit.
For example:
admin
role containsmanager
rolemanager
role containsuser
role
This way
- The user can be granted the only
admin
role (direct or via group) and inheritmanager
anduser
automatically, instead of having to grant them all three. - lower-level ACLs, like can read [xyz] app table, only need to have the
user
role, instead ofuser
,manager
, andadmin
.
Here is an example of a user that gets the notify_view
role through a few levels of inheritance roles. These inherited roles are present in the sys_user_has_role table. All roles granted by a group show inherited=true, and contains roles regardless of whether they are granted through group membership or a direct role, will show inherited=true.
In OOB(Out-of-Box) Security Attributes: Non-explicit and explicit behavior explained it says:
Security Attributes address nuanced permission needs with an explicit vs. non-explicit (inherited) evaluation of roles permissions.
This leads me to believe top-level roles granted by groups (which are inherited=true) will also be denied.
Have you tried to test any of the scenarios above yet?
- Mark as Read
- Mark as New
- Bookmark
- Permalink
- Report Inappropriate Content
Hi @carleen
Yes you are correct. Role inheritance still works for Role, so if you want that behavior you can select that. But with RoleExplicit adds the "nuanced permission". I cannot remember if I tested it with group inheritance. But I definitely tested the role inheritance from the example. So Admin, although inheriting the role, could not access when using RoleExplicit.
To me it would make sense that you still have access if the exact "user"-role (from your example) is granted via a group, that the user with that role still has access. I would assume that counts as giving the users in the group explicitly that role. But you are also correct that it is group-inheritance, so a form of inheritance...🤔
- Mark as Read
- Mark as New
- Bookmark
- Permalink
- Report Inappropriate Content
There is an interesting write up from an external party, from Jan.2024 => Balancing Act: Navigating the Advantages and Risks of ServiceNow’s New Security Attributes
NOTE: it looks to be part of an advertisement about selling a security management tool. Still its a more intriguing description than Servicenow provides.
- Mark as Read
- Mark as New
- Bookmark
- Permalink
- Report Inappropriate Content
Hi all,
Great article but I'm still a little confused about the Local vs. existing options. The docs say the following:
A local defined Security Attribute is saved only to the single ACL where it is created in.
The existing option enables users to reference an existing Security Attributes conditions to the condition builder.
I think that the above means:
Local: Value returned by the condition field
Existing: Value returned by the Security Attribute field
Is that correct?
- Mark as Read
- Mark as New
- Bookmark
- Permalink
- Report Inappropriate Content
I'm curious about Local vs. Existing as well. I'm troubleshooting a report view ACL that seems to only exist in our production instance (still on vancouver) and not in our sandbox (upgraded to Washington already). it's marked as Local, but the current version is stuck on an older 'default' and not on what should be a more updated version from the application. there are no updates on the updates related list and the ACL itself shows created by 'service.now' and updated by 'admin'. don't think i've ever seen the user 'service.now'. And comparing the 'current' version to most recent from the application removes the 'local' value to null in the field.
before I open a HI ticket- any thoughts?
- Mark as Read
- Mark as New
- Bookmark
- Permalink
- Report Inappropriate Content
Hi @Willem ,
Thanks for this amazing article. While creating ACL if i am planning to use security attribute conditions then i can ignore the roles , script conditions , data conditions like the acl will check the security attribute conditions and then provide access.
