Projects Space - Cards configuration

[CamilleSerruys]

Hi all !

I'd like to know if it's possible to change the size of the cards displayed on the Projects Space (Project Workspace). We don't need what is indicated in Row3, so I delete the data for this row, but it doesn't change the height of the card (see screenshot). Is there another parameter to update ?

Thanks for your answer !

Have a nice day,

Camille Serruys

[Community Alums]

Hi @CamilleSerruys ,

1. Navigate to All.
2. In the filter navigator, enter sys_sg_item_section.list, to open a list of record sections.
3. Select a listed record section.
4. From the Card size field, select the reference lookup icon ( ).
5. In the Card sizes form, select New.
6. On the form, fill in the fields.

   Card sizes form

   Field	Description
   Card height	The height of the cards in the record section. The range is from 42 through 296 pixels.
   Card width	The width of cards in the record section. The range is from 64 though 304 pixels.
   Type	Name of the defined card type size.

7. Right-click in the header and select Save.

From the doc : https://docs.servicenow.com/bundle/washingtondc-mobile/page/administer/tablet-mobile-ui/task/sg-ui-s...

[CamilleSerruys]

Hi  Sandeep,

Thank you very much for this answer.

I understand that the configuration you mentionned is applicable to mobile navigation. My purpose does not deal with the configure of the mobile navigation, are you sure I can anywhere add these parameter and it will work ?

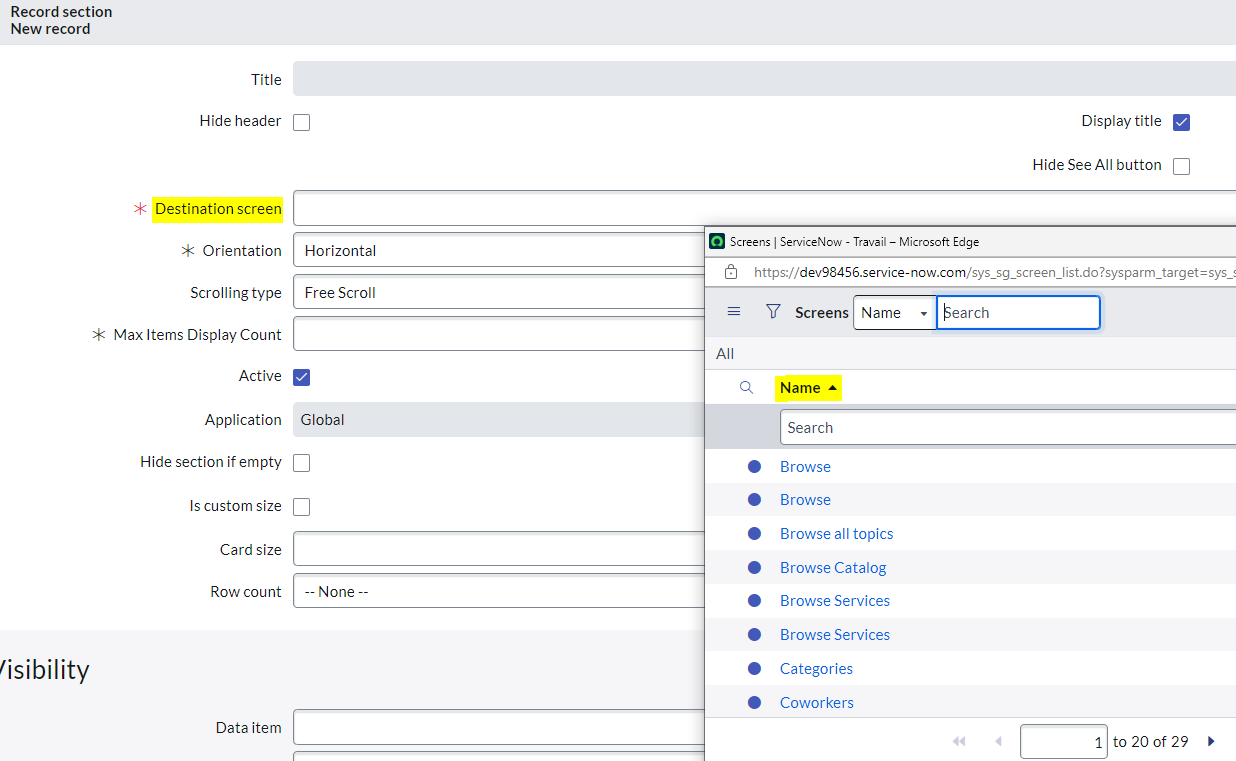

And if yes, I understand that I need to create a "Destination screen" since I doesn't see anything that can match (see screenshot)

Many thanks again 🙂

Camille Serruys
