Enabling OT Discovery device communications

This section describes how the OT Discovery components need to connect to communicate with each other.

Component communications

When determining the environment architecture for your OT Discovery deployment, consider the following communication requirements.

• MID Server-to-ServiceNow instance:
  • The MID Server needs to communicate with the ServiceNow instance to push the information from Discovery Console for OT.
    주:

    If the Discovery Console for OT can reach the internet, the MID Server might not be needed in the configuration process.
  • This configuration is the same configuration and deployment as with any other MID Server.
  • The Service Graph Connector needs to communicate with the MID Server, the Console, and the ServiceNow instance.
  주:

  See Operational Technology Native Discovery components for further information.
• Console-to-MID Server communication:
  • Deploy a separate OT MID Server for each network or network segment.
  • Configure firewall rules to enable communication across networks or network segment boundaries.
  • The Console needs to communicate with the Sensors, the Discovery OT Collectors, with the MID Server, the SGC, and your ServiceNow instance.

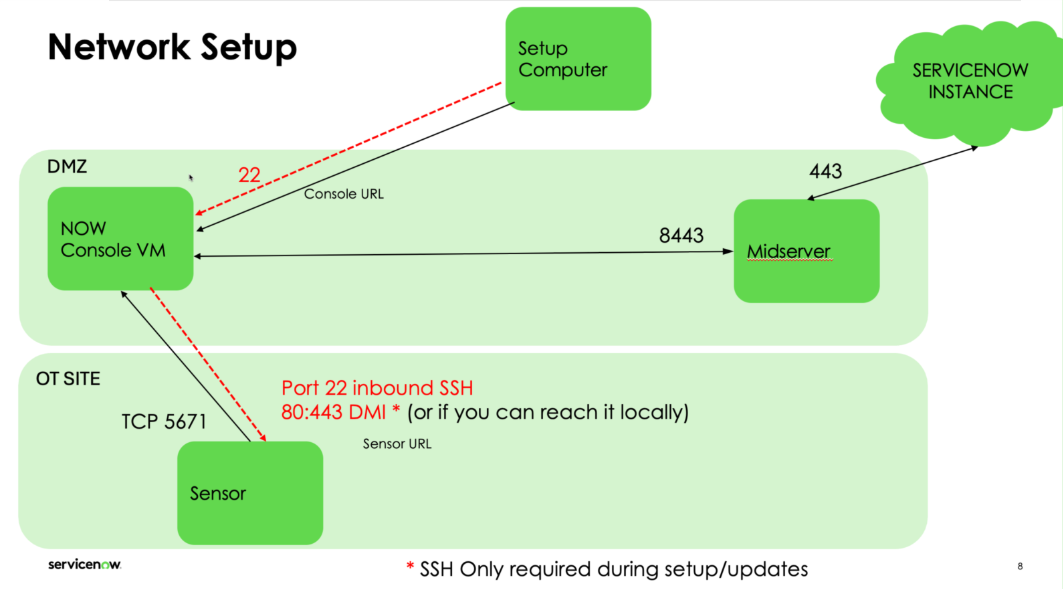

  그림 1. Network communication setup



• Sensor-to-Console communication:
  • Deploy a separate Console for each network, network segment, or system.
  • Configure firewall rules to enable communication across networks or network segment boundaries.
  • The Discovery Sensor for OT needs to communicate with OT assets and with the Discovery Console for OT.
  • Discovery Sensor for OT data is pushed to the ServiceNow instance by the Service Graph Connector.
• Sensor-to-asset communication:
  • Deploy a separate Sensor for each network, network segment, or system.
  • Configure firewall rules to enable communication across network, network segment, or system boundaries.
• Discovery OT Collector-to-Console communication:
  • Discovery OT Collector needs to communicate with the Console.
  • The Collector communicates with the Discovery Console for OT and with your system's assets.

Network port map

The following table describes how to set up network ports.

표 1. Network port map

Source	Destination Port	Direction	Destination	Required/Optional	Description
Management Console	8443 (HTTPS) inbound	Bi <->	Workstation	Required	Console web interface
Management Console	5671 (AMQP) inbound	Uni <-	Sensor	Required	Communications from Sensors to Console
Management Console	123 (NTP) inbound	Uni <-	Time Server /Esxi Host	Optional	Clock synchronization, Not needed it time server or hypervisor will provide time.
Management Console	8443 API	Uni <-	MID Server	Required	Import data from Management Console via the APIs.
Management Console	22 (SSH) inbound	<-	Host Setup Computer	Optional (setup)	Additional support during deployment
Sensor	5671 (AMQP) outbound	Uni <-	Management Console	Required	Communications from Sensors to Console
Sensor	443 (HTTP) inbound	<-	Host Setup Computer	Required	Additional support during deployment
Sensor	22 (SSH) inbound	<-	Host Setup Computer	Required	Additional support during deployment
MID Server	443	Bi <->	NOW instance /Web	Required	Communications from the MID Server to the NOW fabric internet facing.
