Register the Discovery Sensor for OT

After you have installed the Discovery Console for OT and the Discovery Sensor for OT, register the Sensor to the Console using the Console's Device Management Interface (DMI).

시작하기 전에

Role required: admin

이 태스크 정보

Ensure you Install the Discovery Sensor for OT before registering your Sensor. You must register the Sensor to the Console using the DMI. The DMI is a web-based interface that lets you configure and register the Sensor with the Console. For more information on the DMI, see Device Management Interface. Registering the Sensor confirms it can communicate with the Console.

프로시저

1. To access the DMI for a Discovery Sensor for OT, open a browser and type in the URL displayed on the screen after the Sensor is installed and boots up.
   주:

   Currently, there isn't a serial number portion since there's no active hardware. These input steps are still valid. However, the [serial number] is likely to be the Sensor name at the time of its creation. This is an example of how to find the URL for the DMI. Your IP address will be different from this example:

   https://[device type]-[serial number] with either .local:443 or .[domain name]:443

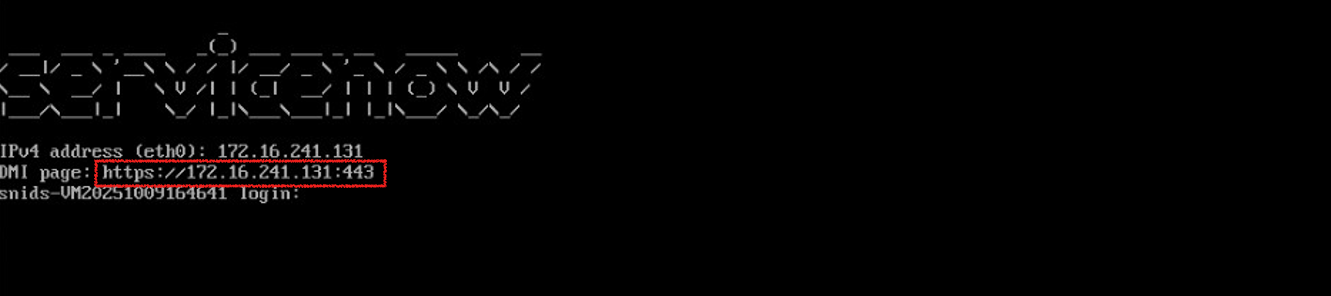

   Be sure to make a note of the DMI URL displayed after the Sensor is installed. You can use this URL for the DMI. This image shows the DMI URL as https://172.16.241.131:443.




2. Using your credentials, log into the DMI.
   For your initial log into the DMI, the username and password are admin and devpassword respectively. Once the initial log in has been completed, the DMI prompts you to change the password.
3. In a separate tab or browser, if you haven't already, log into the Console.
4. Generate and upload a bundle.
   1. In the Console, navigate to Sensors > Certificates.
   2. Under Sensor Credentials, select Generate Bundle.
   3. Download and save the generated bundle zip file.
   4. Unzip the file.
      By unzipping the file, you get a password.txt file, a Sensorbundle file, and a service_credentials.txt file.
   5. Switch back to the DMI browser window or tab.
   6. Select the Certificate tab.
   7. In the Certificate Bundle field, select Browse and upload the Sensorbundle file.
   8. In the Password field, copy and paste the password from the password.txt file.
   9. Select Upload Certificate.
      Once the certificate is uploaded, the Certificate Update Logs appears and confirms the completed process.
5. Reset the RabbitMQ password.
   1. In the DMI, select the RabbitMQ tab.
   2. Copy your RabbitMQ password.

      To access your RabbitMQ password, open the service_credentials.txt file from step 4d and locate the RabbitMQDeviceAdminPassword.

   3. Select the Edit button.
   4. Paste the copied password.
   5. Select Save Configuration.
6. Edit the Console settings.
   1. In the DMI, select the Network tab.
   2. Select the Edit button.
   3. Select an IP Address or Hostname as the Console endpoint and enter a valid value.
      Enter a valid Gateway IP Address.
   4. Select Save & Deploy.
   5. Navigate back to the Console tab and select the Register button.
7. Navigate back to the Console and verify that the Sensor is online.
   The device briefly shows online and then offline. Then it shows a steady online status in the Console.

결과

The Sensor and the Console can now communicate.
