Investigation Canvas MITRE Filters

MITRE filters enables you to create and save filters for Tactics, Techniques, and Procedures (TTPs) associated with specific adversaries and other MITRE technique attributes.

Before you begin

Role required: sn_sec_tisc.analyst

About this task

Analysts can use the filters available on the MITRE card to filter specific actor TTPs that are relevant to adversaries involved in the investigation.

Procedure

1. Navigate to Workspaces > Threat Intelligence Security Center.
2. Select the Threat Analyst Workbench icon.
3. Go to Case Management > All Cases.
4. Open any case.
5. Go to Investigation Canvas tab.
6. Select Filters to create filters for Tactics, Techniques, and Procedures (TTPs) associated with specific adversaries and other MITRE technique attributes.
7. Fill in the necessary values in the filter panel to apply your desired filters.

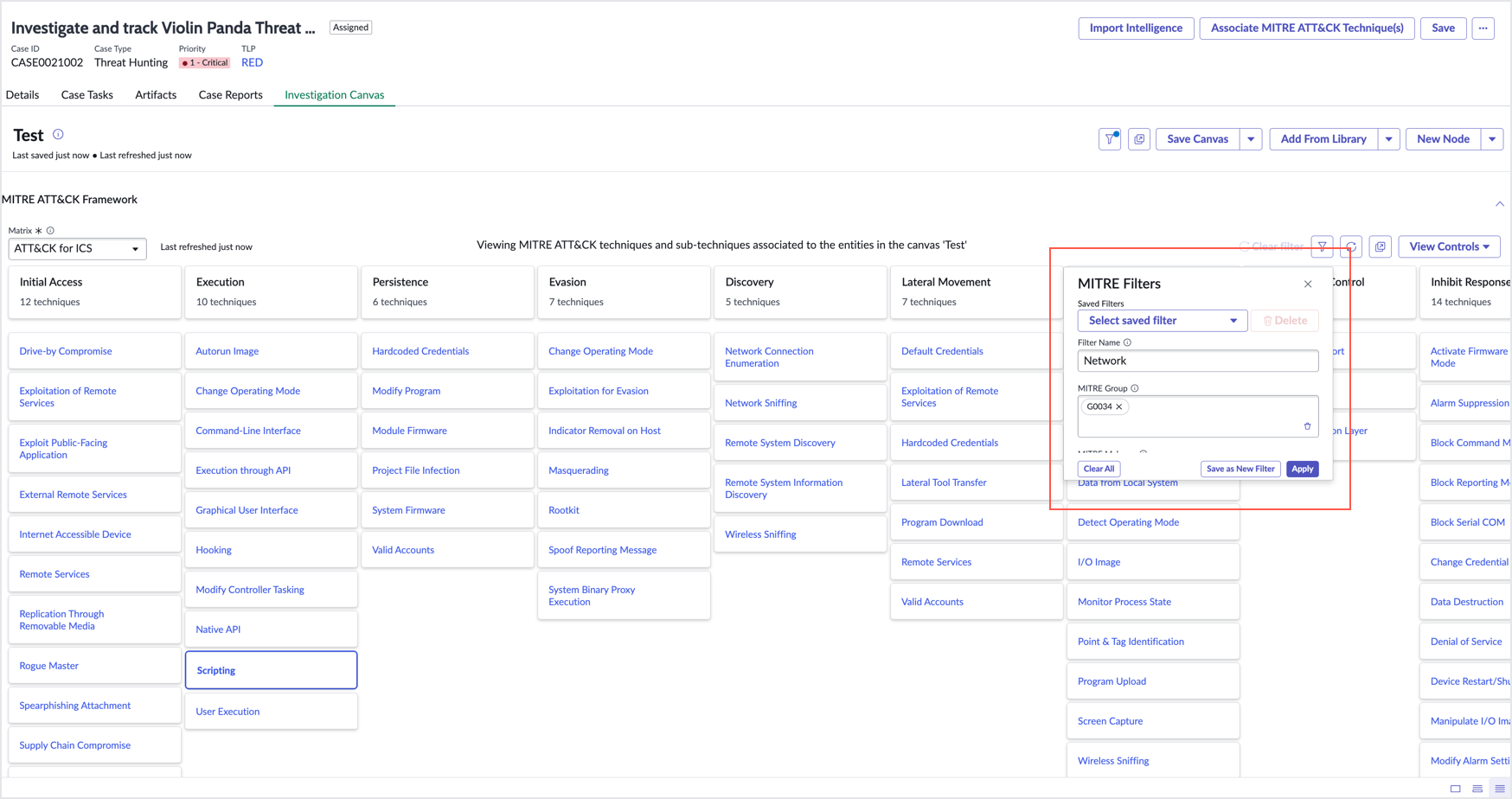

   The MITRE filter panel allows you to filter and visualize MITRE ATT&CK techniques based on selected criteria such as Groups, Malware, Tools, Tags, and Priority.

   Field	Description
   Saved Filters	Analysts can save specific criteria as Saved Filters for reuse. Filters saved by an analyst are user-specific. Note: For example, if Analyst X saves a filter configuration, it will only be visible to Analyst X. When another analyst log in and view the filter drop down, they will not see the filters saved by others. This ensures that each user can create and manage personalized views without affecting or being affected by other users' filter preferences.
   Filter Name	Name of the filter.
   MITRE Group	Indicates the MITRE Group. Select one or more groups to filter techniques associated with them.
   MITRE Malware	Indicates the MITRE Malware. Select one or more malware items to filter techniques associated with them.
   MITRE Tools	Indicates the MITRE Tools. Select one or more tools to filter techniques associated with them.
   TISC Tags	Indicates the TISC tags. Select one or more tags to filter techniques based on their classification.
   Priority of Techniques	Indicates the priority level of techniques. You can select one or more options to filter techniques based on their assigned priority.
   Clear All	Allows you to clear the inputs entered in the filter panel.
   Save as New Filter	Saves the criteria entered in the filter panel as a new saved filter. Note: Saved filter name should be unique.
   Save Current Filter	Saves changes to the criteria in the currently selected saved filter. You can also rename a filter using this option. Note: Saved filter name should be unique.
   Apply	This option allows you to apply the changes to your filters in the MITRE card.
   Delete	Select this option to remove a selected saved filter. When you click the Delete button next to a saved filter, a confirmation message appears if you are sure you want to delete this filter. Confirming this action will permanently remove the saved filter. To remove an individual field value within the filter panel, click the Delete (trash) icon next to that specific field.

   By applying filters using these values, the MITRE matrix is dynamically updated to display only those techniques associated with the selected attributes. This focused view enables analysts to concentrate more on the most relevant Tactics, Techniques, and Procedures (TTPs) during investigations.

   In addition, analysts can further narrow down TTPs using filters for malware, tools, tags, and priority levels.



8. Optional: Select Save as New Filter to save your filter criteria.
9. Select Apply to apply the changes.

Filtering by MITRE Group

Select a MITRE group as APT32 (G1001, see the following screenshot). When you apply this filter, the MITRE matrix updates to display only those techniques that are directly linked to the selected group.

This focused view helps analysts to concentrate specifically on the Tactics, Techniques, and Procedures (TTPs) associated with the selected threat group.

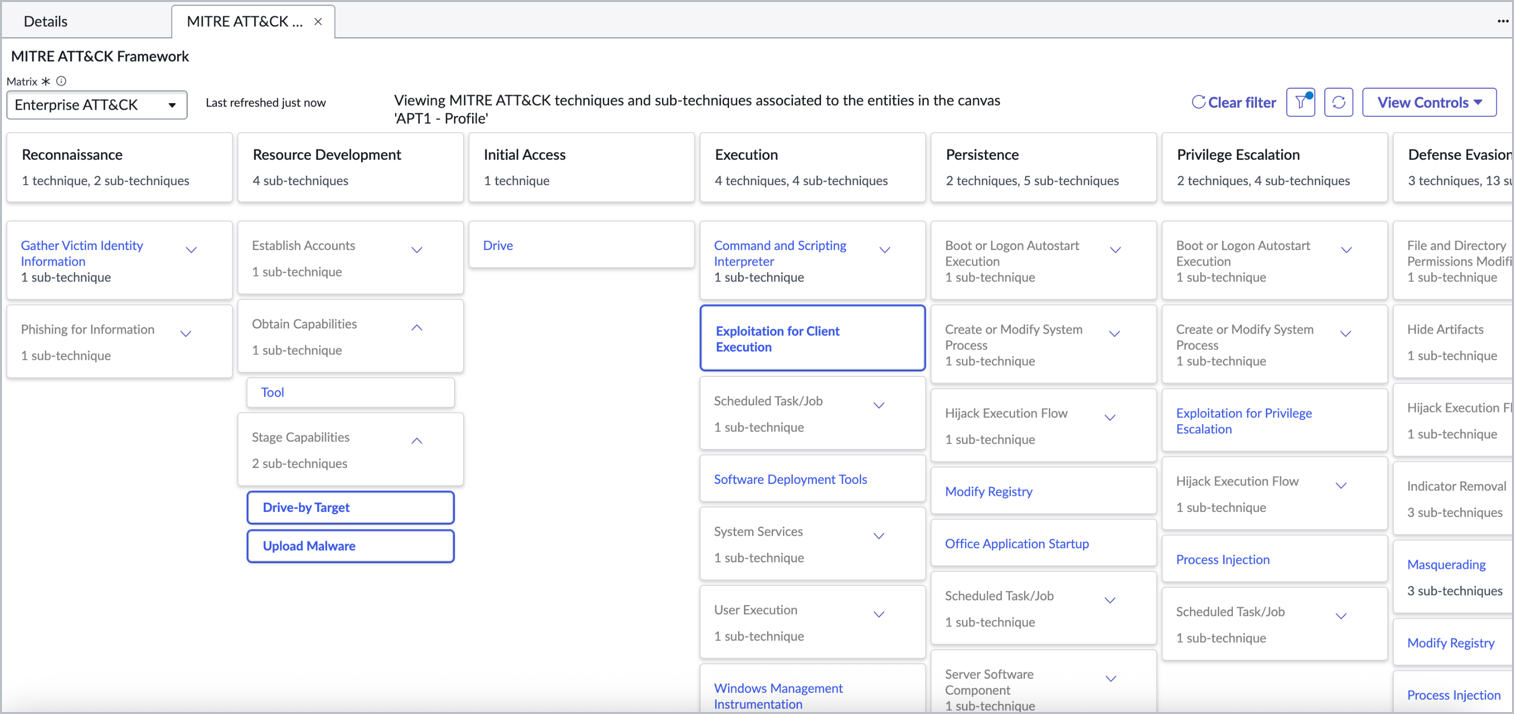

When you apply the filter, a few techniques in the matrix are displayed in blue text, while other techniques appear in gray.

The visual representation on the MITRE Framework indicates how techniques and sub-techniques relate to the applied filters and investigation context.

• Blue text: Techniques or sub-techniques shown in blue text indicate those that match the filter criteria.
• Blue text in bold with blue border: Techniques or sub-techniques displayed in bold blue text with a blue border indicate those that match the filter criteria and are associated with one or more nodes on the canvas.
• Gray card: Parent techniques are displayed in gray when they do not directly match the filter criteria (which means they are not linked to the selected group) but are shown to represent the parental relationship to linked sub-techniques that match the filter criteria.
