Overview
SG-Azure is part of ServiceNow developed Service Graph Connectors. The connector is built to simplify the onboarding setup and ease the integration with Azure with the minimum invasive principal. This article describes the concepts and setup of the Service Graph Connector for Azure.
Objectives of SG-Azure –
- Easy to setup
- Should be able to complement the ServiceNow Azure cloud discovery
- Pulls the software details from Azure VMs
- Mid server isn’t required to setup
Azure components and API used
Change Tracking and Inventory
Change Tracking Inventory feature tracks changes in virtual machines hosted in Azure, on-premises, and other cloud environments to help you pinpoint operational and environmental issues with software managed by the Distribution Package Manager
Change Tracking and Inventory natively tracks:
- Software changes
- Windows services
- Linux daemons
** Change Tracking and Inventory Overview
Enabling all features included in Change Tracking and Inventory might cause additional charges. Before proceeding, review Automation Pricing and Azure Monitor Pricing
Azure Graph API
Importing Hardware Cis from Azure
Azure Log Analytics
Log Analytics is a tool in the Azure portal to edit and run log queries from data collected by Azure Monitor logs and interactively analyze their results. We query Azure log analytics workspace to get software information.
Setup on Azure
**Icon source https://azure.microsoft.com/en-in/
Step 1: Create a service principal (i.e. the authentication mechanism)
Steps to register an app:
- Sign into the Azure portal.
- Search for and select Azure Active Directory.
- Under Manage, select App registrations > New registration.
- Enter a display Name for your application.
- Specify who can use the application.
- Select Register to complete the initial app registration.
- Click on the application and select ‘New client secret’
- Record the secret's value for use in your client application code. This secret value is never displayed again after you leave this page.
- Select API permissions.
- Assign ‘User.Read’ permission in Microsoft Graph API with type ‘Delegated’.
- Assign ‘Data.Read’ permission in Log Analytics API with type ‘Delegated’.
- Select Subscription and select IAM
- Add the application you have created.
Step 2: Create a Log Analytics Workspace
Created workspace for each region under each subscription and noted down the workspace id. Workspace id is required on guided setup for “Create connection for the software import”
Create a Workspace step and note down the workspace id.
Step 3: Create Automation Account
Steps for creating automation account for each region under each subscription
Step 4: Enable Change Tracking and Inventory from an Automation account
Step to enable change tracking
Authentication Flow

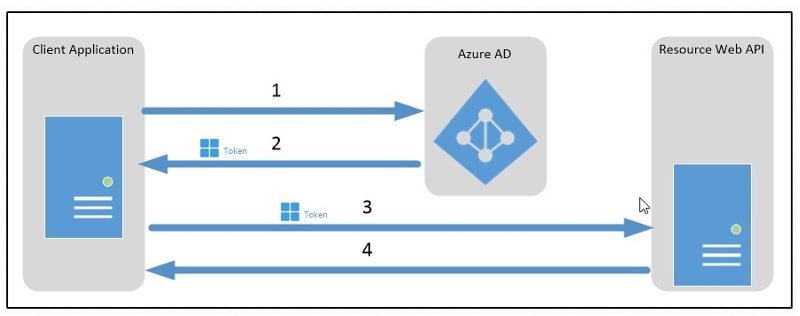

- The client application authenticates to the Azure AD token issuance endpoint and requests an access token.
- The Azure AD token issuance endpoint issues the access token.
- The access token is used to authenticate the secured resource.
- Data from the secured resource is returned to the client application.
Main flow
CI Classes
CI | Table | Azure Terminology |
Cloud Service Account | cmdb_ci_cloud_service_account | Subscriptions |
Logical Datacenter | cmdb_ci_logical_datacenter | Locations |
Availability Zone | cmdb_ci_availability_zone | Availability Sets |
Resource Group | cmdb_ci_resource_group | Resource Groups |
Cloud Network | cmdb_ci_network | Virtual Networks |
Cloud Subnet | cmdb_ci_cloud_subnet | Virtual Networks |
Storage Volume | cmdb_ci_storage_volume | Disks |
Compute Security Groups | cmdb_ci_compute_security_group | Network Security Groups |
Servers | cmdb_ci_server | Virtual Machines |
Virtual Server | cmdb_ci_vm_instance | Virtual Machines |
Hardware Type | cmdb_ci_compute_template | Virtual Machine Sizes |
Cloud Public IP Address | cmdb_ci_cloud_public_ipaddress | Public IP Address |
Cloud Mgmt Network Interfaces | cmdb_ci_nic | Network Interfaces |
Image | cmdb_ci_os_template | Image |
Cloud Storage Account | cmdb_ci_cloud_storage_account | Storage Accounts |
Cloud Load Balancer | cmdb_ci_cloud_load_balancer | Load Balancers |
Cloud LB Public IP Address | cmdb_ci_cloud_lb_ipaddress | Front End IP or Public IP Address |
Software | cmdb_ci_spkg | |
Software Instance | cmdb_software_instance | |
Software Installation | cmdb_sam_sw_install |
