DIFFICULTY LEVEL: INTERMEDIATE
Assumes good knowledge and/or familiarity of Orchestration, Workflows, and Scripting in ServiceNow. Assumes having taken the class SSNF and has good intermediate level of knowledge and/or familiarity with Scripting in ServiceNow.
Here is a quick tip on how to find out what exactly is in the context object available in a workflow. What's that you ask? What is a "context" object? Well it and the activity object are two useful objects created for every workflow by the ServiceNow platform only during run-time of the workflow. These objects are useful for a variety of reason. The most useful reason is for grabbing the names of the current context and activity to print out in the system log. Since there is no documentation on these I thought it might be useful to show how to "dump" the context object to garner what properties are available.
1. Create a new Workflow.
a. Name: CCS - Print Context Object
b. Table: Global

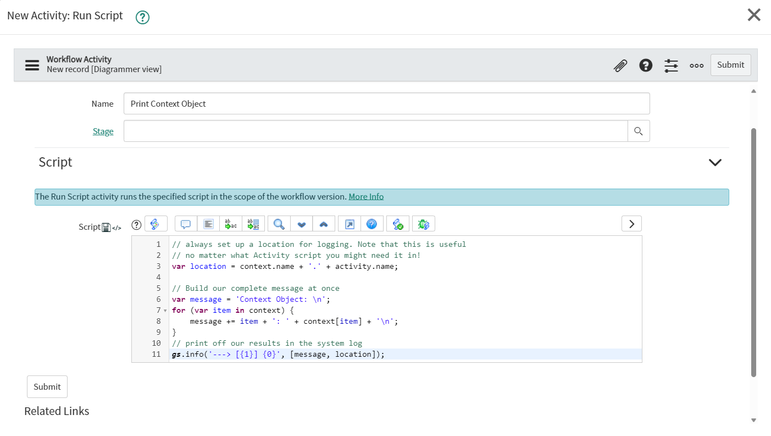

2. Drag out a Run Script Activity.
a. Name: Print Context Object
b. Script:
// always set up a location for logging. Note that this is useful
// no matter what Activity script you might need it in!
var location = context.name + '.' + activity.name;
// Build our complete message at once
var message = 'Context Object: \n';
for (var item in context) {
message += item + ': ' + context[item] + '\n';
}
// print off our results in the system log
gs.info('---> [{1}] {0}', [message, location]);

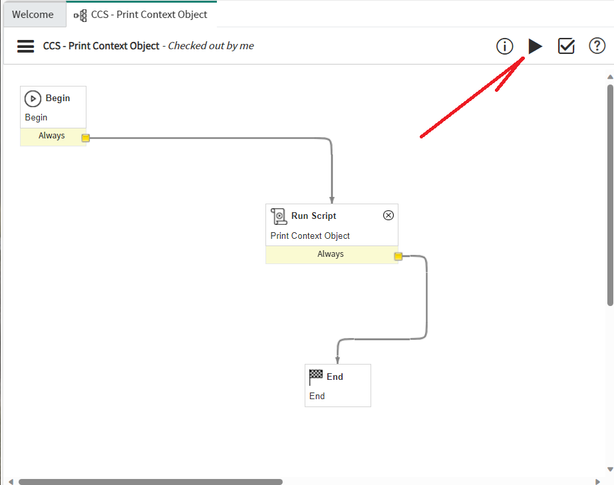

3. Now run the workflow.
4. Navigate to System Logs > System Log > All and search the Message column for "--->".
Your results should look like this:
---> [CCS - Print Context Object.Print Context Object] Context Object:
sys_meta: sys_meta
ert_outlier_workflow_actions: b69c7e18eb532100ec9a82810206fea4
parent:
return_value: {}
timezone:
sys_updated_on: 2023-12-16 19:17:17
cumulated_avg_ert: false
auto_start: false
result:
sys_id: 5d0ccd5f978f355091807f200153af9a
requires_ert: true
sys_updated_by: admin
scratchpad: {}
activity_count: 2
ert_long_running_actions: 51782761ac1464174baaeb9af4b9ae76,803b3c728f320100ec9a6441f0f923ef,b69c7e18eb532100ec9a82810206fea4
sys_created_on: 2023-12-16 19:17:17
sys_domain: global
stage_state:
without_current_wf_actions: 51782761ac1464174baaeb9af4b9ae76,b69c7e18eb532100ec9a82810206fea4
id: dd0ccd5f978f355091807f200153af9a
state: executing
column_renderer: a56213111b030100adca1e094f0713ac
started_by: 6816f79cc0a8016401c5a33be04be441
table: wf_workflow_execution
sys_created_by: admin
workflow: 814bc1df978f355091807f200153afe1
sys_mod_count: 1
active: true
started: 2023-12-16 19:17:17
sys_domain_path: /
sys_tags:
after_business_rules: false
workflow_version: d22b01df978f355091807f200153af57
parent_activity:
schedule:
stage:
due:
name: CCS - Print Context Object
ended:
running_duration:
activity_index: 2
Neat stuff, eh?! Extra information when working with ANY workflow is always useful!
A perusal of the various properties is well worth the study time. Let me draw your attention to the logging statements around the center of the dump. Kind of interesting. I will address how to pull out that kind of information in a better way in my next article.
BTW, you can repeat this exercise for the activity object as well.
Enjoy!
Steven Bell.
If you find this article helps you, don't forget to log in and mark it as "Helpful"!
Originally published on: 07-24-2018 12:17 PM
I updated the code, fixed broken links, and brought the article into alignment with my new formatting standard.
