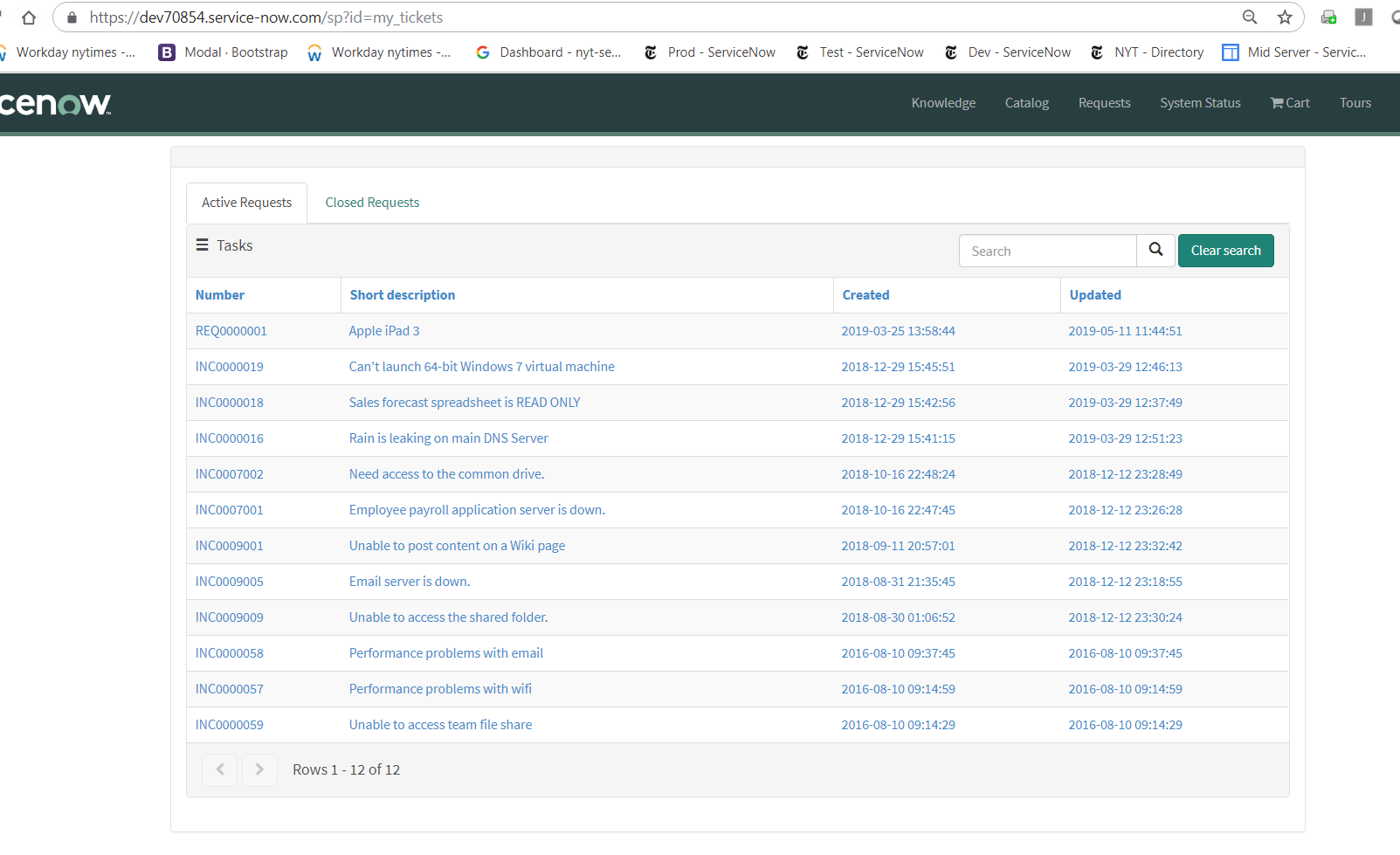

I saw few questions about on how to show end user their tickets that are INC and REQ on same widget so I decided to write this article.
1. Create new widget called Name: My Ticket and ID: my-tickets
HTML:
<sp-panel>
<uib-tabset>
<uib-tab index="0" heading="Active Requests" uib-tooltip="View all active requests that you opened or that were opened on your behalf."><sp-widget widget="data.all_active"></sp-widget></uib-tab>
<uib-tab index="1" heading="Closed Requests" uib-tooltip="View all closed requests that you opened or that were opened on your behalf."><sp-widget widget="data.all_closed"></sp-widget></uib-tab>
</uib-tabset>
</sp-panel>Server: (Change filter as you like)
(function(){
// Setup data tables
var activeFilter = 'sys_class_name=incident^state=1^ORstate=2^ORstate=4^ref_incident.caller_idDYNAMIC90d1921e5f510100a9ad2572f2b477fe^ORopened_byDYNAMIC90d1921e5f510100a9ad2572f2b477fe^NQactive=true^sys_class_name=sc_request^ref_sc_request.requested_forDYNAMIC90d1921e5f510100a9ad2572f2b477fe^ORopened_byDYNAMIC90d1921e5f510100a9ad2572f2b477fe';
var taskQueryFilter = 'short_descriptionLIKE{q}^ORnumberLIKE{q}^ORrequested_for.nameLIKE{q}^ORu_user.nameLIKE{q}^ORref_incident.caller_id.nameLIKE{q}^ORdescriptionLIKE{q}';
var all_active = {
"table": "task",
"view": "mobile",
"fields": "number,short_description,sys_created_on,sys_updated_on",
"show_keywords": true,
"show_breadcrumbs": false,
"o": "sys_created_on", // order_by
"filter": activeFilter,
"storef": activeFilter,
"query_filter": taskQueryFilter
};
var closedFilter = 'active=false^sys_class_name=incident^ORsys_class_name=sc_request';
var all_closed = {
"table": "task",
"view": "mobile",
"fields": "number,short_description,sys_created_on,sys_updated_on",
"show_keywords": true,
"show_breadcrumbs": false,
"o": "sys_created_on", // order_by
"filter": closedFilter,
"storef": closedFilter,
"query_filter": taskQueryFilter
};
data.all_active = $sp.getWidget("my_widget_data_table", all_active);
data.all_closed = $sp.getWidget("my_widget_data_table", all_closed);
// Look for any parameters for setting the active tab
data.tabName = $sp.getParameter('tab_focus') || 'all_active';
})();Client:
function ($scope, $location, $rootScope, $uibModal, spUtil, $http) {
var c = this;
this.filterText = "";
this.showFilter = false;
$scope.$on('data_table.click', function(event, mass) {
event.stopPropagation();
event.preventDefault();
$location.search('id', 'ticket');
$location.search('sys_id', mass.sys_id);
$location.search('table', mass.table);
});
}2. Create new widget called Name: My Data Table and ID: my_widget_data_table
HTML:
<div>
<div class="panel panel-{{options.color}} b">
<div class="panel-heading form-inline" ng-hide="options.hide_header">
<span class="dropdown m-r-xs">
<span class="dropdown-toggle glyphicon glyphicon-menu-hamburger" style="line-height: 1.4em" id="optionsMenu" data-toggle="dropdown" aria-haspopup="true" aria-expanded="true"></span>
<ul class="dropdown-menu" aria-labelledby="optionsMenu">
<li ng-repeat="t in ::exportTypes">
<a ng-href="/{{data.table}}_list.do?{{::t.value}}&sysparm_query={{data.filter}}&sysparm_view={{data.view}}" target="_new">${Export as} {{::t.label}}</a>
</li>
</ul>
</span>
<span class="panel-title"><i ng-if="options.glyph" class="fa fa-{{options.glyph}} m-r"></i>{{data.title || data.table_plural}}</span>
<button name="new" type="button" class="btn btn-primary btn-sm m-l-xs" ng-click="newRecord()" ng-if="options.show_new && data.canCreate && !data.newButtonUnsupported">${New}</button>
<div class="pull-right" ng-if="options.show_keywords">
<form ng-submit="setSearch(true)">
<div class="input-group">
<input type="text" name="datatable-search" ng-model="data.keywords" class="form-control" placeholder="${Search}">
<span class="input-group-btn">
<button name="search" class="btn btn-default" type="submit"><span class="glyphicon glyphicon-search"></span></button>
</span>
</div>
<button name="new" type="button" class="btn btn-primary" ng-click="clearSearch()">${Clear Search}</button>
</form>
</div>
<div class="clearfix"></div>
</div>
<!-- body -->
<div class="panel-body">
<div ng-if="options.show_breadcrumbs && data.filter" class="filter-breadcrumbs">
<sp-widget widget="data.filterBreadcrumbs"></sp-widget>
</div>
<div class="alert alert-info" ng-if="!data.list.length && !data.num_pages && !data.invalid_table && !loadingData">
${No records in {{data.table_label}} <span ng-if="data.filter">using that filter</span>}
</div>
<div class="alert alert-info" ng-if="loadingData">
<fa name="spinner" spin="true"></fa> ${Loading data}...
</div>
<table class="table table-striped table-responsive" ng-if="data.list.length">
<thead>
<tr>
<th ng-repeat="field in data.fields_array track by $index" ng-click="setOrderBy(field)">
<div class="th-title">{{data.column_labels[field]}}</div>
<i class="fa" ng-if="field == data.o" ng-class="{'asc': 'fa-chevron-up', 'desc': 'fa-chevron-down'}[data.d]"></i>
</th>
</tr>
</thead>
<tbody>
<tr ng-repeat="item in data.list track by item.sys_id">
<td class="pointer" ng-class="{selected: item.selected}" ng-click="go(data.table, item)" ng-repeat="field in data.fields_array" data-field="{{field}}" data-th="{{data.column_labels[field]}}">{{item[field].display_value}}</td>
</tr>
</tbody>
</table>
<div ng-class="{'pruned-msg-filter-pad': (!options.show_breadcrumbs || !data.filter) && !data.list.length}" class="pruned-msg" ng-if="rowsWerePruned()">
<span ng-if="rowsPruned == 1">${{{rowsPruned}} row removed by security constraints}</span>
<span ng-if="rowsPruned > 1">${{{rowsPruned}} rows removed by security constraints}</span>
</div>
</div>
<!-- footer -->
<div class="panel-footer" ng-hide="options.hide_footer" ng-if="data.row_count">
<div class="btn-toolbar m-r pull-left">
<div class="btn-group">
<a ng-disabled="data.p == 1" href="javascript:void(0)" ng-click="setPageNum(data.p - 1)" class="btn btn-default"><i class="fa fa-chevron-left"></i></a>
</div>
<div ng-if="data.num_pages > 1 && data.num_pages < 20" class="btn-group">
<a ng-repeat="i in getNumber(data.num_pages) track by $index" ng-click="setPageNum($index + 1)" href="javascript:void(0)" ng-class="{active: ($index + 1) == data.p}" type="button" class="btn btn-default">{{$index + 1}}</a>
</div>
<div class="btn-group">
<a ng-disabled="data.p == data.num_pages" href="javascript:void(0)" ng-click="setPageNum(data.p + 1)" class="btn btn-default"><i class="fa fa-chevron-right"></i></a>
</div>
</div>
<div class="m-t-xs panel-title">${Rows {{data.window_start + 1}} - {{ mathMin(data.window_end,data.row_count) }} of {{data.row_count}}}</div>
<span class="clearfix"></span>
</div>
</div>
</div>CSS:
.panel-heading {
padding-left: 8px;
}
thead {
border-bottom: 1px solid #ddd;
}
table {
margin-bottom: 0;
}
.table > thead > tr > th {
border: 1px solid #ddd;
cursor: pointer;
vertical-align: middle;
&:first-child {
border-left: none;
}
&:last-child {
border-right: none;
}
}
th i {
display: inline-block;
margin-left: 5px;
color: #A0A0A0;
}
th .disabled{
color:#ddd;
}
.th-title {
display: inline-block;
color: #428bca;
}
.panel-body {
overflow: auto;
padding: 0px;
}
.selected {
color: #fff;
background-color: #909090;
border-color: 1px solid #fff;
}
tbody tr:last-child {
border-bottom: none;
}
.pruned-msg {
padding-bottom: 10px;
padding-left: 4px;
text-align: center;
}
.pruned-msg-filter-pad {
padding-top:8px;
}
.filter-breadcrumbs {
border-bottom: 1px solid #ddd;
padding-top: 3px;
}
Server:
(function() {
if (!input) // asynch load list
return;
data.title = options.title || input.title;
/*
* data.table = the table
* data.p = the current page starting at 1
* data.o = the order by column
* data.d = the order by direction
* data.keywords = the keyword search term
* data.list = the table data as an array
* data.invalid_table = true if table is invalid or if data was not succesfully fetched
* data.table_label = the table's display name. e.g. Incident
* data.table_plural = the table's plural display name. e.g. Incidents
* data.fields = a comma delimited list of field names to show in the data table
* data.column_labels = a map of field name -> display name
* data.window_size = the number of rows to show
* data.filter = the encoded query
* data.query_filter = encoded query template to use when searching this table
*/
// copy to data[name] from input[name] || option[name]
optCopy(['table', 'p', 'o', 'd', 'filter', 'filterACLs', 'fields', 'keywords', 'view']);
optCopy(['relationship_id', 'apply_to', 'apply_to_sys_id']);
optCopy(['query_filter']); // NYT Custom: Allow custom query
if (!data.table) {
data.invalid_table = true;
data.table_label = "";
return;
}
if (!data.fields) {
if (data.view)
data.fields = $sp.getListColumns(data.table, data.view);
else
data.fields = $sp.getListColumns(data.table);
}
data.view = data.view || 'mobile';
data.table = data.table || $sp.getValue('table');
data.filter = data.filter || $sp.getValue('filter');
data.keywords = data.keywords || $sp.getValue('keywords');
data.textSearch = data.textSearch || ($sp.getValue('text_search') == 'true');
data.query_filter = data.query_filter || $sp.getValue('keywords') || '';
data.p = data.p || $sp.getValue('p') || 1;
data.p = parseInt(data.p);
data.o = data.o || $sp.getValue('o') || $sp.getValue('order_by');
data.d = data.d || $sp.getValue('d') || $sp.getValue('order_direction');
data.window_size = data.window_size || $sp.getValue('maximum_entries') || 20;
data.page_index = data.p - 1;
data.show_new = data.show_new || options.show_new;
/*
| Custom data property to store if a session is encrypted
| Used in navigation decisions to redirect or not
|
*/
data.isEncryptedSession = gs.isEdgeEncryptedSession();
var gr;
if (gs.getProperty("glide.security.ui.filter") == "true" || GlideTableDescriptor.get(data.table).getED().hasAttribute("glide.security.ui.filter")) {
gr = new FilteredGlideRecord(data.table);
gr.applyRowSecurity();
} else
gr = new GlideRecordSecure(data.table);
if (!gr.isValid()) {
data.invalid_table = true;
data.table_label = data.table;
return;
}
data.canCreate = gr.canCreate();
data.newButtonUnsupported = data.table == "sys_attachment";
data.table_label = gr.getLabel();
data.table_plural = gr.getPlural();
if (data.filter) {
if (data.filterACLs)
gr = $sp.addQueryString(gr, data.filter);
else
gr.addEncodedQuery(data.filter);
}
if (data.keywords){
data.queryString = data.query_filter.replace(/\{q\}/g, data.keywords);
gr.addEncodedQuery(data.queryString);
}
//data.filter = gr.getEncodedQuery();
if (data.relationship_id) {
var rel = GlideRelationship.get(data.relationship_id);
var target = new GlideRecord(data.table);
var applyTo = new GlideRecord(data.apply_to);
applyTo.get("sys_id", data.apply_to_sys_id);
rel.queryWith(applyTo, target); // put the relationship query into target
gr.addEncodedQuery(target.getEncodedQuery()); // get the query the relationship made for us
}
if (data.o){
if (data.d == "asc")
gr.orderBy(data.o);
else
gr.orderByDesc(data.o);
}
data.window_start = data.page_index * data.window_size;
data.window_end = (data.page_index + 1) * data.window_size;
gr.chooseWindow(data.window_start, data.window_end);
gr._query();
data.row_count = gr.getRowCount();
data.num_pages = Math.ceil(data.row_count / data.window_size);
data.column_labels = {};
data.fields_array = data.fields.split(',');
// use GlideRecord to get field labels vs. GlideRecordSecure
var grForLabels = new GlideRecord(data.table);
for (var i in data.fields_array) {
var field = data.fields_array[i];
var ge = grForLabels.getElement(field);
if (ge == null)
continue;
data.column_labels[field] = ge.getLabel();
}
data.list = [];
while (gr._next()) {
var record = {};
$sp.getRecordElements(record, gr, data.fields);
if (gr instanceof FilteredGlideRecord) {
// FilteredGlideRecord doesn't do field-level
// security, so take care of that here
for (var f in data.fields_array) {
var fld = data.fields_array[f];
if (!gr.isValidField(fld))
continue;
if (!gr[fld].canRead()) {
record[fld].value = null;
record[fld].display_value = null;
}
}
}
record.sys_id = gr.getValue('sys_id');
record.table = gr.getValue('sys_class_name');
data.list.push(record);
}
var breadcrumbWidgetParams = { table: data.table, query: data.filter };
data.filterBreadcrumbs = $sp.getWidget('widget-filter-breadcrumbs', breadcrumbWidgetParams);
// copy to data from input or options
function optCopy(names) {
names.forEach(function(name) {
data[name] = input[name] || options[name];
})
}
})();Client:
function ($scope, $location, spUtil, amb, $http) {
var c = this;
/*
* options:
* hide_footer (bool) = true to remove the data table footer contents
* hide_header (bool) = true to remove the data table header contents
* show_new (bool) = true to show the "New" record button
* show_keywords (bool) = true to show the keyword search field
* table (string) = the table name to query
* filter (string) = the encoded query
* o (string) = the order by column
* d (string) = The order by direction: asc or desc
* p (int) = the page to jump to
* fields (string) = comma seperated list of fields that become the list columns
* view (string) = the default view to load for columns, overrides fields
*/
$scope.clearSearch = function(){
$scope.data.filter = $scope.data.storef;
$scope.data.keywords = null;
$scope.setSearch(true);
};
$scope.exportTypes = [{label:'PDF', value: 'PDF'}, {label:'Excel', value:'EXCEL'}, {label:'CSV', value:'CSV'}];
var keys = ['table', 'filter', 'p', 'o', 'd'];
var eventNames = {
click: 'data_table.click',
setFilter: 'data_table.setFilter',
setKeywords: 'data_table.setKeywords'
};
$scope.go = function(table, item) {
var parms = {};
parms.table = item.table || table;
parms.sys_id = item.sys_id;
parms.record = item;
parms.isEncryptedSession = c.data.isEncryptedSession;
$scope.ignoreLocationChange = true;
for (var x in c.data.list) {
c.data.list[x].selected = false;
}
item.selected = true;
$scope.$emit(eventNames.click, parms);
};
$scope.newRecord = function(){
var parms = {
id: 'form',
table: $scope.data.table,
sys_id: '-1'
};
if ($scope.data.filter != '')
parms.query = $scope.data.filter;
$location.search(parms);
};
function recoverStateFromUrl() {
$scope.data.fields = [];
var s = $location.search();
for (var x in keys) {
if (s[keys[x]]) {
$scope.data[keys[x]] = s[keys[x]];
}
}
$scope.server.update().then(function(data) {
if (s.sys_id) {
for (var x in data.list) {
if (data.list[x].sys_id == s.sys_id) {
$scope.go(s.table, data.list[x]);
}
}
}
});
}
if ($scope.options.fromUrl) {
$scope.$on('$locationChangeSuccess', function(e) {
if ($scope.ignoreLocationChange){
$scope.ignoreLocationChange = false;
return;
}
// Helps to recover state when using the browser's back button
recoverStateFromUrl();
});
}
$scope.getNumber = function(num) {
return new Array(num);
}
$scope.mathMin = function(v1,v2) {
return Math.min(v1,v2);
}
function getData(updateUrl) {
var f = $scope.data;
spUtil.update($scope).then(function(data) {
f.view = data.view;
if ($scope.options.fromUrl && updateUrl)
setPermalink(f.table, f.filter, f.o, f.d, f.p);
if ($scope.options.show_breadcrumbs && data.filterBreadcrumbs)
$scope.$broadcast('widget-filter-breadcrumbs.setBreadcrumbs', data.filterBreadcrumbs.data);
initRecordWatcher(f.table, f.filter);
});
}
function setPermalink(table, filter, orderBy, orderDirection, page){
$scope.ignoreLocationChange = true;
var search = $location.search();
angular.extend(search, {
spa: 1,
table: table,
filter: filter,
p: page,
o: orderBy,
d: orderDirection
});
$location.search(search);
}
var watcher;
function initRecordWatcher(table, filter){
if (watcher)
watcher.unsubscribe();
if (table && filter) {
var watcherChannel = amb.getChannelRW(table, filter);
amb.connect();
watcher = watcherChannel.subscribe(function() {
spUtil.update($scope)
});
}
}
$scope.setPageNum = function(num) {
$scope.data.p = num;
getData(true);
}
$scope.setOrderBy = function(field) {
var d = "asc";
if ($scope.data.o == field) {
if ($scope.data.d == "asc")
d = "desc";
else
d = "asc";
}
$scope.data.o = field;
$scope.data.d = d;
$scope.setSearch(true);
}
$scope.setSearch = function(updateUrl) {
$scope.data.p = 1;
getData(updateUrl);
}
$scope.$on(eventNames.setFilter, function(e, newFilter){
$scope.data.filter = newFilter;
$scope.setSearch(false);
});
$scope.$on(eventNames.setKeywords, function(e, keywords){
$scope.data.keywords = keywords;
$scope.setSearch(false);
});
$scope.$on('widget-filter-breadcrumbs.queryModified', function(e, newFilter){
$scope.data.filter = newFilter;
$scope.setSearch(true);
});
$scope.rowsWerePruned = function() {
if (!$scope.data.list)
return;
$scope.rowsPruned = $scope.mathMin($scope.data.window_end,$scope.data.row_count) - $scope.data.window_start - $scope.data.list.length;
return $scope.rowsPruned > 0;
}
$scope.showFilter = function() {
return !$scope.data.list.length && !$scope.data.num_pages && !$scope.data.invalid_table && !$scope.loadingData;
}
c.appendQuery = function(query){
if ($scope.data.filter.length > 1)
$scope.data.filter += '^';
$scope.data.filter += query;
$scope.setSearch();
}
// Makes Widget Async
var title = $scope.data.title;
if ($scope.options.use_instance_title == 'true')
title = $scope.options.title;
$scope.data = $scope.options;
$scope.loadingData = true;
$scope.server.update().then(function() {
if ($scope.data.newButtonUnsupported)
console.log("Service Portal: New button not supported for sys_attachment list");
$scope.loadingData = false;
$scope.data.title = title;
initRecordWatcher($scope.data.table, $scope.data.filter);
});
function parseQuery(table, queryString){
return $http.post('/api/now/sp/parsequery/' + table, queryString).then(function(response){
return response.data.result;
});
}
c.createQueryTerm = function(table, field, sys_id, operator){
return $http.get('/api/now/sp/getInOutQueryTerm', {
params: {
table: table,
sys_id: sys_id,
field: field,
operator: operator
}
}).then(function(response){
if (response && response.data && response.data.result)
return response.data.result.parts;
});
}
c.showMatching = function(field, newTerm) {
var queryString = $scope.data.filter;
var eq = "";
parseQuery($scope.data.table, queryString).then(function(oldTerms) {
for(var i=0; i<oldTerms.length; i++){
var term = oldTerms[i];
if (isSameField(newTerm, term))
continue;
if (eq.length)
eq += '^';
eq += getEncodedTerm(term);
}
if (eq.length)
eq += '^';
eq += getEncodedTerm(newTerm);
$scope.data.filter = eq;
$scope.setSearch();
});
};
c.filterOut = function(field, newTerm) {
var eq = $scope.data.filter;
if (eq.length)
eq += '^';
eq += getEncodedTerm(newTerm);
$scope.data.filter = eq;
$scope.setSearch();
};
function isSameField(t1, t2) {
if ('left' in t1 && 'left' in t2)
return t1.left.field === t2.left.field;
else if ('left' in t1)
return t1.left.field === t2.field;
else if ('left' in t2)
return t1.field === t2.left.field;
return t1.field === t2.field;
}
function getEncodedTerm(term) {
var eq;
if (term.left) {
eq = getEncodedTerm(term.left);
eq += '^OR';
eq += getEncodedTerm(term.right);
} else {
eq = term.field;
eq += term.operator;
eq += term.value;
}
return eq;
}
}
3. Create new page called Name: My Tickets and ID: my_tickets
Final Result:
Bonus: (Add link in header)
got to sp_rectangle_menu_item.list and click on New and make it same as below
I tried to modify Font, background , lenth of backcolour for "My Watched Items" same like as "My Approvals" showing in below screenshot , i try to modify in "my-tickets" widget and "my_widget_data_table" widget CSS code , but no luck 😞
Kindly help me the code for the same
Are you trying to change the My watched Items label color from white to some another color?
Like below
Css
.nav-tabs > li.active > a, .nav-tabs > li.active > a:hover, .nav-tabs > li.active > a:focus {
color: red;
background-color: limegreen;
border: 1px solid #ddd;
border-bottom-color: transparent;
cursor: default;
}Hi Mike,
Thanks alot for your help , this widget output looks like "Box under box" but the image should like "my approval" single box. Request you please help on this.
If you want to add Title like below then you have to do it on widget instance.
Add Title
i want to see same like "My Approval" , but my watched list appears like Box under one more box . Kindly help me to appear as single box same like my approval.
i dont want table for Active request or closed requests , i want see records directly , i can see another table under page ,
example like below screenshot
Kindly alter code can see like below only
Hi Mike -
Great article, it was very helpful!
How would we get rid of the text 'Tasks' next to the hamburger icon for the export types?
Also, how can we edit the text when there are no records found?
Hi @Mike Patel
I have created widgets as you mentioned but for me getting like mentioned in the screen shot could you please let me know why I am not getting list view
@Mike Patel Thanks for this awesome code.
@Sumanth Now @Herin D
I managed to activate the filter widget. As Mike Patel mentioned in his posts, the filter is getting visible for end users by that. But that's another story.
I mainly used parts of the OOB Widget "Data Table" to enhance the code.
Here is the solution:
In the "My Data Table" widget
1. HTML
replace this part
<div ng-if="options.show_breadcrumbs && data.filter" class="filter-breadcrumbs">
<sp-widget widget="data.filterBreadcrumbs"></sp-widget>
</div>​with this
<div ng-if="options.show_breadcrumbs && (data.filter || data.enable_filter)" class="filter-breadcrumbs">
<sp-widget widget="data.filterBreadcrumbs"></sp-widget>
</div>
2. Server Script
replace lines 151 & 152
var breadcrumbWidgetParams = { table: data.table, query: data.filter,enable_filter: data.enable_filter};
data.filterBreadcrumbs = $sp.getWidget('widget-filter-breadcrumbs', breadcrumbWidgetParams);​with this
data.enable_filter = (input.enable_filter == true || input.enable_filter == "true" ||
options.enable_filter == true || options.enable_filter == "true");
var breadcrumbWidgetParams = {
table: data.table,
query: data.filter,
enable_filter: data.enable_filter
};
data.filterBreadcrumbs = $sp.getWidget('widget-filter-breadcrumbs', breadcrumbWidgetParams);​
In the "My Tickets" widget
1. Server Script
In the options for the tabs - change "show_breadcrumbs" to true and add
"enable_filter": true,​so it looks like this:
var all_active = {
"table": "task",
"view": "mobile",
"fields": "number,short_description,sys_created_on,sys_updated_on",
"show_keywords": true,
"show_breadcrumbs": true,
"enable_filter": true,
"o": "sys_created_on", // order_by
"filter": activeFilter,
"storef": activeFilter,
"query_filter": taskQueryFilter
};​
Result: (showing the default "activeFilter" of the widget - better change it when using this)
