Adding the callers phone number to a link to call on click

[Moedeb]

I want to be able to add a link next to the caller field on for example the Incident form, so when someone clicks on it the phone call will auto launch in our softphone.

I have already proven that if I have a link like this:

<a href="tel:5550080148">Call us at 555-008-0148</a>

The softphone will launch and try to call the number given, so what I'm looking for is how to auto populate the current callers phone number into the link eg:

<a href="tel:[current.sys_user.phone]">Call us at 555-008-0148</a>

Ideas?

[Moedeb]

@Ankur Bawiskar

I have left the macros overnight and still have the same issue, also have tried it in a different instance and have the same issue.

I have also found another macro that adds a link to Microsoft Teams that adds the button next to the others that are already there, but I certainly lack the understanding to use that to make the telephone button do the same thing.

I'm wondering if the fact each of the macros I'm trying to use have the same variables and are acting in the same form and therefore causing issues with each other? Like I said I really don't understand all of this.

Here is the code I found for the Teams button/link, hoping this helps?

<?xml version="1.0" encoding="utf-8" ?>
<j:jelly trim="false" xmlns:j="jelly:core" xmlns:g="glide" xmlns:j2="null" xmlns:g2="null">
<g:evaluate var="jvar_guid" expression="gs.generateGUID(this);" />
<j:set var="jvar_n" value="send_teams_msg${jvar_guid}:${ref}"/>

<a class="ref-button btn btn-default btn-ref" style="padding:5px 6px 7px; visibility:hidden;" id="${jvar_n}" onclick="openLink('${ref}');">
	<img border="0" src="Microsoft_Teams_16x16.png" title="${gs.getMessage('Message with Microsoft Teams')}" alt="${gs.getMessage('Message with Microsoft Teams')}" />
</a>

<script>
function onChange_field(element, original, changed, loading) {
	var visibility = 'hidden';
	if (changed.length > 0)
		visibility = 'visible';

	var e = gel('${jvar_n}');
	e.style.visibility = visibility;
}

function openLink(ref) {
	var email = g_form.getReference(ref.split('.')[1]).email;
   var url =  'msteams:/l/chat/0/0?users=';
   url += email;
url += '$[AMP]topicname=Chat';
   window.open(url, "_blank");
}

        var a = ['incident', 'change_request', 'problem'];
        for (i = 0; i &amp;lt; a.length; i++) {
            var h = new GlideEventHandler('onChange_' + a[i] + 'field', onChange_field, '${ref}');
            g_event_handlers.push(h);
        }
</script>
</j:jelly>

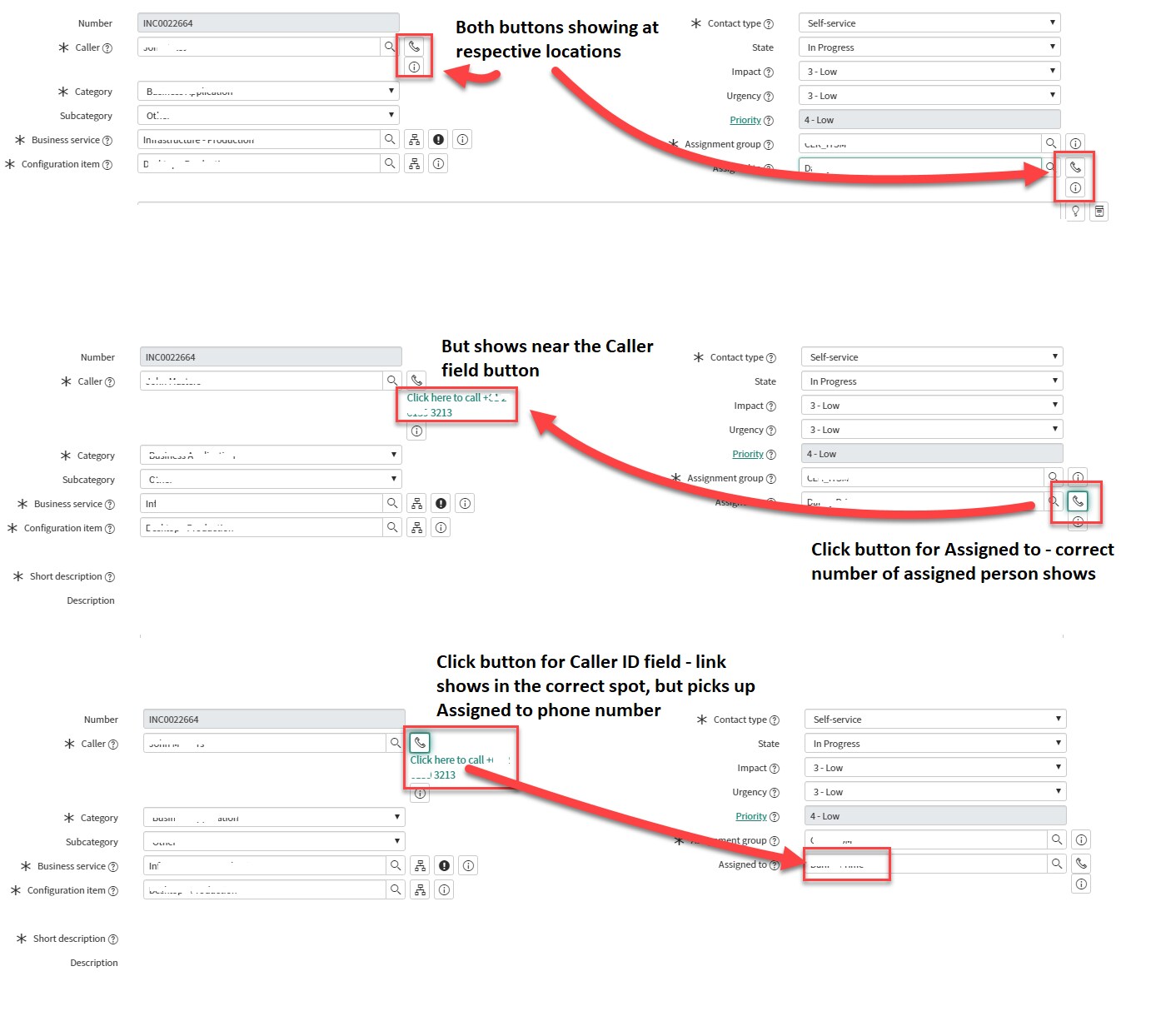

Also I have some screenshots that hopefully show what I'm having as an issue.

[Ankur Bawiskar]

Hi,

Did you use the caller_id.phone in the script?

var phone = g_form.getReference('caller_id').phone;

Regards
Ankur

[Moedeb]

Yes sorry I meant to include my macros script so you can see what I've done:

Assigned to:

<?xml version="1.0" encoding="utf-8" ?>
<j:jelly trim="false" xmlns:j="jelly:core" xmlns:g="glide" xmlns:j2="null" xmlns:g2="null">

	<g:evaluate var="jvar_guid" expression="gs.generateGUID(this);" />
	<j:set var="jvar_n" value="show_incidents_${jvar_guid}:${ref}"/>
	<g:reference_decoration id="${jvar_n}" field="${ref}"
							onclick="showRelatedList('${ref}'); "
							title="${gs.getMessage('Call phone')}" image="images/icons/tasks.gifx" icon="icon-phone"/>

	<div id="myDiv"></div>

	<script>
		function showRelatedList(reference) {
		var phone = g_form.getReference('assigned_to').phone;
		var url = 'tel:' + phone;
		var mydiv = document.getElementById("myDiv");
		var aTag = document.createElement('a');
		aTag.setAttribute('href',url);
		aTag.innerText = "Click here to call " + phone;
		mydiv.appendChild(aTag);
		}
	</script>


</j:jelly>

Caller ID:

<?xml version="1.0" encoding="utf-8" ?>
<j:jelly trim="false" xmlns:j="jelly:core" xmlns:g="glide" xmlns:j2="null" xmlns:g2="null">

	<g:evaluate var="jvar_guid" expression="gs.generateGUID(this);" />
	<j:set var="jvar_n" value="show_incidents_${jvar_guid}:${ref}"/>
	<g:reference_decoration id="${jvar_n}" field="${ref}"
							onclick="showRelatedList('${ref}'); "
							title="${gs.getMessage('Call phone')}" image="images/icons/tasks.gifx" icon="icon-phone"/>

	<div id="myDiv"></div>

	<script>
		function showRelatedList(reference) {
		var phone = g_form.getReference('caller_id').phone;
		var url = 'tel:' + phone;
		var mydiv = document.getElementById("myDiv");
		var aTag = document.createElement('a');
		aTag.setAttribute('href',url);
		aTag.innerText = "Click here to call " + phone;
		mydiv.appendChild(aTag);
		}
	</script>


</j:jelly>

And for the assigned to dictionary entry I have:

ref_contributions=assgn_phone

And for the caller id dictionary entry I have:

ref_contributions=caller_link

[Ankur Bawiskar]

Hi,

So are you saying it is working fine and picking the phone of 1 user and not for other

Regards
Ankur

[Moedeb]

Yes.

If there is only one macro being used it always works as expected for the field it's added to.

If it has both fields enable with their respective macros it appears to always pick up the assigned to field, but shows the link up at the caller id field.
