ADFS Saml sso Login issue

[mehak1890]

Dear All,

I have configured ADFS/ SAML in ServcieNow as per this videoHow to Configure ADFS 2.0 to Communicate with SAML 2.0 - YouTube

In Last during testing, Test the ADFS configuration

https://adfs.abc.com/adfs/ls/idpinitiatedsignon.aspx

its first ask me to select identifier which i configured in ADFS, afterthat its asked me to enter credentials and after that I navigated to ServcieNow instance.

Next step, i changed the setting as per documentation, "Enable external authentication" in SAML servcienow properties and logout and login again.

Now, when customer hitting https://adfs.abc.com/adfs/ls/idpinitiatedsignon.aspx   url and entering AD login details then he is able to navigate servcienow instance. And when he is hitting direct servcienow url then page is coming totally blank page.

I'm also facing same issue, SSO means servcienow instance page directly opened without credentials, but its not.

Pls pls help its very urgent.

Thanks,

Mehak

[corina]

Your error is

Could not extract Subject NameID from SAMLResponse.

You will need to check the following:

Confirm that IdP is returning the required NameID element in the SAMLResponse.

Within the SAMLResponse XML, it should contain something like the following: <saml:NameID Format="urn:oasis:names:tc:SAML:1.1:nameid-format:emailAddress" NameQualifier="http://idp.ssocircle.com" SPNameQualifier="https://dloomac.service-now.com/navpage.do">david.loo@service-now.com</saml:NameID>

[mehak1890]

Hi Corina,

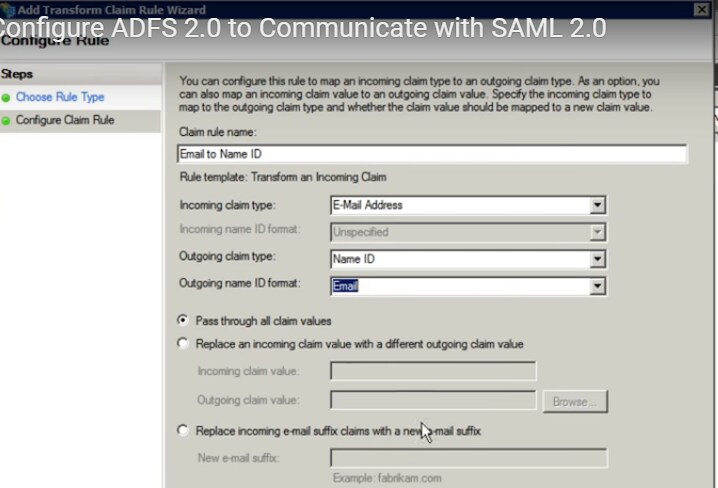

I have added this in transform claim rule type wizard as per ServcieNow video guidelines, so should i removed/ edit this if no name id?

[corina]

On the ADFS side I am not sure what it should be. You could test with all scnearios you have there.

On ServiceNow you could try with unspecified instead of email adress here:

[mehak1890]

I'm getting this error on home page, Could not extract Subject NameID from SAMLResponse

[mehak1890]

Hi Corina/ All,

Urgent Help!

During debugging, i changed unspecified instaed of emailAddess.

Now i'm not able to open Servicenow instance, through https://adfs.abc.com/adfs/ls/idpinitiatedsignon.aspx I was trying but now m entring user name and password then its saying that error is user ******not found and logout successful window is coming, how i can open my servicenow instance.

pls pls help.

https://adfs.hes.scot/adfs/ls/idpinitiatedsignon.aspx
