Approval Notification

dev_K
Tera Contributor

Hello,



I m trying to understand this OOB notification. Any ideas when it is triggered and what it does exactly?






4 REPLIES 4

Dr Atul G- LNG
Tera Patron
Tera Patron

Hi @dev_K



This email is trigger based on event. For that you need to go in event registery and there you can get further details.

*************************************************************************************************************
If my response proves useful, please indicate its helpfulness by selecting " Accept as Solution" and " Helpful." This action benefits both the community and me.

Regards
Dr. Atul G. - Learn N Grow Together
ServiceNow Techno - Functional Trainer
LinkedIn: https://www.linkedin.com/in/dratulgrover
YouTube: https://www.youtube.com/@LearnNGrowTogetherwithAtulG
Topmate: https://topmate.io/atul_grover_lng [ Connect for 1-1 Session]

****************************************************************************************************************

Manikanta Kota
Mega Guru

When to Send:
Send when: This specifies the condition that must be met for the notification to be sent. For example, it could be when a specific event is fired, such as “request.item.approved” or “event.is_canceled”.
Advanced condition: This allows for more complex conditions using scripts. You can use global variables like current (the current record) and event (the event that triggered the notification) to define when the notification should be sent.
Who Will Receive:
This section defines the recipients of the notification. It can include specific users, groups, or roles within the organization.
What It Will Contain:
This section details the content of the notification, including the subject, message body, and any attachments. You can use templates and variables to customize the content dynamically based on the event and record data.
When Notifications are Triggered
Notifications in ServiceNow are triggered based on the conditions specified in the “When to Send” section. Here are some common scenarios:

Event-based triggers: Notifications can be sent when specific events occur, such as the approval of a request or the cancellation of an event. For example, if the event name is “request.item.approved”, the notification will be sent when a request item is approved.
Condition-based triggers: Using the advanced condition script, you can define more complex conditions that must be met for the notification to be sent. This could include changes in field values, specific system properties, or other criteria.
Example
Let’s say you have a notification configured to send an email when a catalog approval request is approved. The configuration might look like this:

Send when: Event is fired
Event name: request.item.approved
Conditions: (Optional) Additional filter conditions can be added to further refine when the notification is sent.
In this case, whenever a catalog approval request is approved, the notification will be triggered, and the specified recipients will receive the email with the defined content.

SN_Learn
Kilo Patron
Kilo Patron

Hi @dev_K ,

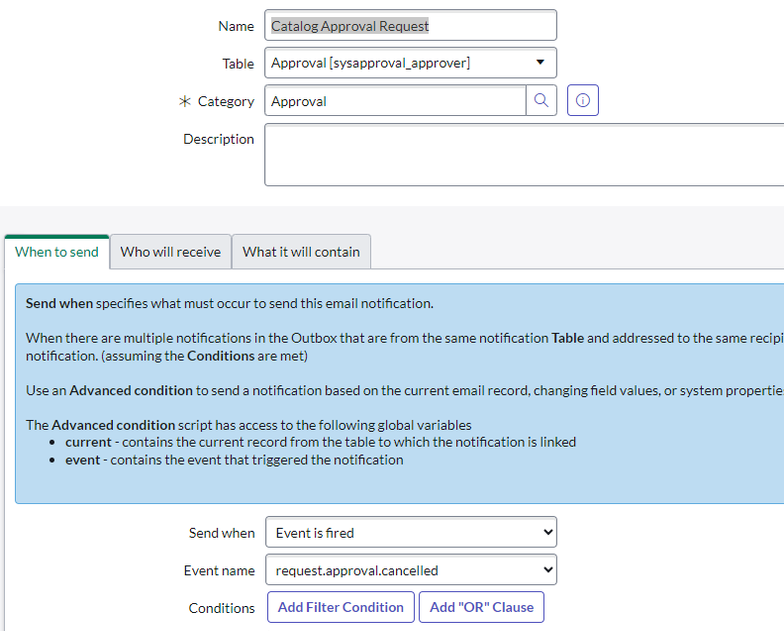

The event is triggered by a Business Rule: 'Approval Events (Task)'

URLhttps://<your_instance_name>.service-now.com/sys_script.do?sys_id=aea34678c61122710151b1b7fdf65762&s...



This business rule runs on the [sysapproval_approver] table after insert/update.

In script, you will see the event is triggered when the Approval record's state changes and is cancelled then the event is triggered:




which results in triggering of the notification that you have shared. The notification is notifying that the Approval has been cancelled.



Mark this as Helpful / Accept the Solution if this helps





----------------------------------------------------------------
Mark this as Helpful / Accept the Solution if this helps.

Hi @dev_K ,



Thanks for marking as helpful. Please mark accept it as a solution if it resolved your query.

----------------------------------------------------------------
Mark this as Helpful / Accept the Solution if this helps.
