ATFのSuite Schedule の設定項目[Run]の各選択肢の挙動について

Suyong
Giga Expert

ATFのSuite Schedule の設定項目[Run] に設定できる選択肢の内、Test Suiteがどのように実行されるのか
よくわからないものあります

1. Periodically
    [Repeat Interval] を Days, Hours を指定することができますが、指定したDays, Hours の間隔で繰り返し

 実行される、で認識合ってますでしょうか?



2. Once
 1回のみ実行する、ということは分かったのですが、この場合、Suiteが実行されるトリガは何でしょうか?



3. Ondemand
 [Ondemand]を選択した場合、Suiteを実行するトリガは、何でしょうか?

4. Business Calender:Entry Start

5. Business Calender:Entry End
 Suiteが実行されるトリガは何でしょうか?

 これらを選択した場合、[Business Calender]の選択が必要かと思ったのですが
 Suite Schedule フォームには、[Business Calender] を選択・指定するフィールドがありません

よろしくお願いいたします





3 ACCEPTED SOLUTIONS

Hi @Suyong



1. Periodically
    [Repeat Interval] を Days, Hours を指定することができますが、指定したDays, Hours の間隔で繰り返し

 実行される、で認識合ってますでしょうか?

Yes, 100%, so like you want to send e report after every 5 days then you can use this option

2. Once
 1回のみ実行する、ということは分かったのですが、この場合、Suiteが実行されるトリガは何でしょうか?

Atul: Like you want only once in a year might on 31st dec or 1st jan you can set that date



3. Ondemand
 [Ondemand]を選択した場合、Suiteを実行するトリガは、何でしょうか?

Atul: This option can be run whenever needed, but it will always require a manual click to execute.





********

Time interval to use for running the scheduled job:

  • Daily: Runs daily, at a designated time.
  • Weekly: Runs on a weekly basis, at a designated time and day of the week.
  • Monthly: Runs on a monthly basis, at a designated time and day of the month.
  • Periodically: Runs on a designated repeating interval.
  • Once: Runs for a single occurrence only.
  • On Demand: Runs immediately on demand.
  • Business Calendar: Entry Start: Runs on the starting entry dates for the business calendar that you select in the Business Calendar field. A scheduled job runs for the starting date of each of the business entries that you defined for the business calendar.

    For example, if the business calendar represents a fiscal year, and the starting date of each entry is a fiscal month, the scheduled job runs on the first day of each month.

  • Business Calendar: Entry End: Runs for the ending date for the business calendar that you select in the Business Calendar field. This selection runs in the same manner as Business Calendar: Entry Start, but for the end dates of the associated business calendar entries.
    Note: When you select Business Calendar: Entry Start or Business Calendar: Entry End, you can apply an offset factor to schedule the job to run before or after the time span of the selected business calendar. If you select a business calendar and all its business calendar spans are in the past, the job would never run as this is an invalid configuration. To learn more, see the Offset type and Offset fields.

    To learn more about creating and using business calendars and defining business calendar entries, see Creating business calendars andDefine business calendar entries.

*************************************************************************************************************
If my response proves useful, please indicate its helpfulness by selecting " Accept as Solution" and " Helpful." This action benefits both the community and me.

Regards
Dr. Atul G. - Learn N Grow Together
ServiceNow Techno - Functional Trainer
LinkedIn: https://www.linkedin.com/in/dratulgrover
YouTube: https://www.youtube.com/@LearnNGrowTogetherwithAtulG
Topmate: https://topmate.io/atul_grover_lng [ Connect for 1-1 Session]

****************************************************************************************************************

View solution in original post

Hi @Suyong

You can accept this answer as the solution since it helped you understand the concept.

*************************************************************************************************************
If my response proves useful, please indicate its helpfulness by selecting " Accept as Solution" and " Helpful." This action benefits both the community and me.

Regards
Dr. Atul G. - Learn N Grow Together
ServiceNow Techno - Functional Trainer
LinkedIn: https://www.linkedin.com/in/dratulgrover
YouTube: https://www.youtube.com/@LearnNGrowTogetherwithAtulG
Topmate: https://topmate.io/atul_grover_lng [ Connect for 1-1 Session]

****************************************************************************************************************

View solution in original post

Hi @Dr Atul G- LNG

回答ありがとうございました
内容、理解しました

回答いただいた内容え、トライしてみます
⇒本件、CLOSEします

ありがとうございました

View solution in original post

7 REPLIES 7

Dr Atul G- LNG
Tera Patron
Tera Patron

Hi @Suyong

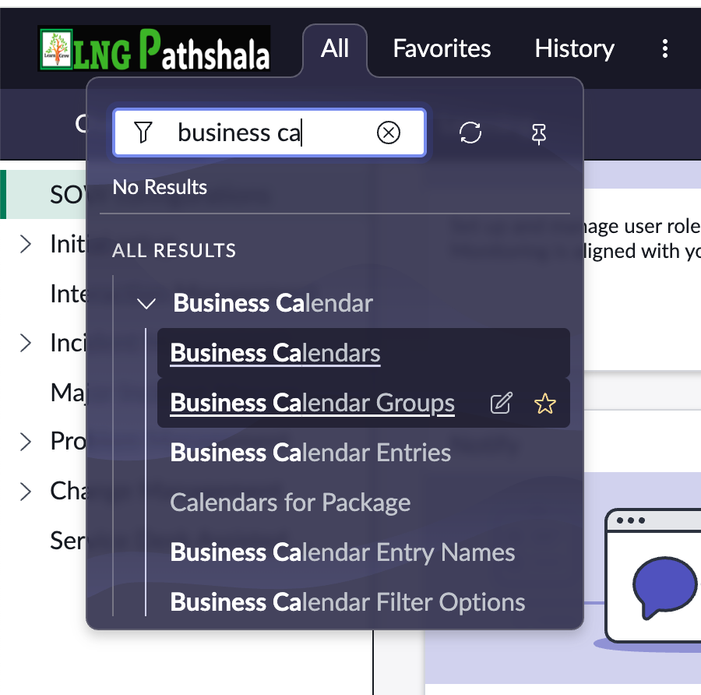

Regarding points 4 and 5 — the Business Calendar refers to the OOTB (Out of the Box) business calendar, where you define the schedule.
Have a look here for reference.



https://www.servicenow.com/docs/bundle/yokohama-platform-administration/page/administer/time/task/de...






*************************************************************************************************************
If my response proves useful, please indicate its helpfulness by selecting " Accept as Solution" and " Helpful." This action benefits both the community and me.

Regards
Dr. Atul G. - Learn N Grow Together
ServiceNow Techno - Functional Trainer
LinkedIn: https://www.linkedin.com/in/dratulgrover
YouTube: https://www.youtube.com/@LearnNGrowTogetherwithAtulG
Topmate: https://topmate.io/atul_grover_lng [ Connect for 1-1 Session]

****************************************************************************************************************

Dr Atul G- LNG さん
 Business Calenderについて、回答いただき

ありがとうございます!

参考にいたします
ありがとうございました





Hi @Suyong

Thanks for the update. Please go ahead and close the thread.

更新情報をありがとうございます。スレッドを閉じてください。



*************************************************************************************************************
If my response proves useful, please indicate its helpfulness by selecting " Accept as Solution" and " Helpful." This action benefits both the community and me.

Regards
Dr. Atul G. - Learn N Grow Together
ServiceNow Techno - Functional Trainer
LinkedIn: https://www.linkedin.com/in/dratulgrover
YouTube: https://www.youtube.com/@LearnNGrowTogetherwithAtulG
Topmate: https://topmate.io/atul_grover_lng [ Connect for 1-1 Session]

****************************************************************************************************************

Dr Atul G- LNG さん

私の質問 No.1~5の内、No.4と5について、回答いただきましたが、
No.1~3については、何かわかりますでしょうか?
